McClane
Lawn Edger

Model # 101-2R7 Official McClane edge trimmer

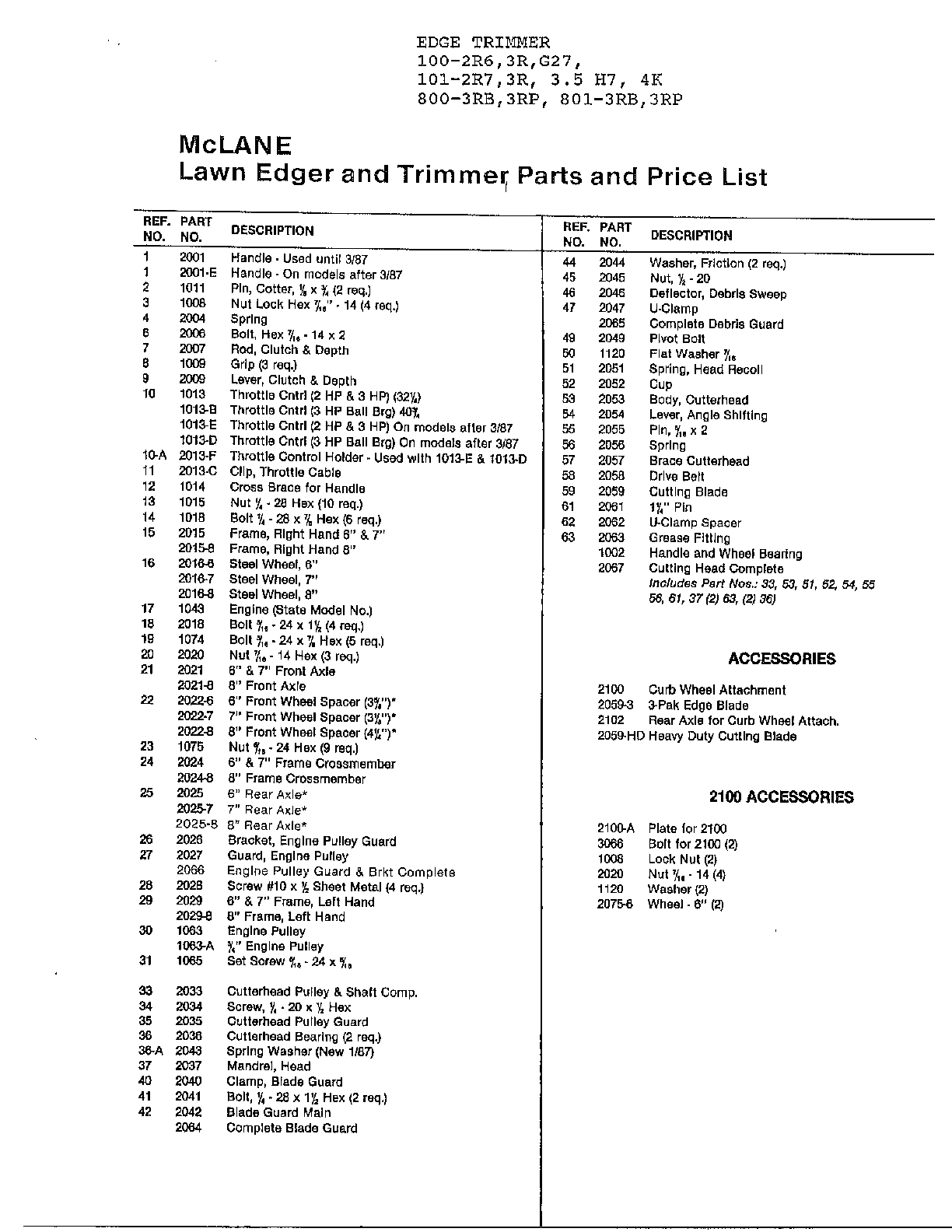

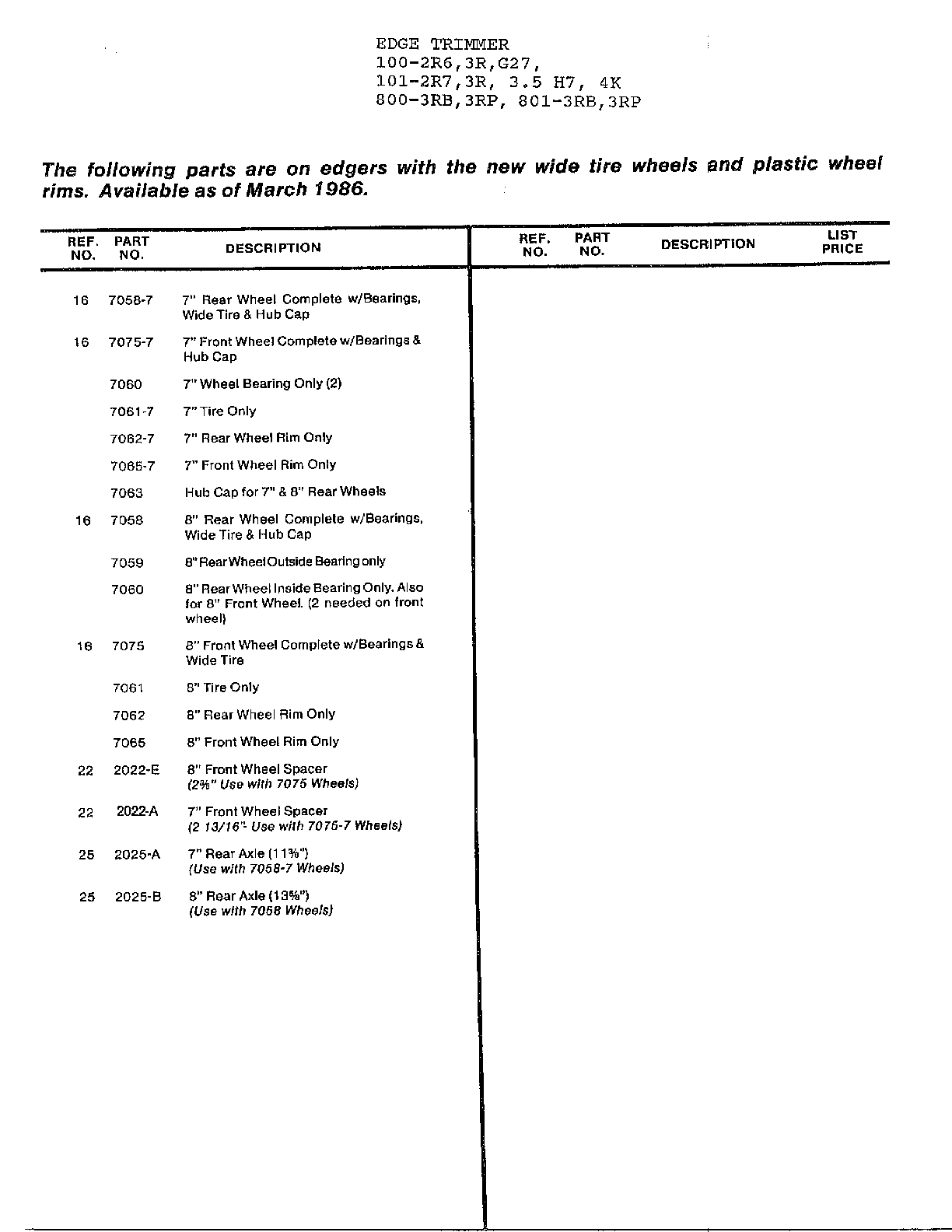

Here are the diagrams and repair parts for Official McClane 101-2R7 edge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

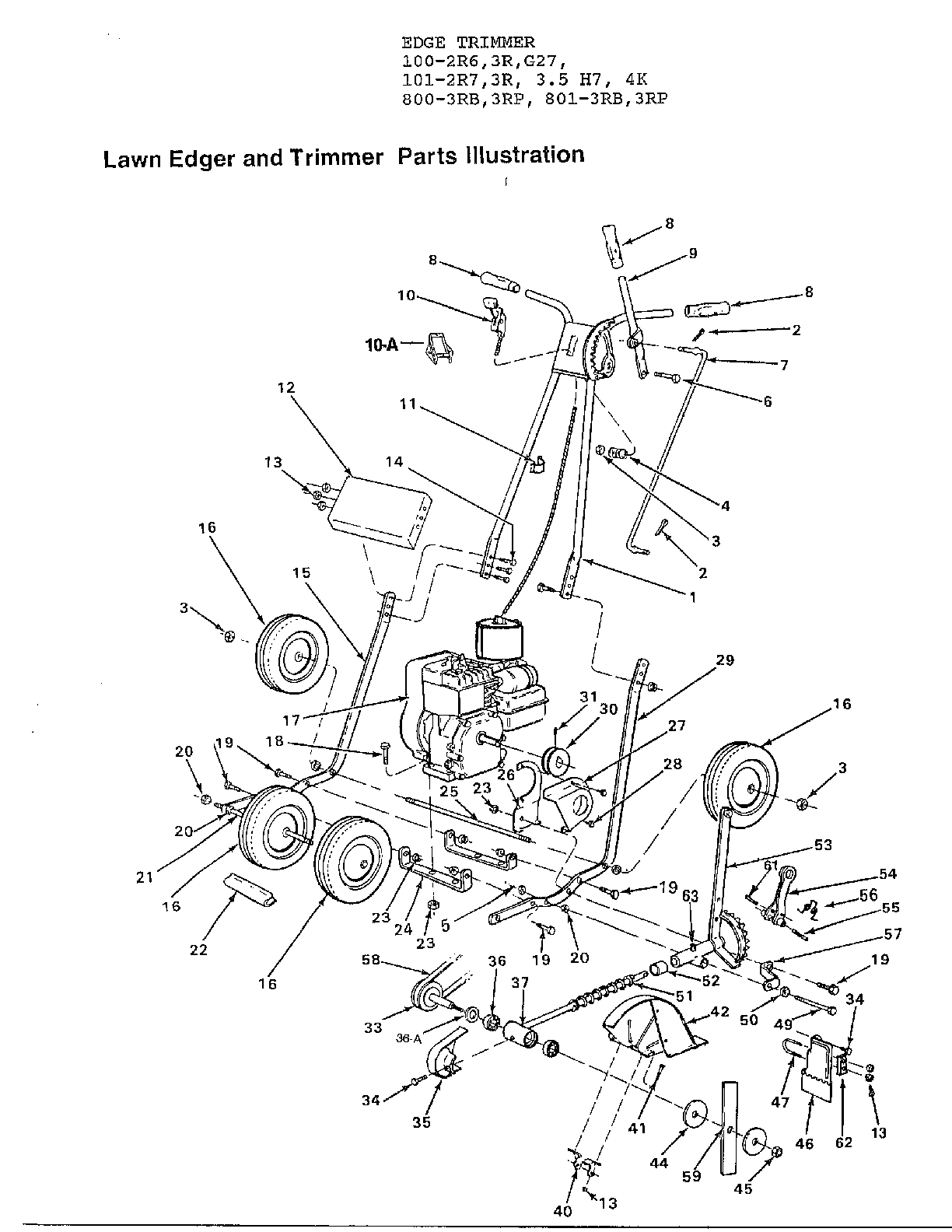

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |

Cotter Pin 1011
Cotter pin

Part #1011

The manufacturer no longer makes this part, and there's no substitute part

Nut 1075
Nut

Part #1075

The manufacturer no longer makes this part, and there's no substitute part

Cup 2052
Cup

Part #2052

The manufacturer no longer makes this part, and there's no substitute part

Lawn Mower Handle 2001-E
Lawn mower handle

Part #2001-E

The manufacturer no longer makes this part, and there's no substitute part

Control 1013-E
Control

Part #1013-E

The manufacturer no longer makes this part, and there's no substitute part

Axle 2021-8
Axle

Part #2021-8

The manufacturer no longer makes this part, and there's no substitute part

Edger Grease Fitting 2063
Edger grease fitting

Part #2063

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Bolt 2018
Lawn & garden equipment bolt

Part #2018

The manufacturer no longer makes this part, and there's no substitute part

Frame 2015-8
Frame

Part #2015-8

The manufacturer no longer makes this part, and there's no substitute part

Edger Engine Pulley Guard 2026
Edger engine pulley guard

Part #2026

The manufacturer no longer makes this part, and there's no substitute part
