Model # CE35000AAT Official Crosley electric range

Here are the diagrams and repair parts for Official Crosley CE35000AAT electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

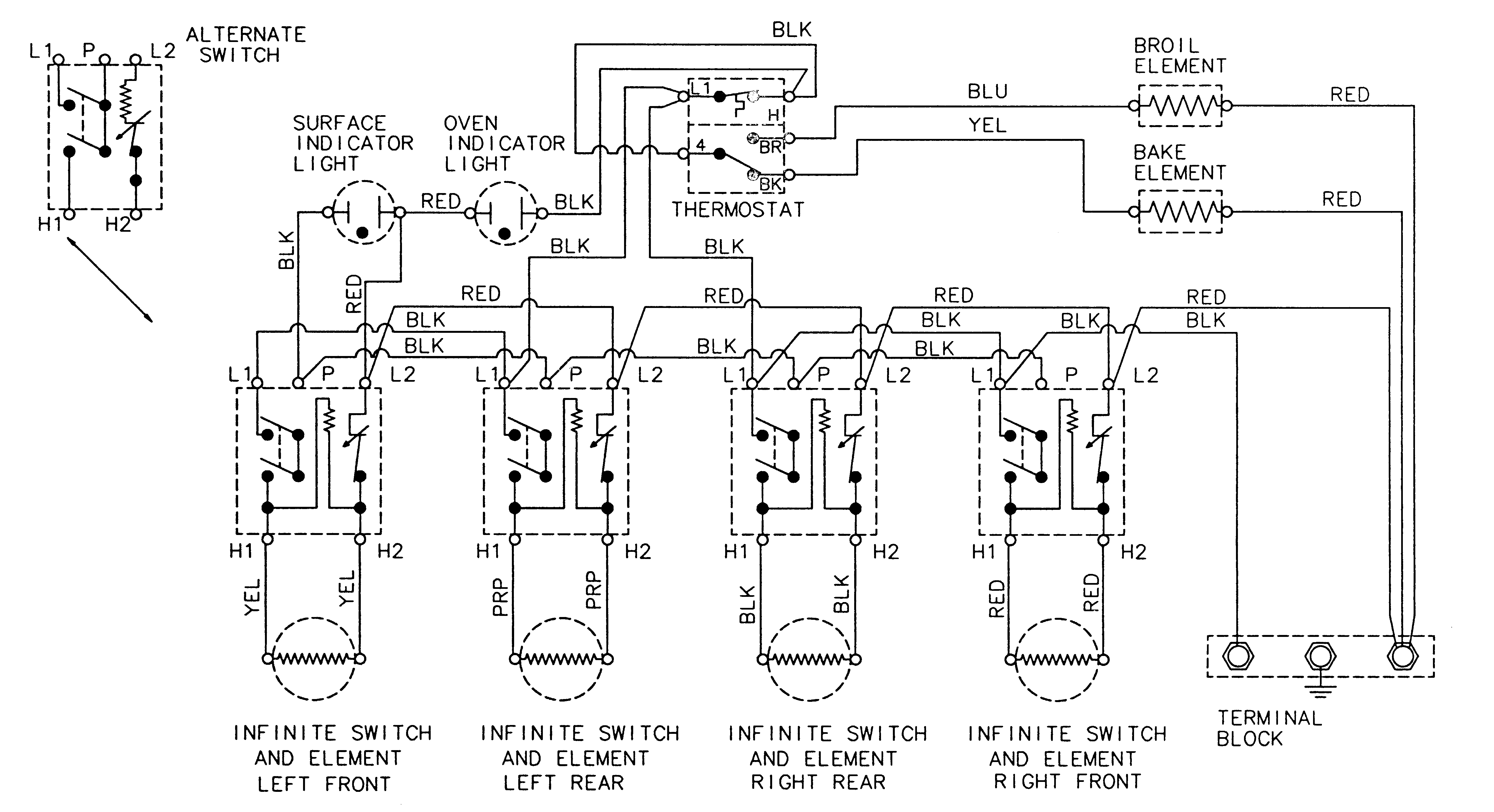

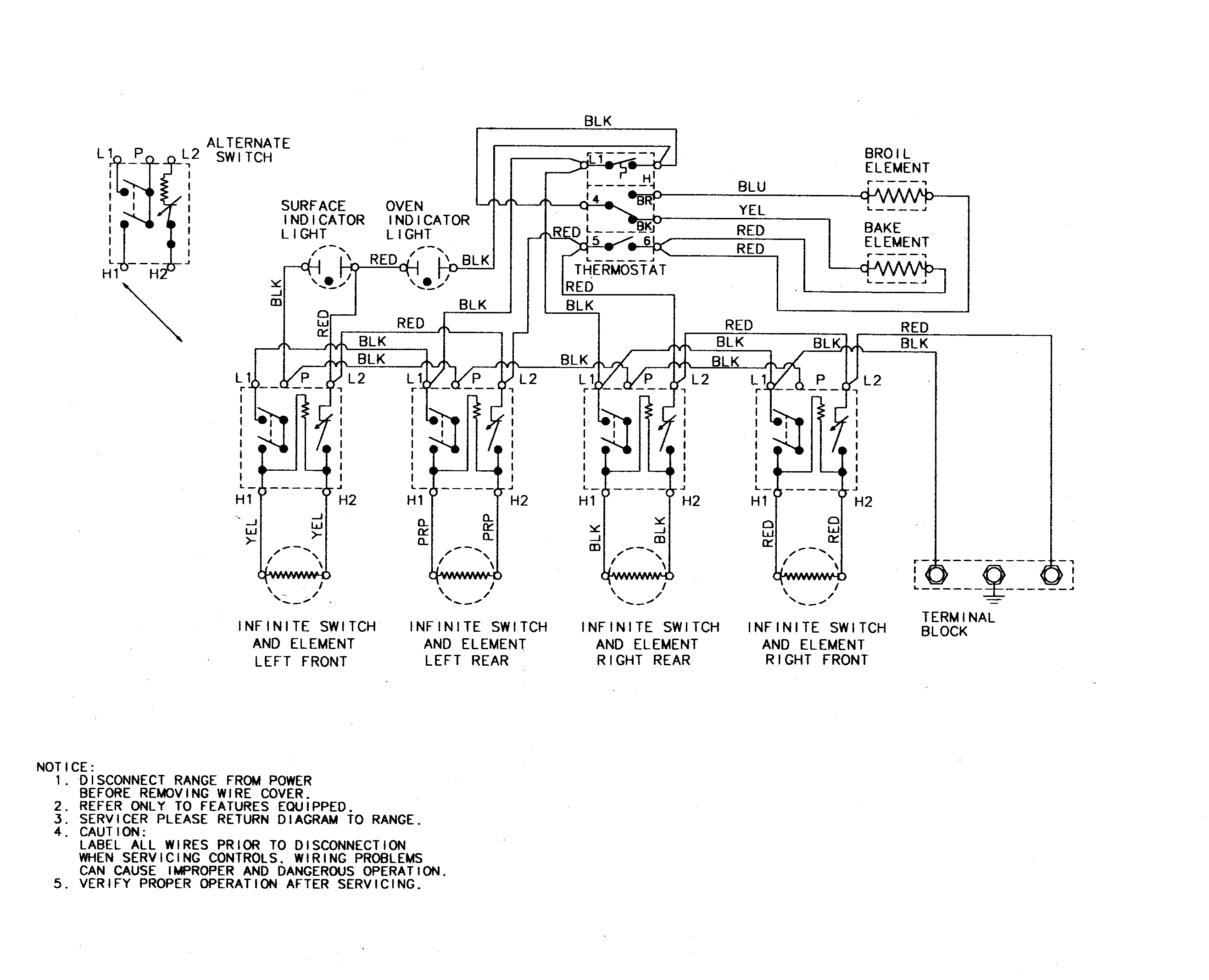

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |

Drip Bowl 74001213
#1

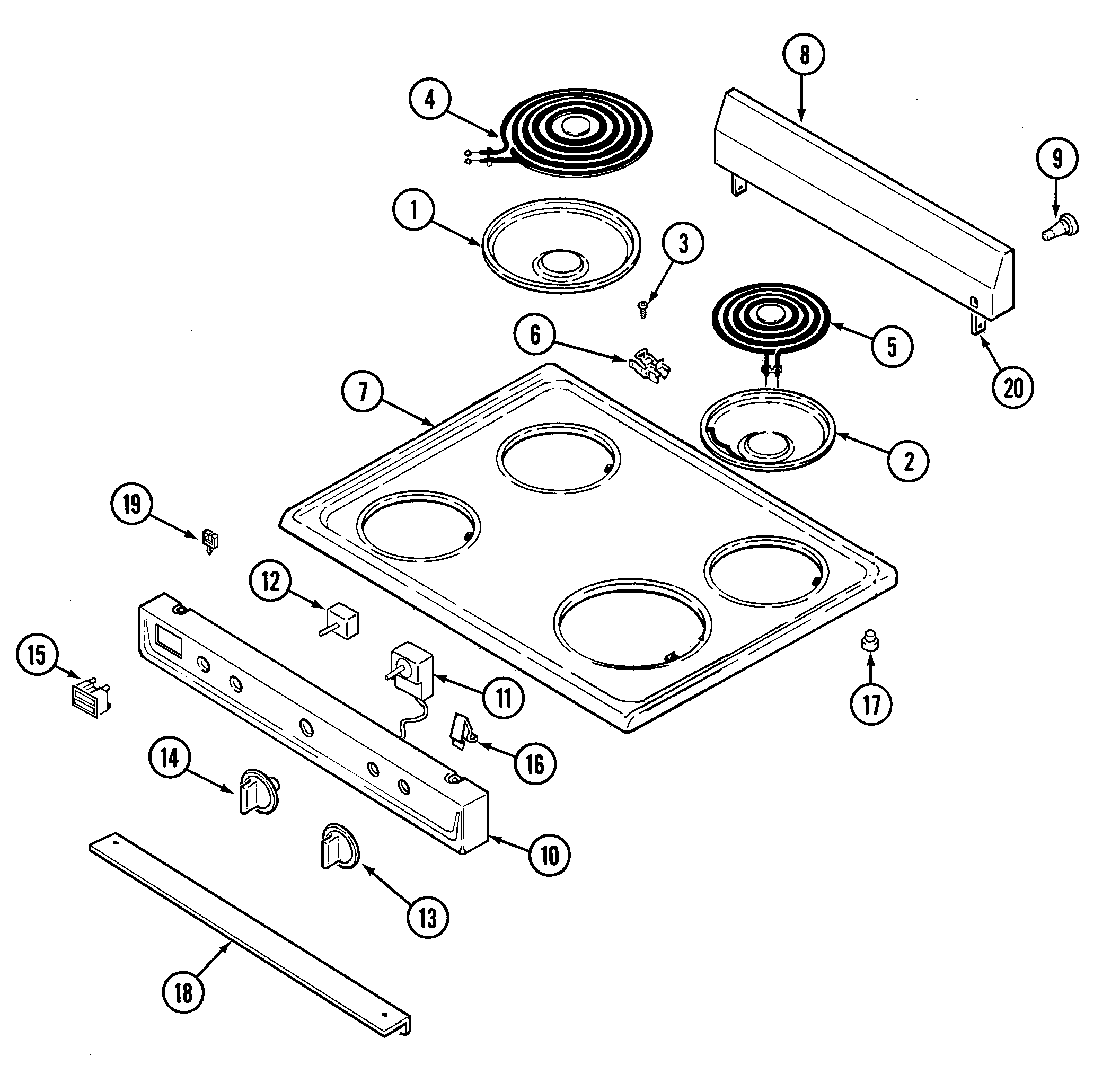

Control panel/top assembly diagram

Drip bowl

Part #74001213

Replaced by #WPW10196405

?
Manufacturer substitution
This part replaces 74001213. Substitute parts can look different from the original.
BEST SELLER
$8.52
11% OFF Phone Price : $9.52
In Stock
Screw 74002483
#4

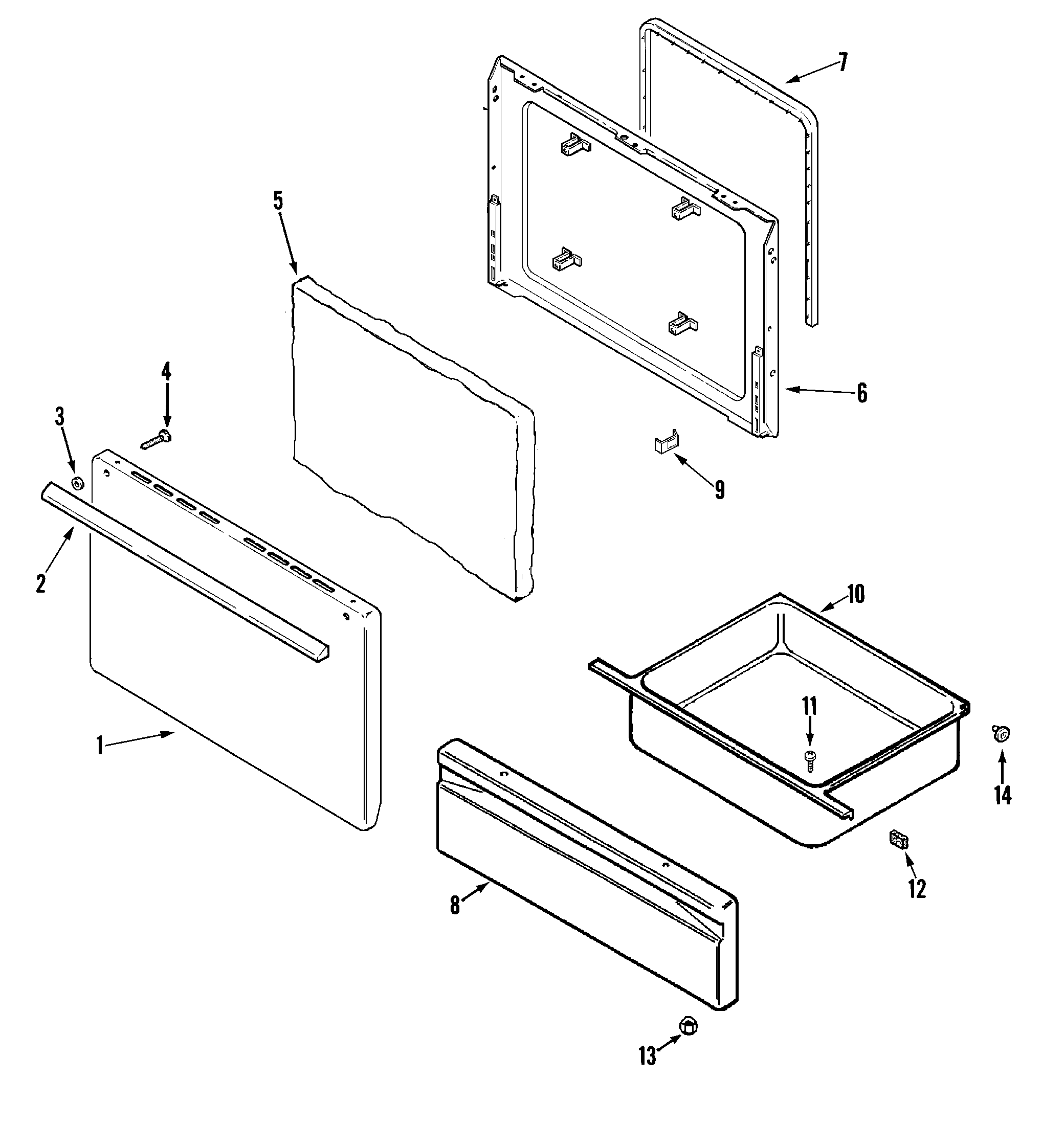

Door/drawer diagram

Screw

Part #74002483

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 74002483. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Drip Bowl 7725P015-60
#2A

Control panel/top assembly diagram

Drip bowl

Part #7725P015-60

Replaced by #WPW10196406

?
Manufacturer substitution
This part replaces 7725P015-60. Substitute parts can look different from the original.
BEST SELLER
$7.46
21% OFF MSRP : $9.50
In Stock
Terminal Block 7401P039-60
#18

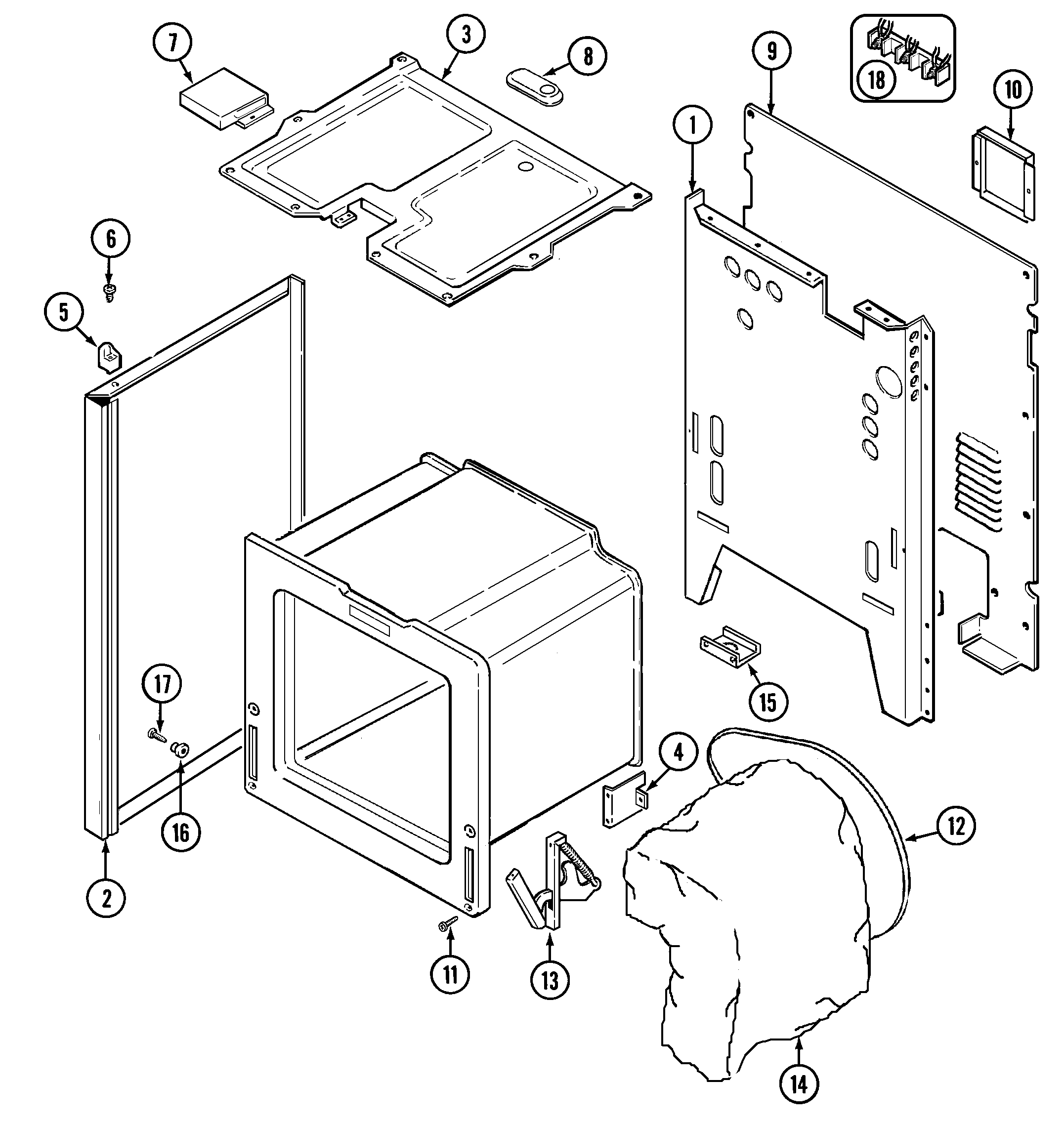

Body diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
BEST SELLER
$34.10
13% OFF Phone Price : $39.10
In Stock
Drip Bowl 74001212
#2

Control panel/top assembly diagram

Drip bowl

Part #74001212

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 74001212. Substitute parts can look different from the original.
$12.95
13% OFF Phone Price : $14.95
In Stock
Range Surface Element Control Switch 7403P239-60
#12A

Control panel/top assembly diagram

Range surface element control switch

Part #7403P239-60

Replaced by #WP7403P239-60

?
Manufacturer substitution
This part replaces 7403P239-60. Substitute parts can look different from the original.
$47.96
14% OFF MSRP : $56.00
In Stock
Oven Rack 74001757
#6

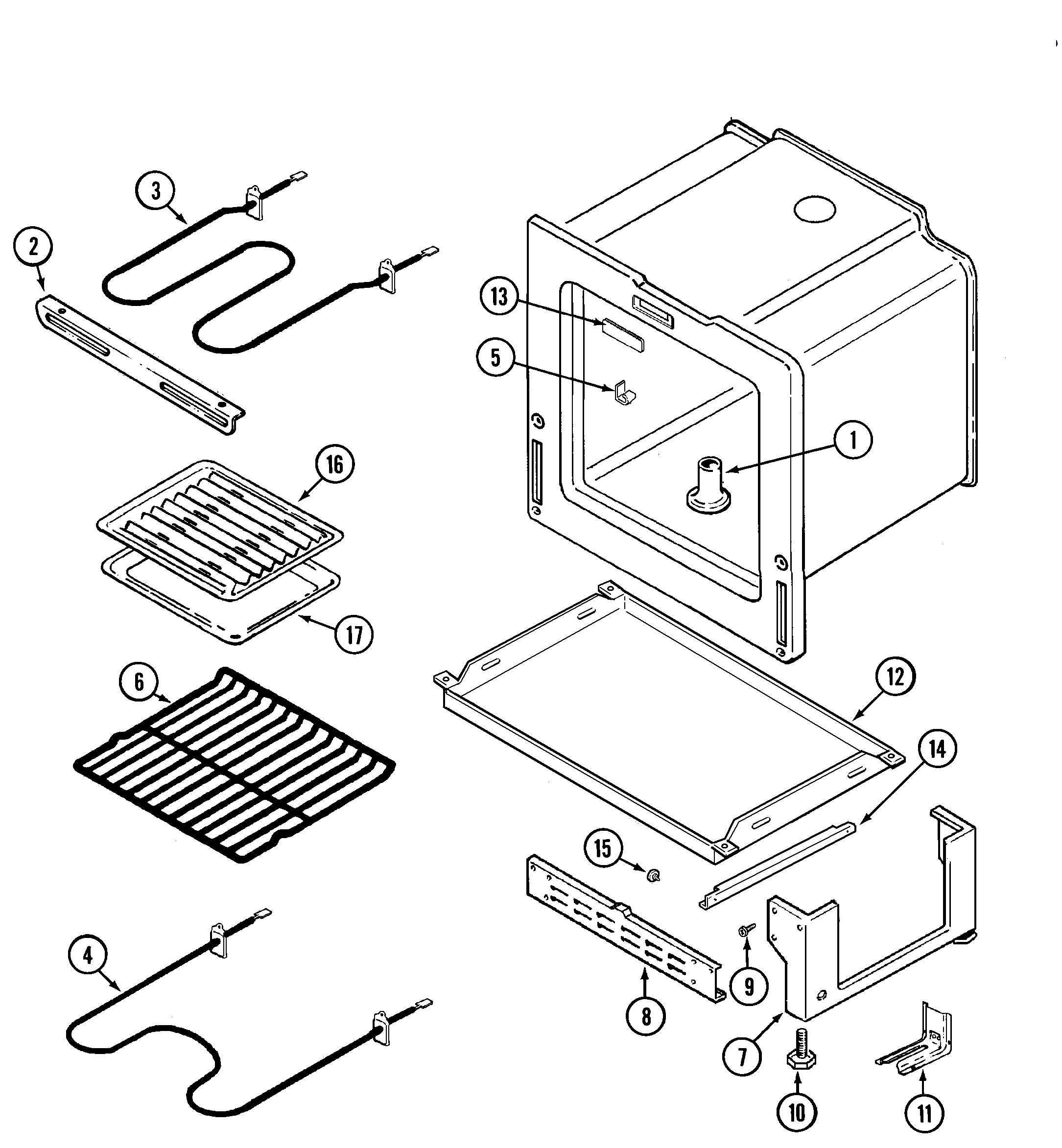

Oven/base diagram

Oven rack

Part #74001757

Replaced by #WPW10282492

?
Manufacturer substitution
This part replaces 74001757. Substitute parts can look different from the original.
$56.89
8% OFF Phone Price : $61.89
In Stock
Bracket, Ant 74002311
#11

Oven/base diagram

Bracket, ant

Part #74002311

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 74002311. Substitute parts can look different from the original.
This item is not returnable
$5.03
17% OFF Phone Price : $6.03
In Stock
Range Surface Element Control Switch 7403P238-60
#12

Control panel/top assembly diagram

Range surface element control switch

Part #7403P238-60

Replaced by #WP7403P238-60

?
Manufacturer substitution
This part replaces 7403P238-60. Substitute parts can look different from the original.
$50.39
16% OFF MSRP : $60.00
In Stock
Screw 74001530
Screw

Part #74001530

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79
11% OFF Phone Price : $18.79
In Stock

Most common symptoms to help you fix your ranges

Choose a symptom to see related range repairs.

Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…

Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…

Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…

Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…

Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…

Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…

Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
