GE PTG22LBSARWW refrigerator - s series Parts
Here are the diagrams and repair parts for GE PTG22LBSARWW refrigerator - s series, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

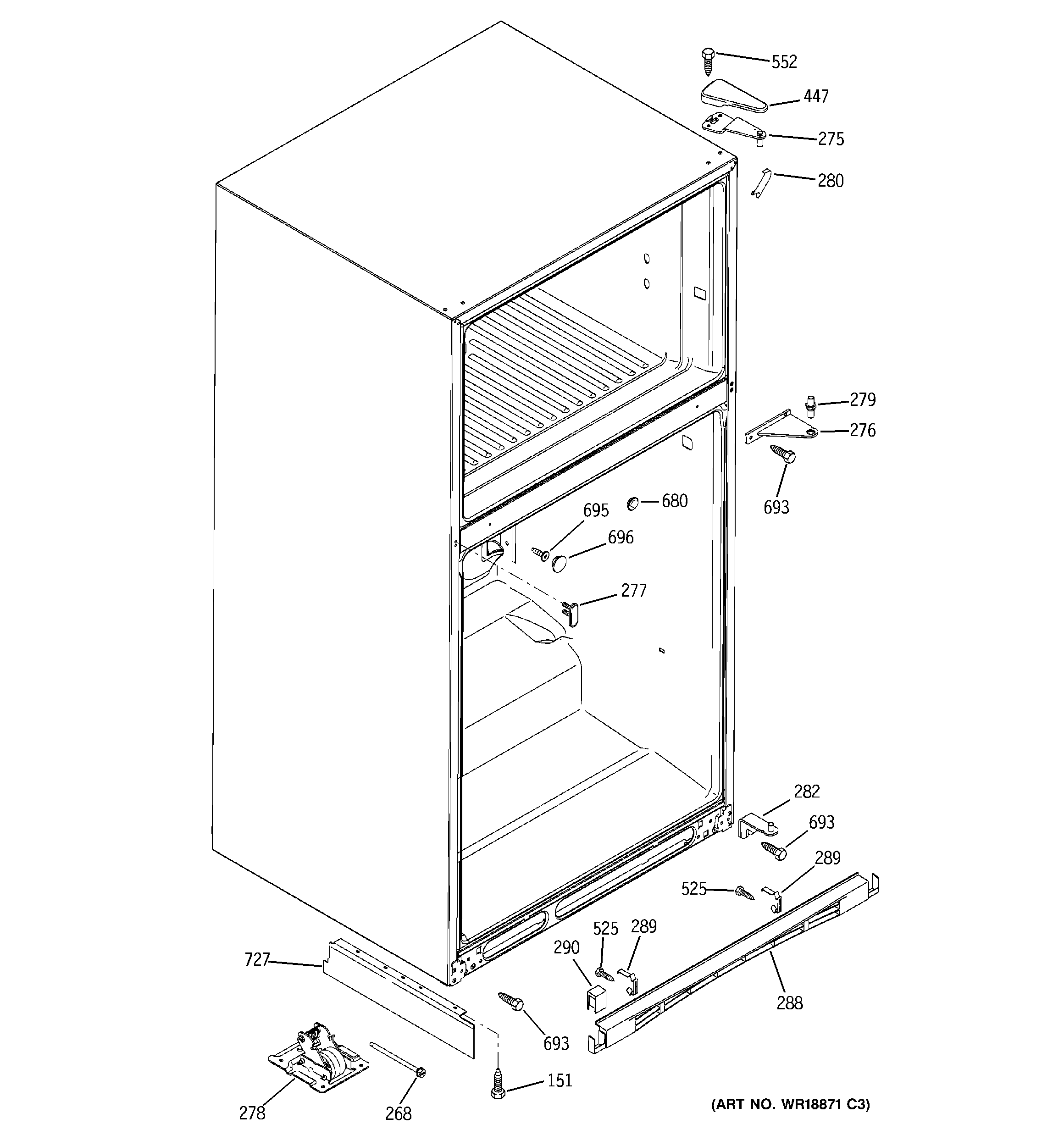

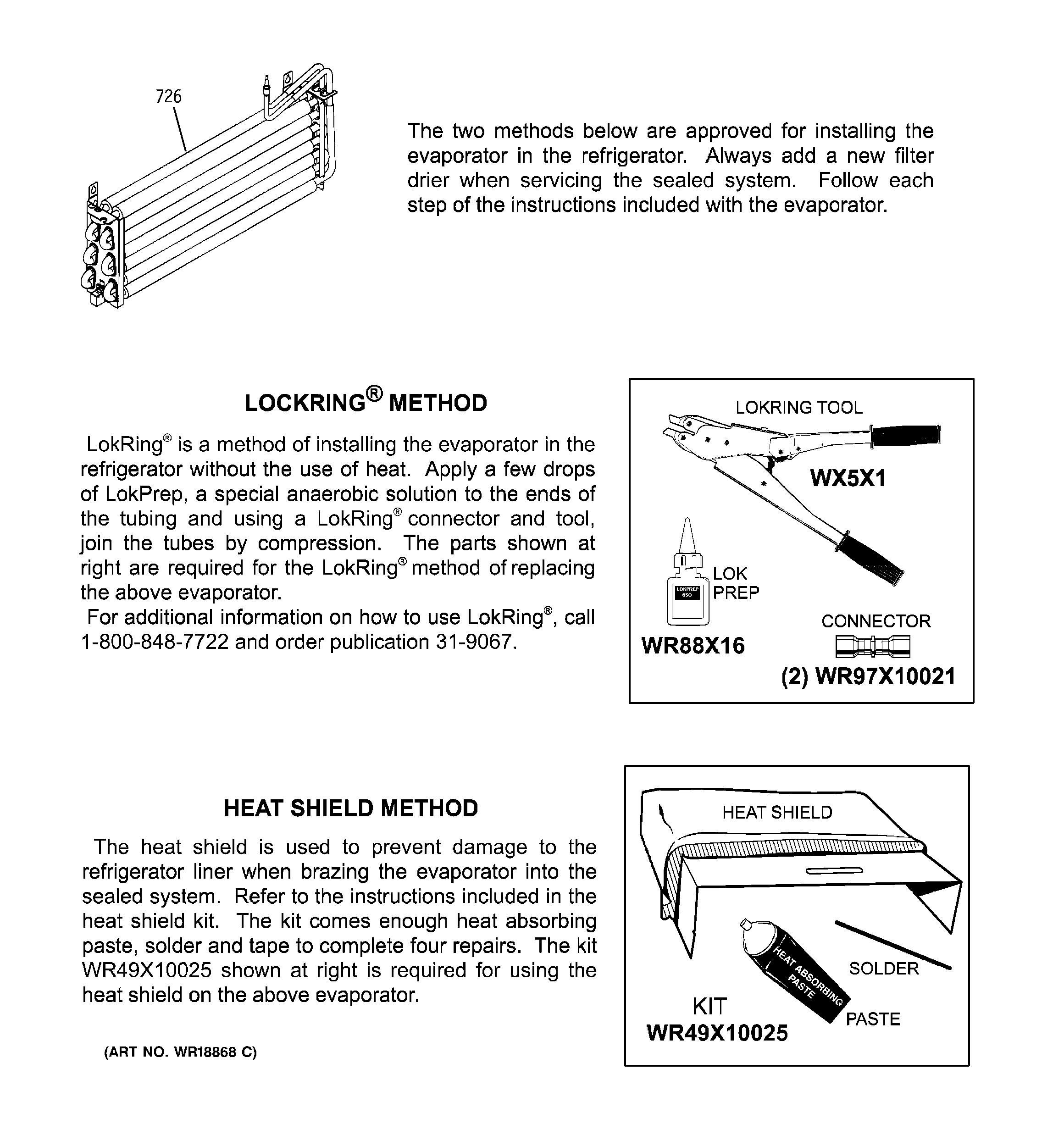

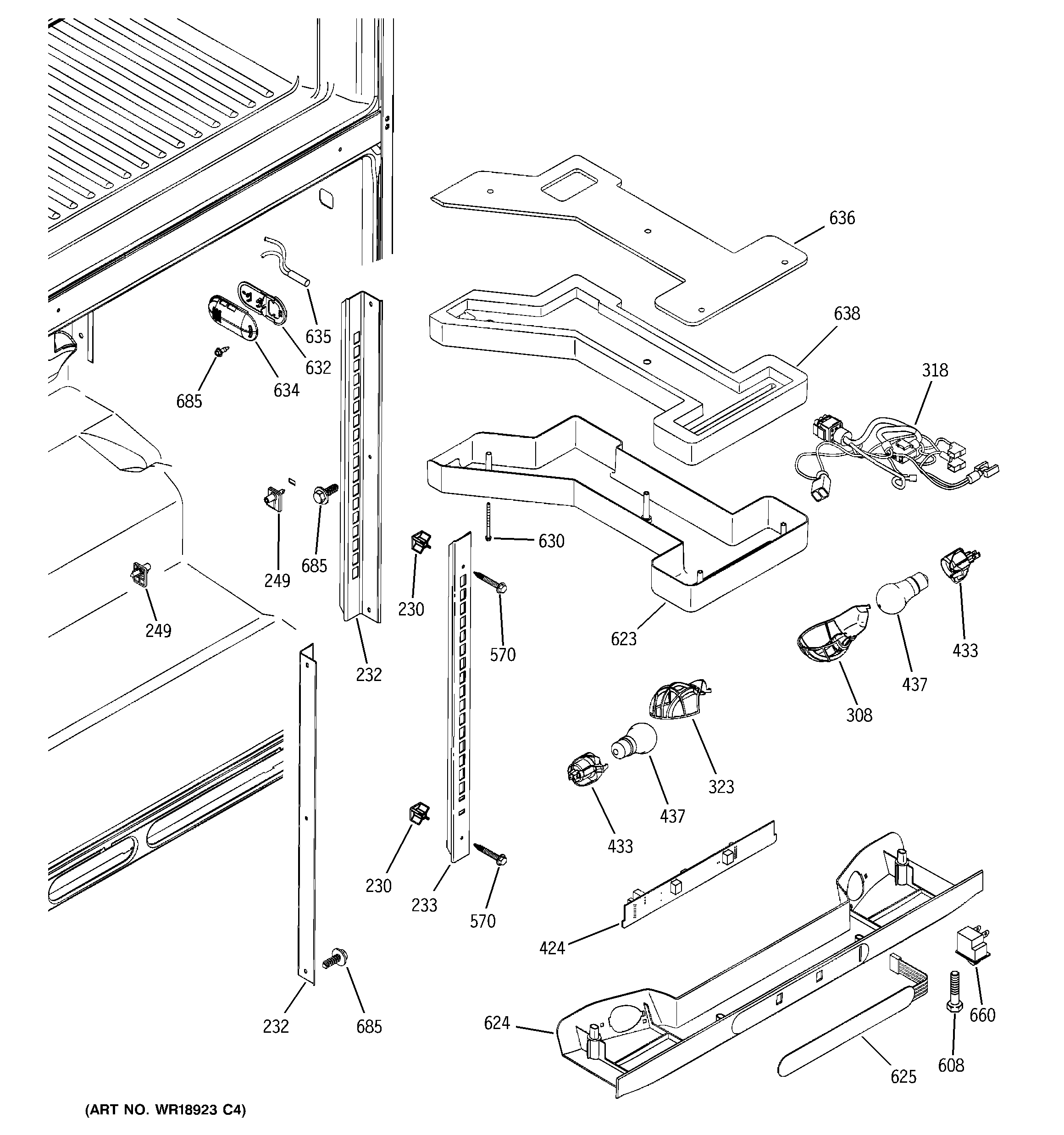

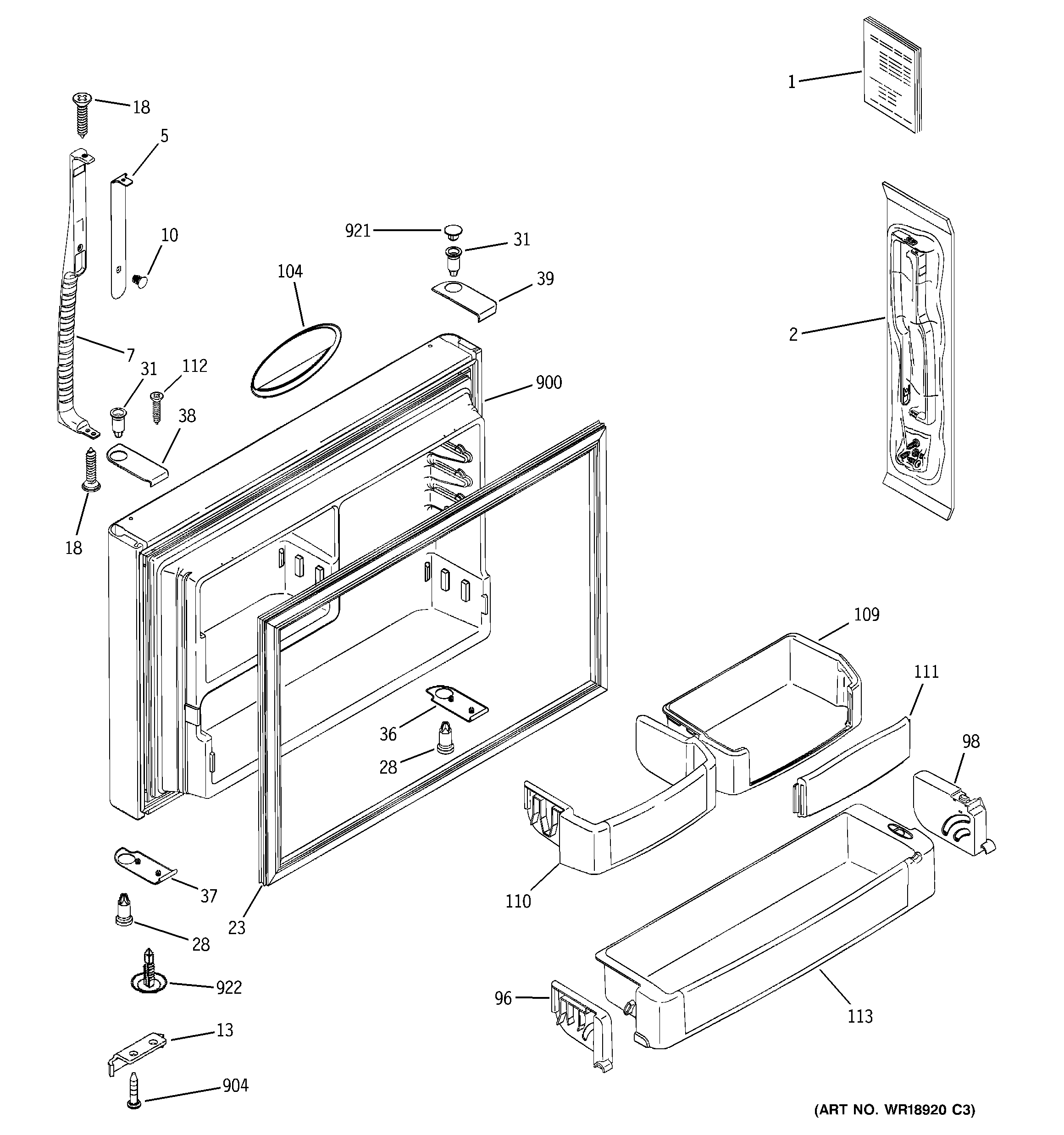

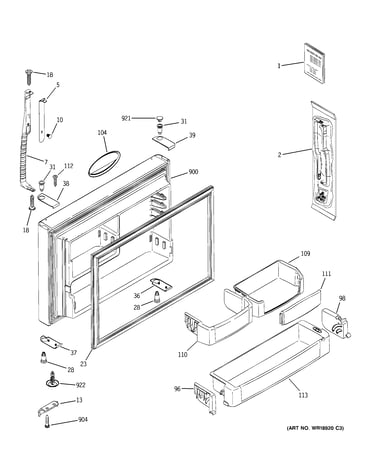

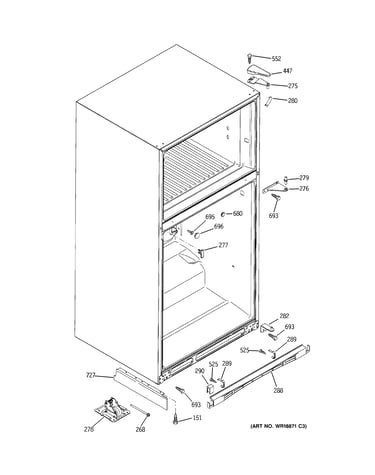

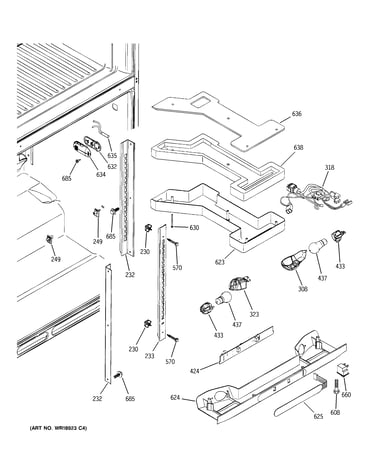

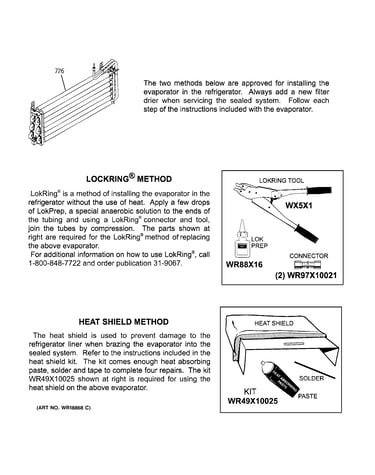

Browse Parts for PTG22LBSARWW Refrigerators

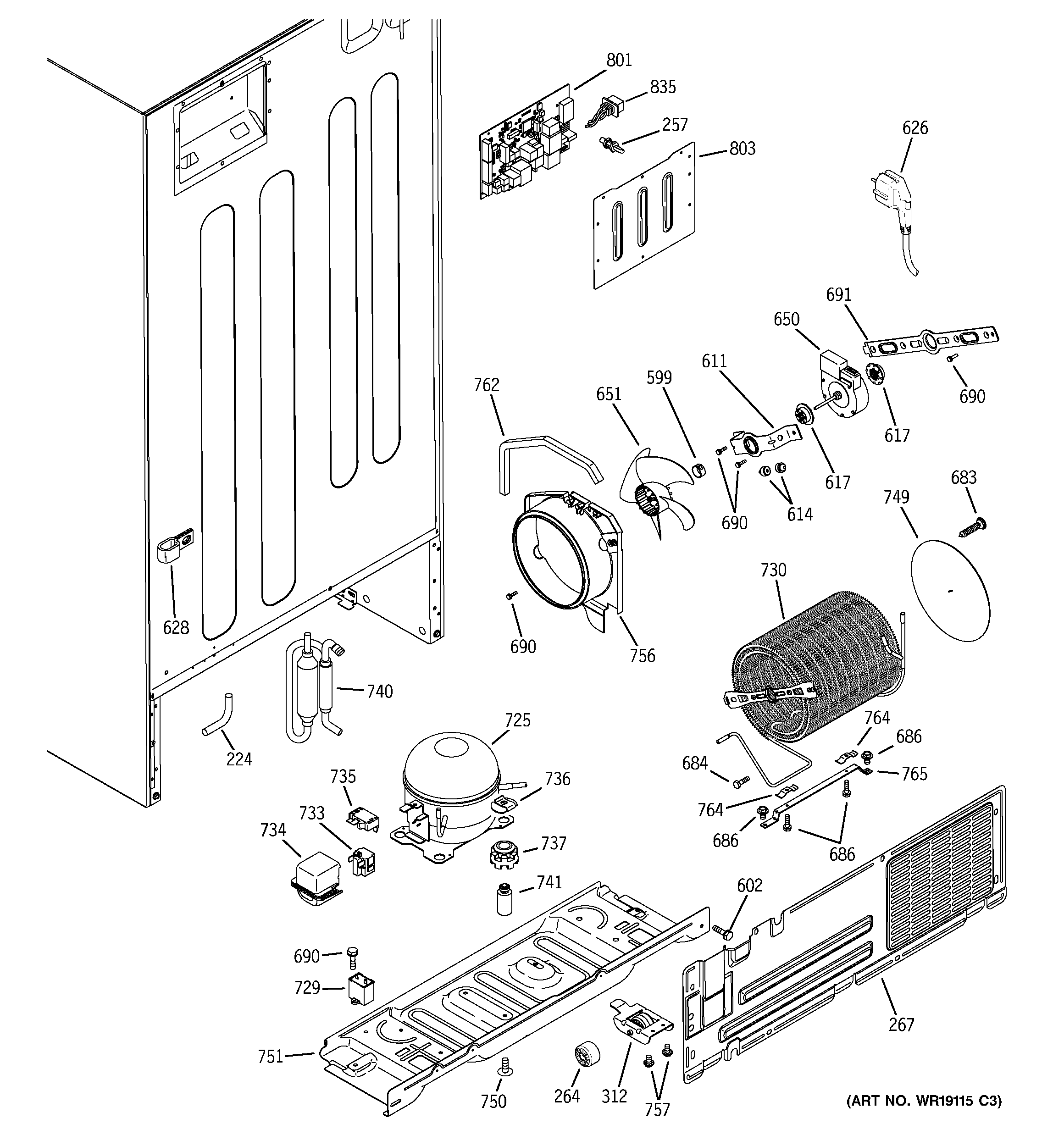

Sealed system & mother board diagram
Dryer Filter
Part #WR86X0096Replaced by #WR86X25269
Manufacturer substitutionThis part replaces WR86X0096. Substitute parts can look different from the original.In Stock$46.3645% OFF Was : $83.96
Qty

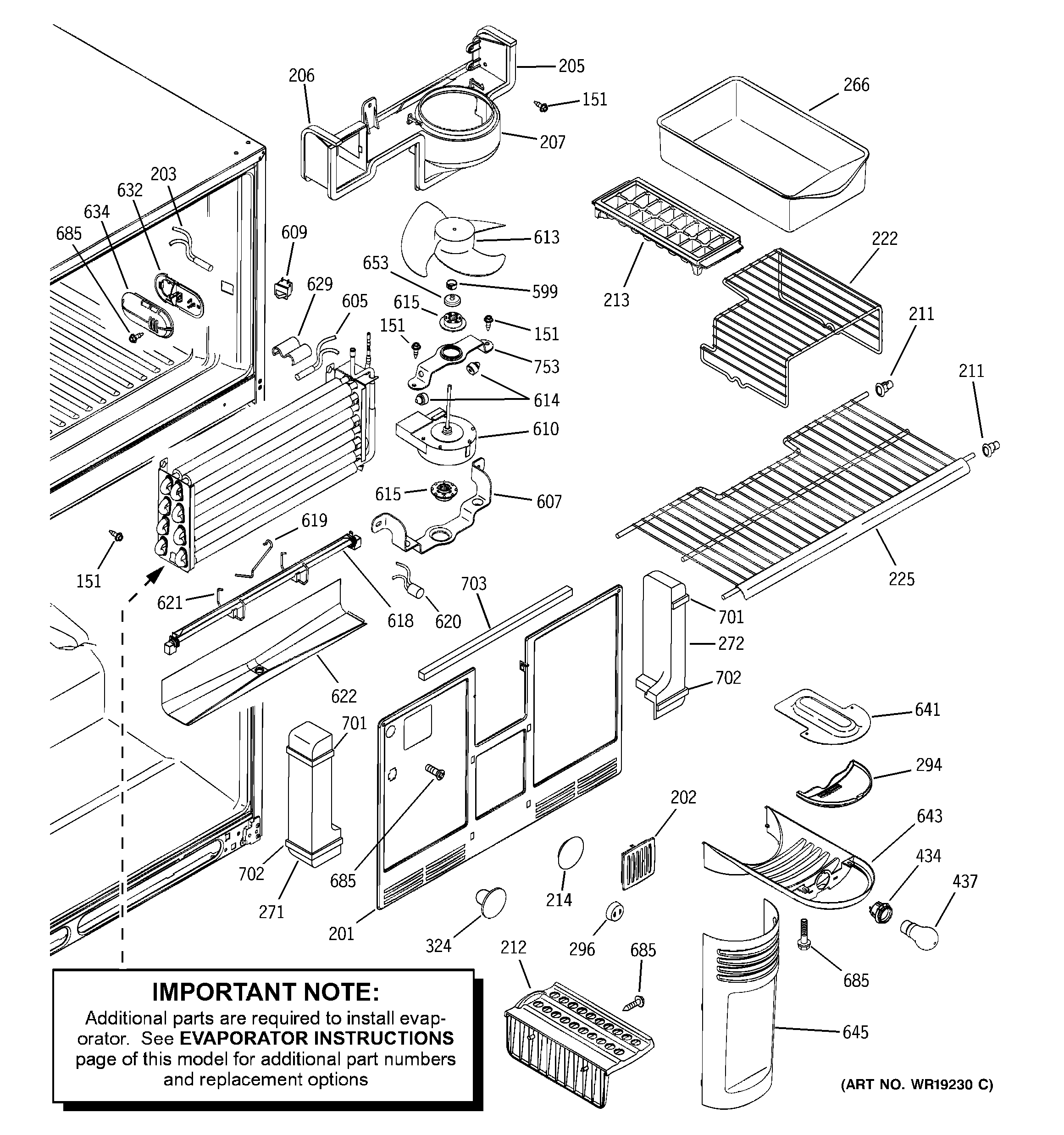

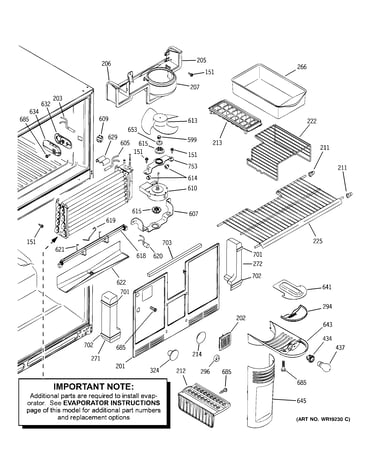

Freezer section diagram
Refrigerator Evaporator Fan Motor Grommet
Part #WR02X10519Replaced by #WR02X12008

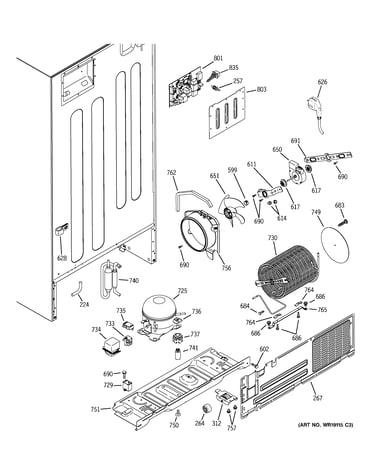

Manufacturer substitutionThis part replaces WR02X10519. Substitute parts can look different from the original.In Stock$42.9812% OFF Phone Price : $48.98QtySealed system & mother board diagram
Motor Dc Con
Part #WR60X10080Replaced by #WR60X10209
Manufacturer substitutionThis part replaces WR60X10080. Substitute parts can look different from the original.In Stock$70.228% OFF Phone Price : $76.22QtySealed system & mother board diagram
Ge Profile Refrigerator Condenser Coil
In Stock$466.36$12.00 OFF Phone Price : $478.36QtyFreezer section diagram
Defrost Eco
Part #WR50X10021Replaced by #WR50X10071
Manufacturer substitutionThis part replaces WR50X10021. Substitute parts can look different from the original.This item is not returnableIn Stock$28.5317% OFF Phone Price : $34.53QtyFreezer section diagram
Evaporator Fan Blade
Part #WR60X10055Replaced by #WR60X10205
Manufacturer substitutionThis part replaces WR60X10055. Substitute parts can look different from the original.In Stock$17.9910% OFF Phone Price : $19.99QtyRing Compres
Part #WR02X10509Replaced by #WR02X12149

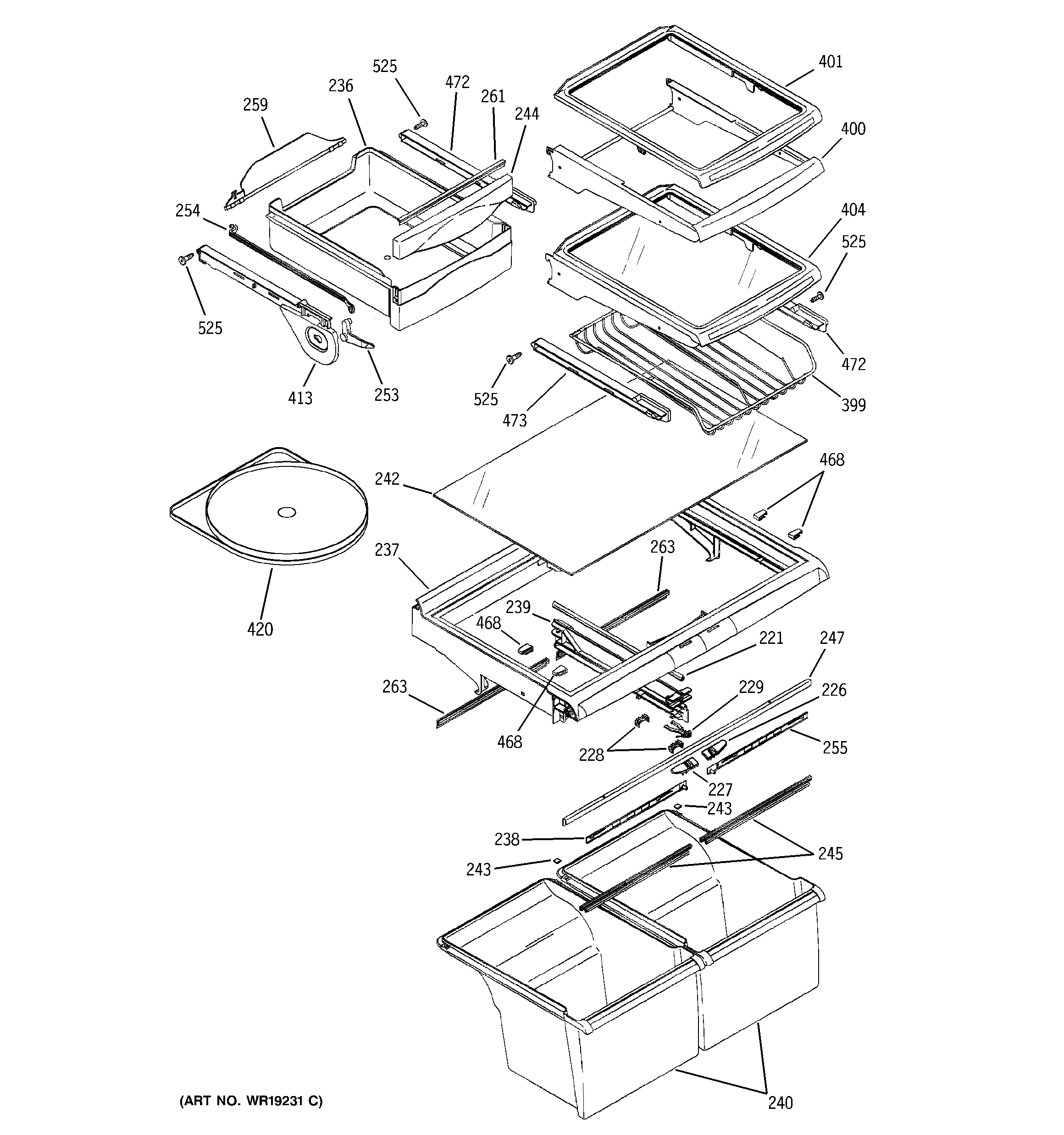

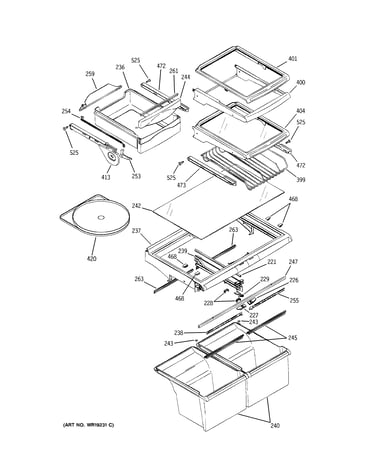

Manufacturer substitutionThis part replaces WR02X10509. Substitute parts can look different from the original.This item is not returnableIn Stock$9.0110% OFF Phone Price : $10.01QtyFresh food shelves diagram
Refrigerator Crisper Pan Rail Slide Bearing
Part #WR01X2048Replaced by #WR1X2048
Manufacturer substitutionThis part replaces WR01X2048. Substitute parts can look different from the original.In Stock$11.0215% OFF Phone Price : $13.02QtyFreezer section diagram
Refrigerator Evaporator Fan Motor Bracket, Lower

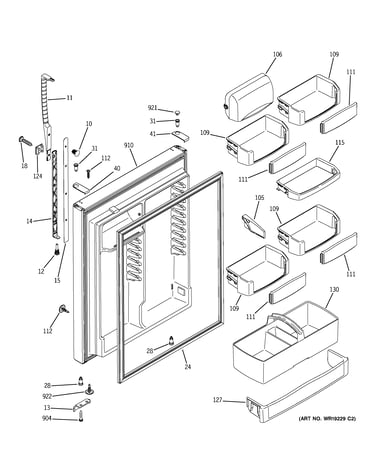

In Stock$11.6415% OFF Phone Price : $13.64QtyFresh food door diagram

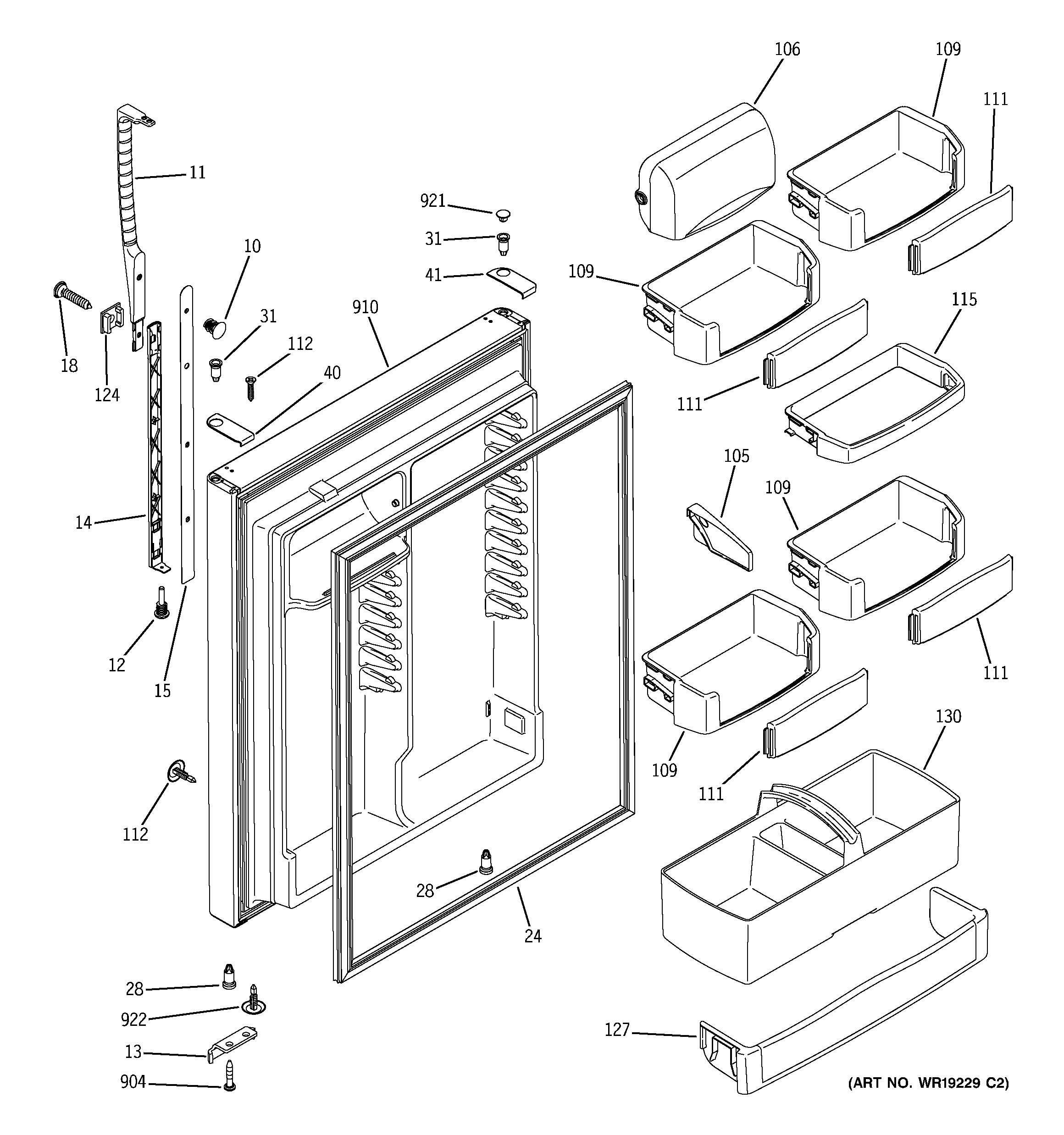

Refrigerator Door Gasket (white)
In Stock$161.617% OFF Phone Price : $173.61Qty
