Electrolux
Bottom-Mount Refrigerator

Model # ERMC2295AS Official Electrolux refrigerator

Here are the diagrams and repair parts for Official Electrolux ERMC2295AS refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

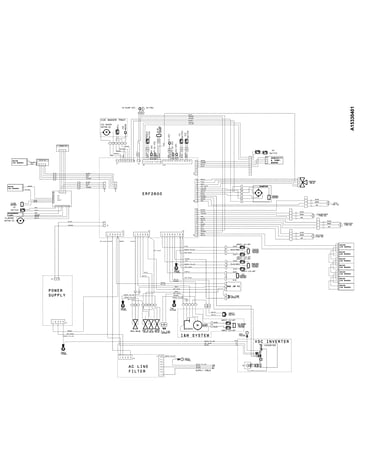

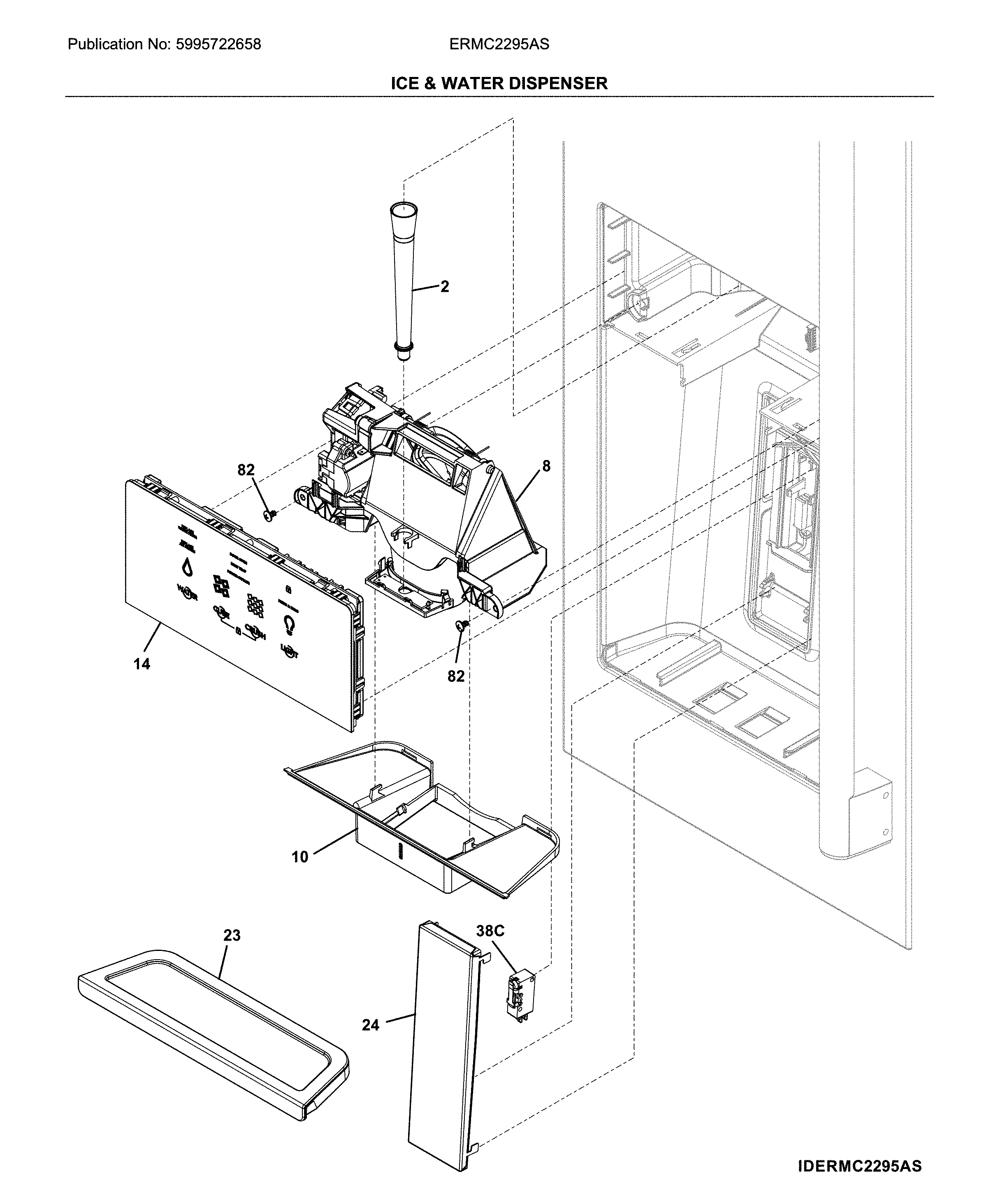

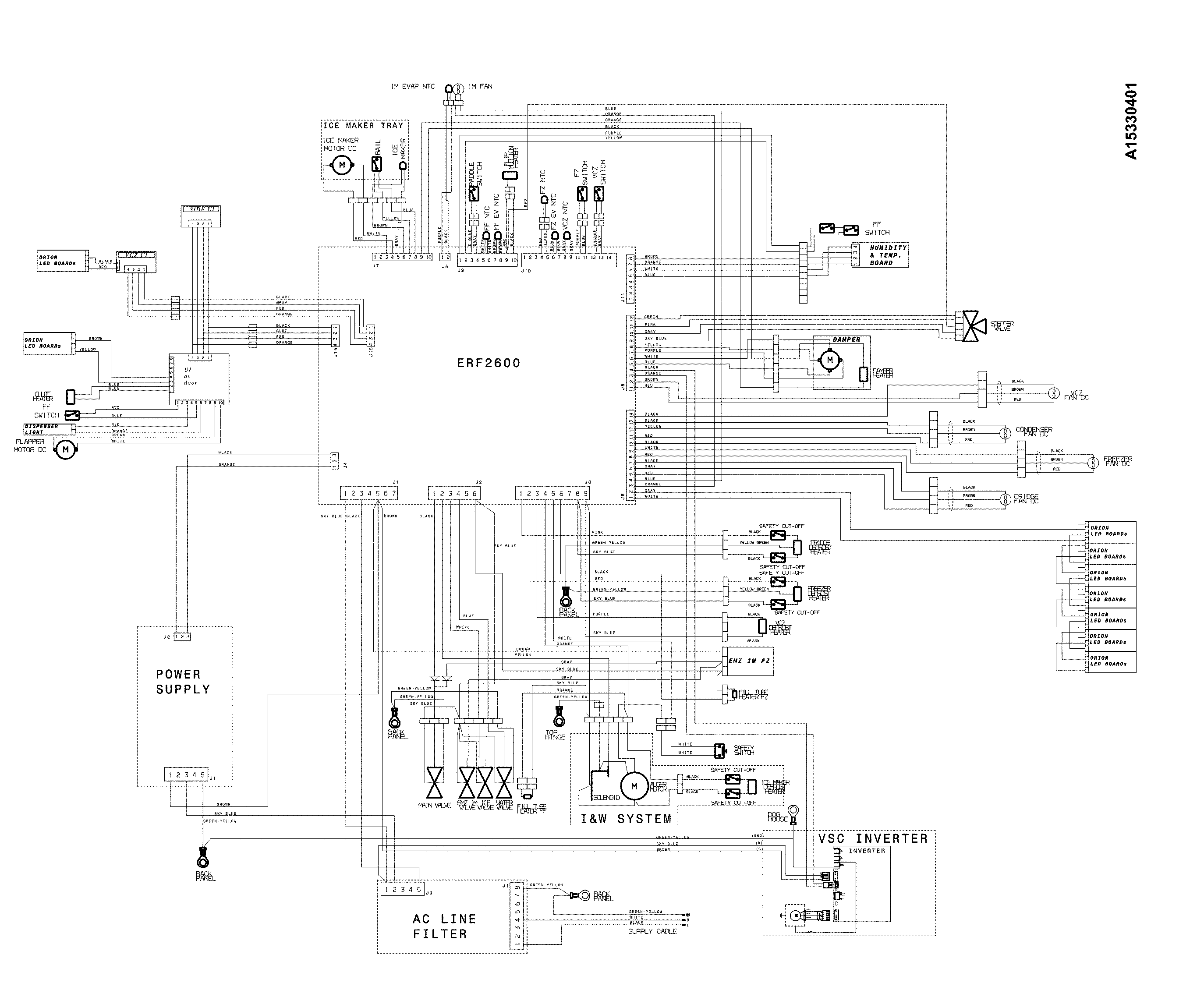

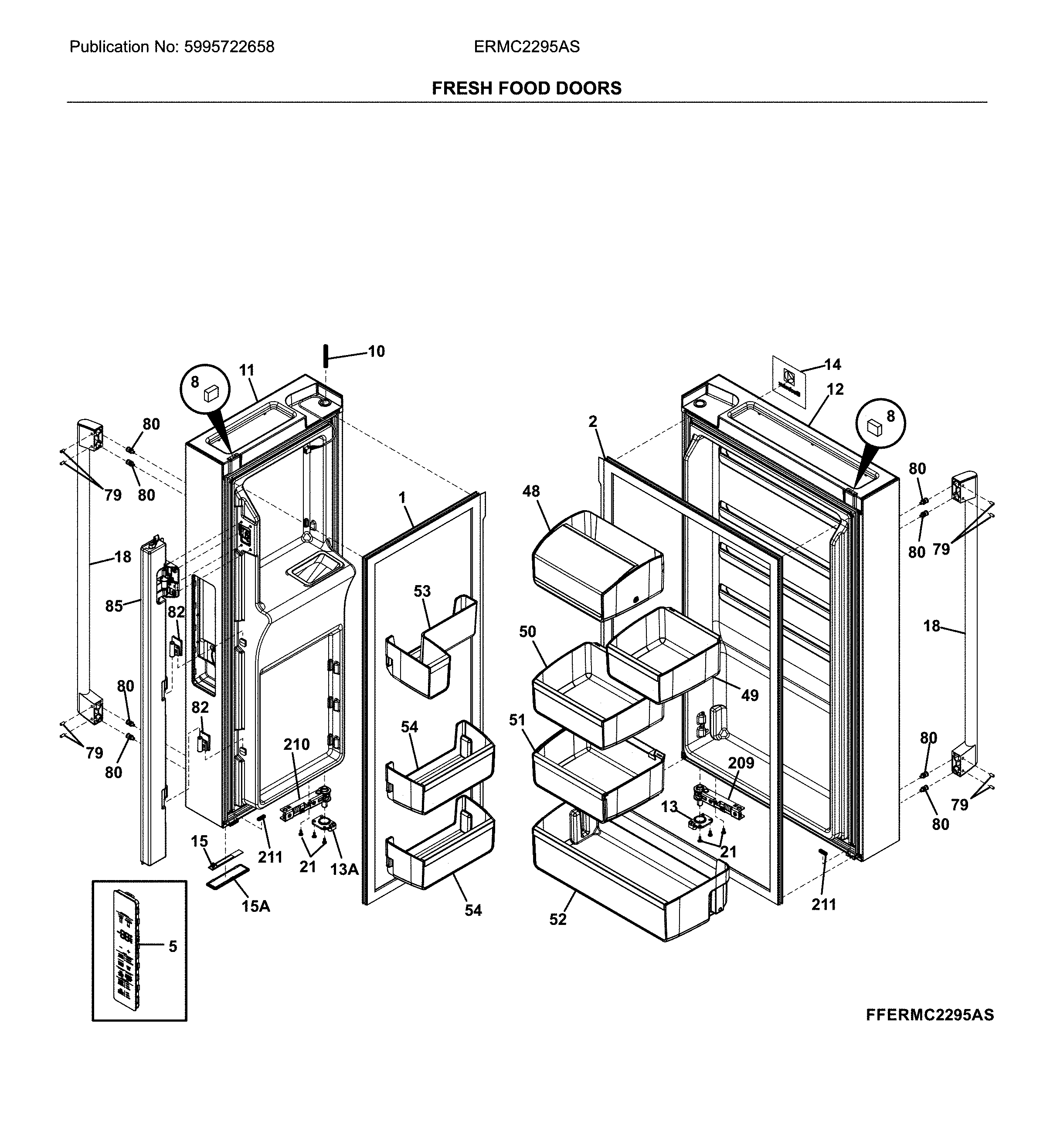

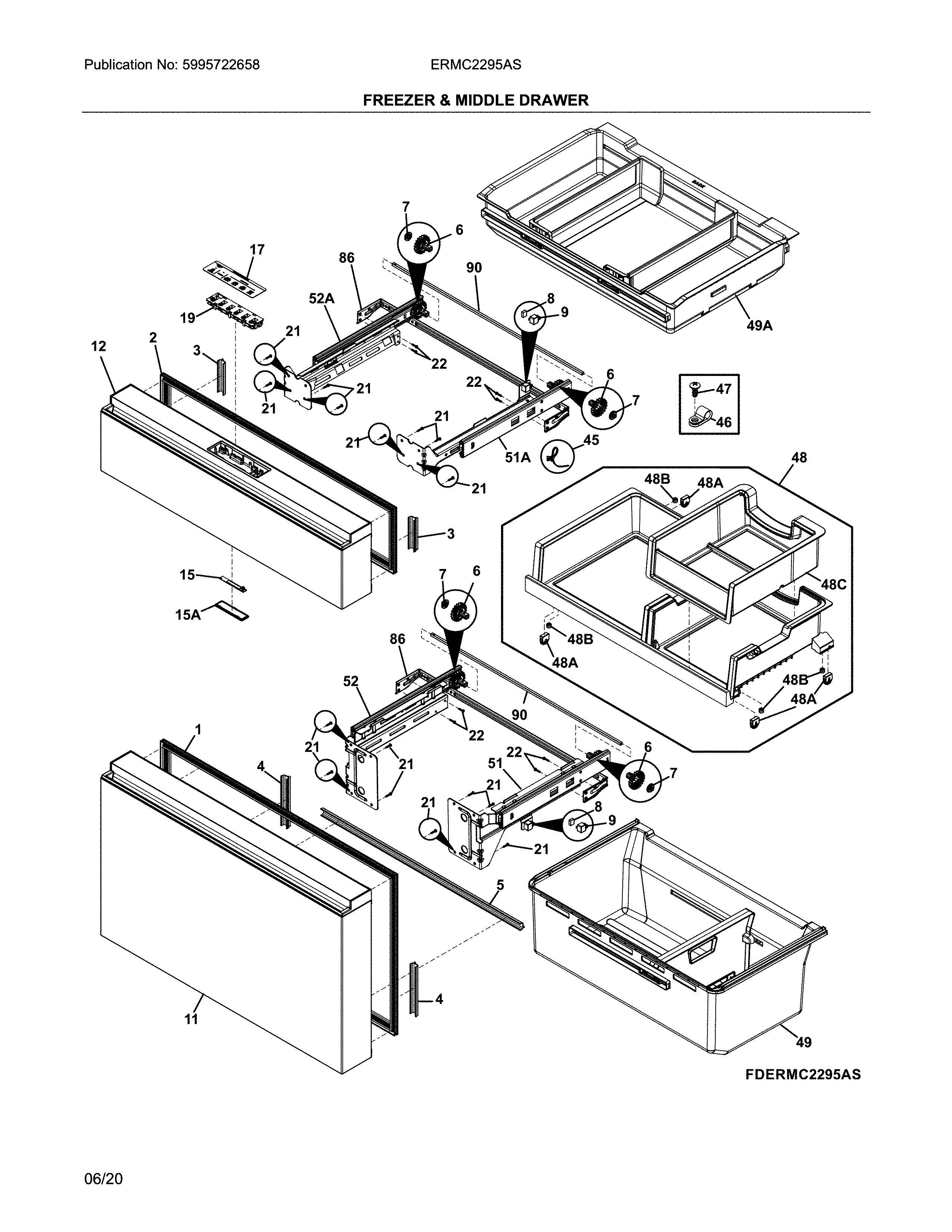

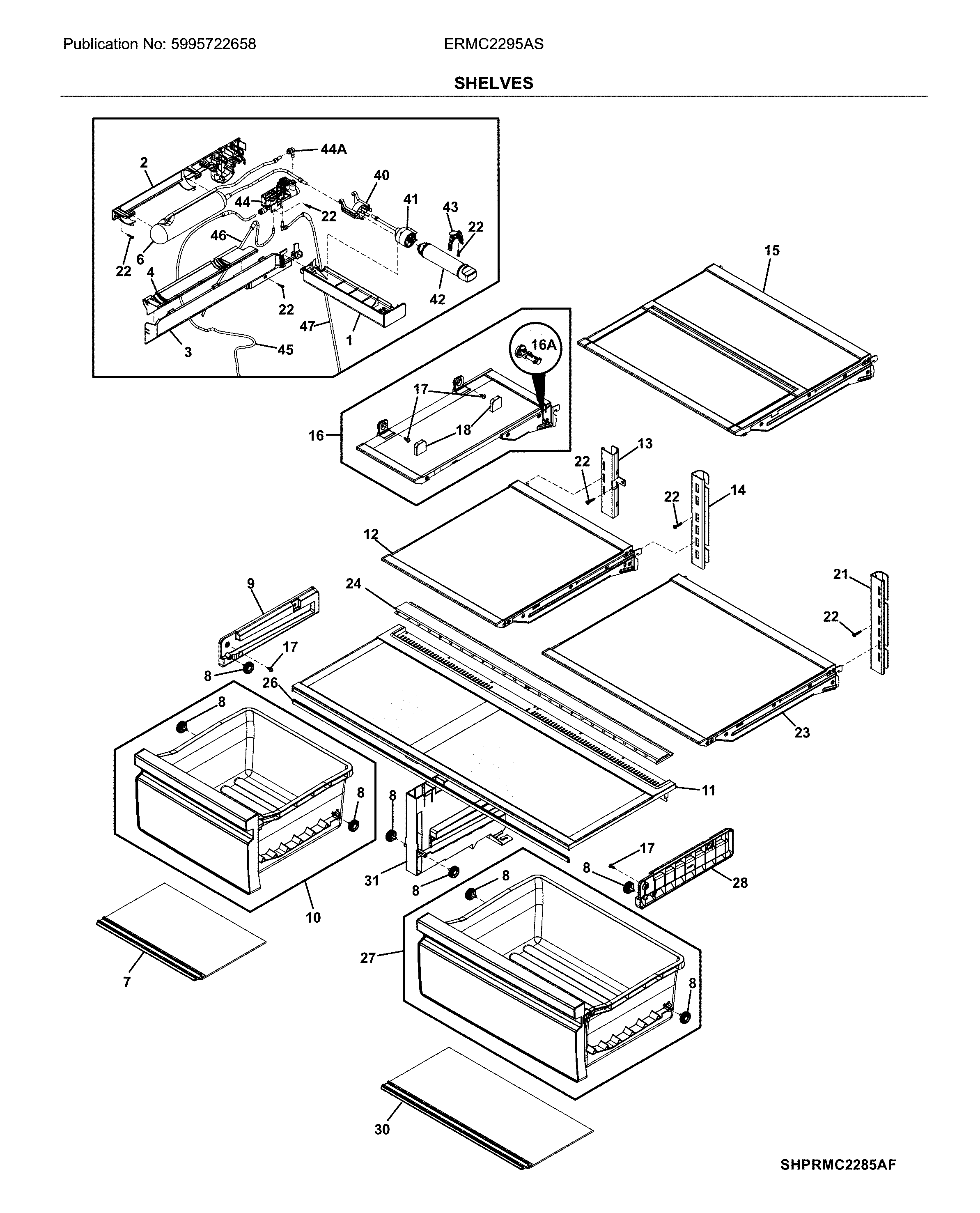

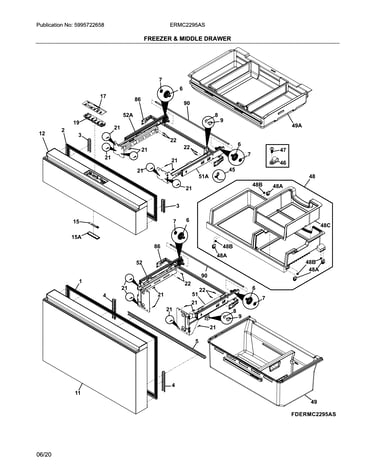

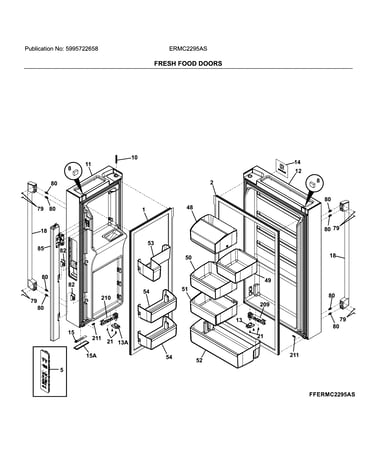

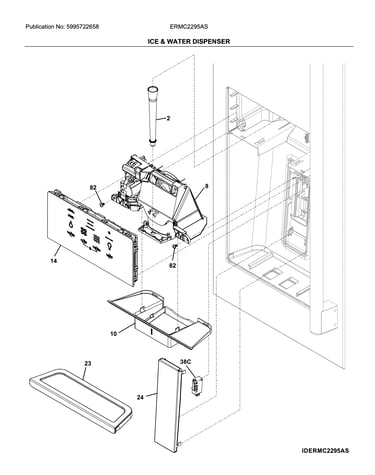

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 241 parts  |
Refrigerator Ice Maker 243297607
#9

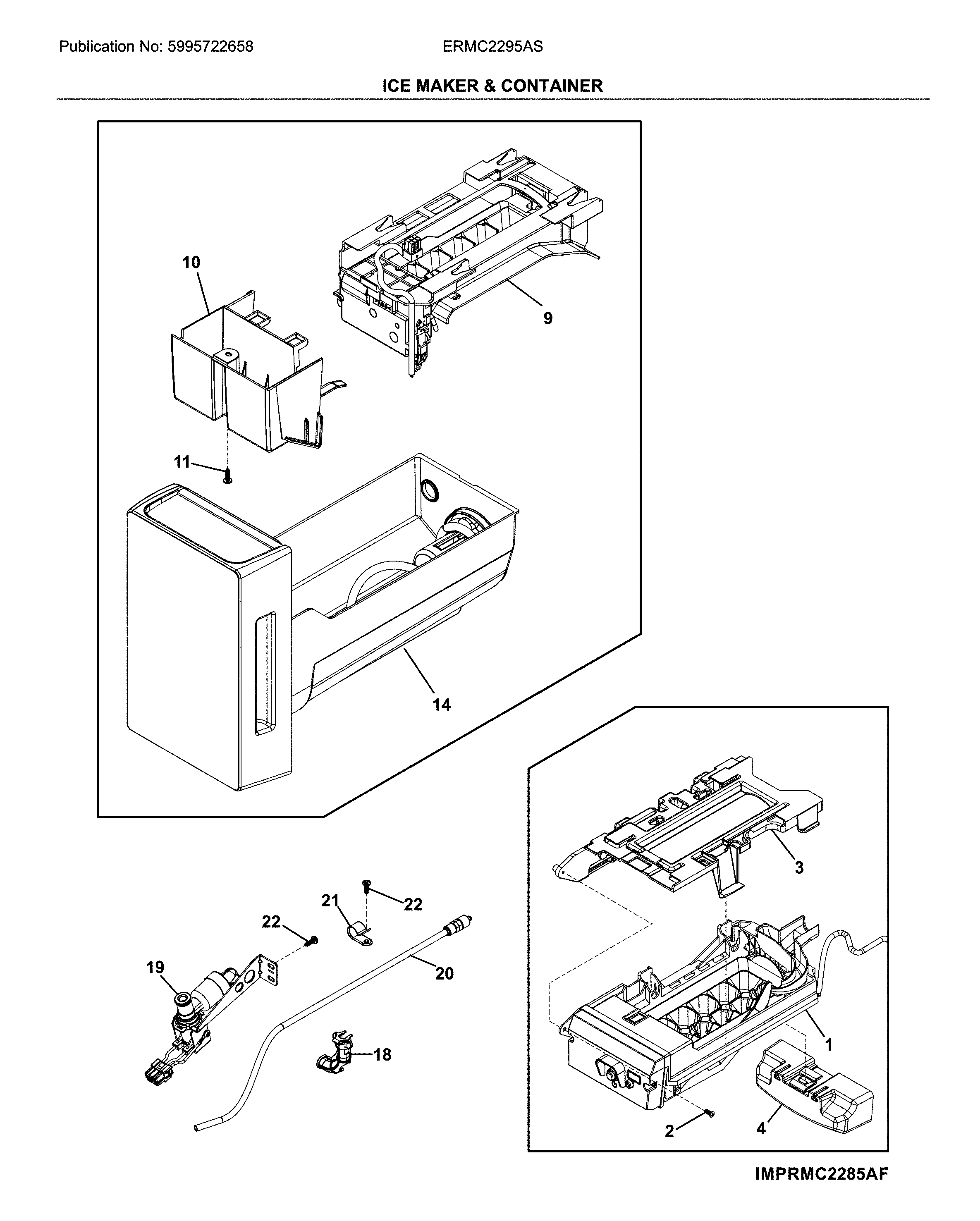

Ice makers & container diagram

Refrigerator ice maker

Part #243297607

Replaced by #243297613

?
Manufacturer substitution
This part replaces 243297607. Substitute parts can look different from the original.
BEST SELLER
$98.08 |
11% OFF MSRP : $110.00
In Stock
Refrigerator Ice Maker Gasket Kit 242095404
#20

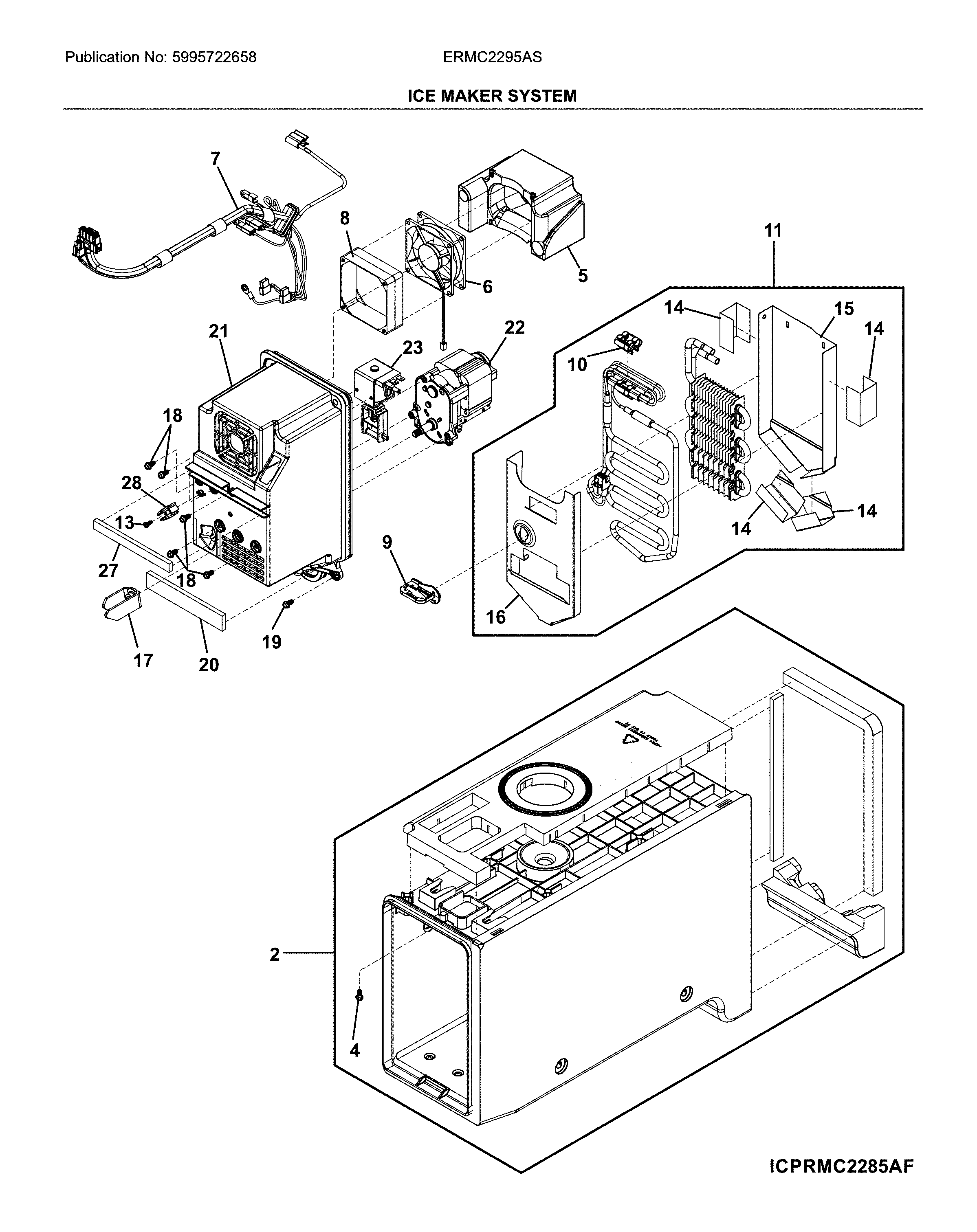

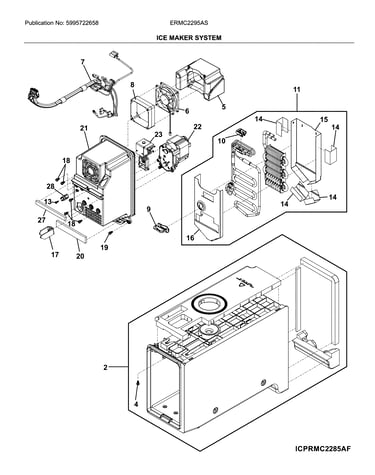

Ice maker system diagram

Refrigerator ice maker gasket kit

Part #242095404

Replaced by #5303918784

?
Manufacturer substitution
This part replaces 242095404. Substitute parts can look different from the original.
BEST SELLER
$69.86 |
7% OFF Phone Price : $74.86
In Stock
Refrigerator Temperature Sensor 5303918775
Refrigerator temperature sensor

Part #5303918775

BEST SELLER
$19.74 |
9% OFF Phone Price : $21.74
In Stock
Refrigerator Ice Crusher Coupler (replaces 7241829001) 241829001
#17

Ice maker system diagram

Refrigerator ice crusher coupler (replaces 7241829001)

Part #241829001

$48.70 |
9% OFF Phone Price : $53.70
In Stock
Pc Board 5304519114
#52

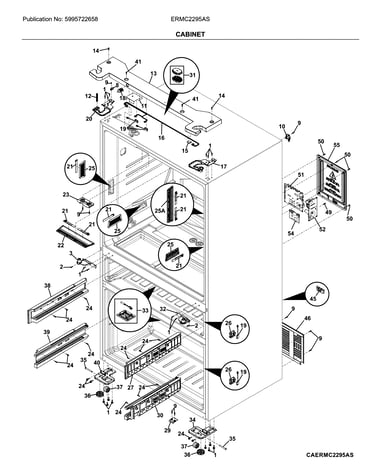

Cabinet diagram

Pc board

Part #5304519114

Replaced by #5304526795

?
Manufacturer substitution
This part replaces 5304519114. Substitute parts can look different from the original.
$164.14
In Stock
Evaporator 5304519181
#63

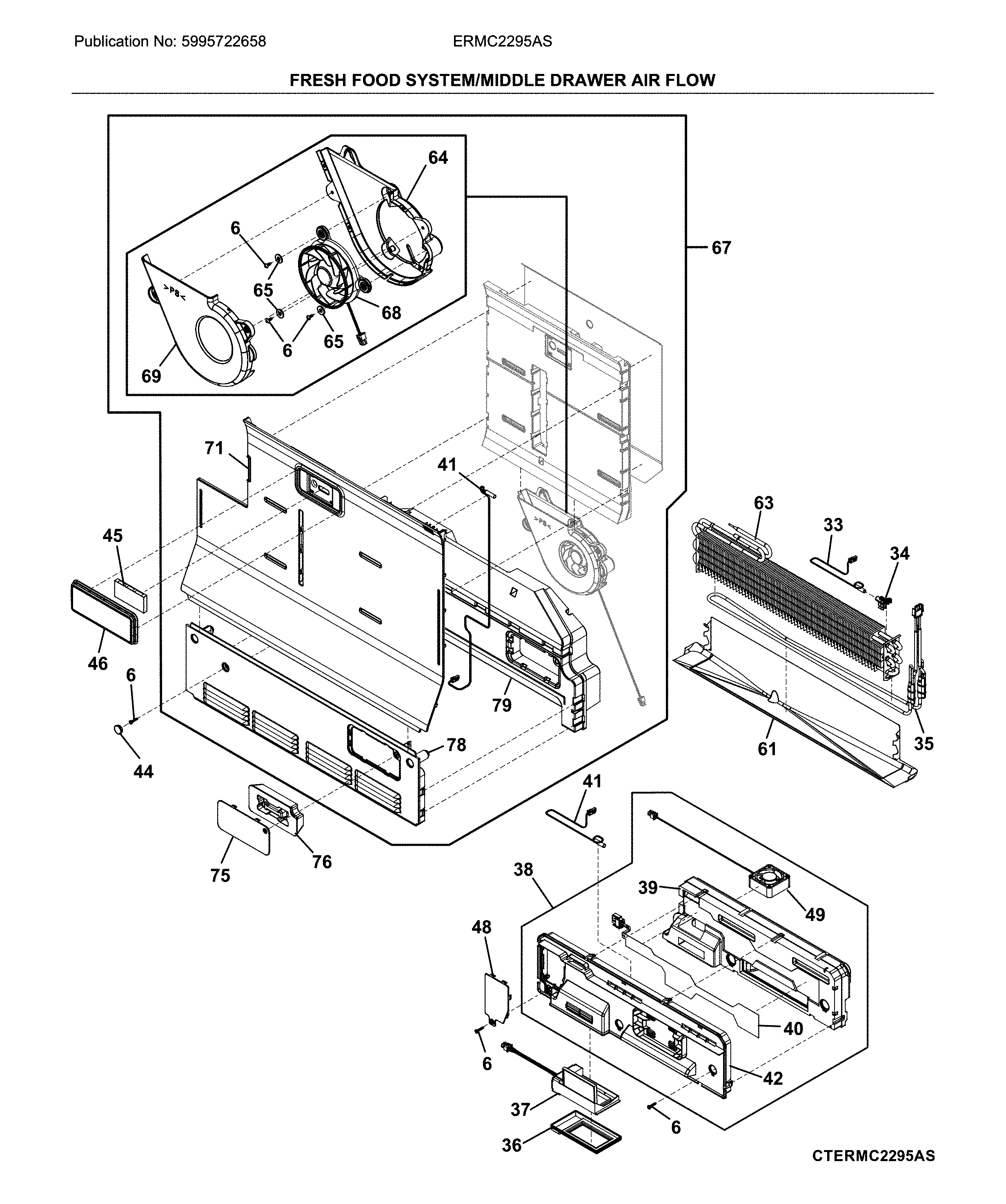

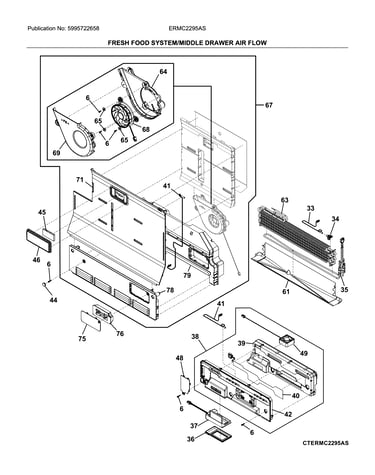

Fresh food system/middle drawer air flow diagram

Evaporator

Part #5304519181

Replaced by #5304526811

?
Manufacturer substitution
This part replaces 5304519181. Substitute parts can look different from the original.
$104.36
In Stock
Cover Assemb 5304523901
#36

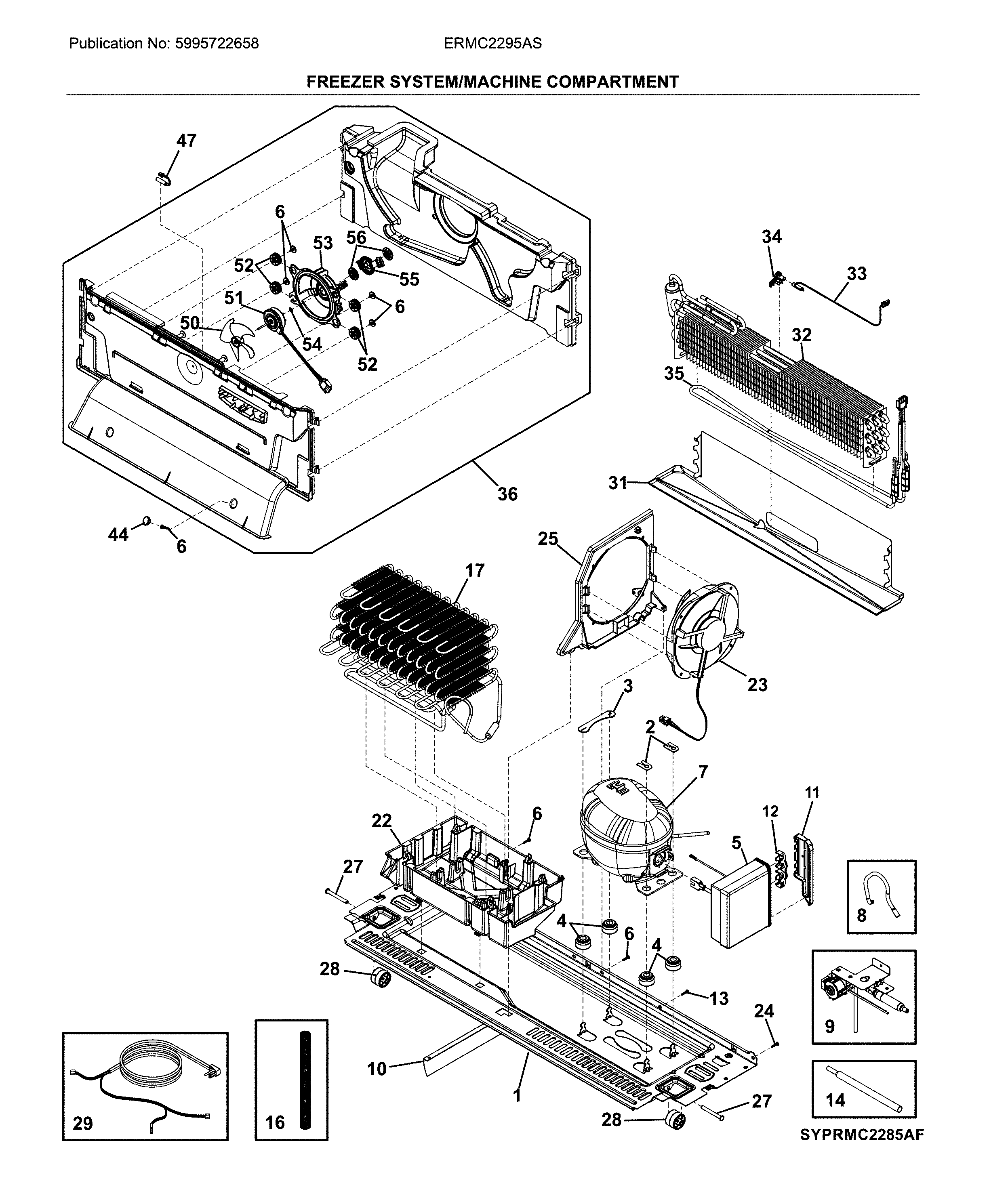

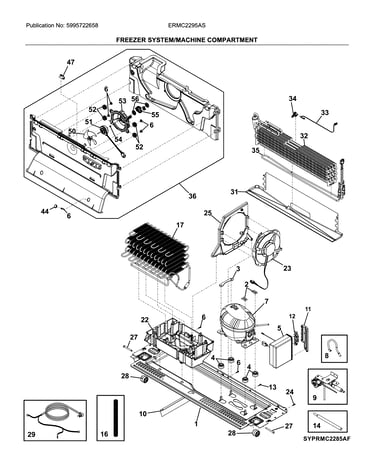

Freezer system/machine compartment diagram

Cover assemb

Part #5304523901

Replaced by #5304523067

?
Manufacturer substitution
This part replaces 5304523901. Substitute parts can look different from the original.
$108.89
In Stock
Refrigerator Ice Dispenser Solenoid (replaces 241675804) 241675705
#23

Ice maker system diagram

Refrigerator ice dispenser solenoid (replaces 241675804)

Part #241675705

$98.00
In Stock
Refrigerator Temperature Sensor And Cover 5303918850
#33

Cabinet diagram

Refrigerator temperature sensor and cover

Part #5303918850

$28.04 |
15% OFF Phone Price : $33.04
In Stock
Refrigerator Defrost Bi-metal Thermostat And Wire Harness Assembly 5303918851
Refrigerator defrost bi-metal thermostat and wire harness assembly

Part #5303918851

$26.11
In Stock
