Model # EPL-6000 Official Epson printer

Here are the diagrams and repair parts for Official Epson EPL-6000 printer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 244 parts  |

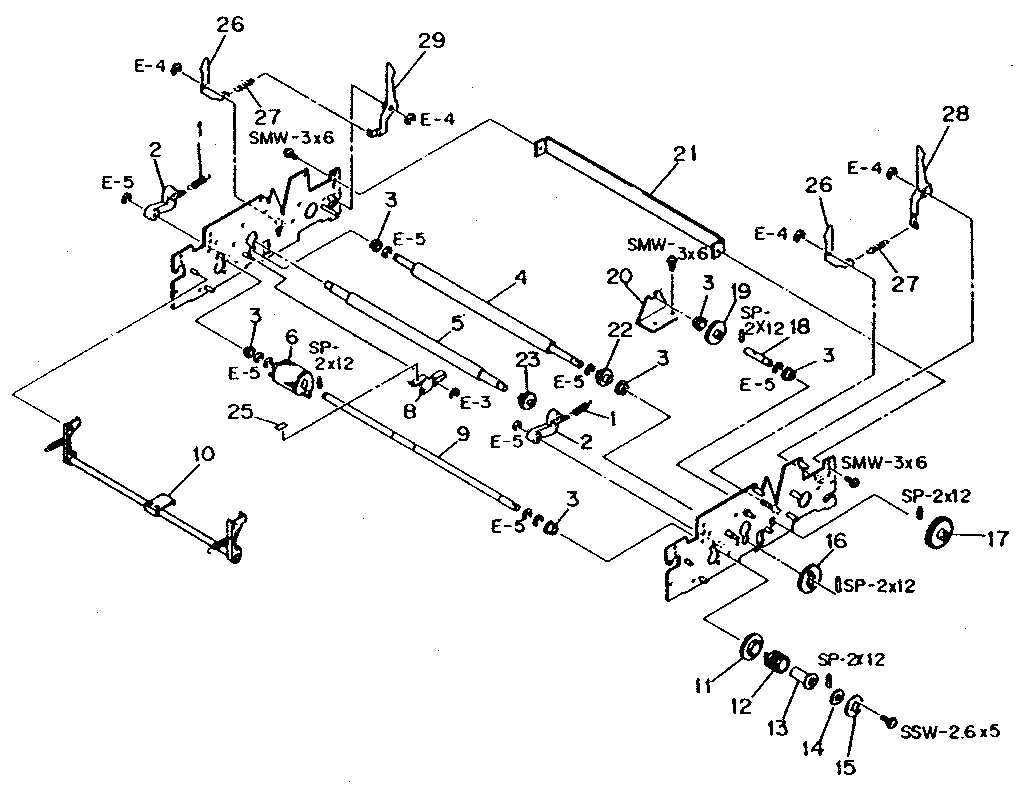

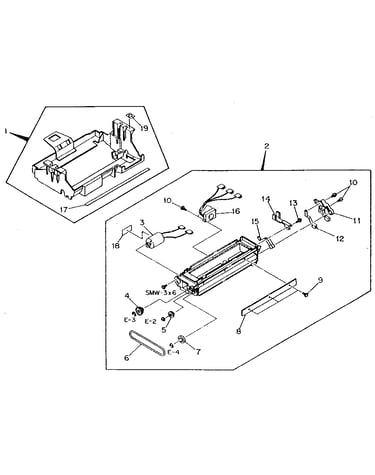

Roller Gear HGM35-07601
#5

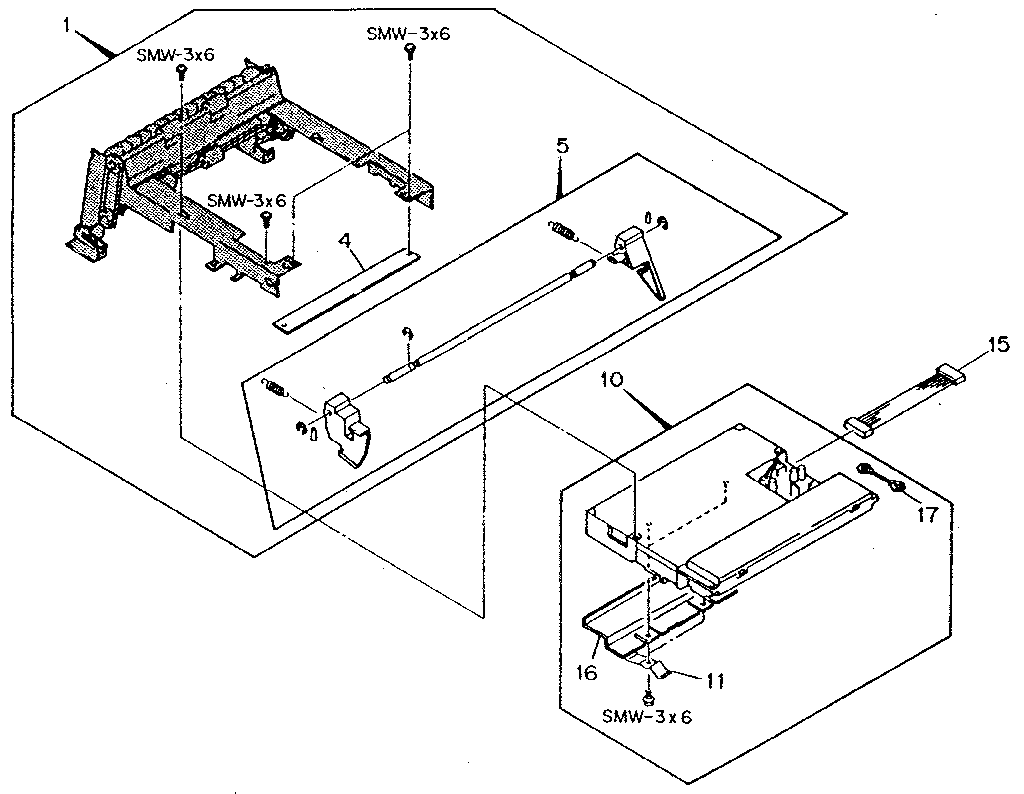

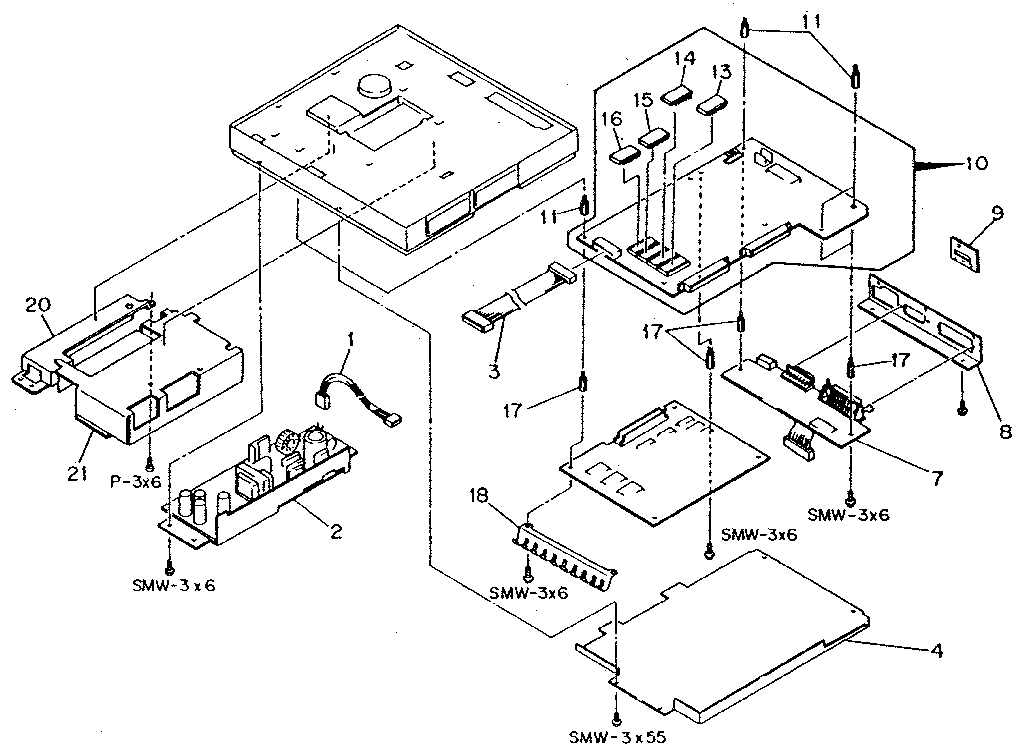

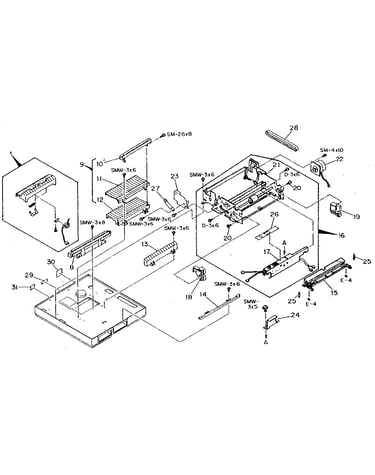

Epson printer model epl-6000 diagram

Roller gear

Part #HGM35-07601

The manufacturer no longer makes this part, and there's no substitute part

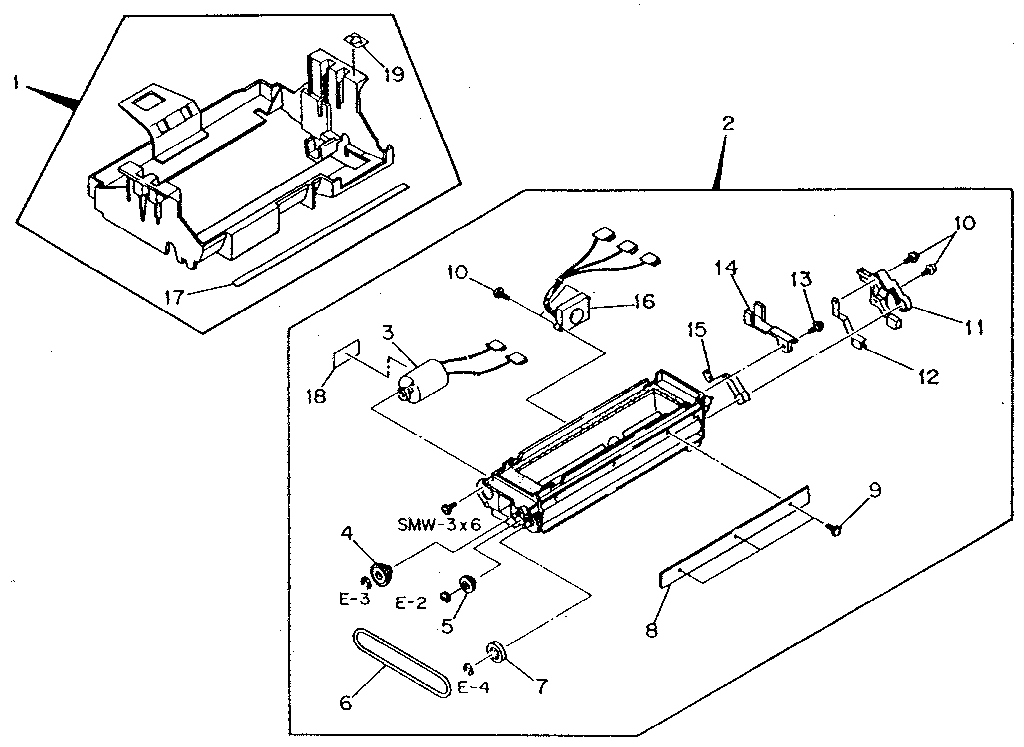

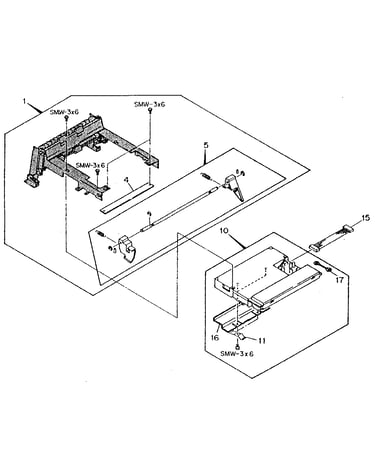

Open Hook HGMBK-00301
#5

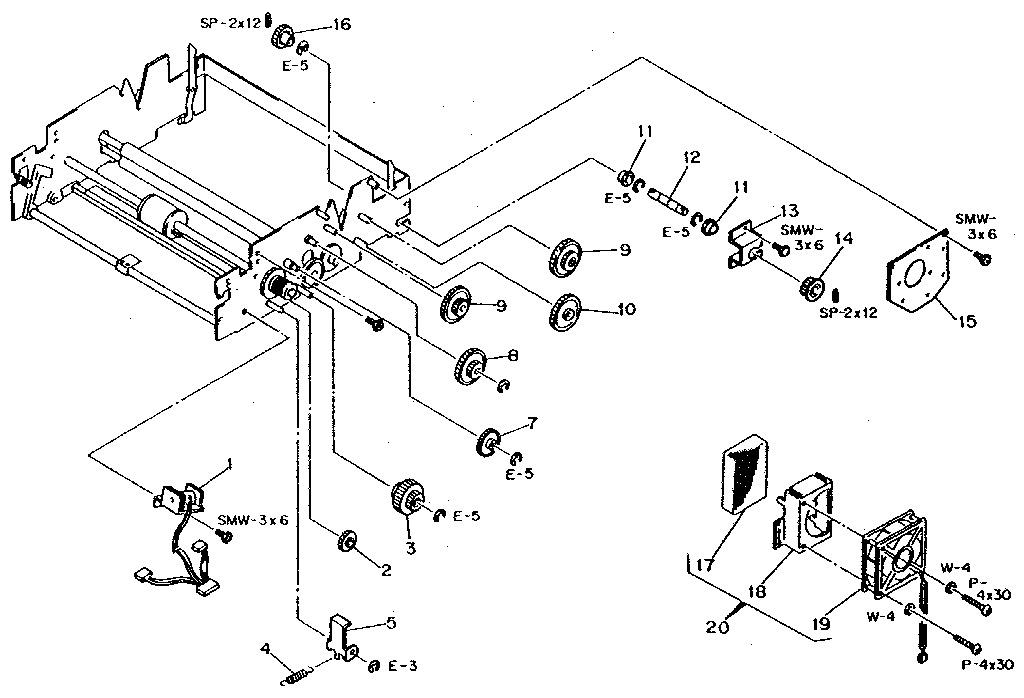

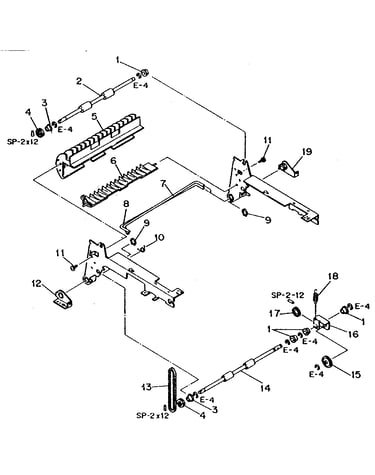

Epson printer model epl-6000 diagram

Open hook

Part #HGMBK-00301

The manufacturer no longer makes this part, and there's no substitute part

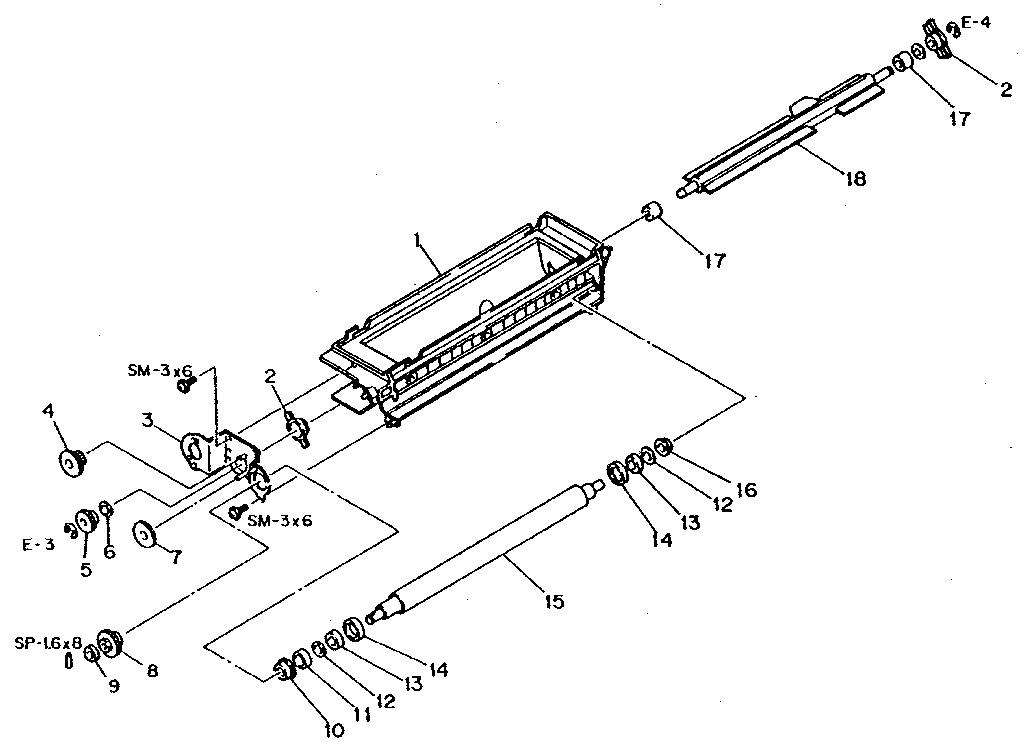

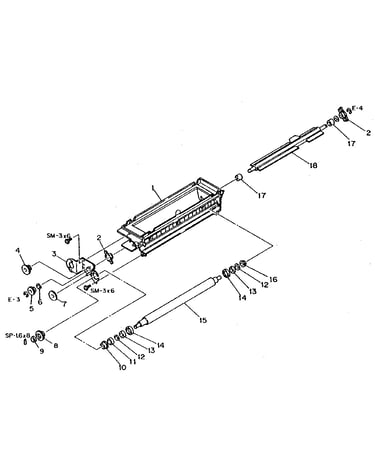

Magnet Roll HGM45-00601
#15

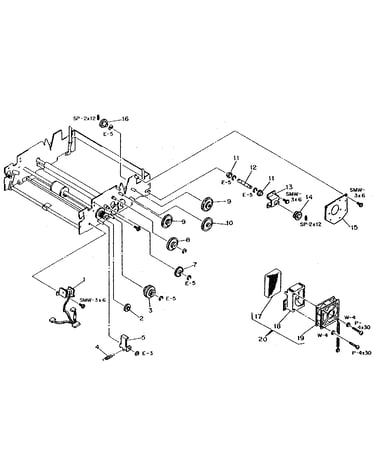

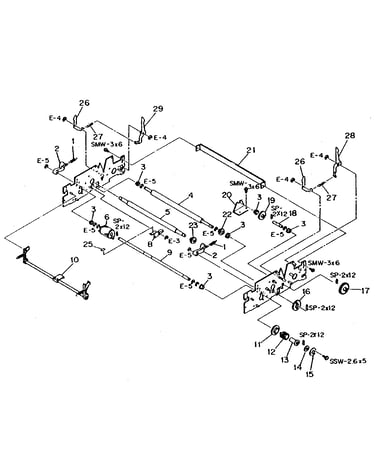

Epson printer model epl-6000 diagram

Magnet roll

Part #HGM45-00601

The manufacturer no longer makes this part, and there's no substitute part

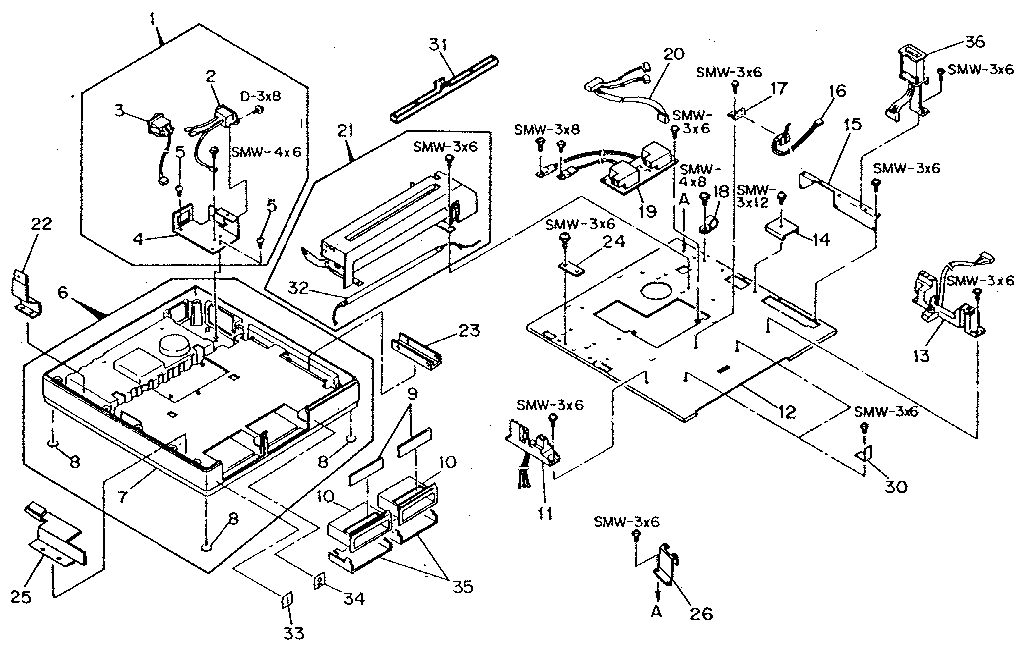

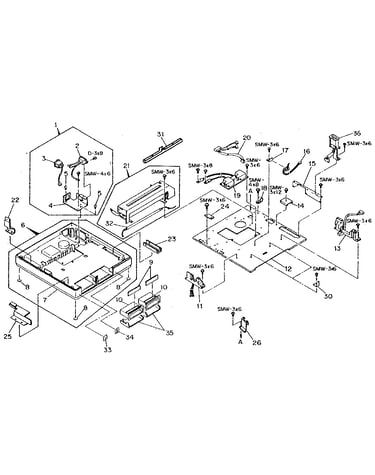

Harness Cov HGM20-11701
#24

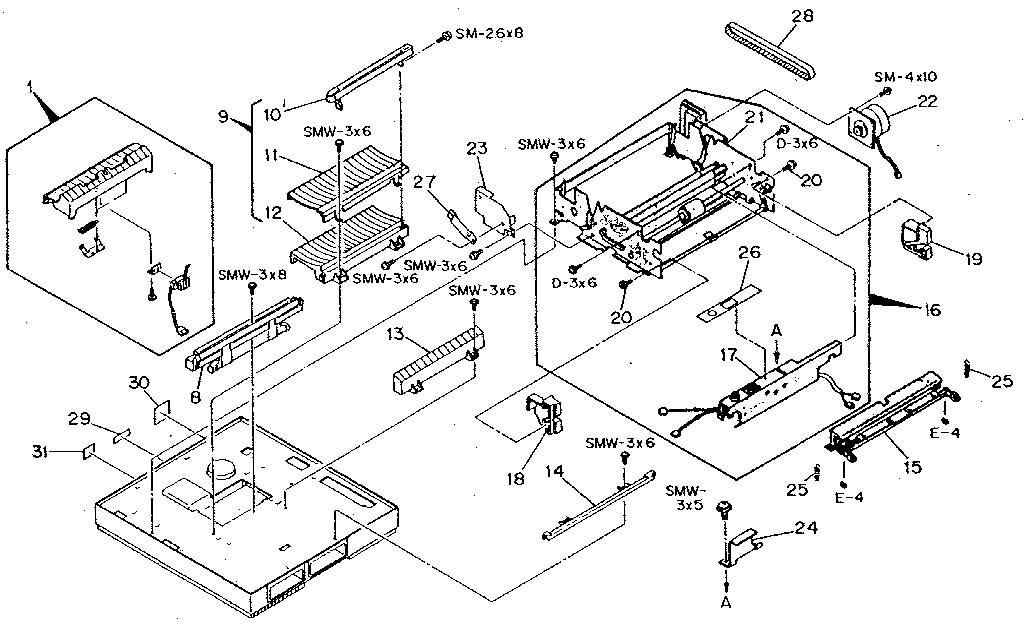

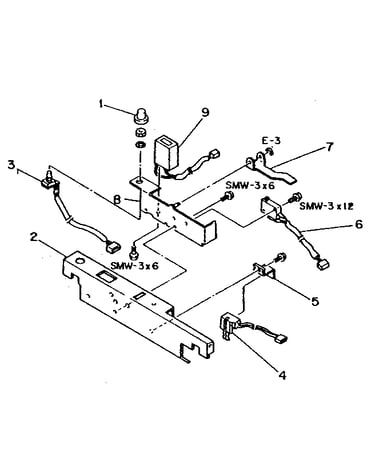

Espon printer model epl-6000 diagram

Harness cov

Part #HGM20-11701

The manufacturer no longer makes this part, and there's no substitute part

Idle Gear HGM35-07201
#4

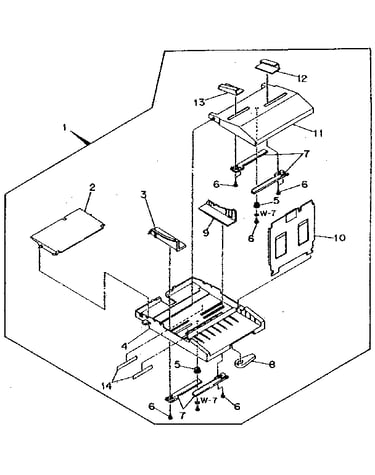

Epson printer model epl-6000 diagram

Idle gear

Part #HGM35-07201

The manufacturer no longer makes this part, and there's no substitute part

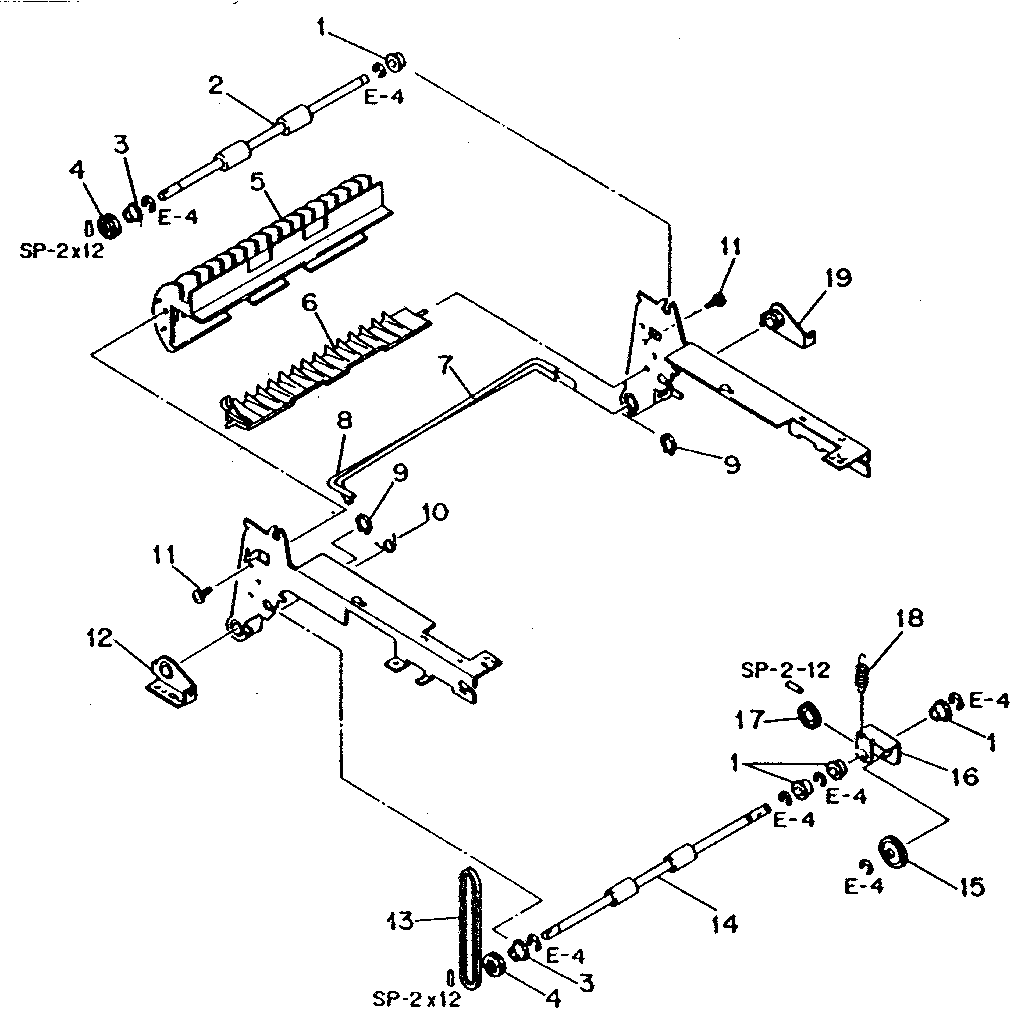

Dschg Roll HGM45-01201
#14

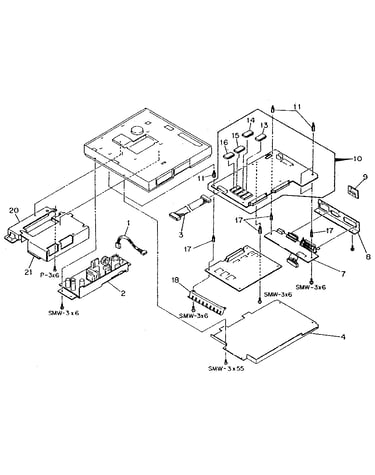

Epson printer model epl-6000 diagram

Dschg roll

Part #HGM45-01201

The manufacturer no longer makes this part, and there's no substitute part

Spring Pin SP-2X12

#NI

All parts diagram

Spring pin

Part #SP-2X12

The manufacturer no longer makes this part, and there's no substitute part

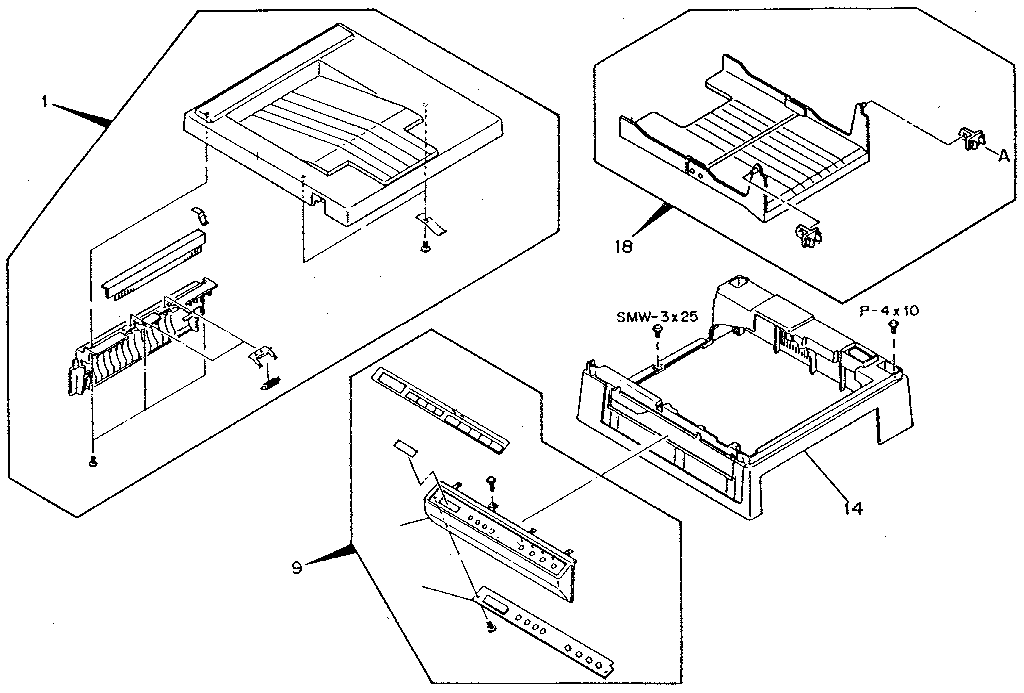

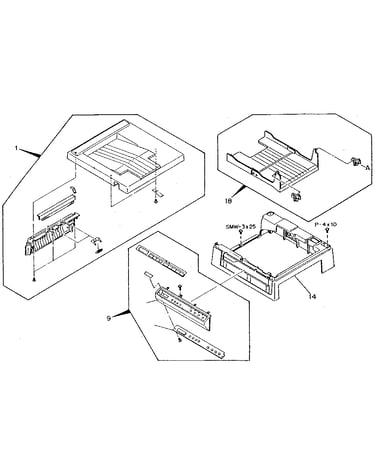

Disc Bush HGM35-08101
#1

Epson printer model epl-6000 diagram

Disc bush

Part #HGM35-08101

The manufacturer no longer makes this part, and there's no substitute part

Screw P-4X30

#NI

All parts diagram

Screw

Part #P-4X30

The manufacturer no longer makes this part, and there's no substitute part

Earth Plate HGM20-10401
#24

Epson printer model epl-6000 diagram

Earth plate

Part #HGM20-10401

The manufacturer no longer makes this part, and there's no substitute part
