KitchenAid KXD4736YSS5 retractable downdraft vent system Parts
Here are the diagrams and repair parts for KitchenAid KXD4736YSS5 retractable downdraft vent system, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for KXD4736YSS5 Retractable Downdraft Vent System

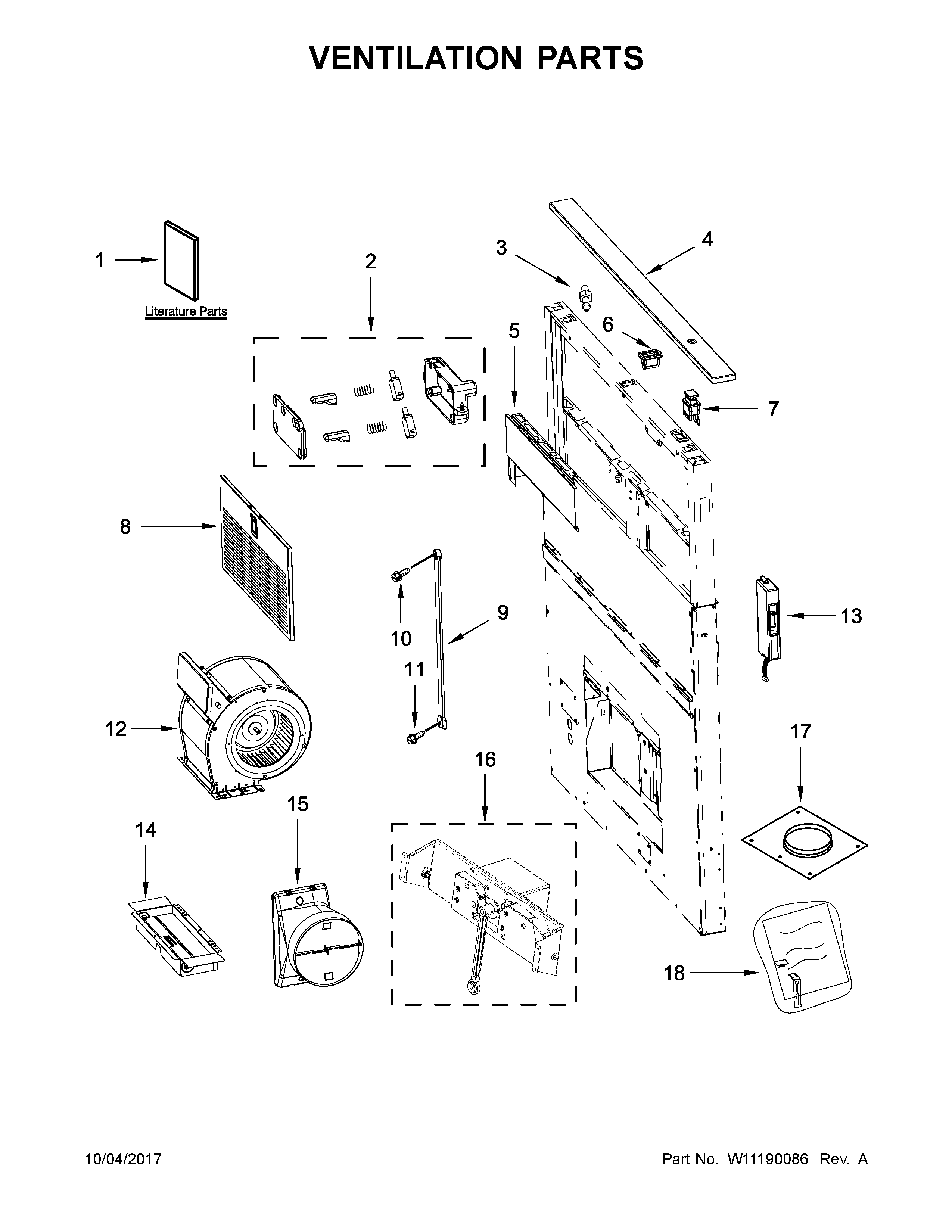

Ventilation parts diagram
Downdraft Vent Up/down Switch
Part #W10899381Replaced by #W11230930
Manufacturer substitutionThis part replaces W10899381. Substitute parts can look different from the original.In Stock$78.107% OFF Phone Price : $84.10
Qty
Ventilation parts diagram
Downdraft Vent Top Trim
In Stock$191.986% OFF Phone Price : $203.98QtyVentilation parts diagram
Kit, Switch Filter
Part #W11097349Replaced by #W11666423
Manufacturer substitutionThis part replaces W11097349. Substitute parts can look different from the original.In Stock$120.13QtyVentilation parts diagram
Clip

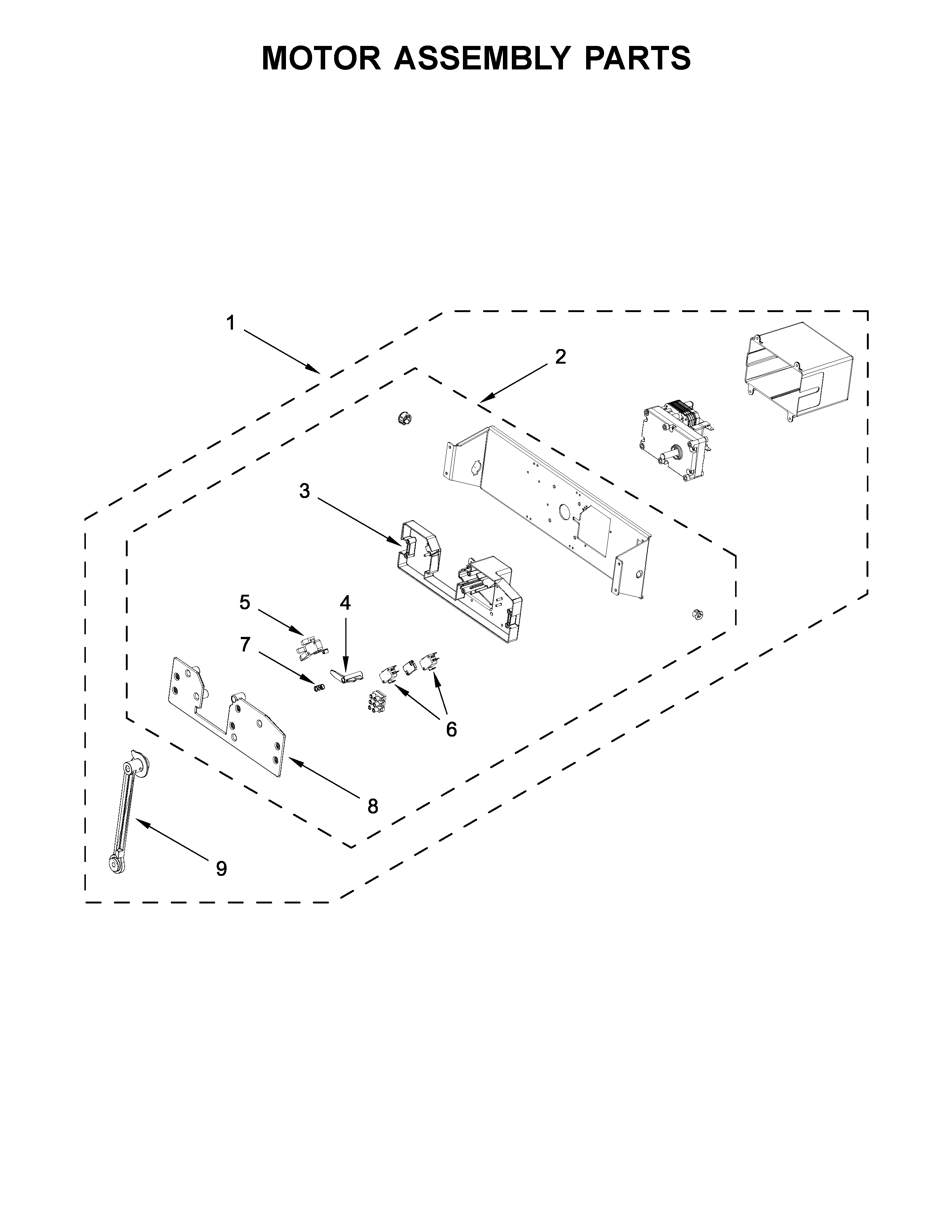

In Stock$33.39QtyMotor assembly parts diagram
Covr-swtch
In Stock$110.98QtyVentilation parts diagram
Downdraft Vent Installation Hardware Kit
In Stock$102.9310% OFF Phone Price : $114.93QtyVentilation parts diagram
Whirlpool Downdraft Vent 36-inch Grease Filter
In Stock$95.9337% OFF Was : $152.16QtyVentilation parts diagram
Clip
Part #W10421518Replaced by #WPW10421518
Manufacturer substitutionThis part replaces W10421518. Substitute parts can look different from the original.This item is not returnableIn Stock$8.1611% OFF Phone Price : $9.16QtyMotor assembly parts diagram
Switch Cover
Part #W10801493Replaced by #W10833182
Manufacturer substitutionThis part replaces W10801493. Substitute parts can look different from the original.In Stock$132.908% OFF Phone Price : $144.90QtyMotor assembly parts diagram
Arm Motor
Part #W10421277Replaced by #WPW10421277
Manufacturer substitutionThis part replaces W10421277. Substitute parts can look different from the original.In Stock$107.60Qty
Most common symptoms to help you fix your downdraft ventilation systems
Choose a symptom to see related downdraft vent repairs.
Main causes: lack of electrical power, up/down activation switch failure, bad vent gear motor…
Main causes: clogged grease filters, air duct problems, fan motor failure, broken blower wheel…
Main causes: electrical power failure, up/down activation switch problems, vent gear motor failure…
Main causes: fan control switch failure, bad blower fan motor, broken blower wheel, wiring failure…
Main causes: problems with the vent limit switches, up/down activation switch failure…
Most common repair guides to help fix your downdraft ventilation systems
These step-by-step repair guides will help you safely fix what’s broken on your downdraft vent.
How to replace a downdraft vent up/down switch
The up/down switch starts the gear motor to raise and lower the air vent. Replace the up/down switch if defective.…
Repair time and Difficulty
15 minutes or less
How to replace a downdraft vent gear motor
The gear motor raises and lowers the air vent when you push the activating switch. Replace the gear motor if defective.…
Repair time and Difficulty
15 minutes or less
How to replace a downdraft vent fan control switch
The fan control switch activates the blower motor and controls the fan speed. Replace the fan control switch if it's not…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your downdraft ventilation systems
Use the advice and tips in these articles to get the most out of your downdraft vent.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
Learn how to use a multimeter to check for wiring problems in an appliance that's not working…
