GE JBP63SV3WH electric range Parts

Here are the diagrams and repair parts for GE JBP63SV3WH electric range, as well as links to manuals and error code tables, if available.

GE JBP63SV3WH electric range
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JBP63SV3WH Ranges

  • Cover for GE JBP63SV3WH - Part WB49X10011

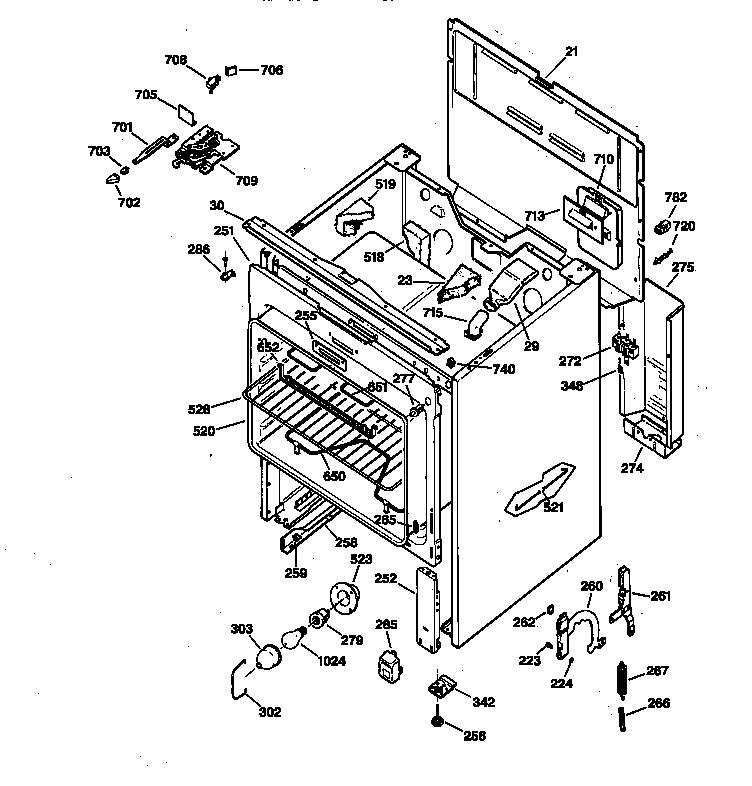

    Body parts diagram

    Cover

    Part #WB49X5567

    Replaced by #WB49X10011

    Info Icon
    Manufacturer substitution
    This part replaces WB49X5567. Substitute parts can look different from the original.
    In Stock
    $162.98
    Minus Item
    Qty
    Plus Item
  • Appliance Screw, #8-18 X 1/4-in, 12-pack for GE JBP63SV3WH - Part WB1X500D

    Door & drawer parts diagram

    Screw

    Part #WB01X0500

    Replaced by #WB1X500D

    Info Icon
    Manufacturer substitution
    This part replaces WB01X0500. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $9.32
    10% OFF Phone Price : $10.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Brace Body for GE JBP63SV3WH - Part WB2X8321

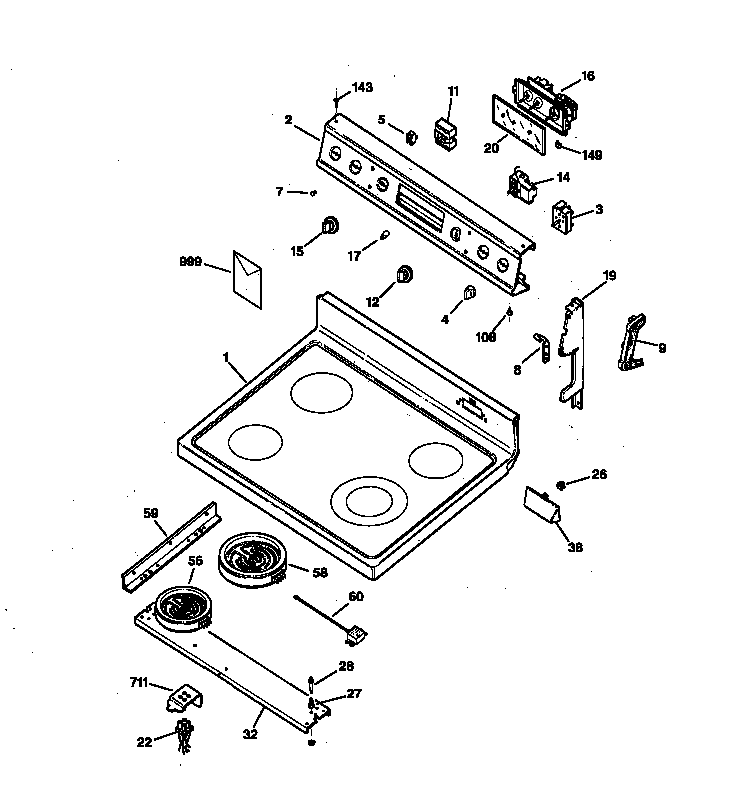

    Cooktop & control panel diagram

    Brace Body

    Part #WB02X8321

    Replaced by #WB2X8321

    Info Icon
    Manufacturer substitution
    This part replaces WB02X8321. Substitute parts can look different from the original.
    In Stock
    $37.10
    Minus Item
    Qty
    Plus Item
  • Heater Spring for GE JBP63SV3WH - Part WB9X5119

    Cooktop & control panel diagram

    Heater Mounting Spring

    Part #WB09X5119

    Replaced by #WB9X5119

    Info Icon
    Manufacturer substitution
    This part replaces WB09X5119. Substitute parts can look different from the original.
    In Stock
    $59.72
    Minus Item
    Qty
    Plus Item
  • Range Screw for GE JBP63SV3WH - Part WB1X5904

    Cooktop & control panel diagram

    Scr 8-18 Ba

    Part #WB01X5904

    Replaced by #WB1X5904

    Info Icon
    Manufacturer substitution
    This part replaces WB01X5904. Substitute parts can look different from the original.
    In Stock
    $9.01
    10% OFF Phone Price : $10.01Info Icon
    Minus Item
    Qty
    Plus Item
  • Panel for GE JBP63SV3WH - Part WB55X5361

    Door & drawer parts diagram

    Panel

    Part #WB55X5361

    The manufacturer no longer makes this part, and there's no substitute part

  • Frame for GE JBP63SV3WH - Part WB56X7049

    Body parts diagram

    Frame

    Part #WB56X7049

    The manufacturer no longer makes this part, and there's no substitute part

  • Wire Clip for GE JBP63SV3WH - Part WB02X7226

    Body parts diagram

    Wire Clip

    Part #WB02X7226

    The manufacturer no longer makes this part, and there's no substitute part

  • Cover Foot for GE JBP63SV3WH - Part WB02X8106

    Body parts diagram

    Cover Foot

    Part #WB02X8106

    The manufacturer no longer makes this part, and there's no substitute part

  • Scr 10-16 Pl for GE JBP63SV3WH - Part WB01X5872

    Door & drawer parts diagram

    Scr 10-16 Pl

    Part #WB01X5872

    The manufacturer no longer makes this part, and there's no substitute part
