Whirlpool
Microwave/Hood Combo

Model #WMH53521HZ2 Whirlpool microwave/hood combo

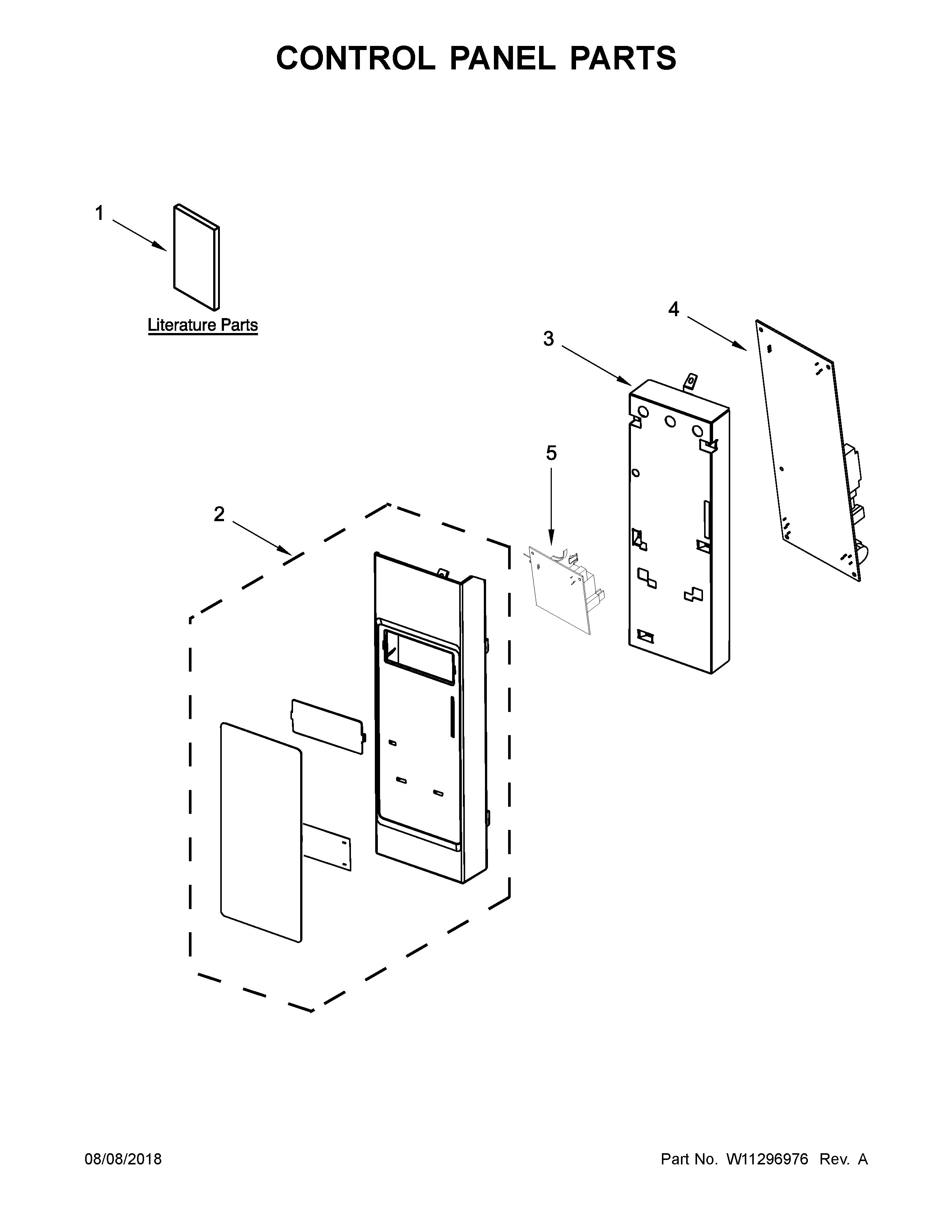

Here are the diagrams and repair parts for Whirlpool WMH53521HZ2 microwave/hood combo, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 105 parts

Microwave Mounting Plate

#1

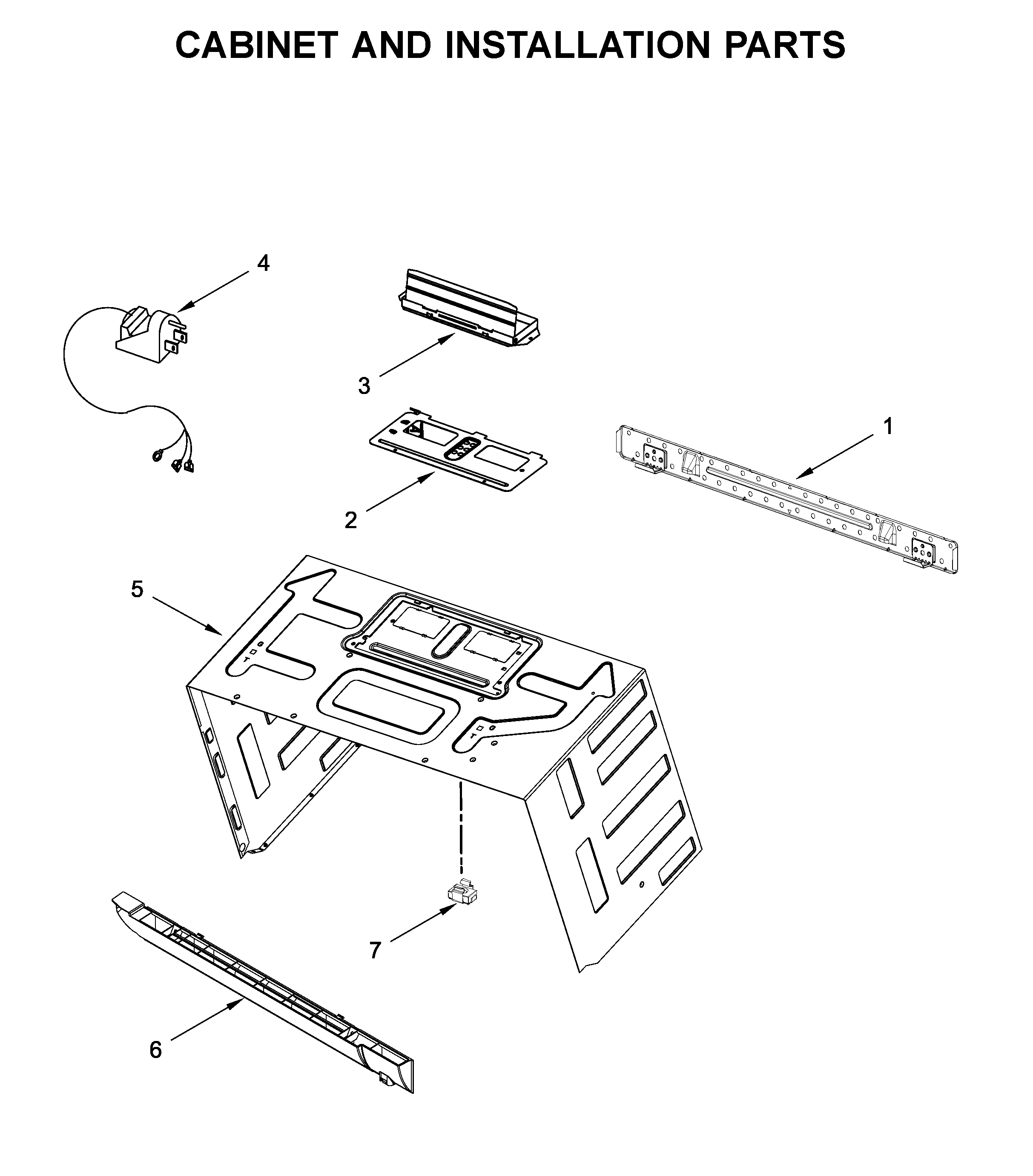

Cabinet and installation parts Diagram

Microwave mounting plate

Part #W11025649
$8.70

In Stock

Microwave Installation Hardware Kit

#NI

Cabinet and installation parts Diagram

$43.85

In Stock

Microwave Fuse

#21

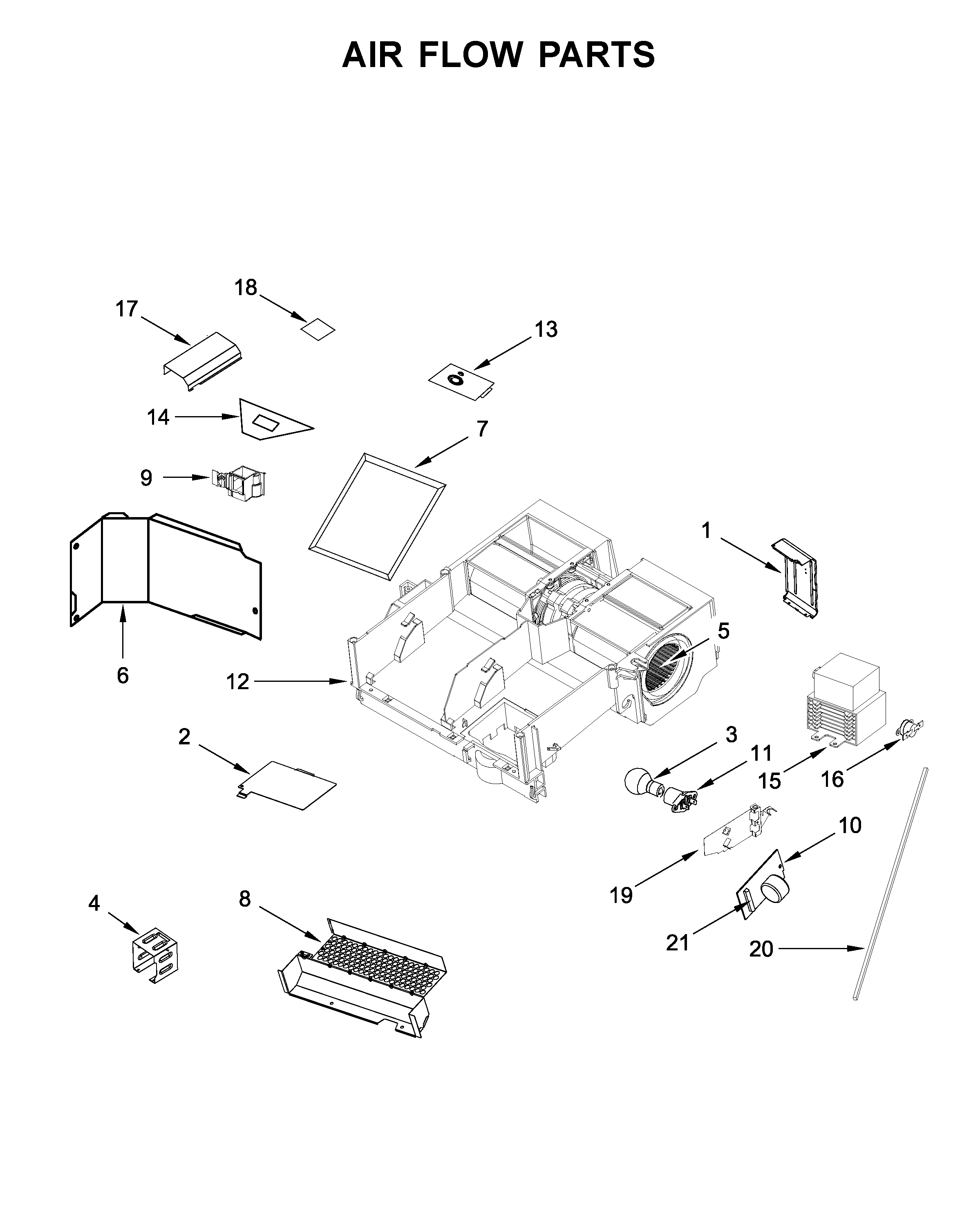

Air flow parts Diagram

Microwave fuse

Part #W10138793
This item is not returnable
$6.34

In Stock

Microwave Mounting Nut

#7

Cabinet and installation parts Diagram

Microwave mounting nut

Part #W11122643
$11.42

In Stock

Microwave Vent Grille (Black)

#6A

Cabinet and installation parts Diagram

$42.09

In Stock

Support

#10

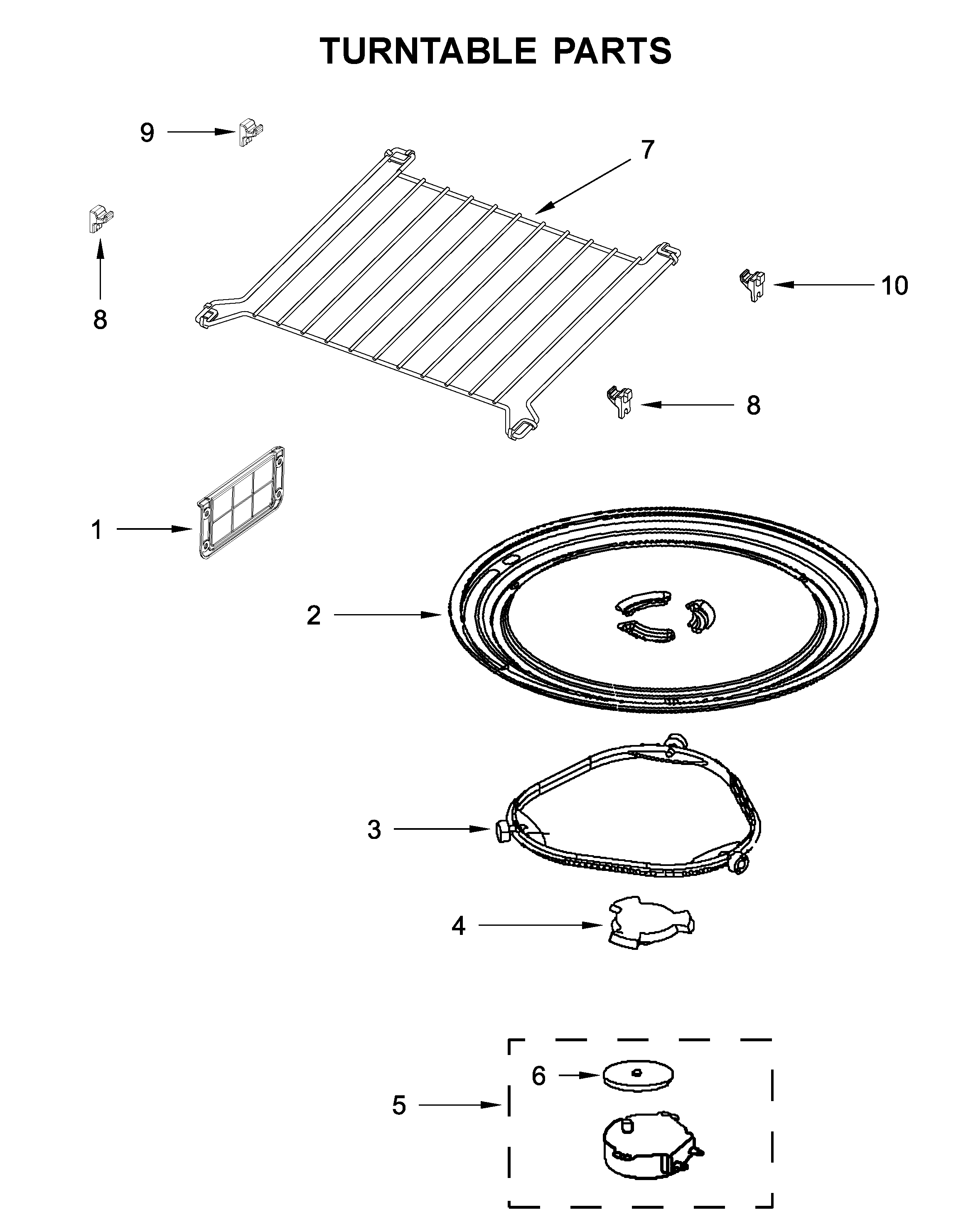

Turntable parts Diagram

Support

Part #W10749120
$11.01

In Stock

Microwave Turntable Motor

#5

Turntable parts Diagram

$58.27
20% OFFMSRP:$73.00

In Stock

Clip

#3A

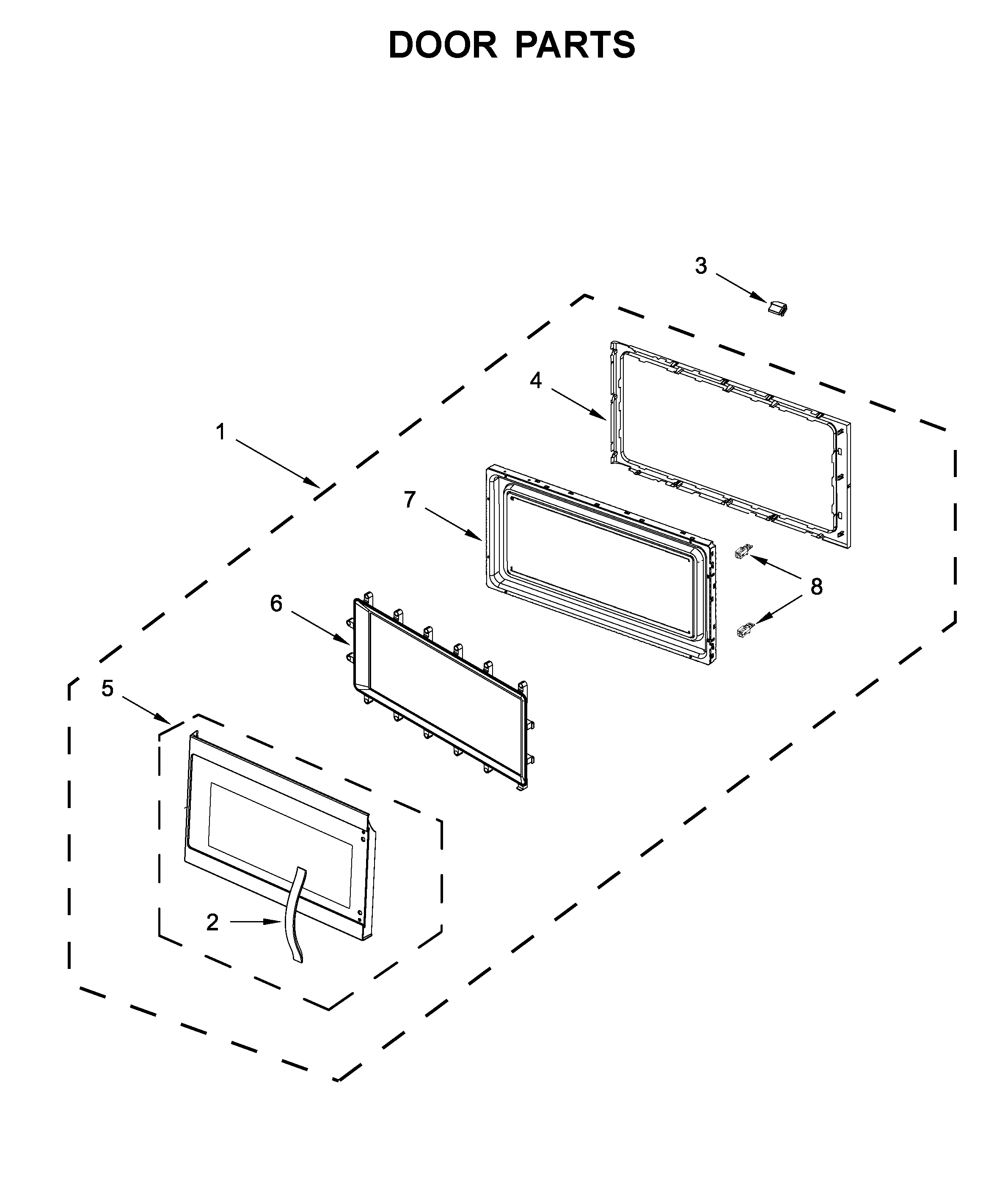

Door parts Diagram

Clip

Part #W10643974
$10.50

In Stock

Microwave Chassis Support Bracket

#17

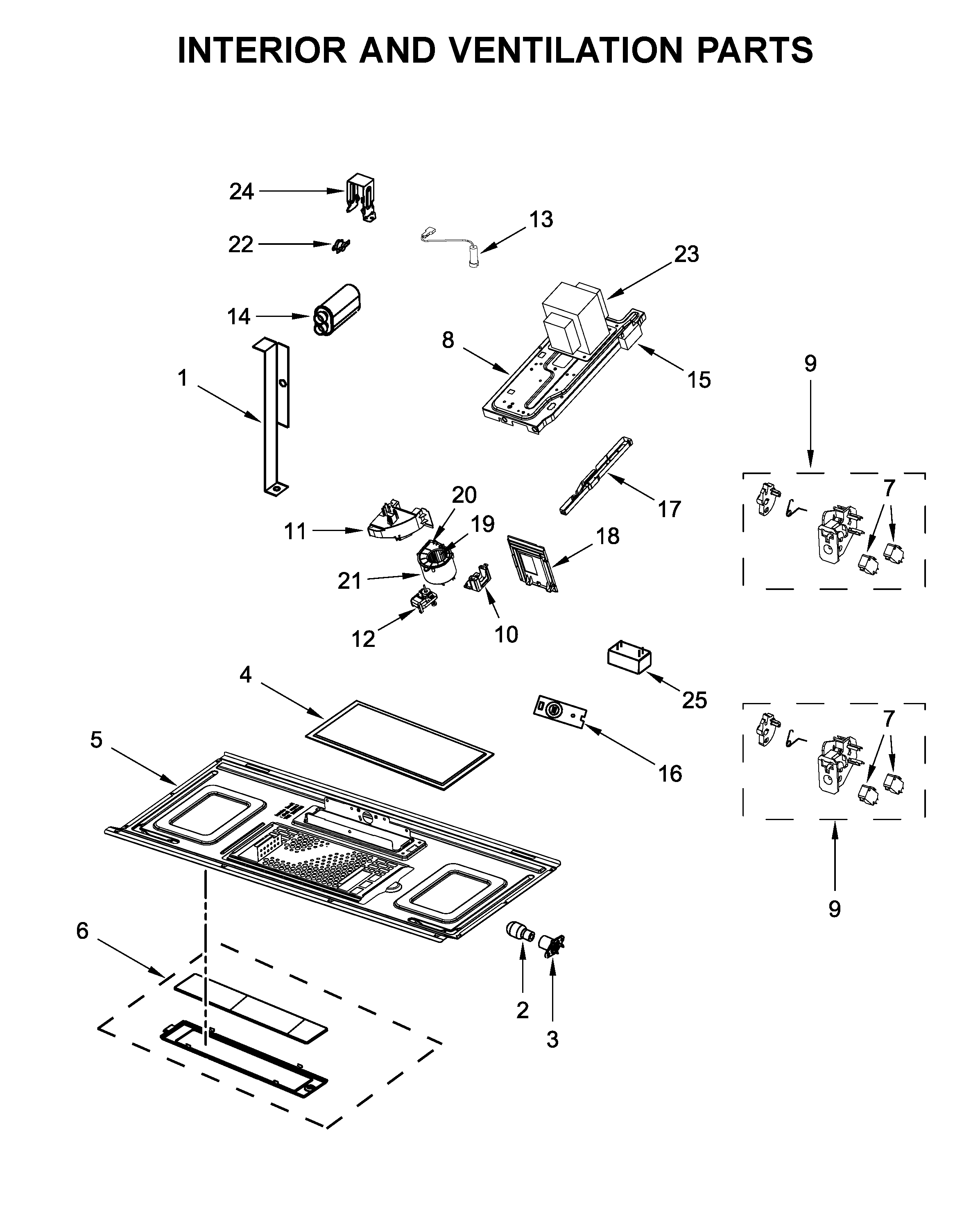

Interior and ventilation parts Diagram

$19.19

In Stock

THERMOSTAT 1

#22

Interior and ventilation parts Diagram

Thermostat 1

Part #W10864742
$33.59

In Stock
