Maytag MES5570AAB electric range Parts
Here are the diagrams and repair parts for Maytag MES5570AAB electric range, as well as links to manuals and error code tables, if available.
Owner’s manual
Error Codes

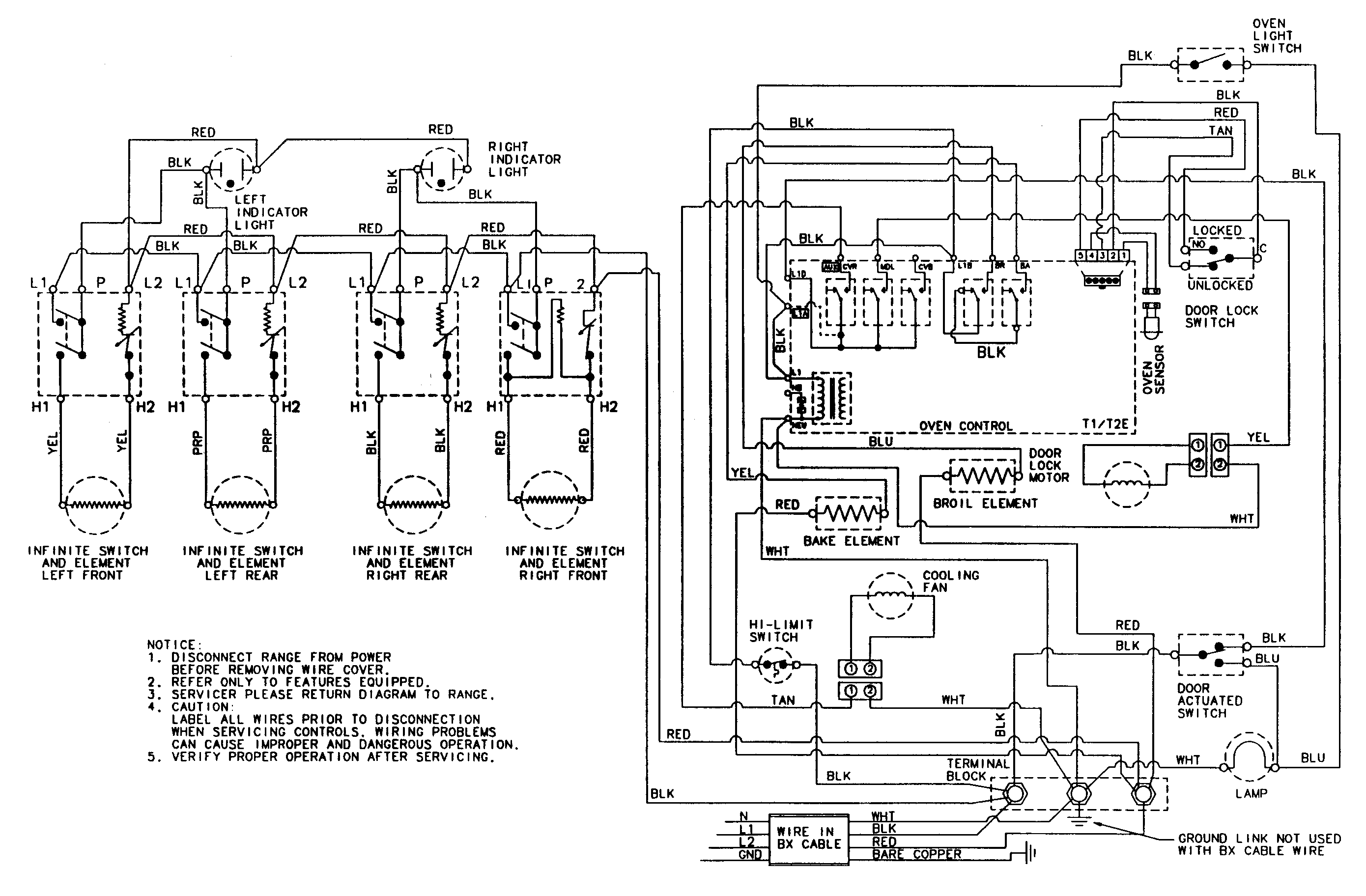

By Schematic
By Part
SELECT DIAGRAM
Browse Parts for MES5570AAB Ranges

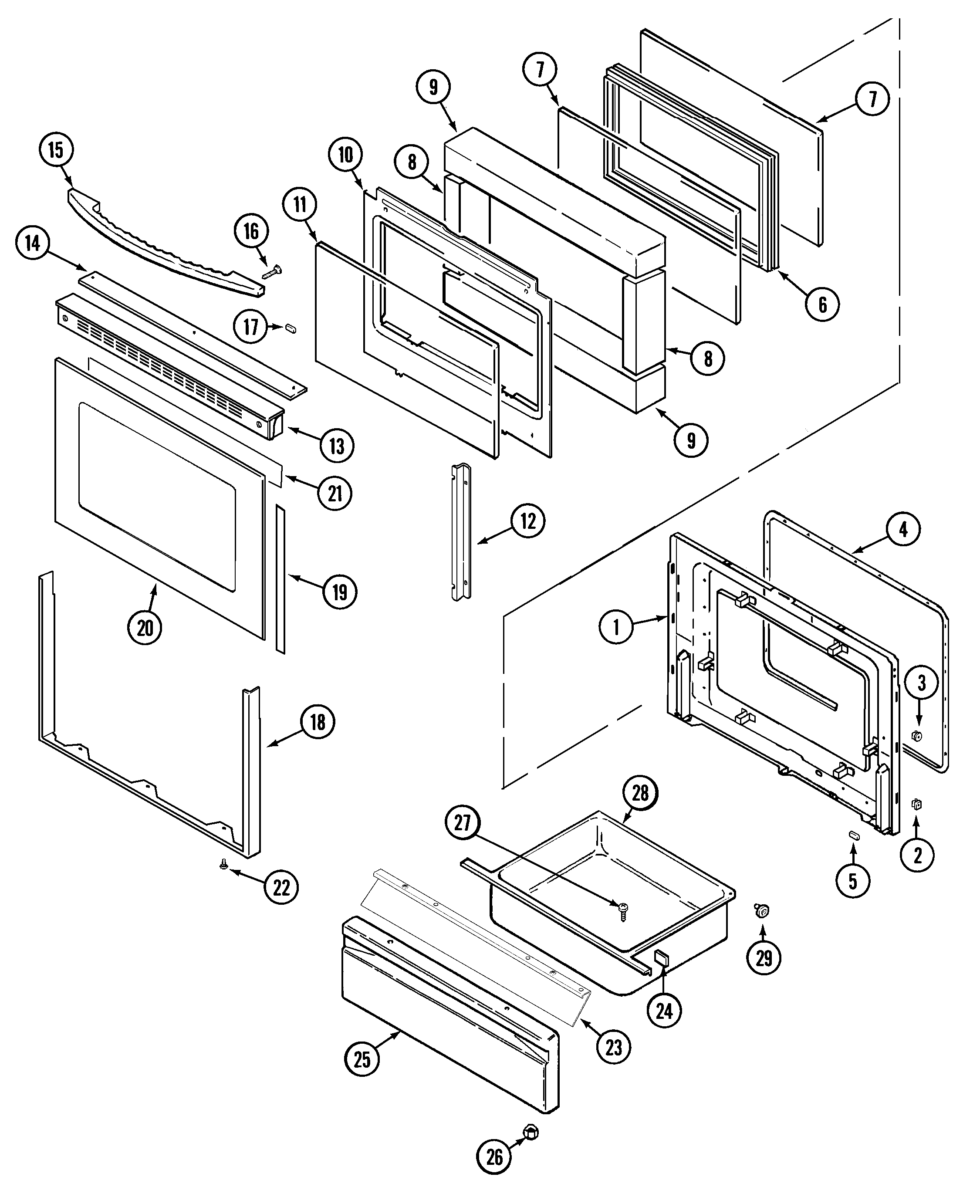

Door/drawer diagram
Range Oven Door Trim
Part #74003653Replaced by #WP74003653
Manufacturer substitutionThis part replaces 74003653. Substitute parts can look different from the original.In Stock$112.6210% OFF Phone Price : $124.62
Qty

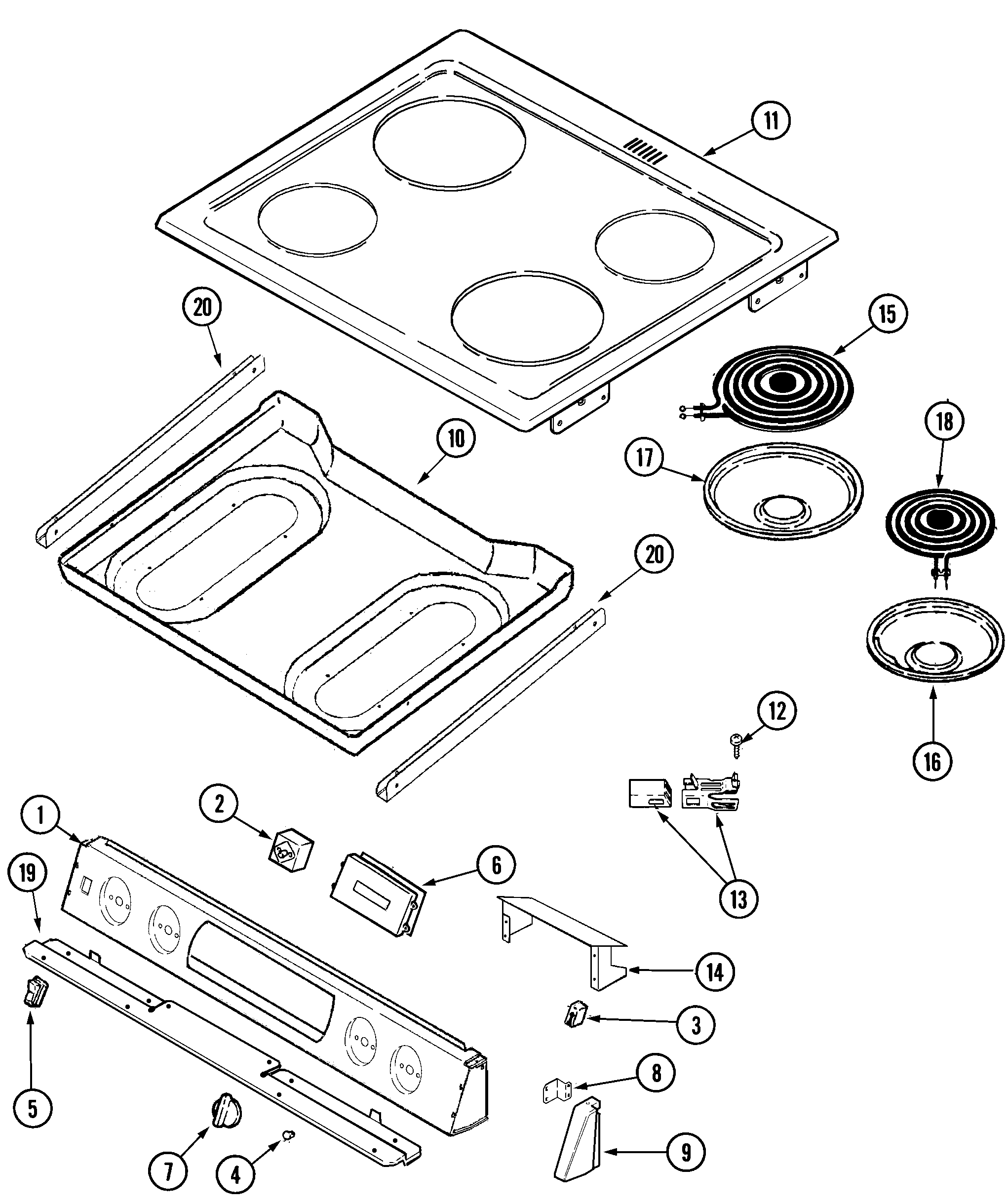

Top assembly diagram
Auxiliary Relay
Part #74003482Replaced by #WP74003482

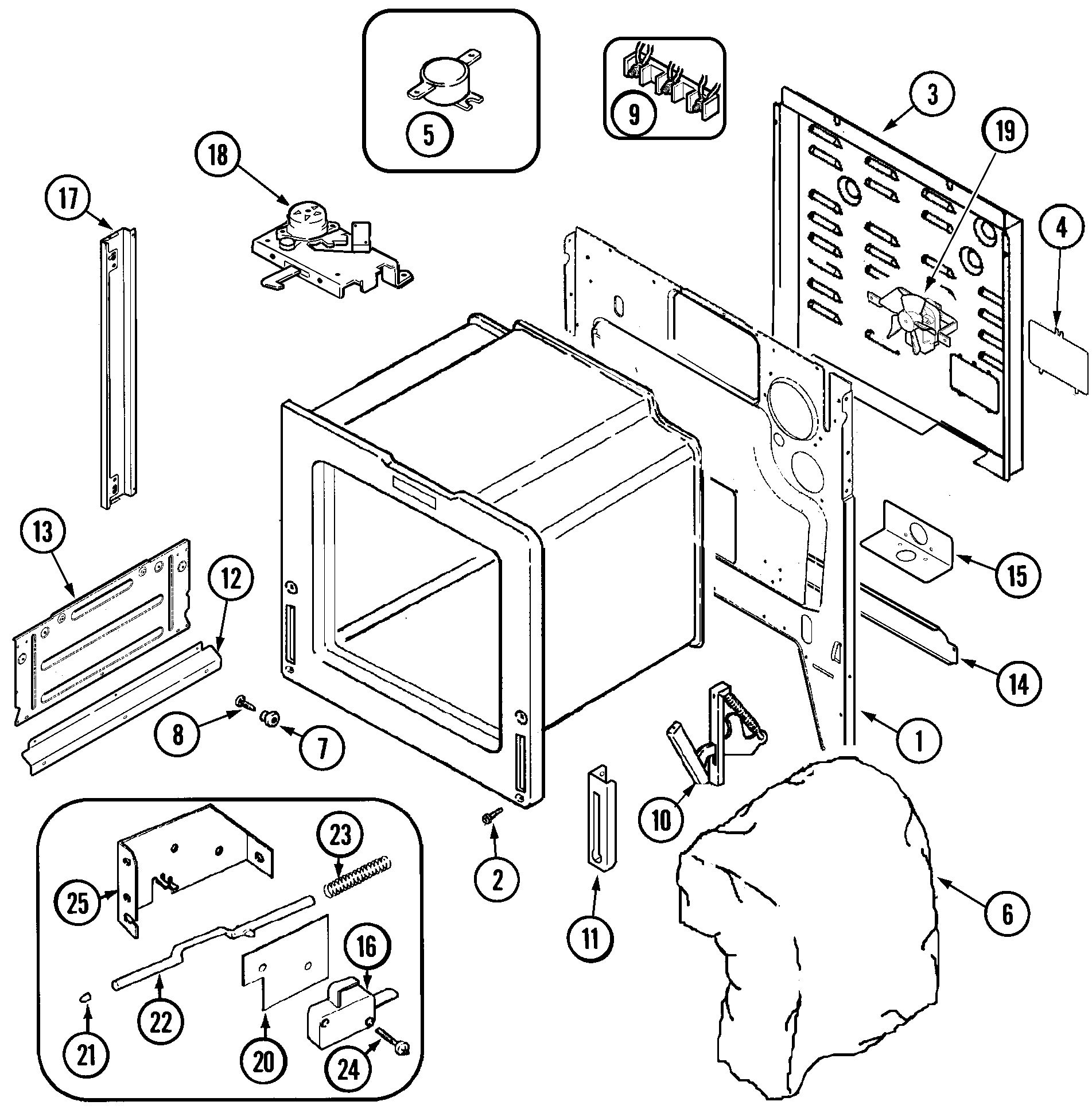

Manufacturer substitutionThis part replaces 74003482. Substitute parts can look different from the original.In Stock$88.116% OFF Phone Price : $94.11QtyBody diagram
Screw
Part #7101P282-60Replaced by #WP4159193
Manufacturer substitutionThis part replaces 7101P282-60. Substitute parts can look different from the original.This item is not returnableIn Stock$6.0014% OFF Phone Price : $7.00QtyBody diagram
Range High-limit Thermostat
Part #71001844Replaced by #WP71001844

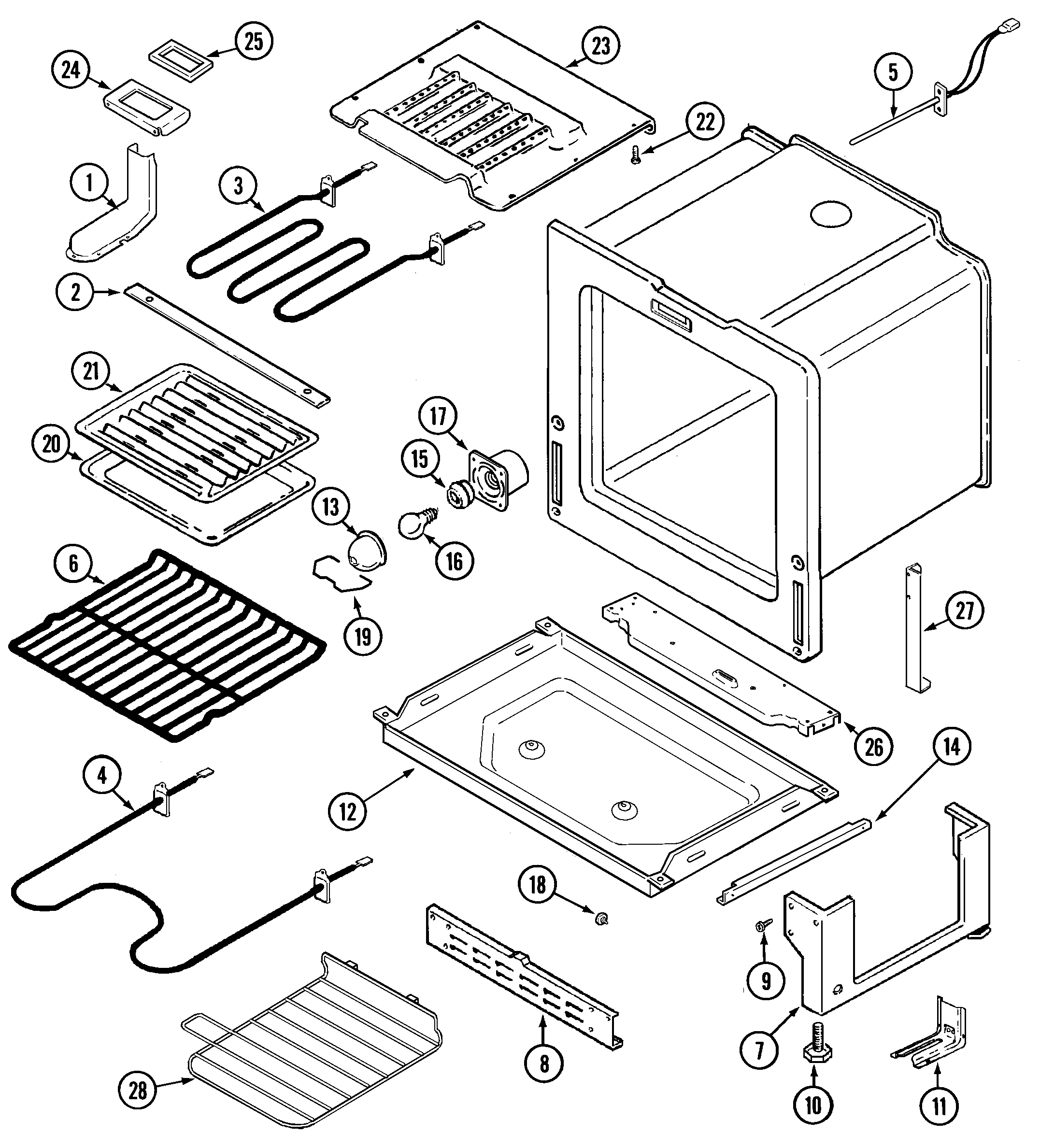

Manufacturer substitutionThis part replaces 71001844. Substitute parts can look different from the original.In Stock$117.769% OFF Phone Price : $129.76QtyOven/base diagram
Range Storage Drawer Roller
Part #74004078Replaced by #WP74004078
Manufacturer substitutionThis part replaces 74004078. Substitute parts can look different from the original.In Stock$10.3516% OFF Phone Price : $12.35QtyTop assembly diagram
Range Surface Element Control Switch
Part #7403P239-60Replaced by #WP7403P239-60
Manufacturer substitutionThis part replaces 7403P239-60. Substitute parts can look different from the original.In Stock$18.9163% OFF Was : $51.10QtyOven/base diagram
Oven Rack
Part #74001757Replaced by #WPW10282492
Manufacturer substitutionThis part replaces 74001757. Substitute parts can look different from the original.In Stock$67.328% OFF Phone Price : $73.32QtyTop assembly diagram
Screw
Part #7101P338-60Replaced by #W11233072
Manufacturer substitutionThis part replaces 7101P338-60. Substitute parts can look different from the original.In Stock$17.63QtyDoor/drawer diagram
Screw (black)
Part #7101P072-60Replaced by #WP7101P072-60
Manufacturer substitutionThis part replaces 7101P072-60. Substitute parts can look different from the original.In Stock$28.42QtyTop assembly diagram
Drip Bowl
Part #04100392Replaced by #W10290353RW
Manufacturer substitutionThis part replaces 04100392. Substitute parts can look different from the original.In Stock$18.1310% OFF Phone Price : $20.13Qty
