KitchenAid KERC607EAL0 30" freestanding range Parts
Here are the diagrams and repair parts for KitchenAid KERC607EAL0 30" freestanding range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

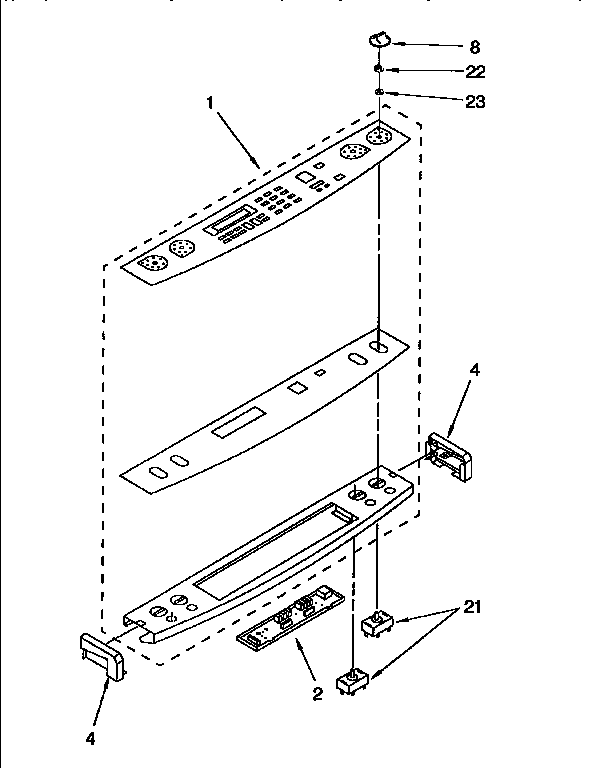

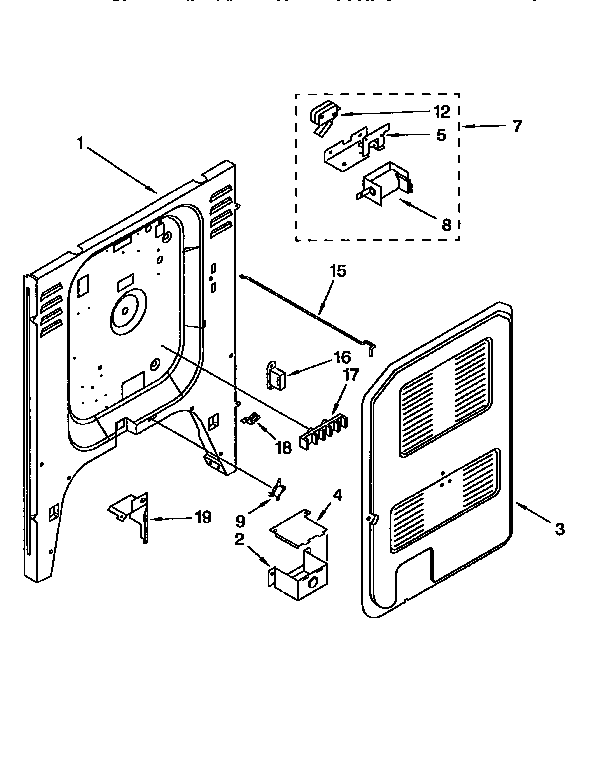

SELECT DIAGRAM
Browse Parts for KERC607EAL0 Ranges

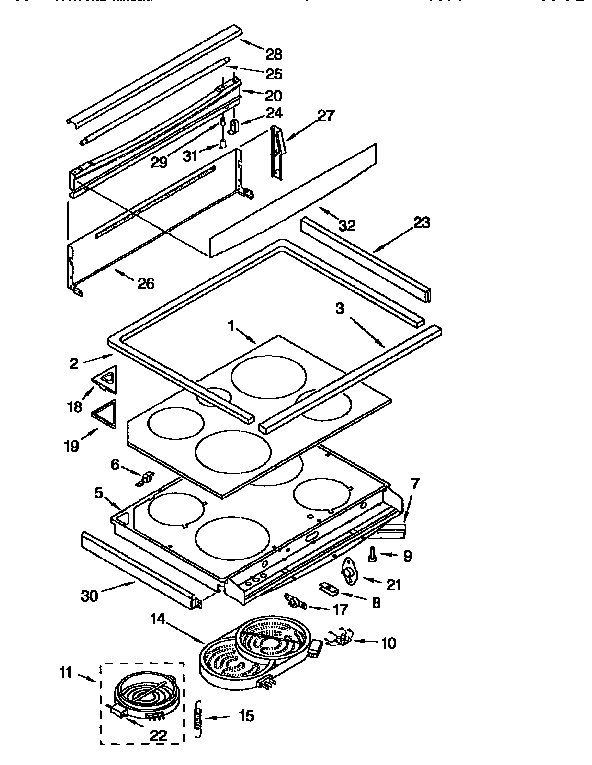

Cooktop diagram
18t8/26 Bulb
Part #422581Replaced by #WP95292
Manufacturer substitutionThis part replaces 422581. Substitute parts can look different from the original.In Stock$114.04
Qty

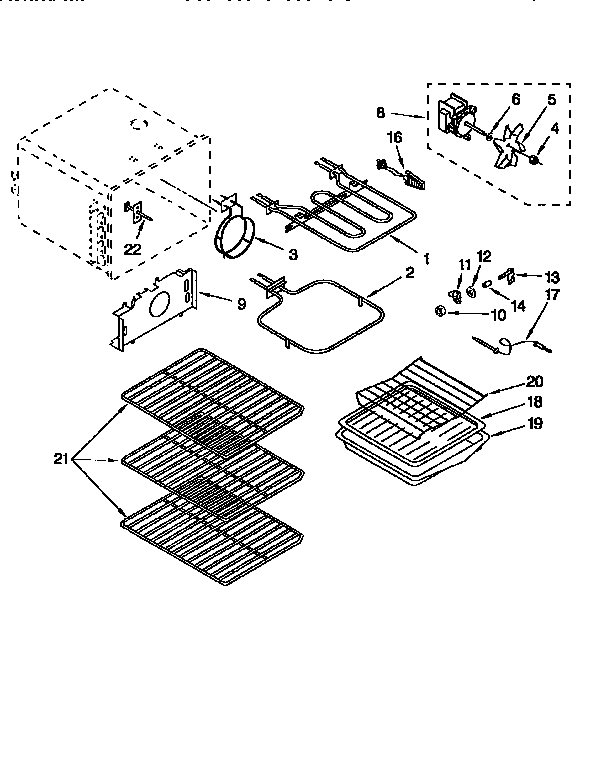

Oven diagram
Element
Part #9751447Replaced by #WPW10280189
Manufacturer substitutionThis part replaces 9751447. Substitute parts can look different from the original.In Stock$162.917% OFF Phone Price : $174.91
QtyCooktop diagram
Cooktop Gasket
Part #9780939Replaced by #WP9780939
Manufacturer substitutionThis part replaces 9780939. Substitute parts can look different from the original.In Stock$94.99QtyOven diagram
Range Oven Light Assembly
Part #4448972Replaced by #WP4448972
Manufacturer substitutionThis part replaces 4448972. Substitute parts can look different from the original.In Stock$50.0333% OFF Was : $74.26QtyScrew
Part #9780265Replaced by #WP4159387

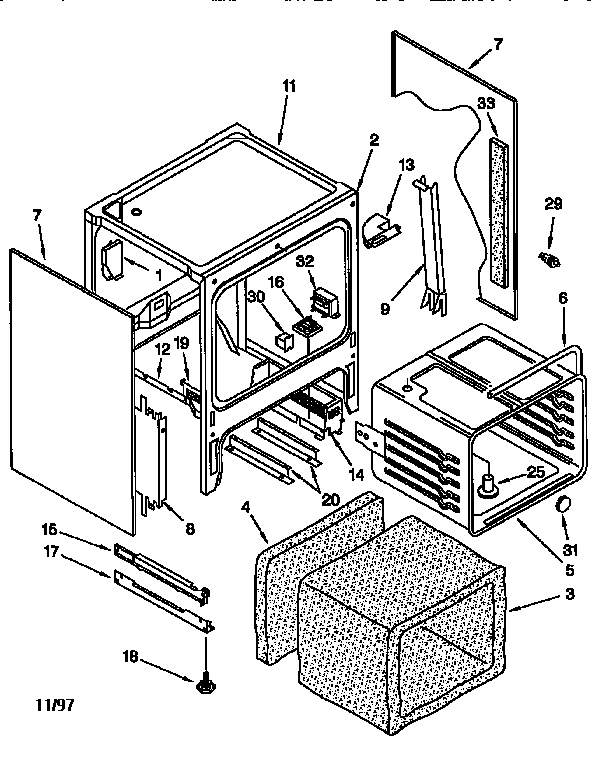

Manufacturer substitutionThis part replaces 9780265. Substitute parts can look different from the original.In Stock$28.42QtyOven chassis diagram
Transformer
Part #4450328Replaced by #WP9760588

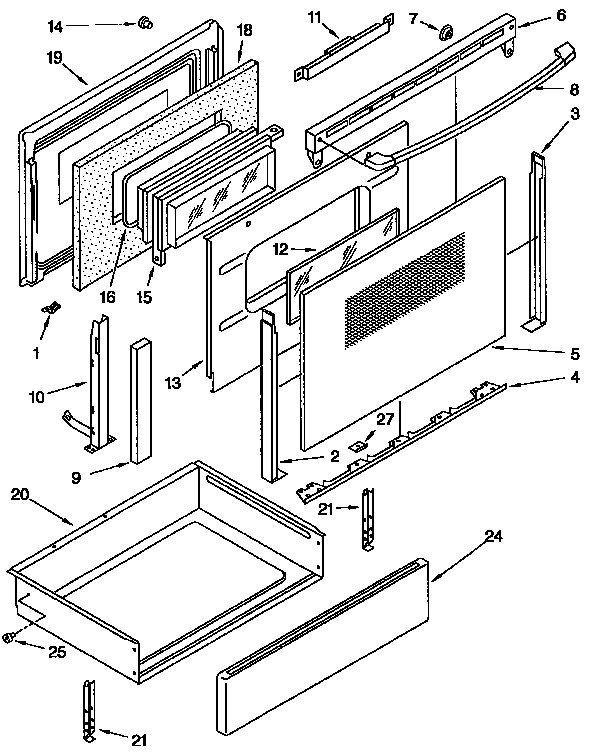

Manufacturer substitutionThis part replaces 4450328. Substitute parts can look different from the original.In Stock$146.768% OFF Phone Price : $158.76QtyDoor and drawer diagram
Door Hinge
Part #9750234Replaced by #WP9782033
Manufacturer substitutionThis part replaces 9750234. Substitute parts can look different from the original.In Stock$126.109% OFF Phone Price : $138.10QtyOven diagram
Broiler Pan
Part #4211944Replaced by #4396923
Manufacturer substitutionThis part replaces 4211944. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56QtyDoor and drawer diagram
Bumper (black)
Part #9780771Replaced by #238614
Manufacturer substitutionThis part replaces 9780771. Substitute parts can look different from the original.In Stock$151.91Qty#NI
All parts diagram
Spray-to
Part #285365
The manufacturer no longer makes this part, and there's no substitute part
