Side-By-Side Refrigerator

Model # TFT22JAXAAA Official GE core non-dispensing refrigerator - 1995

Here are the diagrams and repair parts for Official GE TFT22JAXAAA core non-dispensing refrigerator - 1995, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forTFT22JAXAAA Refrigerators

  • Refrigerator Filter Dryer WR86X96

    #740

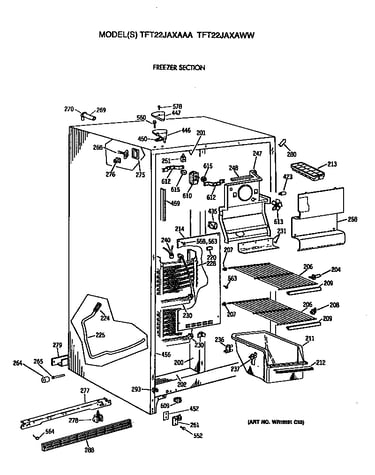

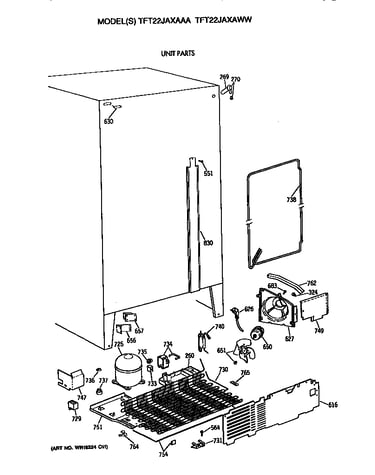

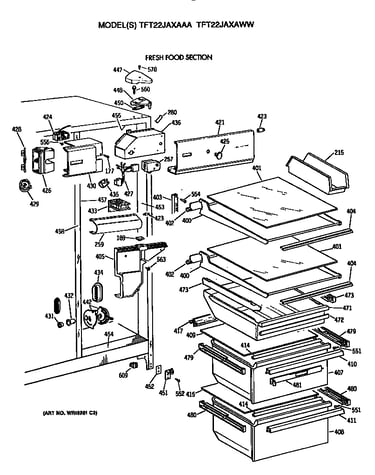

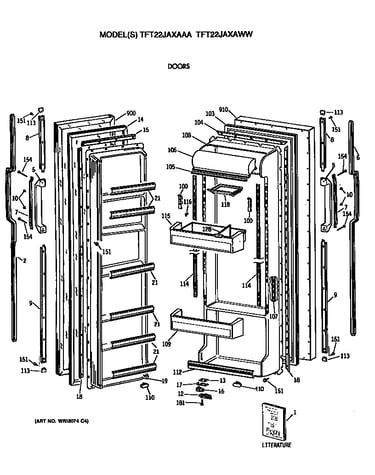

    All parts diagram

    Refrigerator filter dryer

    Part #WR86X96

    Replaced by #WR86X25269

    ?
    Manufacturer substitution
    This part replaces WR86X96. Substitute parts can look different from the original.
    BEST SELLER
    $74.11 |
    7% OFF Phone Price : $80.11
    In Stock
  • 40a15/22 STD372402

    #435

    All parts diagram

    40a15/22

    Part #STD372402

    Replaced by #40A15

    ?
    Manufacturer substitution
    This part replaces STD372402. Substitute parts can look different from the original.
    BEST SELLER
    $15.06 |
    12% OFF Phone Price : $17.06
    In Stock
  • Comp Rpl Kit WR87X471

    #725

    All parts diagram

    Comp rpl kit

    Part #WR87X471

    Replaced by #WR87X20798

    ?
    Manufacturer substitution
    This part replaces WR87X471. Substitute parts can look different from the original.
    BEST SELLER
    $448.79 |
    $12.00 OFF Phone Price : $460.79
    In Stock
  • Refrigerator Defrost Bi-metal Thermostat WR50X122

    #240

    All parts diagram

    Refrigerator defrost bi-metal thermostat

    Part #WR50X122

    BEST SELLER
    $48.87 |
    11% OFF Phone Price : $54.87
    In Stock
  • Door Hinge Pin, Lower WR13X741

    #451

    All parts diagram

    Door hinge pin, lower

    Part #WR13X741

    Replaced by #WR13X10020

    ?
    Manufacturer substitution
    This part replaces WR13X741. Substitute parts can look different from the original.
    BEST SELLER
    $43.47 |
    12% OFF Phone Price : $49.47
    In Stock
  • Door Hinge Pin, Lower WR13X742

    #261

    All parts diagram

    Door hinge pin, lower

    Part #WR13X742

    Replaced by #WR13X10020

    ?
    Manufacturer substitution
    This part replaces WR13X742. Substitute parts can look different from the original.
    BEST SELLER
    $43.47 |
    12% OFF Phone Price : $49.47
    In Stock
  • Refrigerator Door Closer Cam WR2X4901

    #16

    All parts diagram

    Refrigerator door closer cam

    Part #WR2X4901

    BEST SELLER
    $20.00 |
    23% OFF Phone Price : $26.00
    In Stock
  • Refrigerator Drawer Slide Rail WR72X240

    #479

    All parts diagram

    Refrigerator drawer slide rail

    Part #WR72X240

    BEST SELLER
    $50.50 |
    11% OFF Phone Price : $56.50
    In Stock
  • Refrigerator Defrost Control WR9X503

    #257

    All parts diagram

    Refrigerator defrost control

    Part #WR9X503

    Replaced by #WR9X502

    ?
    Manufacturer substitution
    This part replaces WR9X503. Substitute parts can look different from the original.
    $79.45 |
    7% OFF Phone Price : $85.45
    In Stock
  • Refrigerator Crisper Drawer Slide Rail WR72X239

    #479

    All parts diagram

    Refrigerator crisper drawer slide rail

    Part #WR72X239

    $37.21 |
    14% OFF Phone Price : $43.21
    In Stock
