Model # AZ61H15DABM3 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ61H15DABM3 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |

Protector Hood WP03X10030
#2024

Grille, heater & base pan parts diagram

Protector hood

Part #WP03X10030

In Stock
Cabinet Angle WP03X10012
#1066

Grille, heater & base pan parts diagram

Cabinet angle

Part #WP03X10012

In Stock
Damper WJ70X10026
#3020

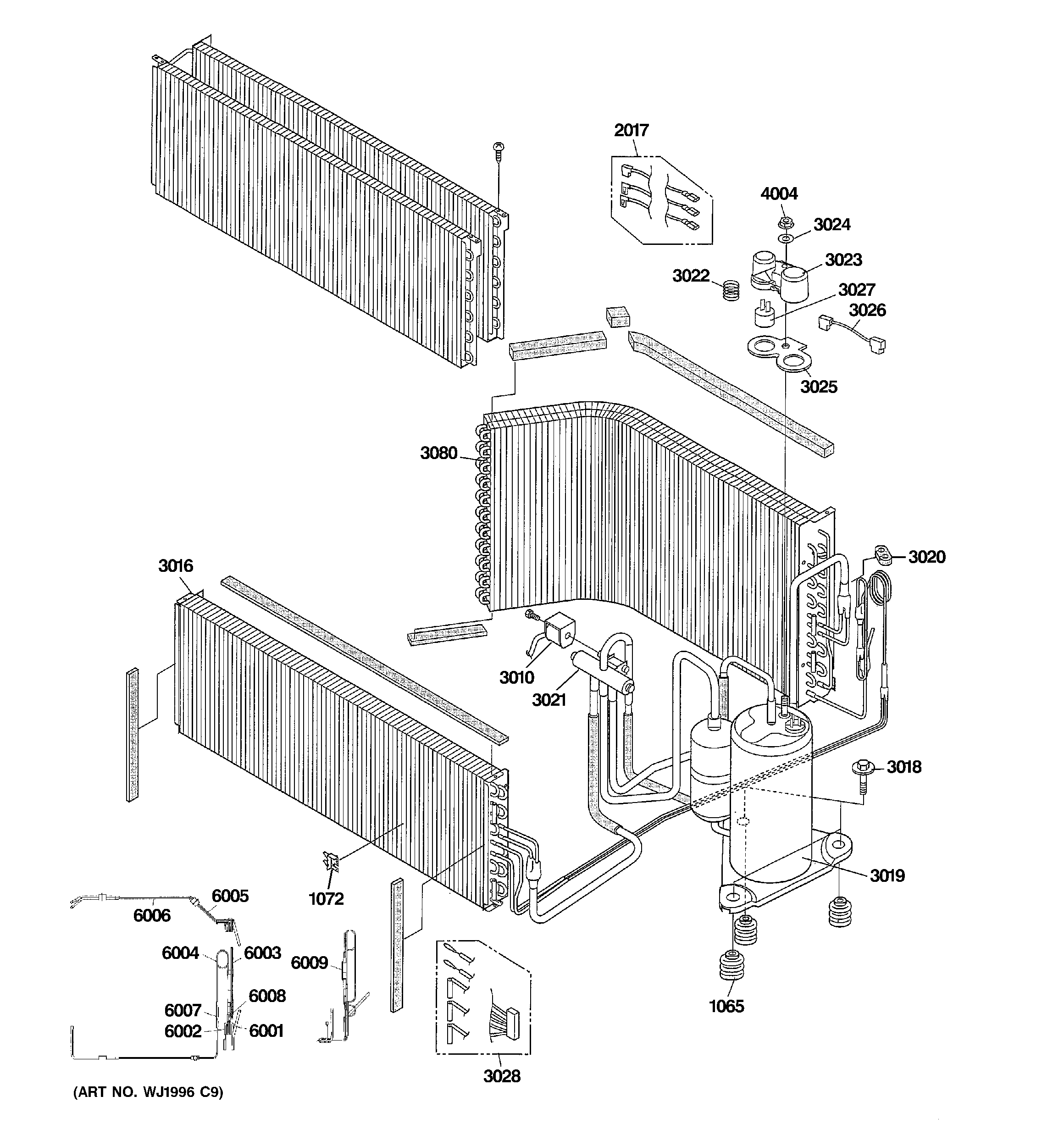

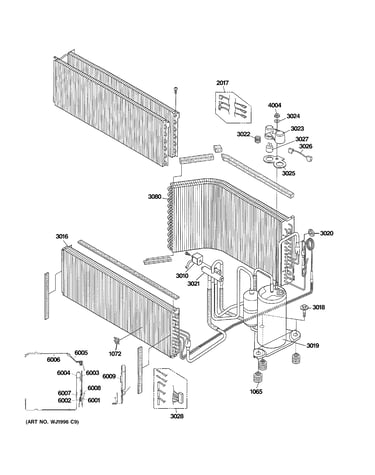

Unit parts diagram

Damper

Part #WJ70X10026

In Stock
Out Door Motor WP66X10009
#2002

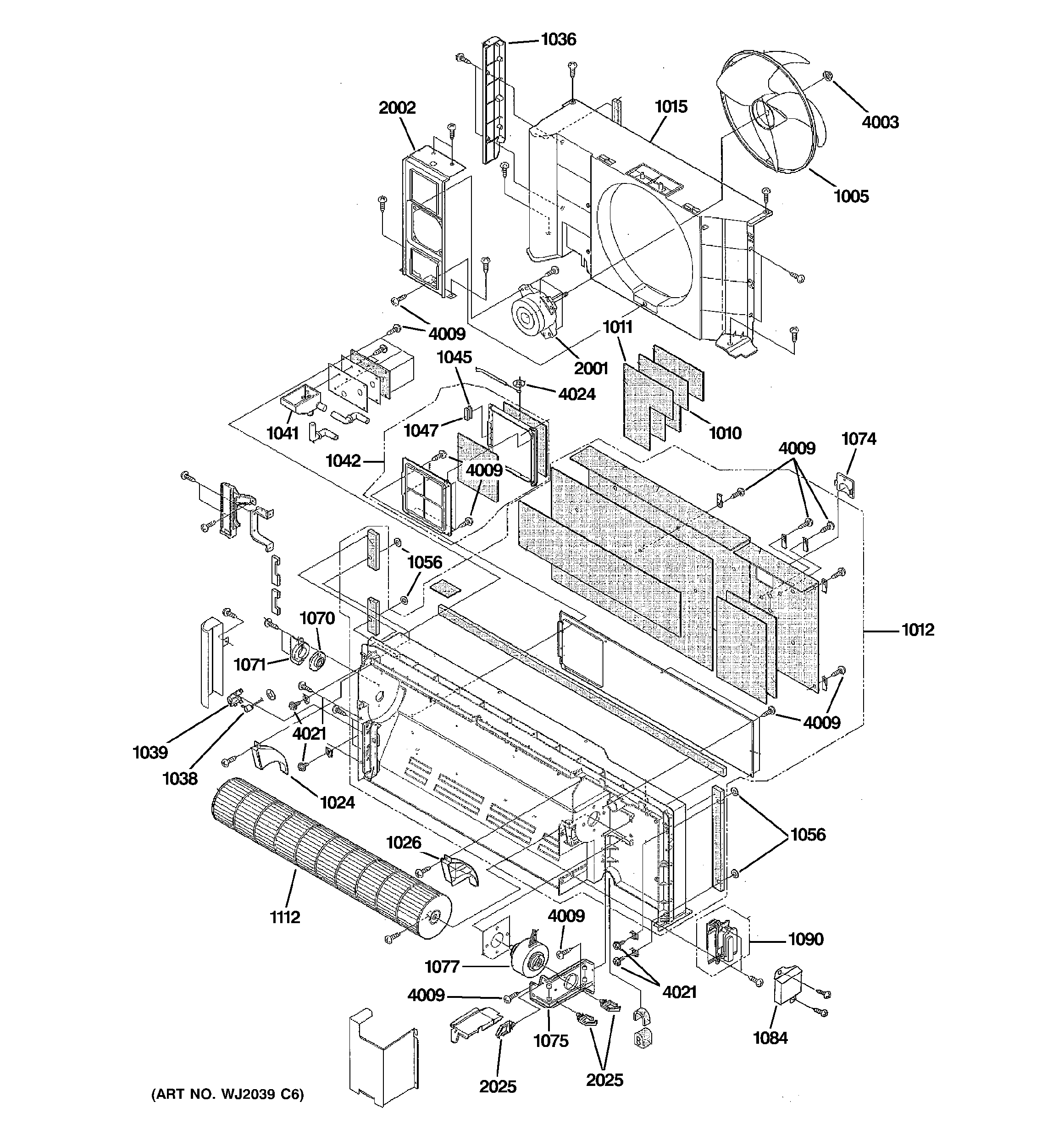

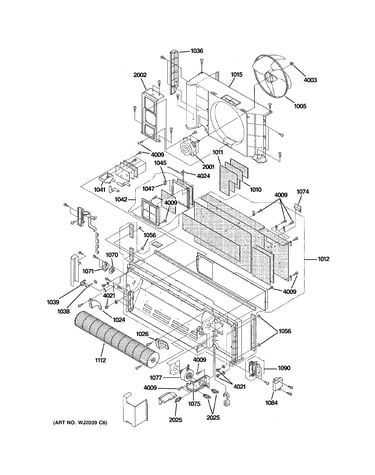

Motor & chassis parts diagram

Out door motor

Part #WP66X10009

In Stock
Damper Lever WP01X10058
#1039

Motor & chassis parts diagram

Damper lever

Part #WP01X10058

This item is not returnable
In Stock
Spacer WP03X10023
#2013

Control parts diagram

Spacer

Part #WP03X10023

This item is not returnable
In Stock
Capacitor Clamp WP03X10031
#2011

Control parts diagram

Capacitor clamp

Part #WP03X10031

This item is not returnable
In Stock
Fan WP73X10013
#1112

Motor & chassis parts diagram

Fan

Part #WP73X10013

$80.19
6% OFF Phone Price : $85.19
In Stock
Terminal Box WP03X10021
#1083

Grille, heater & base pan parts diagram

Terminal box

Part #WP03X10021

In Stock
Room Air Conditioner Compressor Capacitor WP20X10023
#2200

Control parts diagram

Room air conditioner compressor capacitor

Part #WP20X10023

In Stock
