Model # SGM466SLP Official Dacor cooktop

Here are the diagrams and repair parts for Official Dacor SGM466SLP cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |

Cooktop Burner Cap 86524SB
Cooktop burner cap

Part #86524SB

In Stock
Cooktop Main Top (black) 36420BP
#24A

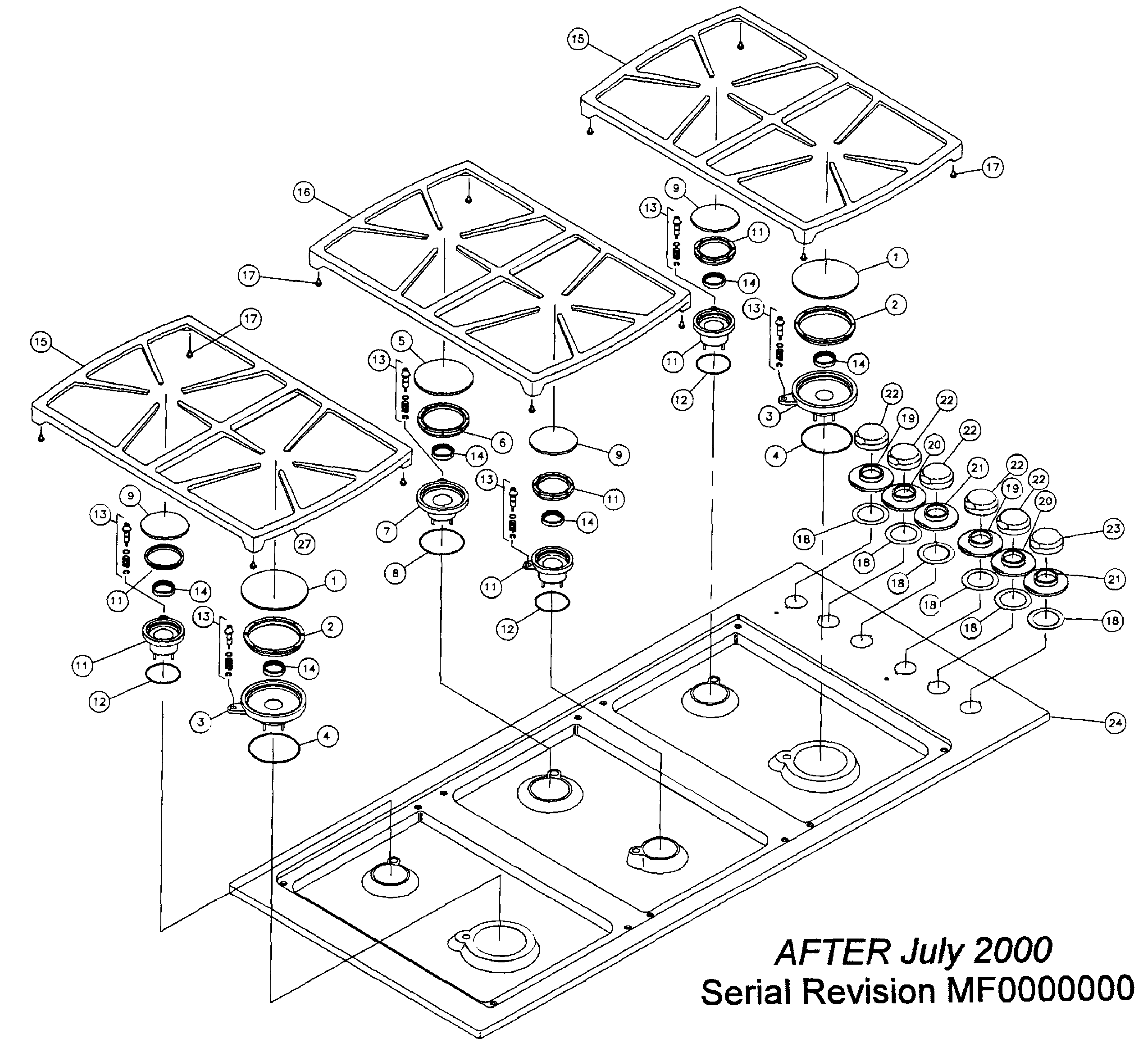

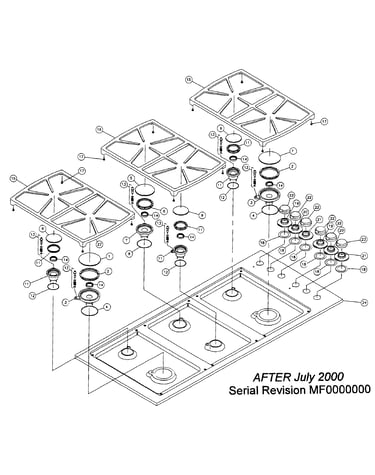

Top assy diagram

Cooktop main top (black)

Part #36420BP

Back Order
Cap 86524BM
#9

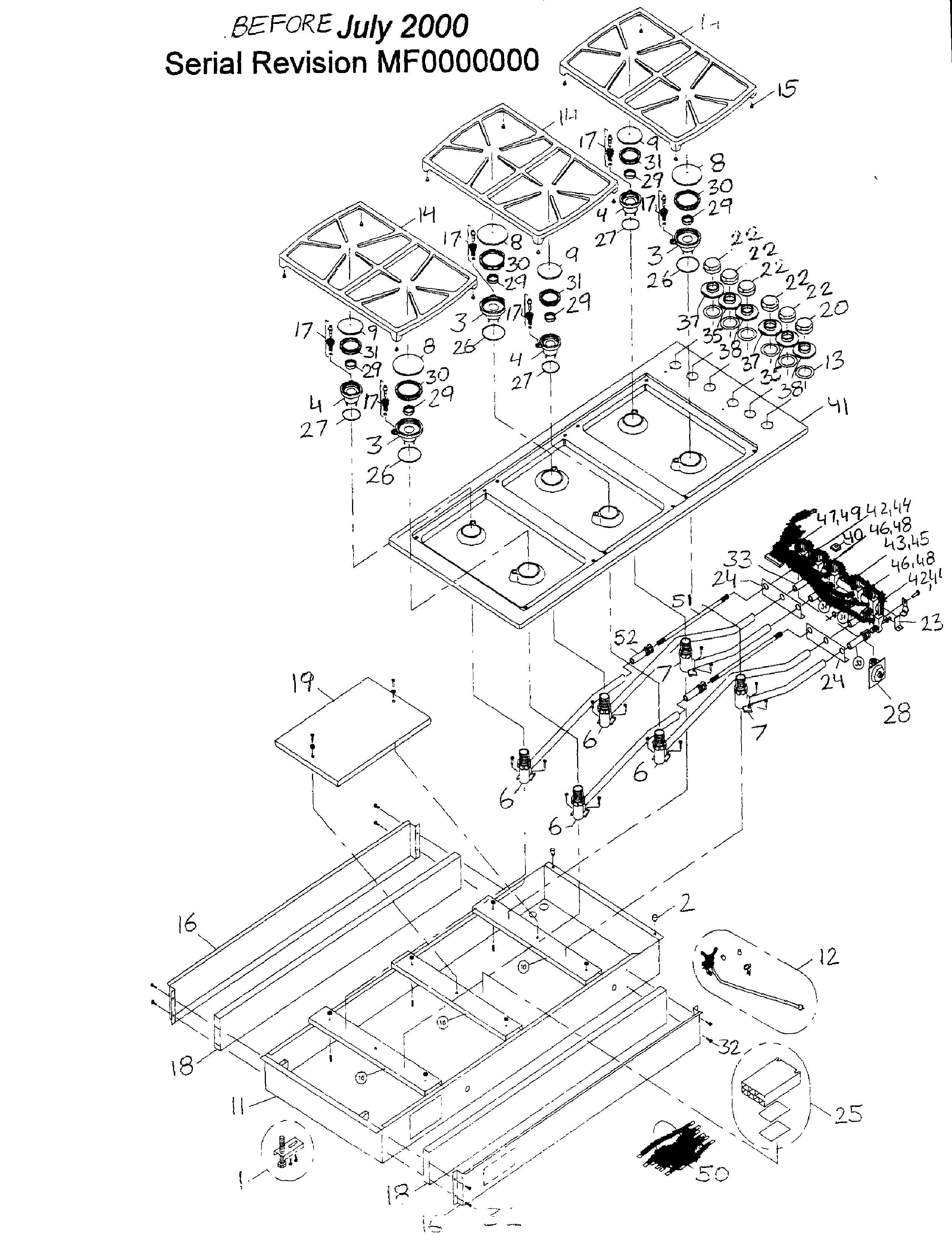

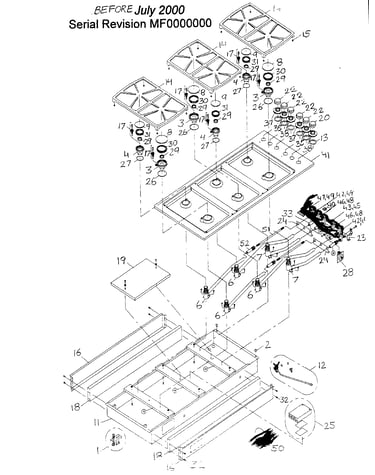

Cooktop diagram

Cap

Part #86524BM

Replaced by #86524SB

?
Manufacturer substitution
This part replaces 86524BM. Substitute parts can look different from the original.
In Stock
Manifold Liquid Propane 62910
#6A

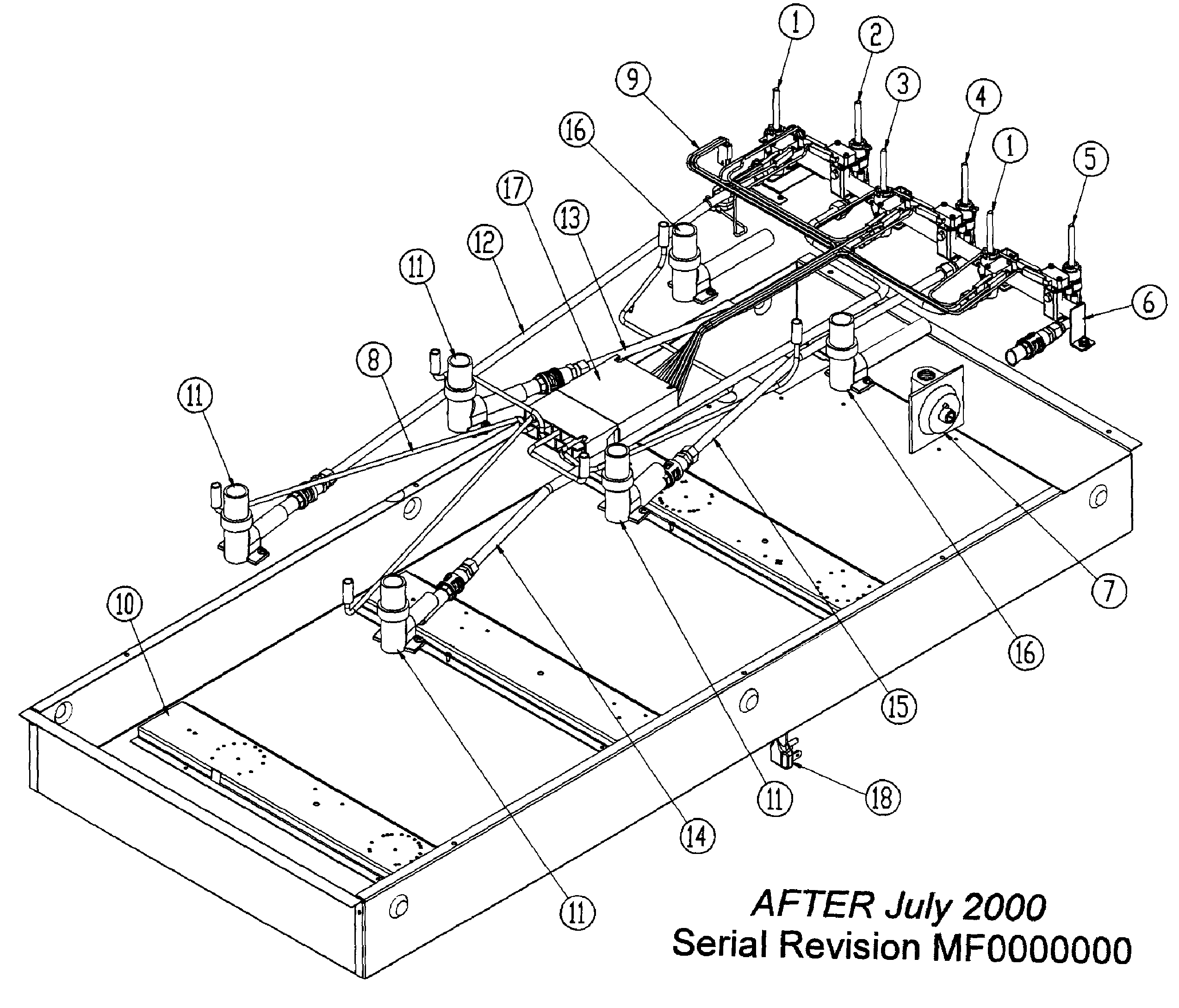

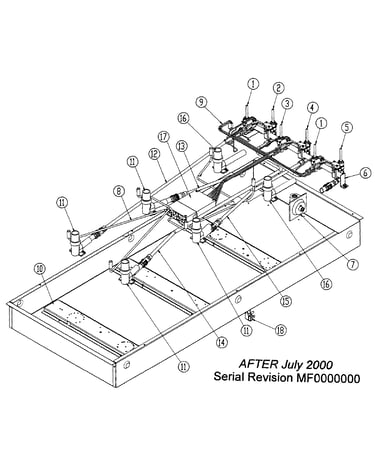

Lower assy diagram

Manifold liquid propane

Part #62910

In Stock
Cooktop Burner Tube And Orifice 62144
#11

Lower assy diagram

Cooktop burner tube and orifice

Part #62144

In Stock
Tube,ng,lr 62877
#12

Lower assy diagram

Tube,ng,lr

Part #62877

In Stock
Tube,ng,lf 62912
#14

Lower assy diagram

Tube,ng,lf

Part #62912

In Stock
Tube,lp,cr 62922
#13A

Lower assy diagram

Tube,lp,cr

Part #62922

In Stock
Dacor Cooktop Ring Set 62937
#NI

Top assy diagram

Dacor cooktop ring set

Part #62937

$96.86
9% OFF Phone Price : $106.86
In Stock
Cooktop Burner Air Shutter 86373
Cooktop burner air shutter

Part #86373

In Stock
