Model # PLMV169DCA Official Frigidaire microwave/hood combo

Here are the diagrams and repair parts for Official Frigidaire PLMV169DCA microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

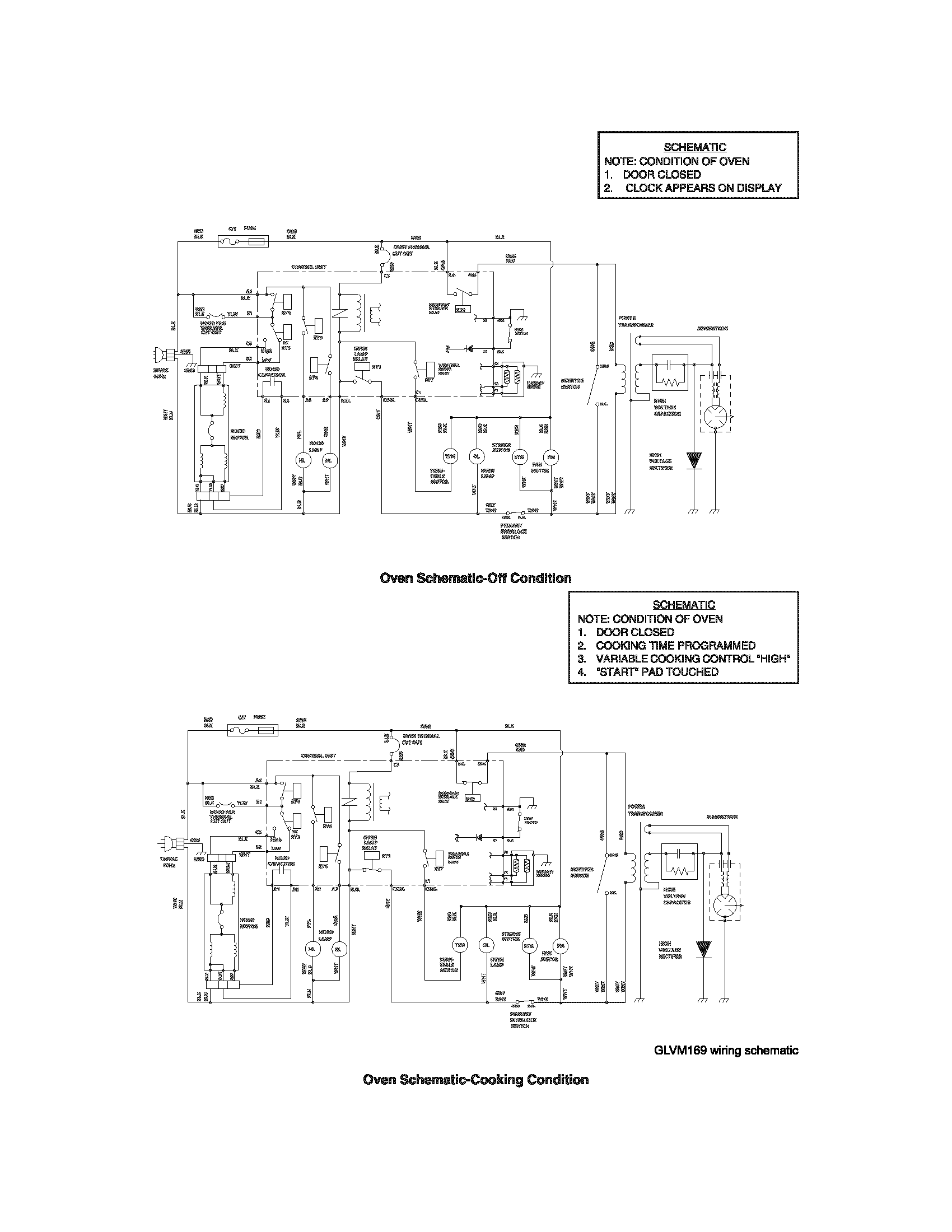

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |
Microwave Door Interlock Switch 5304440026
#8

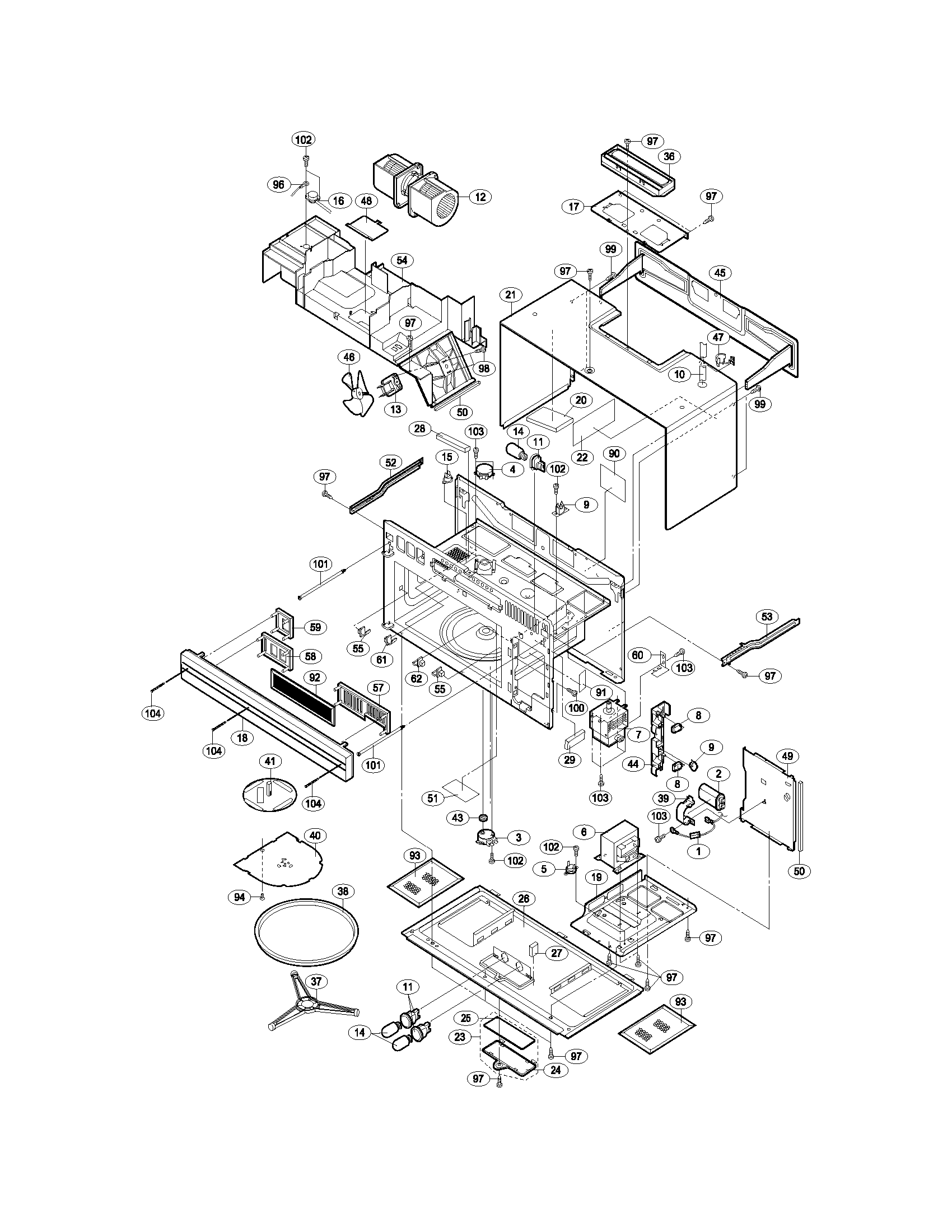

Oven/cabinet diagram

Microwave door interlock switch

Part #5304440026

BEST SELLER
$39.53 |
11% OFF Phone Price : $44.53
In Stock
Capacitor 5303319549
#2

Oven/cabinet diagram

Capacitor

Part #5303319549

Replaced by #5304470539

?
Manufacturer substitution
This part replaces 5303319549. Substitute parts can look different from the original.
BEST SELLER
$121.18 |
8% OFF Phone Price : $131.18
In Stock
Switch 5304440027
#9

Oven/cabinet diagram

Switch

Part #5304440027

Replaced by #5304468224

?
Manufacturer substitution
This part replaces 5304440027. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
8% OFF Phone Price : $65.49
In Stock
Magnetron-tu 5304440025
#7

Oven/cabinet diagram

Magnetron-tu

Part #5304440025

The manufacturer no longer makes this part, and there's no substitute part

Rectifier 5304440019
#1

Oven/cabinet diagram

Rectifier

Part #5304440019

Replaced by #5304468869

?
Manufacturer substitution
This part replaces 5304440019. Substitute parts can look different from the original.
$75.09 |
6% OFF Phone Price : $80.09
In Stock
Transformer 5304440024
#6

Oven/cabinet diagram

Transformer

Part #5304440024

Replaced by #5304468156

?
Manufacturer substitution
This part replaces 5304440024. Substitute parts can look different from the original.
$153.13 |
6% OFF Phone Price : $163.13
In Stock
Microwave Turntable Motor 5304440021
#3

Oven/cabinet diagram

Microwave turntable motor

Part #5304440021

$61.51
In Stock
Microwave Door Latch Hook (replaces 75304440289) 5304440289
#44

Oven/cabinet diagram

Microwave door latch hook (replaces 75304440289)

Part #5304440289

$81.69 |
6% OFF Phone Price : $86.69
In Stock
Microwave Door Handle 5304440323
#73

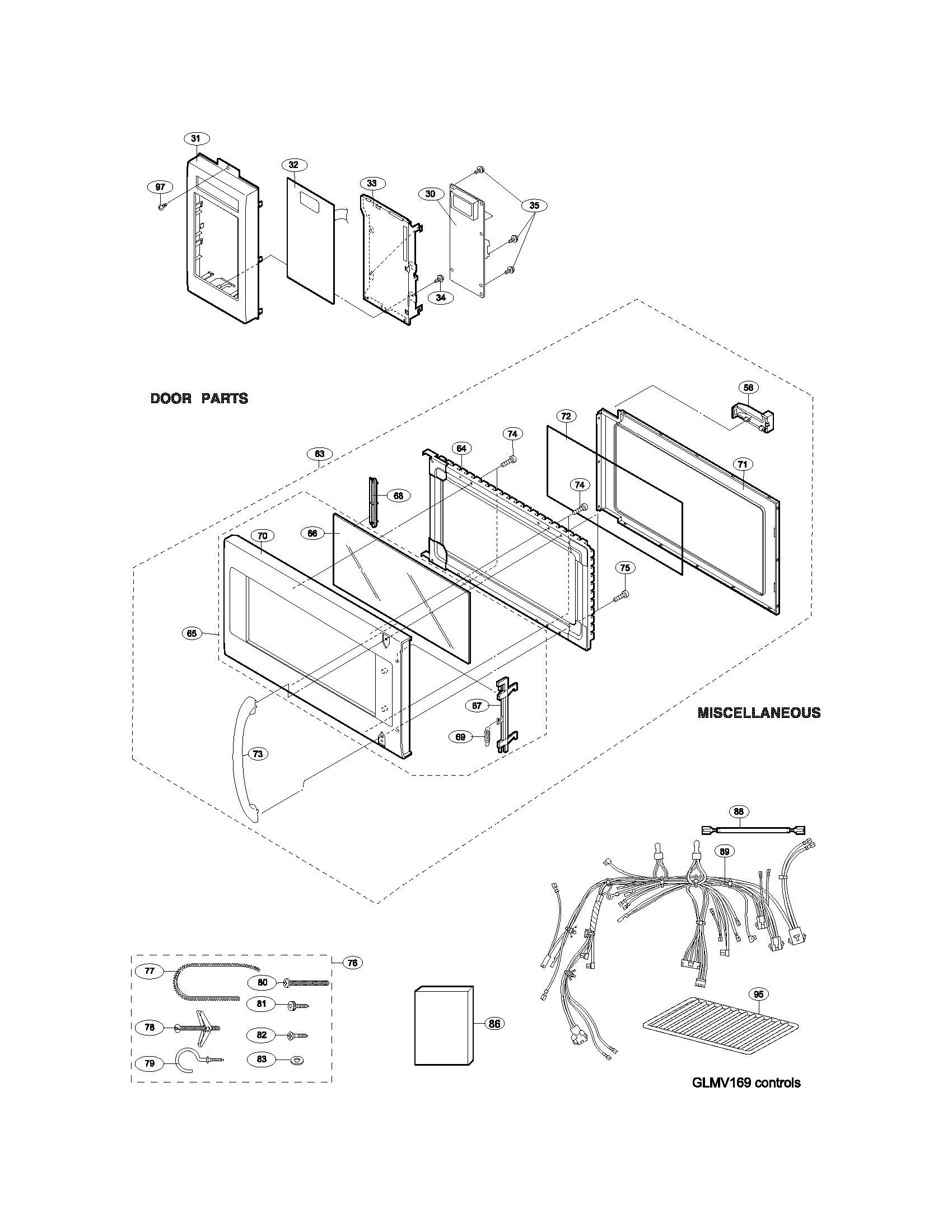

Control panel/door/misc diagram

Microwave door handle

Part #5304440323

$78.13 |
6% OFF Phone Price : $83.13
In Stock
Microwave Thermal Cut-off 5304440023
#5

Oven/cabinet diagram

Microwave thermal cut-off

Part #5304440023

Replaced by #5304510885

?
Manufacturer substitution
This part replaces 5304440023. Substitute parts can look different from the original.
$23.98
In Stock
