Model # LC-32D4U Official Sharp lcd television

Here are the diagrams and repair parts for Official Sharp LC-32D4U lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Thermistor VHHM1103J03-1Y
#NI

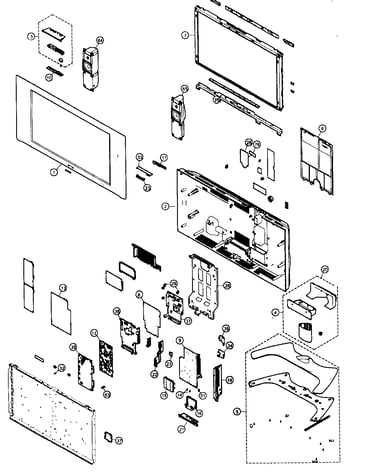

Cabinet parts diagram

Thermistor

Part #VHHM1103J03-1Y

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit VHIBD5227G-1Y
#NI

Cabinet parts diagram

Integrated circuit

Part #VHIBD5227G-1Y

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit VHIPQ1CZ41H-1Y
#NI

Cabinet parts diagram

Integrated circuit

Part #VHIPQ1CZ41H-1Y

The manufacturer no longer makes this part, and there's no substitute part

Tuner RTUDTA018WJZZ
#NI

Cabinet parts diagram

Tuner

Part #RTUDTA018WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit RH-IXB498WJN1Q
#NI

Cabinet parts diagram

Integrated circuit

Part #RH-IXB498WJN1Q

The manufacturer no longer makes this part, and there's no substitute part

Spring MSPRCA049WJFW
#3-4

Cabinet parts diagram

Spring

Part #MSPRCA049WJFW

The manufacturer no longer makes this part, and there's no substitute part

Remote Control Receiver RRMCU0239CEZZ
#NI

Cabinet parts diagram

Remote control receiver

Part #RRMCU0239CEZZ

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit VHILHF12FT5-1Q
#NI

Cabinet parts diagram

Integrated circuit

Part #VHILHF12FT5-1Q

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit VHIPQ1R50//-1Y
#NI

Cabinet parts diagram

Integrated circuit

Part #VHIPQ1R50//-1Y

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit VHIBD5224G-1Y
#NI

Cabinet parts diagram

Integrated circuit

Part #VHIBD5224G-1Y

The manufacturer no longer makes this part, and there's no substitute part
