Model # LMV1813SB/00 Official LG microwave oven

Here are the diagrams and repair parts for Official LG LMV1813SB-00 microwave oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

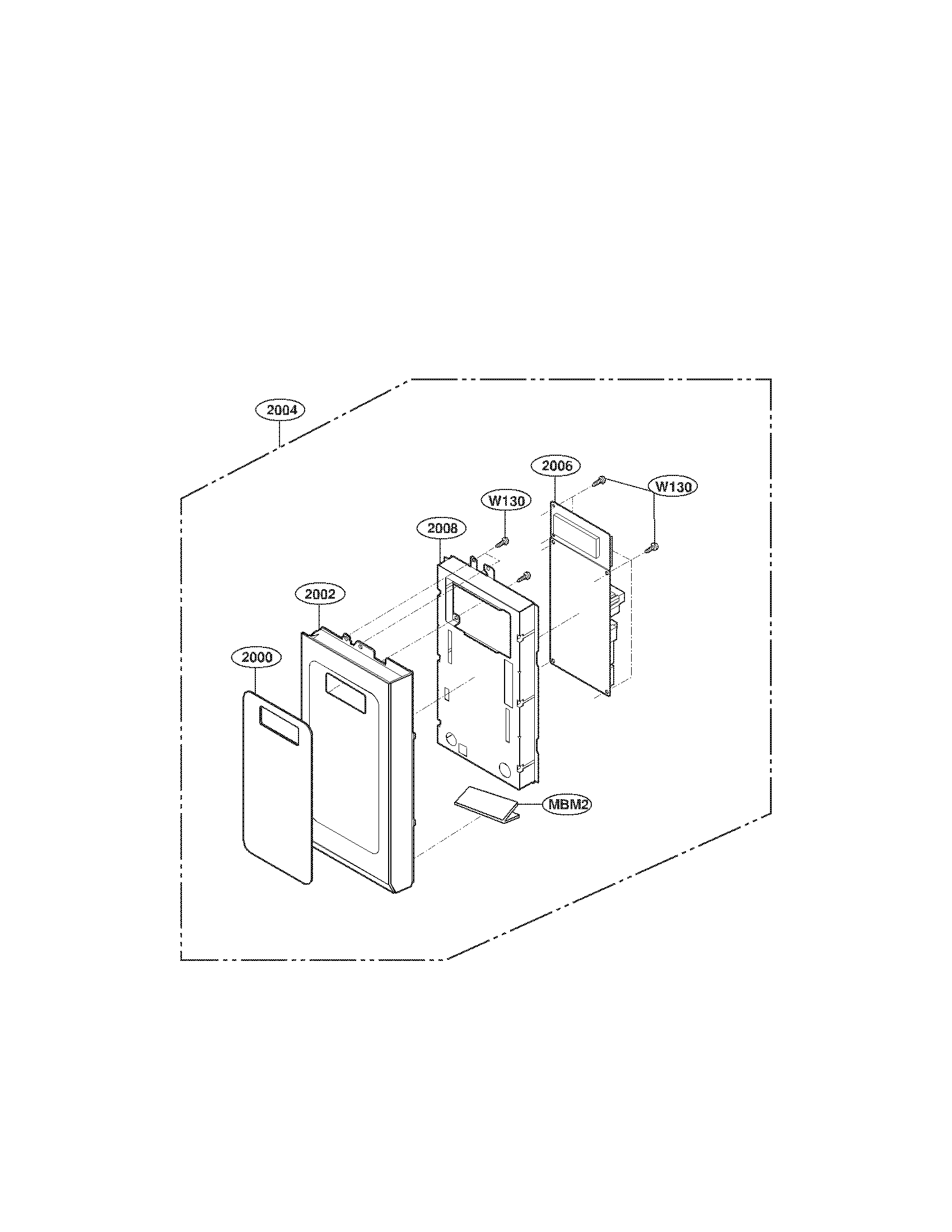

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Magnetron 6324W1A001B
#5009

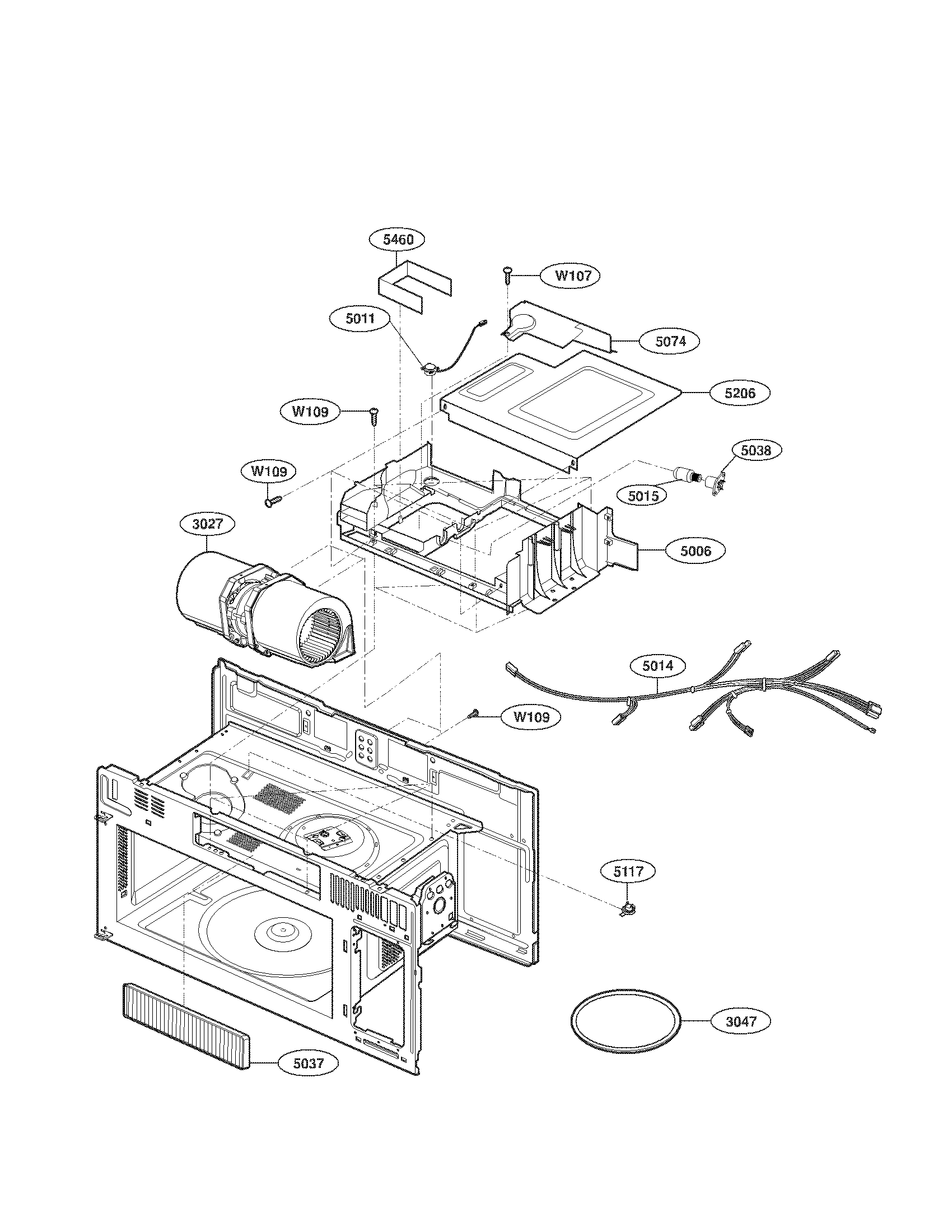

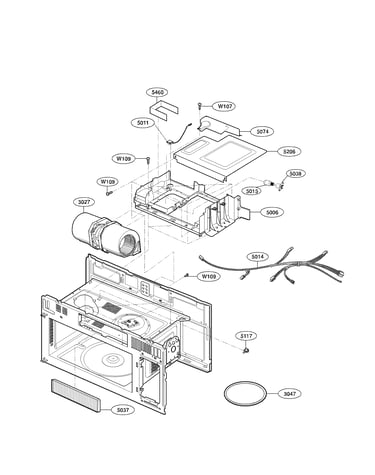

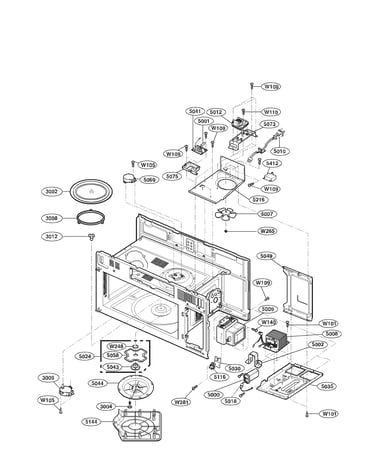

Interior parts diagram

Magnetron

Part #6324W1A001B

The manufacturer no longer makes this part, and there's no substitute part

Microwave Light Bulb (replaces 3b70067f, 6912w3q001a, 6912w3q001d) 6912W1Z004B
#5015

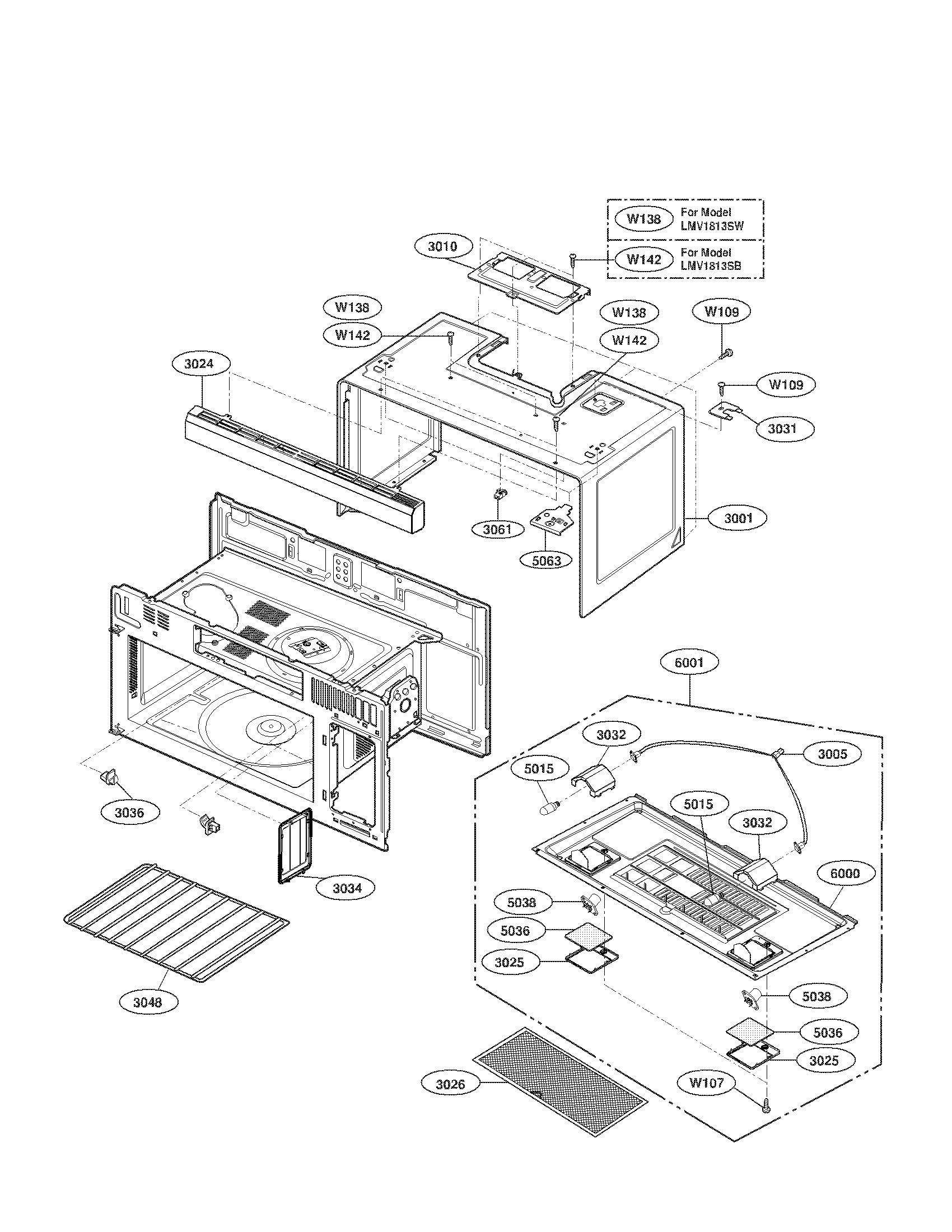

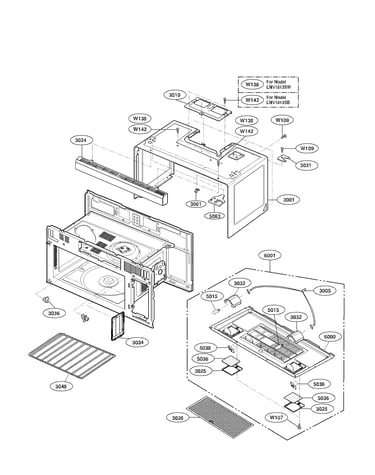

Oven cavity parts diagram

Microwave light bulb (replaces 3b70067f, 6912w3q001a, 6912w3q001d)

Part #6912W1Z004B

BEST SELLER
$9.42 |
10% OFF Phone Price : $10.42
In Stock
Microwave Door Interlock Switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f) 6600W1K001C
#4003

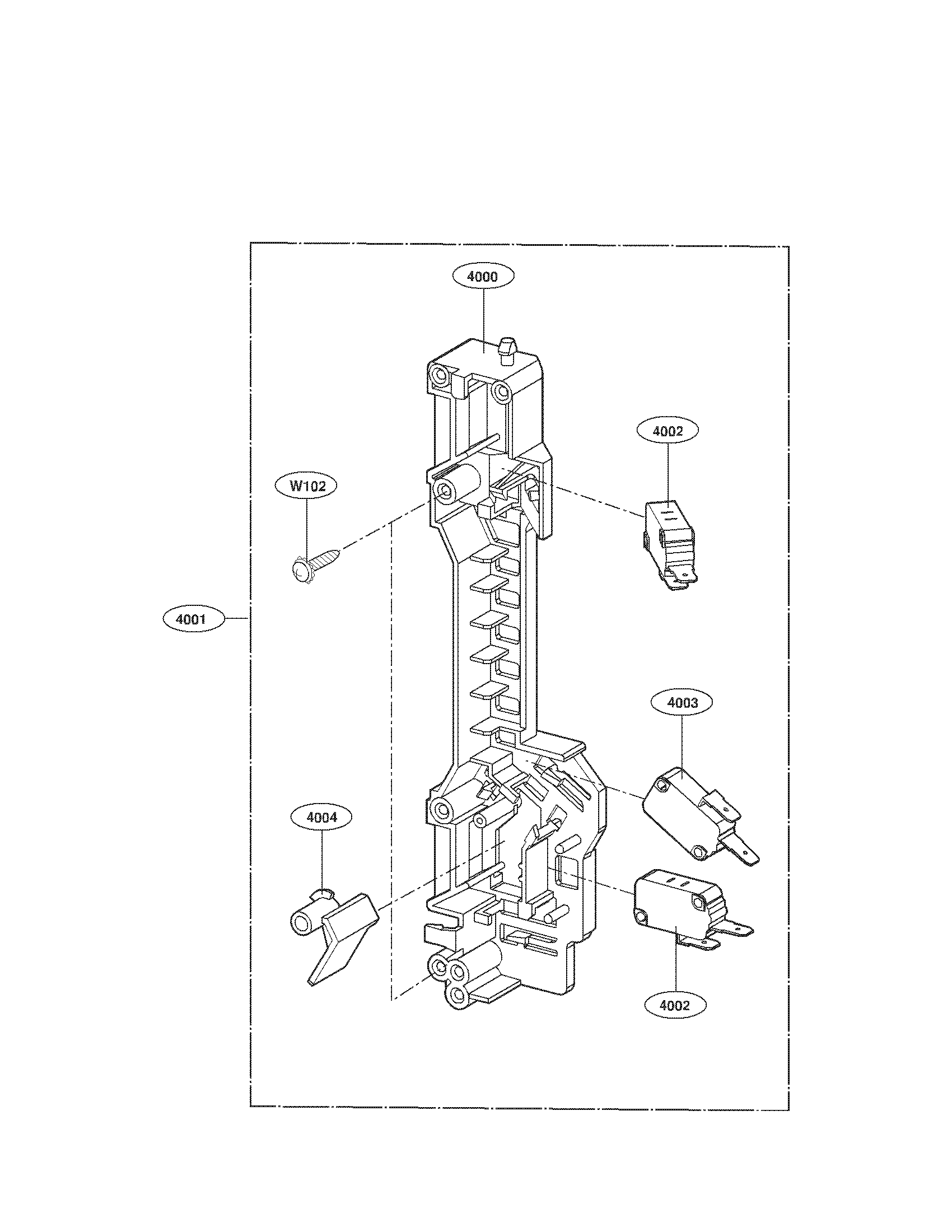

Latchboard parts diagram

Microwave door interlock switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f)

Part #6600W1K001C

BEST SELLER
$12.16 |
14% OFF Phone Price : $14.16
In Stock
Microwave Diode (replaces 6021w3b001u, 6851w1a002m) 6851W1A002E
#5018

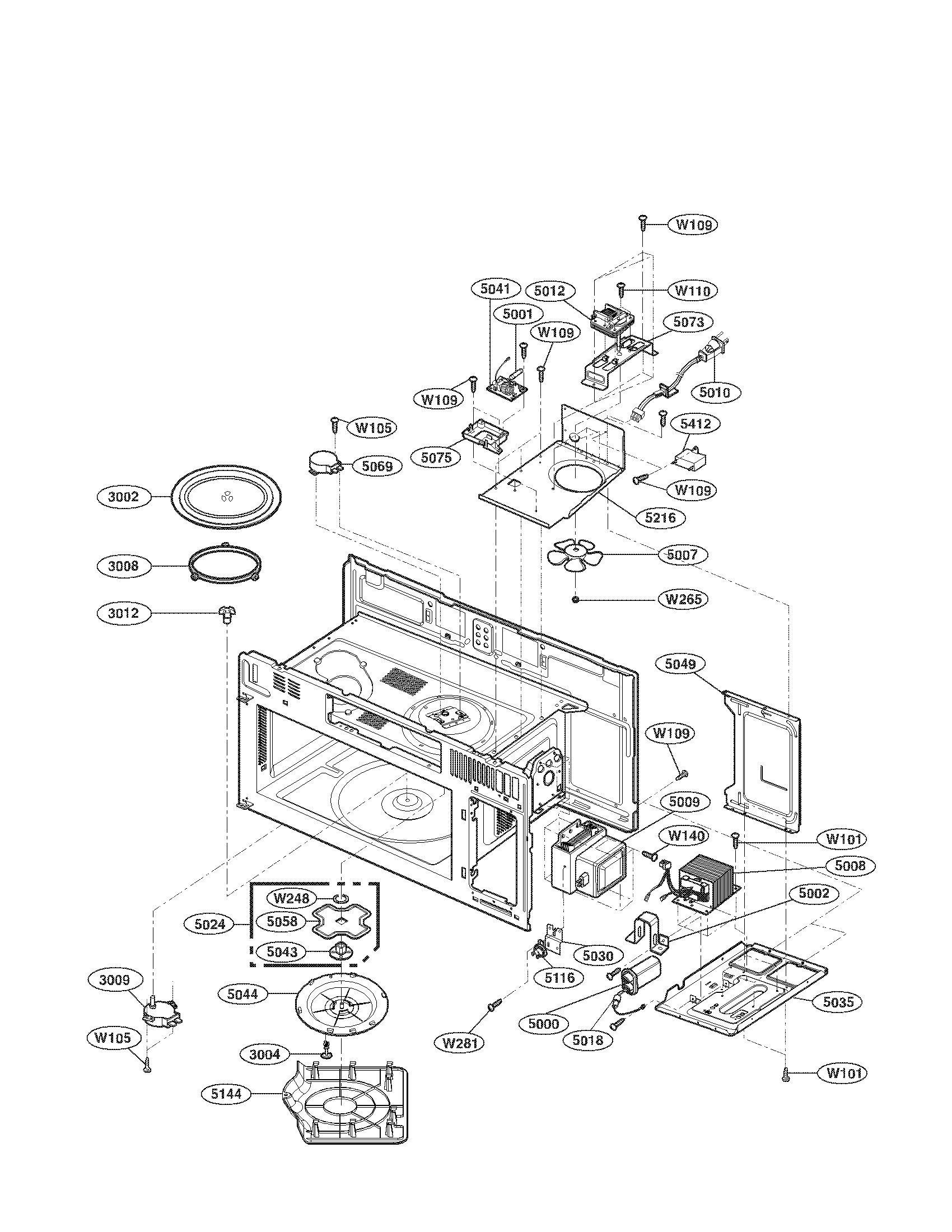

Interior parts diagram

Microwave diode (replaces 6021w3b001u, 6851w1a002m)

Part #6851W1A002E

BEST SELLER
$9.57 |
9% OFF Phone Price : $10.57
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
#4002

Latchboard parts diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Microwave Door Latch Housing And Interlock Switch Assembly 3501W1A019D
#4001

Latchboard parts diagram

Microwave door latch housing and interlock switch assembly

Part #3501W1A019D

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Latch 4026W2A019A
#1006

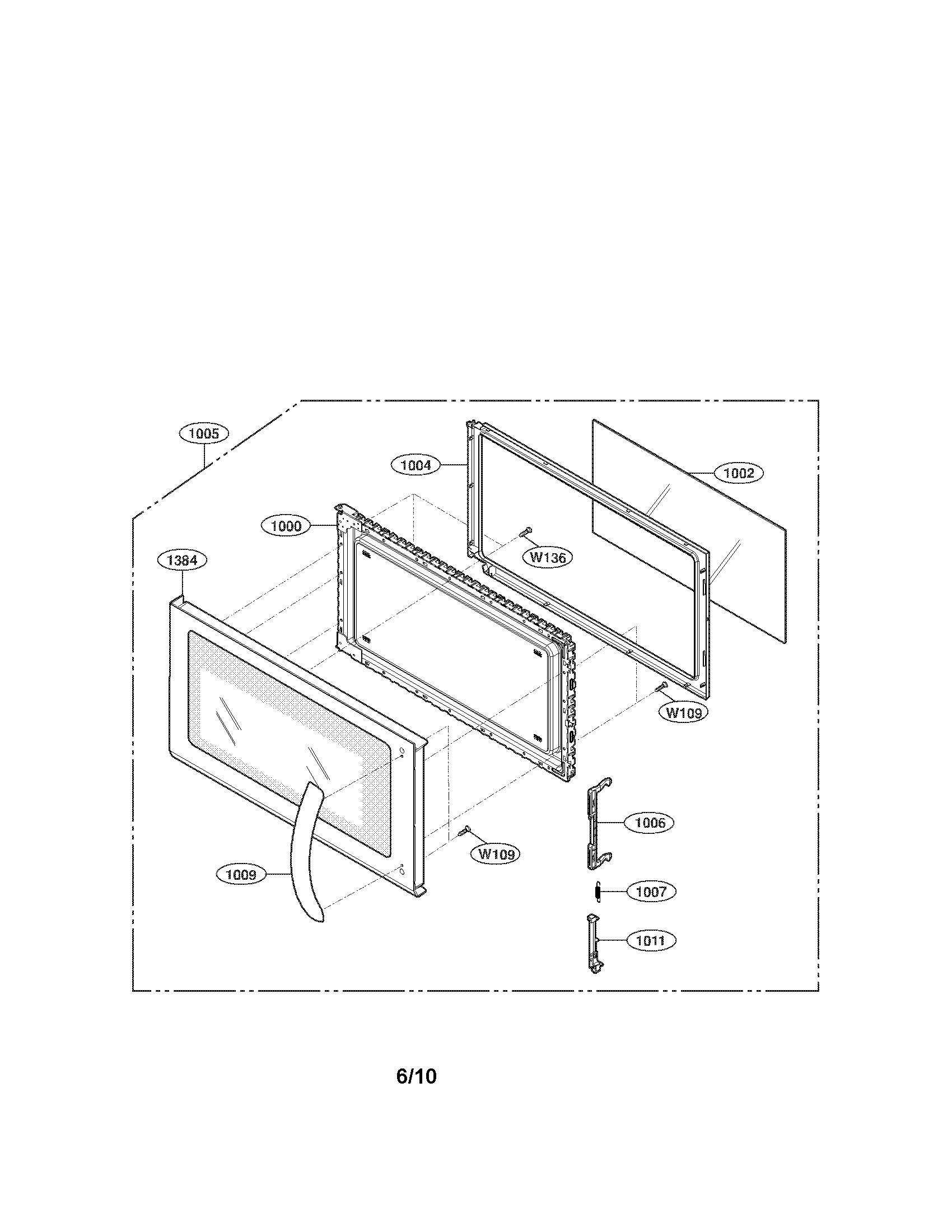

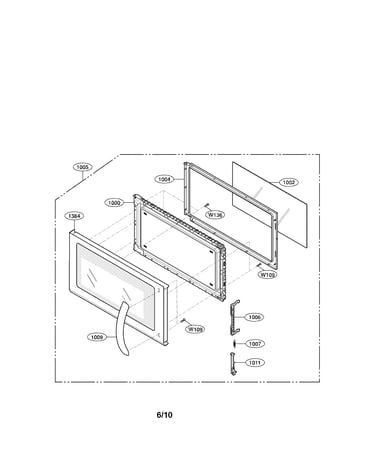

Door parts diagram

Microwave door latch

Part #4026W2A019A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A019A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.48 |
15% OFF Phone Price : $6.48
In Stock
Microwave High-voltage Capacitor 0CZZW1H004L
#5000

Interior parts diagram

Microwave high-voltage capacitor

Part #0CZZW1H004L

Replaced by #0CZZW1H004K

?
Manufacturer substitution
This part replaces 0CZZW1H004L. Substitute parts can look different from the original.
BEST SELLER
$29.52 |
14% OFF Phone Price : $34.52
In Stock
Microwave Thermostat (replaces 6930w1a002e) 6930W1A003D
#5116

Interior parts diagram

Microwave thermostat (replaces 6930w1a002e)

Part #6930W1A003D

BEST SELLER
This item is not returnable
$6.06 |
14% OFF Phone Price : $7.06
In Stock
Microwave Exhaust Damper Bracket (replaces 3b72144a) 4810W1A151A
#6010

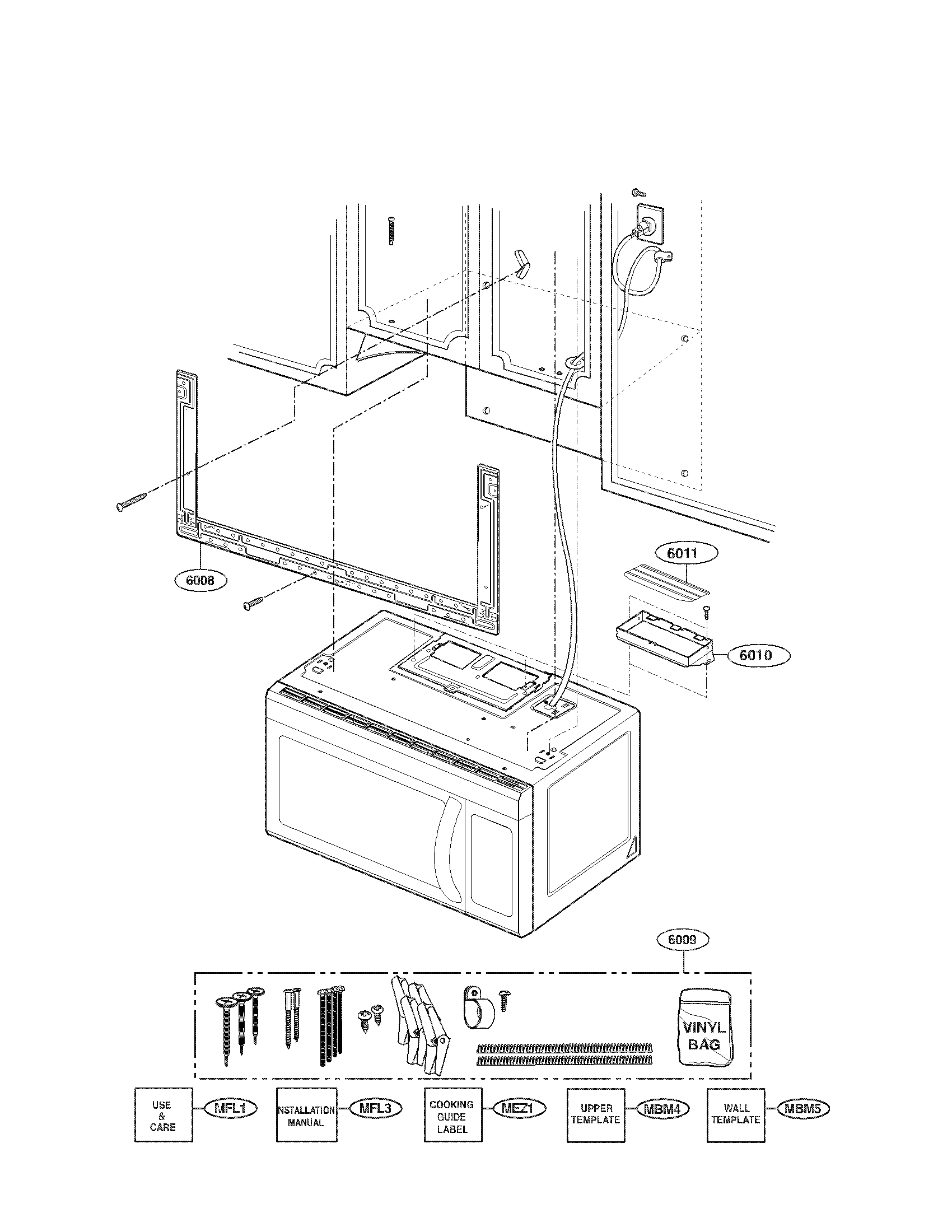

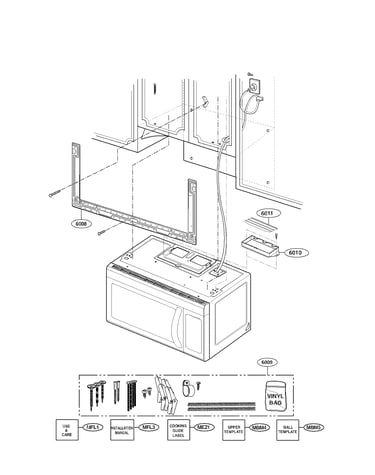

Installation parts diagram

Microwave exhaust damper bracket (replaces 3b72144a)

Part #4810W1A151A

BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
