Maytag MZF34X20DW01 upright freezer Parts
Here are the diagrams and repair parts for Maytag MZF34X20DW01 upright freezer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for MZF34X20DW01 Freestanding Freezers
Unit parts diagram

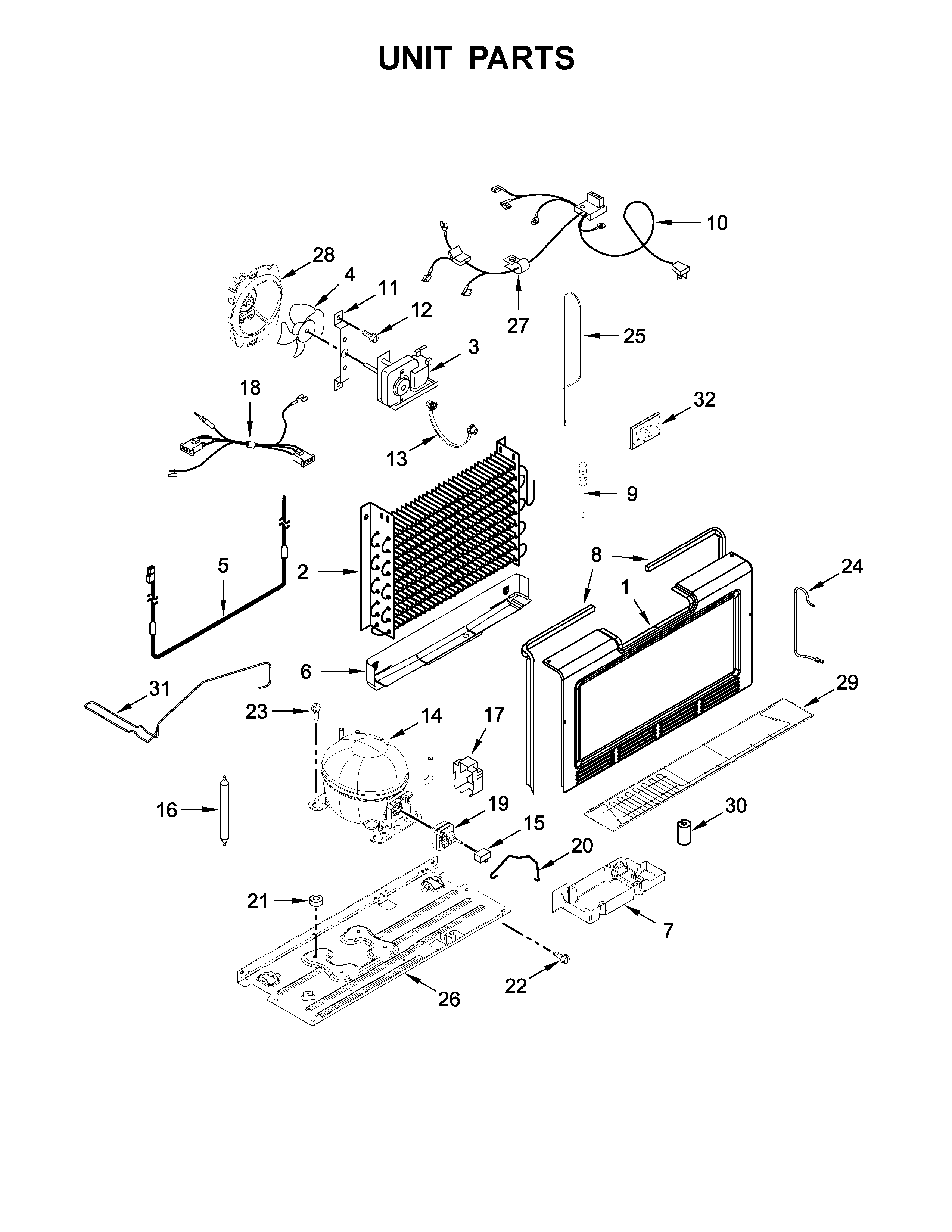

Drier Assembly
Part #W10709968Replaced by #WPW10143759
Manufacturer substitutionThis part replaces W10709968. Substitute parts can look different from the original.In Stock$22.1621% OFF Phone Price : $28.16
Qty
Unit parts diagram
Refrigerator Thermistor
Part #W10383615Replaced by #WPW10383615
Manufacturer substitutionThis part replaces W10383615. Substitute parts can look different from the original.In Stock$35.0615% OFF Phone Price : $41.06QtyLiner parts diagram
Refrigerator Thermistor
Part #W10384183
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Compressor
Part #W10591687Replaced by #W10233961
Manufacturer substitutionThis part replaces W10591687. Substitute parts can look different from the original.In Stock$379.06$12.00 OFF Phone Price : $391.06QtyOptional parts (not included) diagram
Danby Appliance Touch-up Paint, 0.6-oz (white)

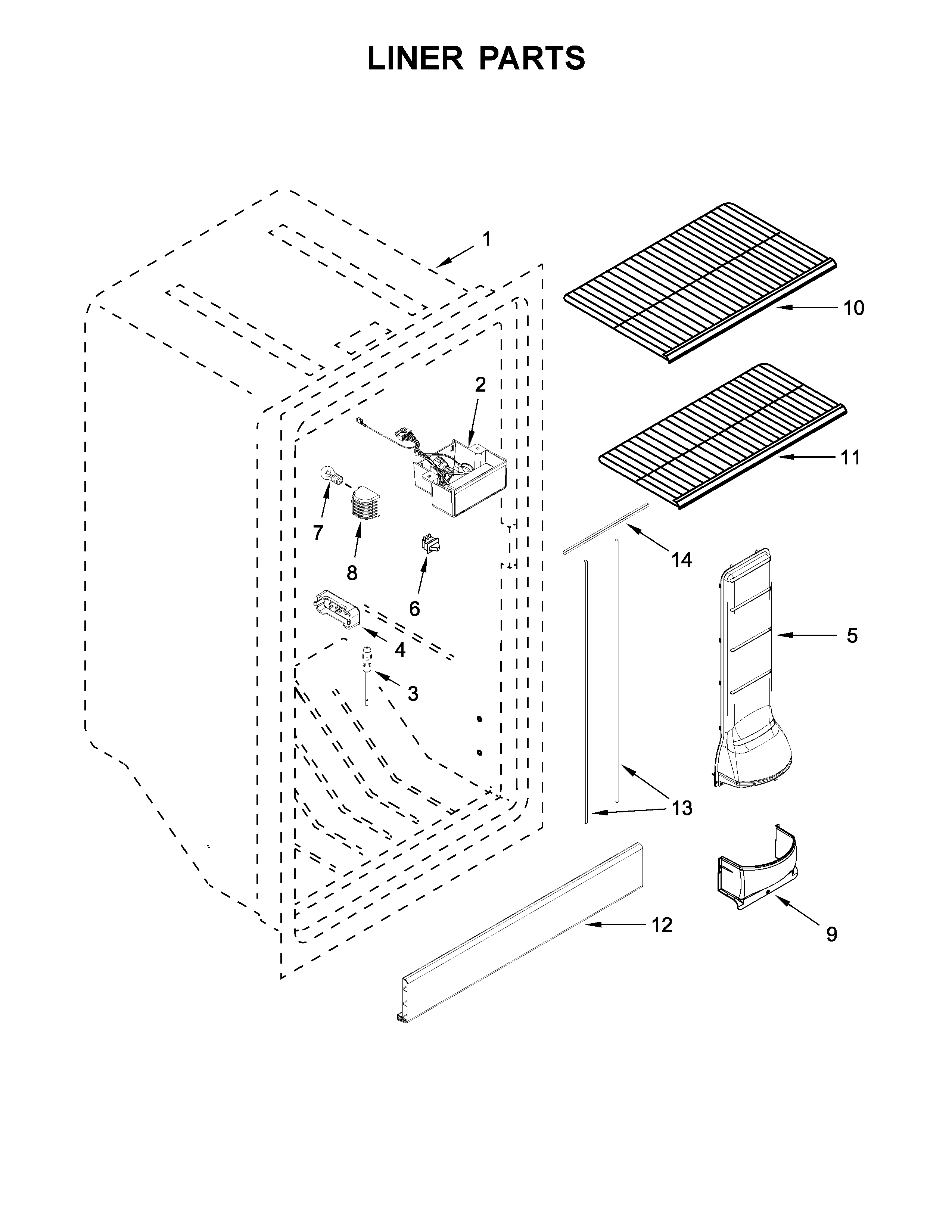

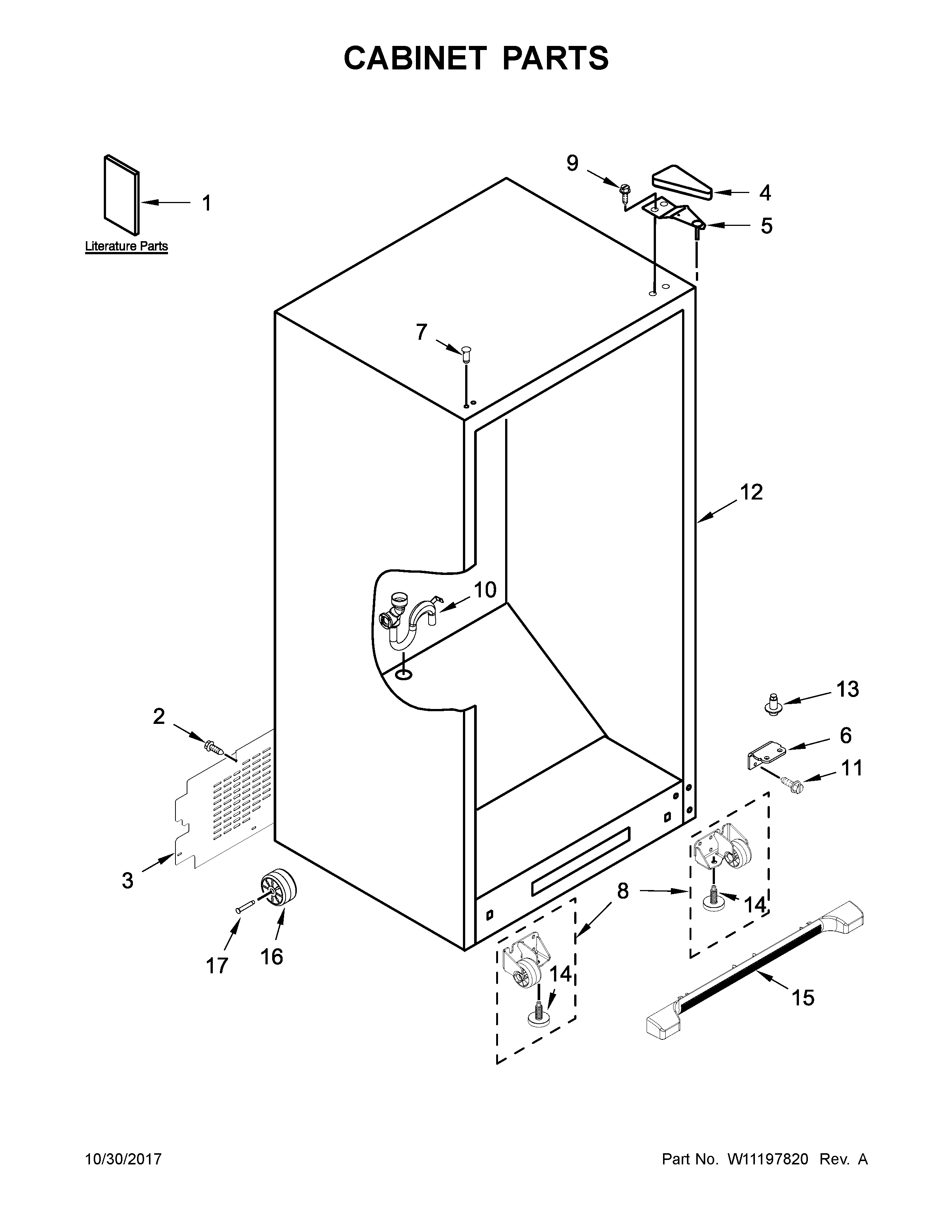

In Stock$8.4611% OFF Phone Price : $9.46QtyCabinet parts diagram
Screw
Part #3400113Replaced by #WP489497
Manufacturer substitutionThis part replaces 3400113. Substitute parts can look different from the original.In Stock$9.4810% OFF Phone Price : $10.48QtyUnit parts diagram
Refrigerator Defrost Heater
Part #W10316428Replaced by #WPW10316428
Manufacturer substitutionThis part replaces W10316428. Substitute parts can look different from the original.In Stock$177.996% OFF Phone Price : $189.99QtyOptional parts (not included) diagram
Appliance Silicone Lubricant
Part #542638Replaced by #WP542638

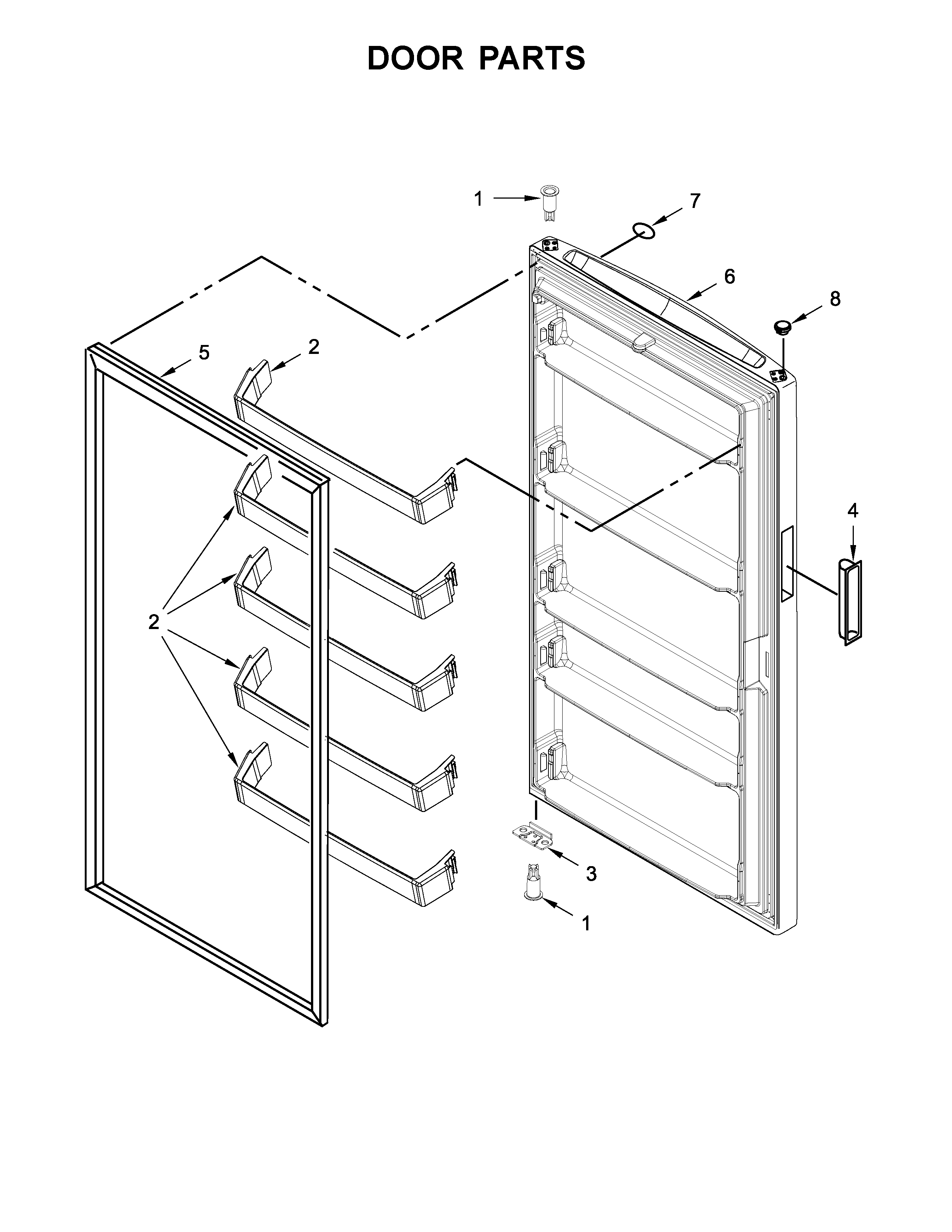

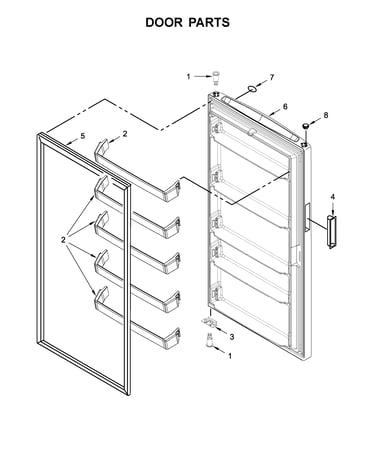

Manufacturer substitutionThis part replaces 542638. Substitute parts can look different from the original.In Stock$37.3914% OFF Phone Price : $43.39QtyDoor parts diagram
Freezer Door Gasket (white)
Part #W10574475Replaced by #W11501317
Manufacturer substitutionThis part replaces W10574475. Substitute parts can look different from the original.In Stock$132.628% OFF Phone Price : $144.62QtyUnit parts diagram
Evaporator Motor
Part #W10359880Replaced by #WPW10359880
Manufacturer substitutionThis part replaces W10359880. Substitute parts can look different from the original.In Stock$52.1610% OFF Phone Price : $58.16Qty
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Danby Appliance Touch-up Paint, 0.6-oz (white)
In Stock
$8.46
11% OFF Phone Price : $9.46
Qty
Appliance Porcelain Touch-up Paint, 1-qt (white)
In Stock
$131.86
8% OFF Phone Price : $143.86
Qty
Appliance Touch-up Paint, 0.6-oz (black)
Part #72032
This item is not returnable
In Stock
$11.08
15% OFF Phone Price : $13.08
Qty
Sears Refrigerator Permagum Sealer
Part #212643
This item is not returnable
In Stock
$28.03
36% OFF Was : $43.86
Qty
Freezer Shallow Wire Shelf
In Stock
$69.63
43% OFF Was : $122.69
Qty
Most common symptoms to help you fix your freestanding freezers
Choose a symptom to see related freezer repairs.
Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…
Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…
Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…
Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …
Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…
Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…
Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …
