Hoover
Canister Vacuum

Model #S1061 Official Hoover canister vacuum

Here are the diagrams and repair parts for Hoover S1061 canister vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 50 parts

    Vacuum Dust Brush#18

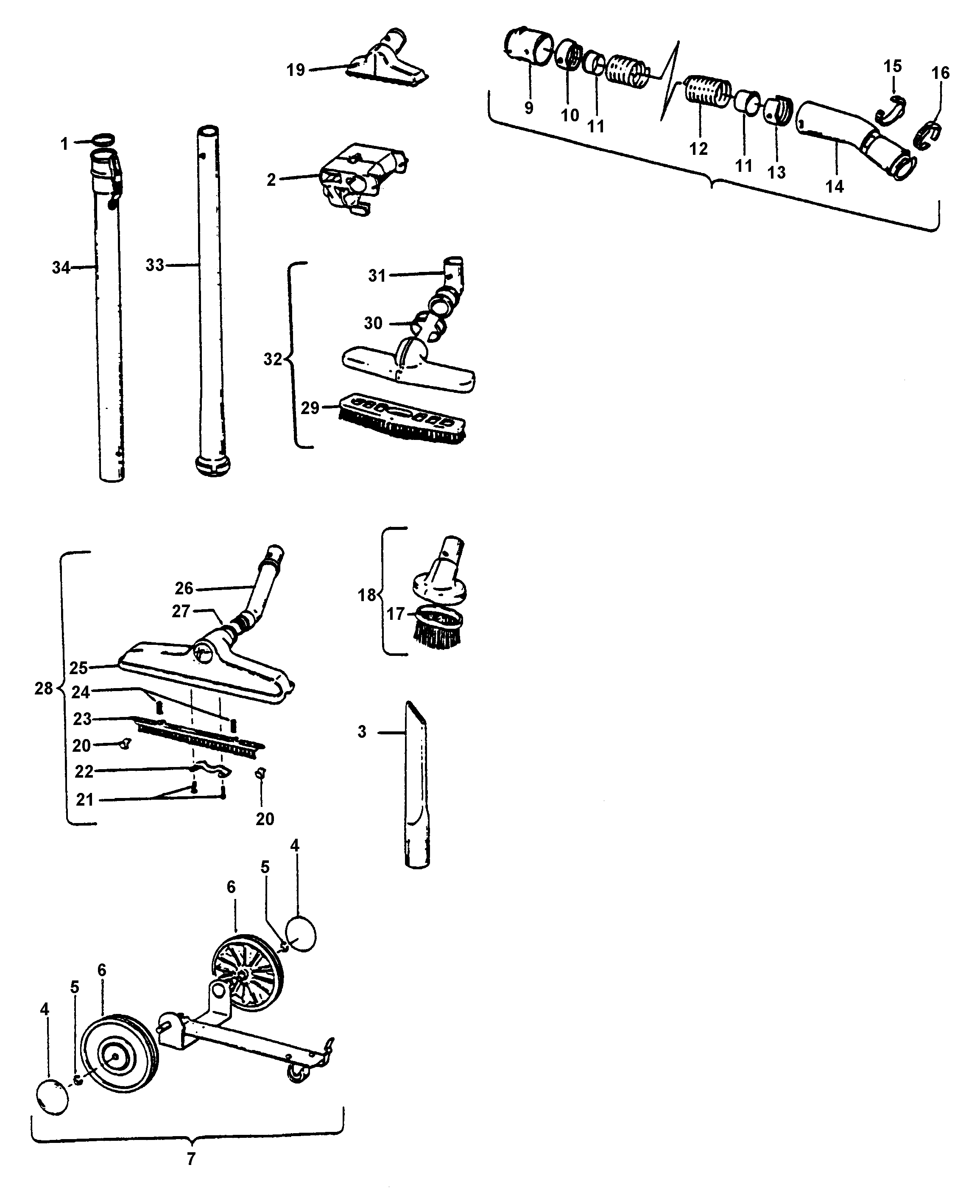

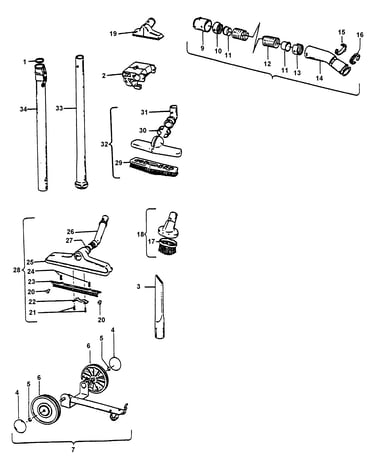

    Cleaningtools Diagram

    Vacuum dust brush

    Part #43414064

    The manufacturer no longer makes this part, and there's no substitute part

    Motor Housing Assembly#17

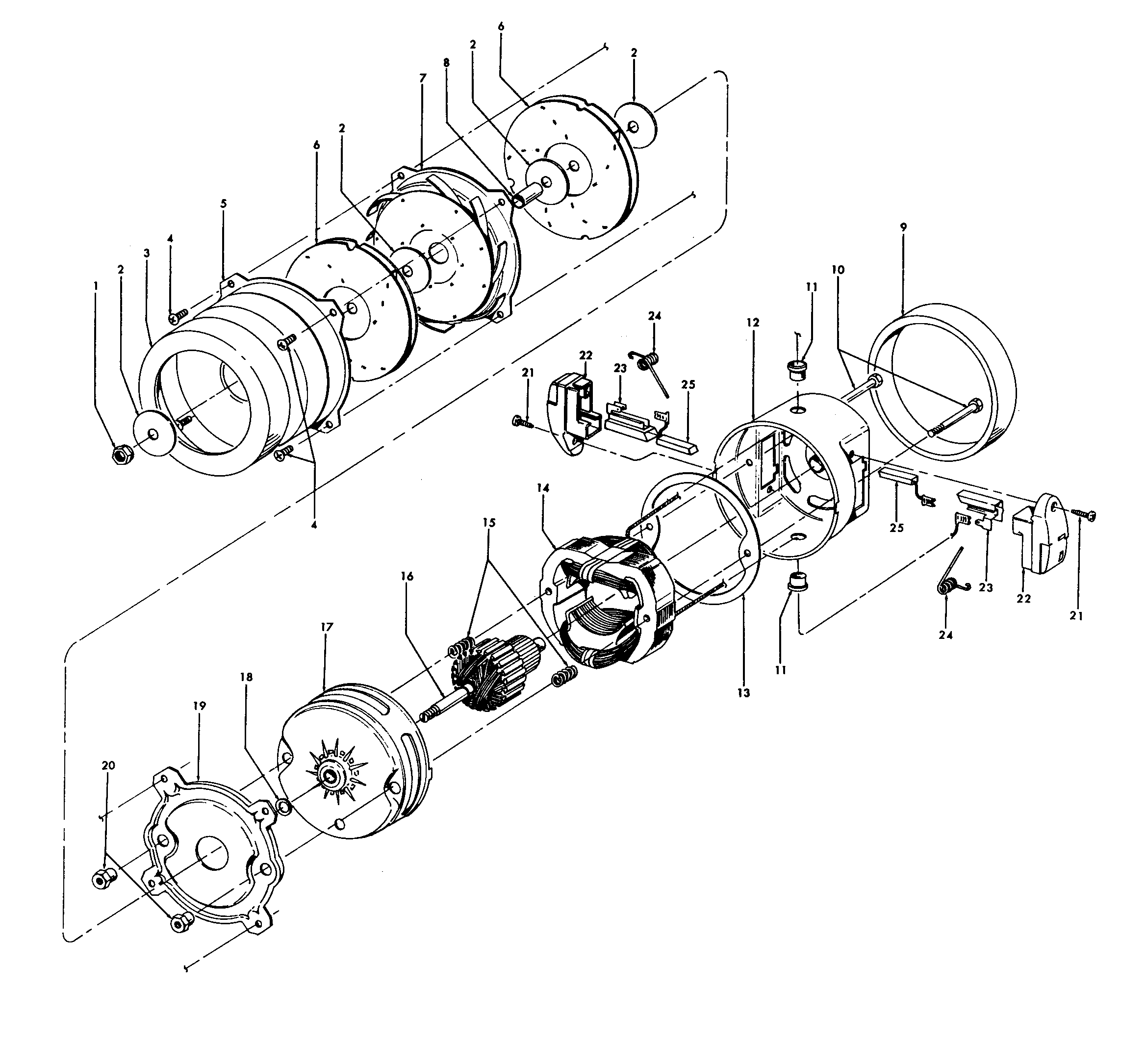

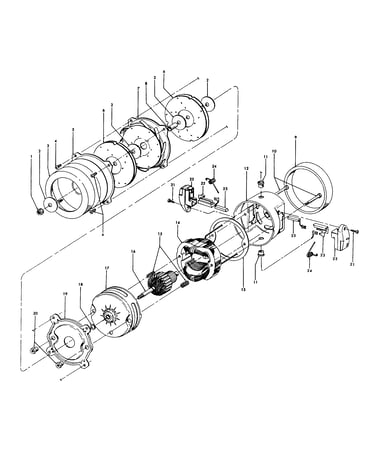

    Motor assembly Diagram

    Motor housing assembly

    Part #37191085

    The manufacturer no longer makes this part, and there's no substitute part

    Nut#1

    Motor assembly Diagram

    Nut

    Part #33426001

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum Dust Bin#28

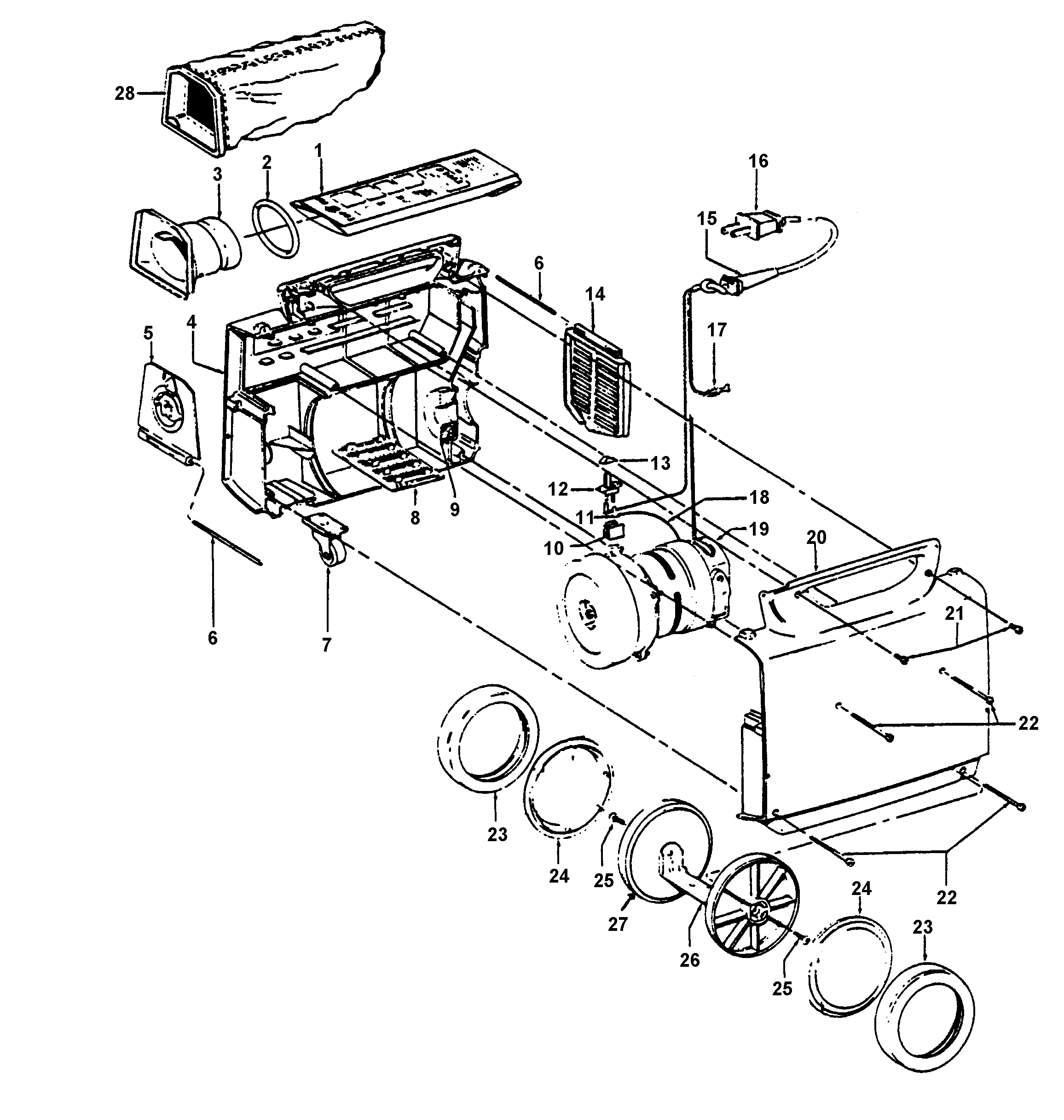

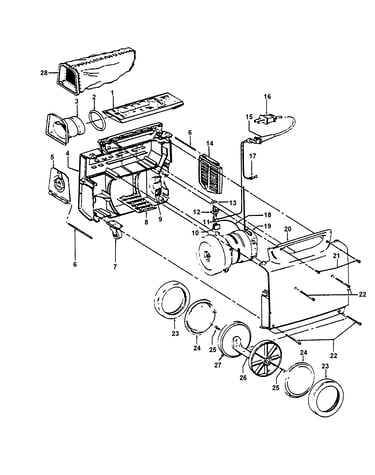

    Mainhousing Diagram

    Vacuum dust bin

    Part #43662023

    The manufacturer no longer makes this part, and there's no substitute part

    Button#13

    Mainhousing Diagram

    Button

    Part #38421012

    The manufacturer no longer makes this part, and there's no substitute part

    Sleeve Hose#11

    Cleaningtools Diagram

    Sleeve hose

    Part #32156010

    The manufacturer no longer makes this part, and there's no substitute part

    Gasket Motor#9

    Motor assembly Diagram

    Gasket motor

    Part #31178007

    The manufacturer no longer makes this part, and there's no substitute part

    Terminal#11

    Mainhousing Diagram

    Terminal

    Part #27666702

    The manufacturer no longer makes this part, and there's no substitute part

    Spring#24

    Motor assembly Diagram

    Spring

    Part #38353004

    The manufacturer no longer makes this part, and there's no substitute part

    Vacuum Screw#21

    Mainhousing Diagram

    Vacuum screw

    Part #21447043

    The manufacturer no longer makes this part, and there's no substitute part

    Symptoms common to all vacuum cleaners

    Choose a symptom to see related vacuum cleaner repairs.

    Main causes: damaged vacuum hose, clogged motor air filter, bad suction motor
    Main causes: broken drive belt, damaged brush roll, tripped brush roll motor overload, bad brush roll motor, wiring failure
    Main causes: lack of power, bad power cord, drive motor failure, wiring failure
    Main causes: weak suction motor, vacuum bag is full, clog in suction air path, dirty exhaust filter, leaky vacuum hose
