Model # 11327700 Official Craftsman 8" tilting arbor bench saw

Here are the diagrams and repair parts for Official Craftsman 11327700 8" tilting arbor bench saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |

Table Saw Arbor Nut 6362
#103

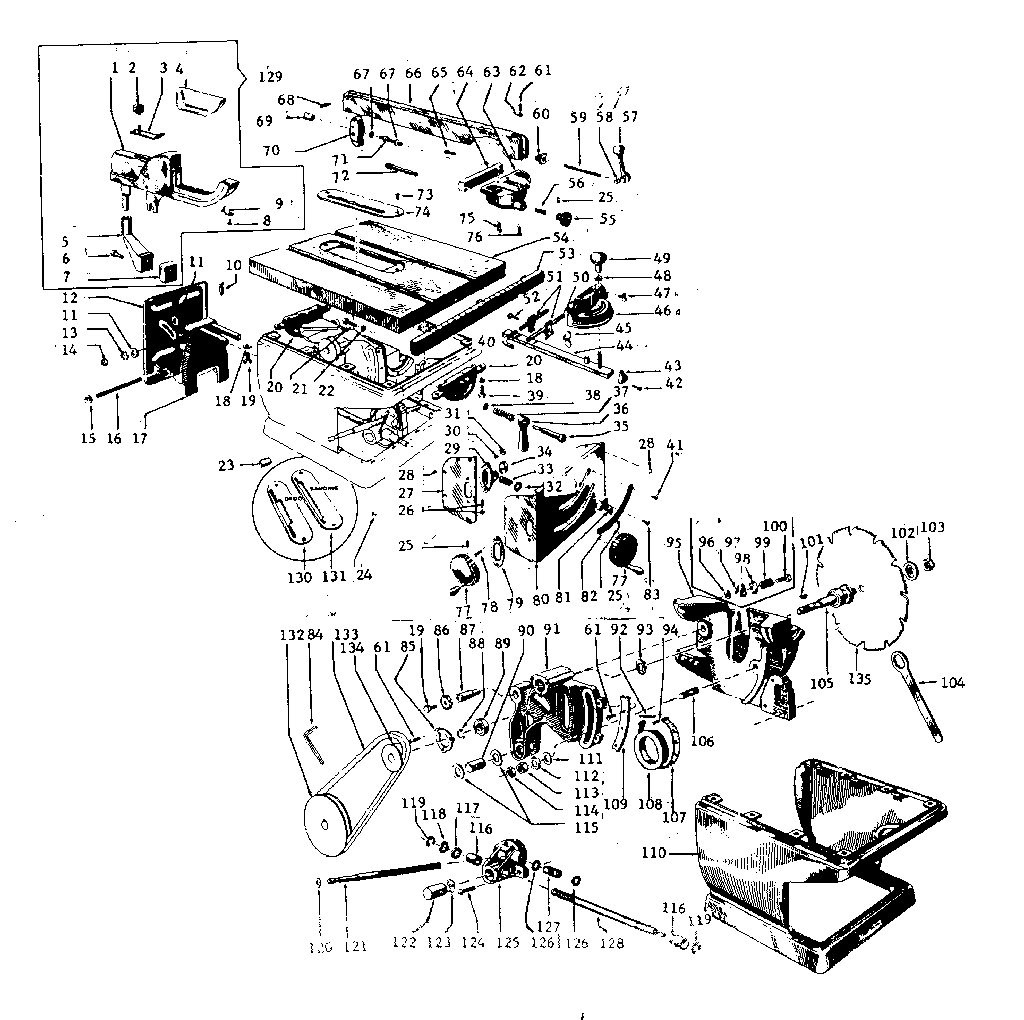

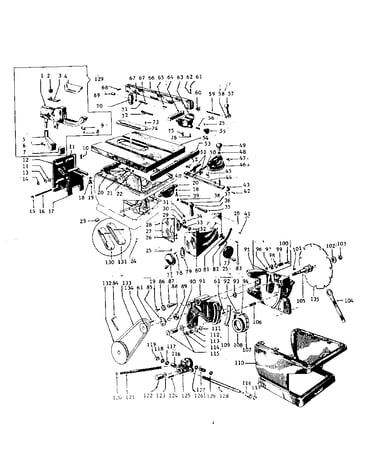

Unit diagram

Table saw arbor nut

Part #6362

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Rip Fence Clamp Lever Insert 6113
#58

Unit diagram

Table saw rip fence clamp lever insert

Part #6113

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bearing 3509
#89

Unit diagram

Power tool bearing

Part #3509

The manufacturer no longer makes this part, and there's no substitute part

Saw Arbor 6393
#105

Unit diagram

Saw arbor

Part #6393

The manufacturer no longer makes this part, and there's no substitute part

Washer S-298
#18

Unit diagram

Washer

Part #S-298

The manufacturer no longer makes this part, and there's no substitute part

Steel Washer S-1284
#67

Unit diagram

Steel washer

Part #S-1284

The manufacturer no longer makes this part, and there's no substitute part

Stop Nut S-1215
#14

Unit diagram

Stop nut

Part #S-1215

The manufacturer no longer makes this part, and there's no substitute part

Scrw Lckwshr S-1275
#26

Unit diagram

Scrw lckwshr

Part #S-1275

The manufacturer no longer makes this part, and there's no substitute part

Mitre Gage 6403

#NI

All parts diagram

Mitre gage

Part #6403

The manufacturer no longer makes this part, and there's no substitute part

Collar 27
#102

Unit diagram

Collar

Part #27

The manufacturer no longer makes this part, and there's no substitute part
