Model # AQU1824BRW Official Amana upright freezer

Here are the diagrams and repair parts for Official Amana AQU1824BRW upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

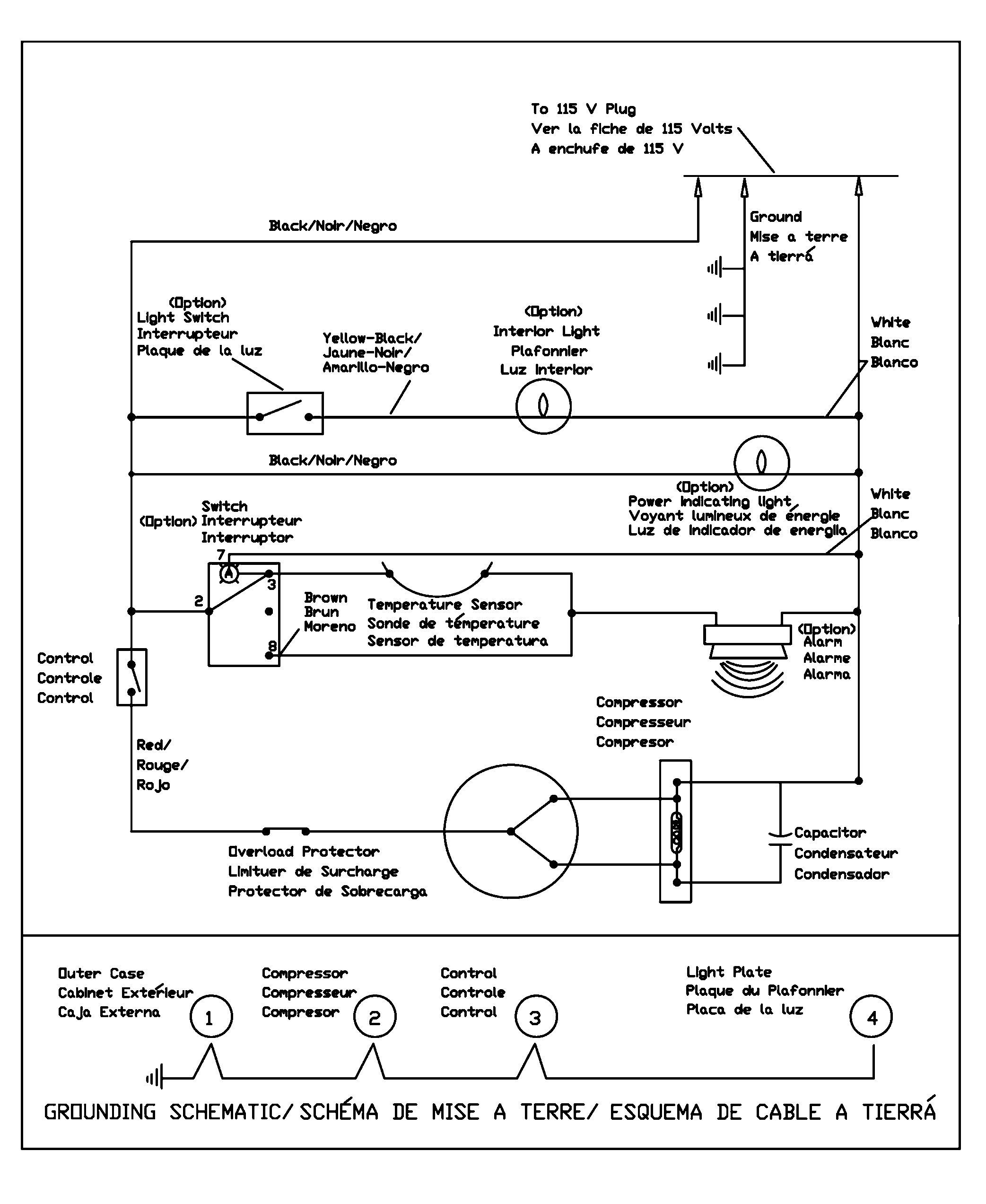

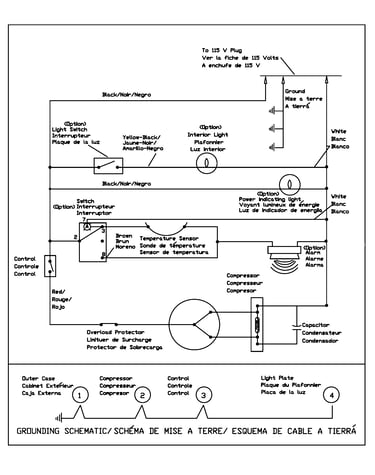

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Refrigerator Uv Dye Dryer 13900-1
#13

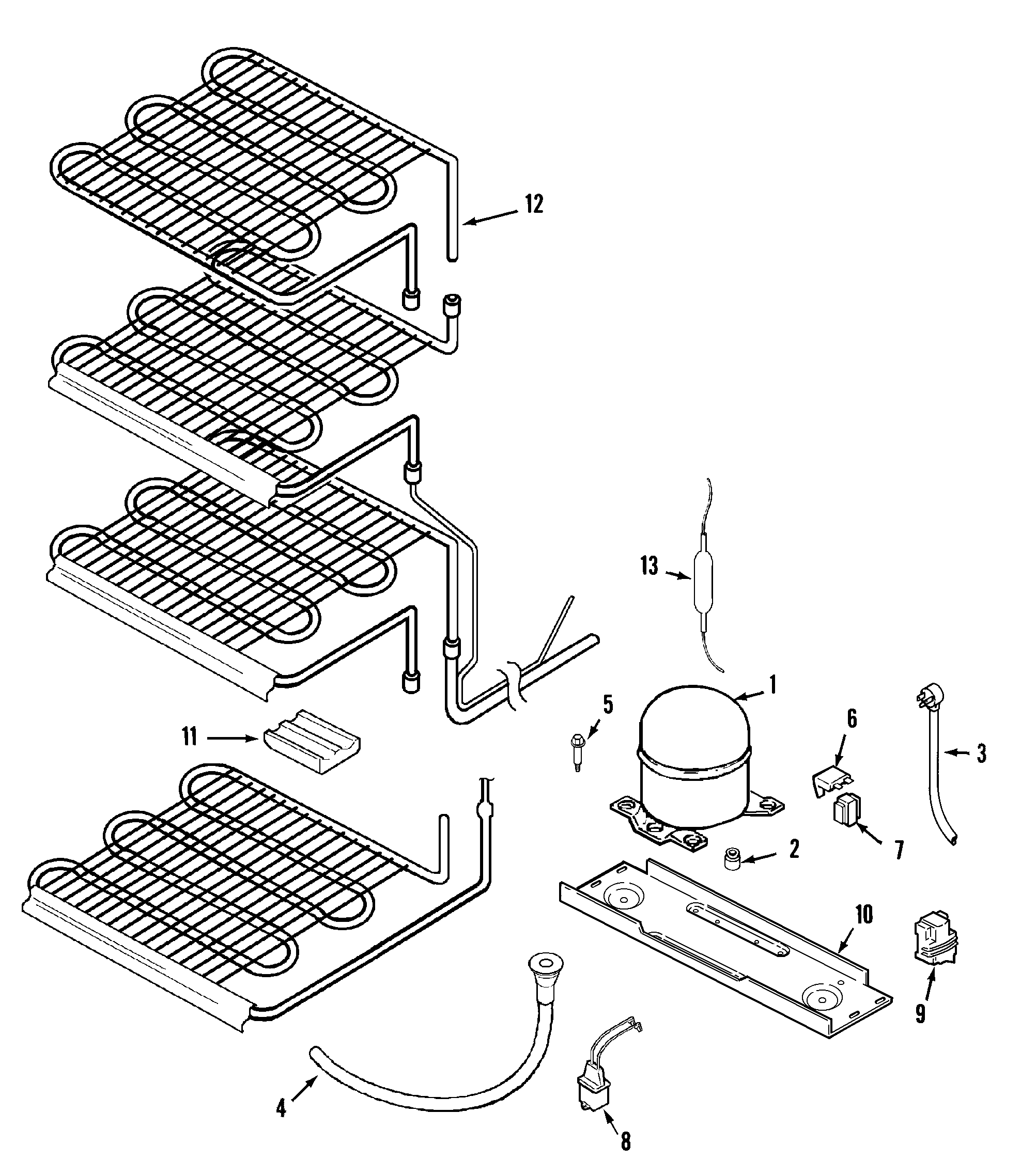

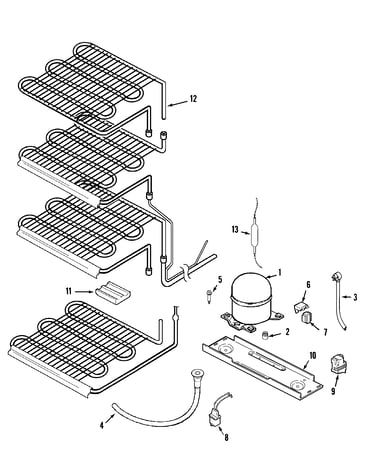

Unit compartment & system diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Compressor 68001425
#1

Unit compartment & system diagram

Compressor

Part #68001425

Replaced by #W10309990

?
Manufacturer substitution
This part replaces 68001425. Substitute parts can look different from the original.
BEST SELLER
$297.77 |
10% OFF Phone Price : $329.27
In Stock
Screw (1 1/4 68001196
#12B

Unit compartment & system diagram

Screw (1 1/4

Part #68001196

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces 68001196. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Door Handle Screw 68001413
#2A

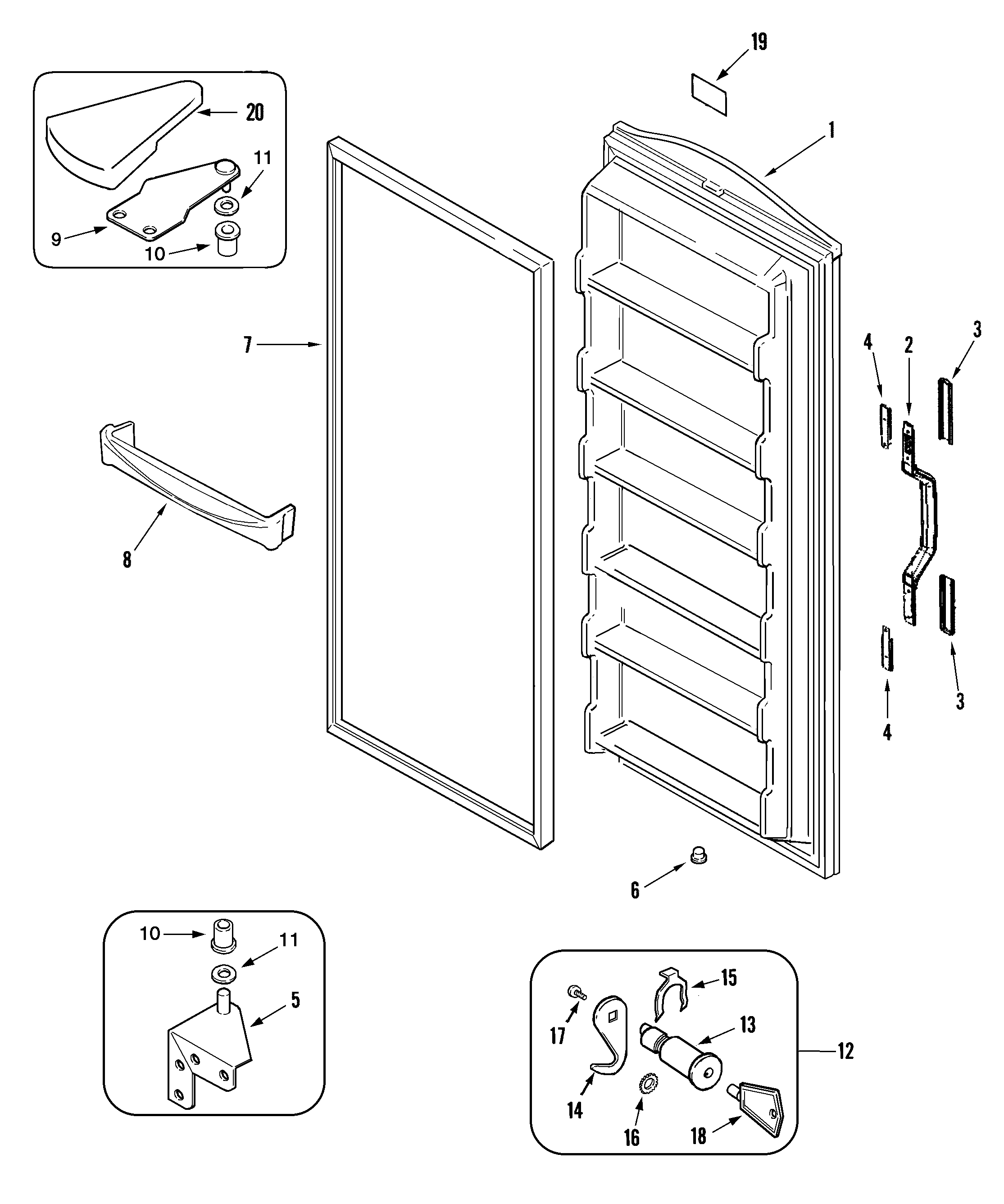

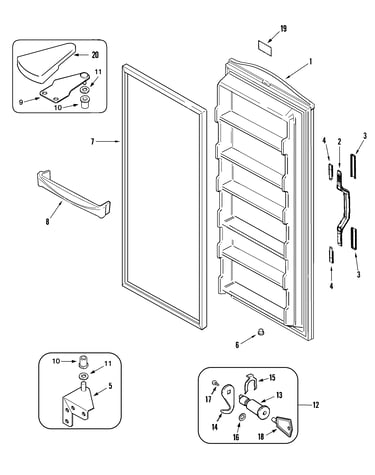

Door diagram

Door handle screw

Part #68001413

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces 68001413. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Door Gasket 90000-101
#7

Door diagram

Door gasket

Part #90000-101

Replaced by #WP4-65151-002

?
Manufacturer substitution
This part replaces 90000-101. Substitute parts can look different from the original.
$254.11
In Stock
Hinge Washer 68001316
#11

Door diagram

Hinge washer

Part #68001316

Replaced by #W10851331

?
Manufacturer substitution
This part replaces 68001316. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Hinge Kit, U 68001605
#9

Door diagram

Hinge kit, u

Part #68001605

Replaced by #2-81016-105

?
Manufacturer substitution
This part replaces 68001605. Substitute parts can look different from the original.
This item is not returnable
$26.79 |
18% OFF Phone Price : $32.79
In Stock
Overload 68001490
#7

Unit compartment & system diagram

Overload

Part #68001490

Replaced by #WP2149959

?
Manufacturer substitution
This part replaces 68001490. Substitute parts can look different from the original.
$44.15 |
12% OFF Phone Price : $50.15
In Stock
Temperature Knob 68001721
#2

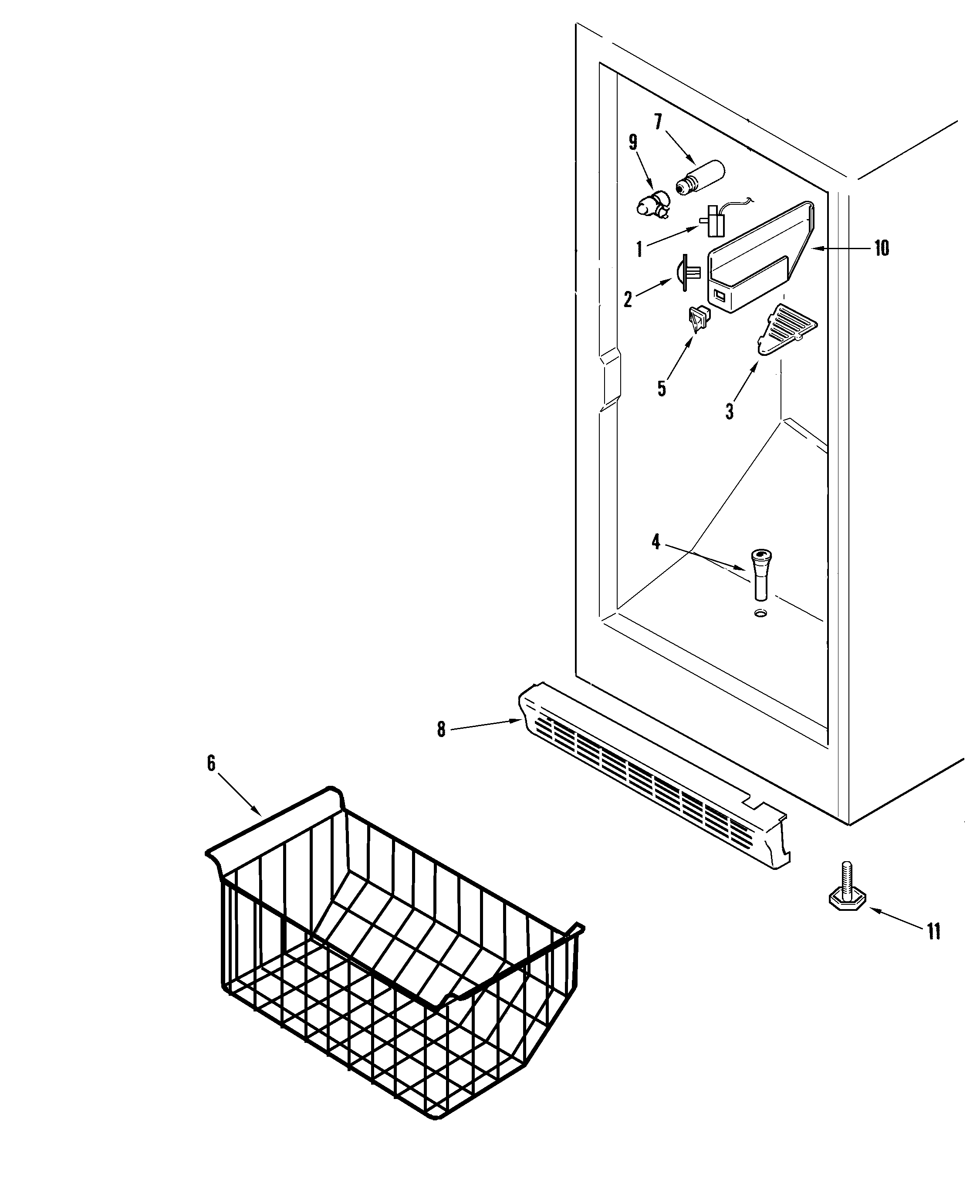

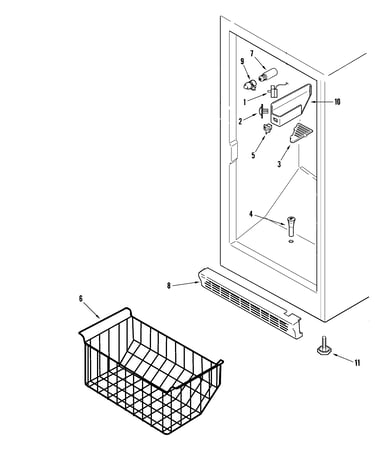

Freezer compartment diagram

Temperature knob

Part #68001721

Replaced by #3-82390-001

?
Manufacturer substitution
This part replaces 68001721. Substitute parts can look different from the original.
This item is not returnable
$19.49 |
9% OFF Phone Price : $21.49
In Stock
Run Capacitor 68001596
#8

Unit compartment & system diagram

Run capacitor

Part #68001596

Replaced by #3-35956-013

?
Manufacturer substitution
This part replaces 68001596. Substitute parts can look different from the original.
$65.22
In Stock
