GE WDRR2500K1WW washer Parts
Here are the diagrams and repair parts for GE WDRR2500K1WW washer, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

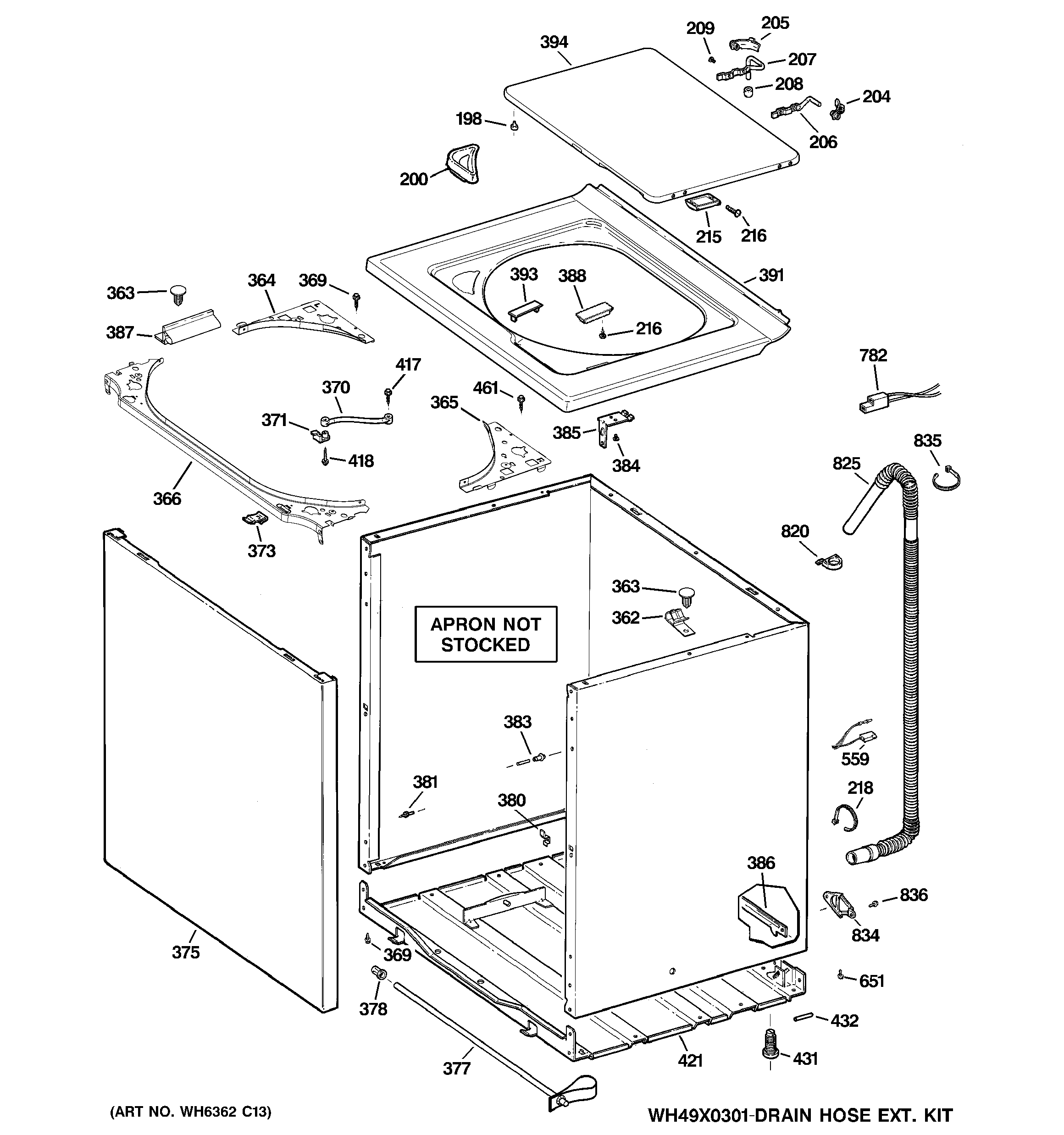

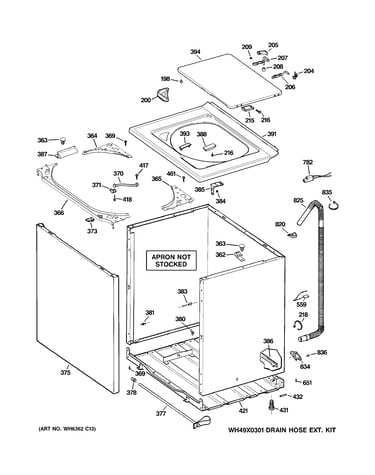

SELECT DIAGRAM
Browse Parts for WDRR2500K1WW Washer

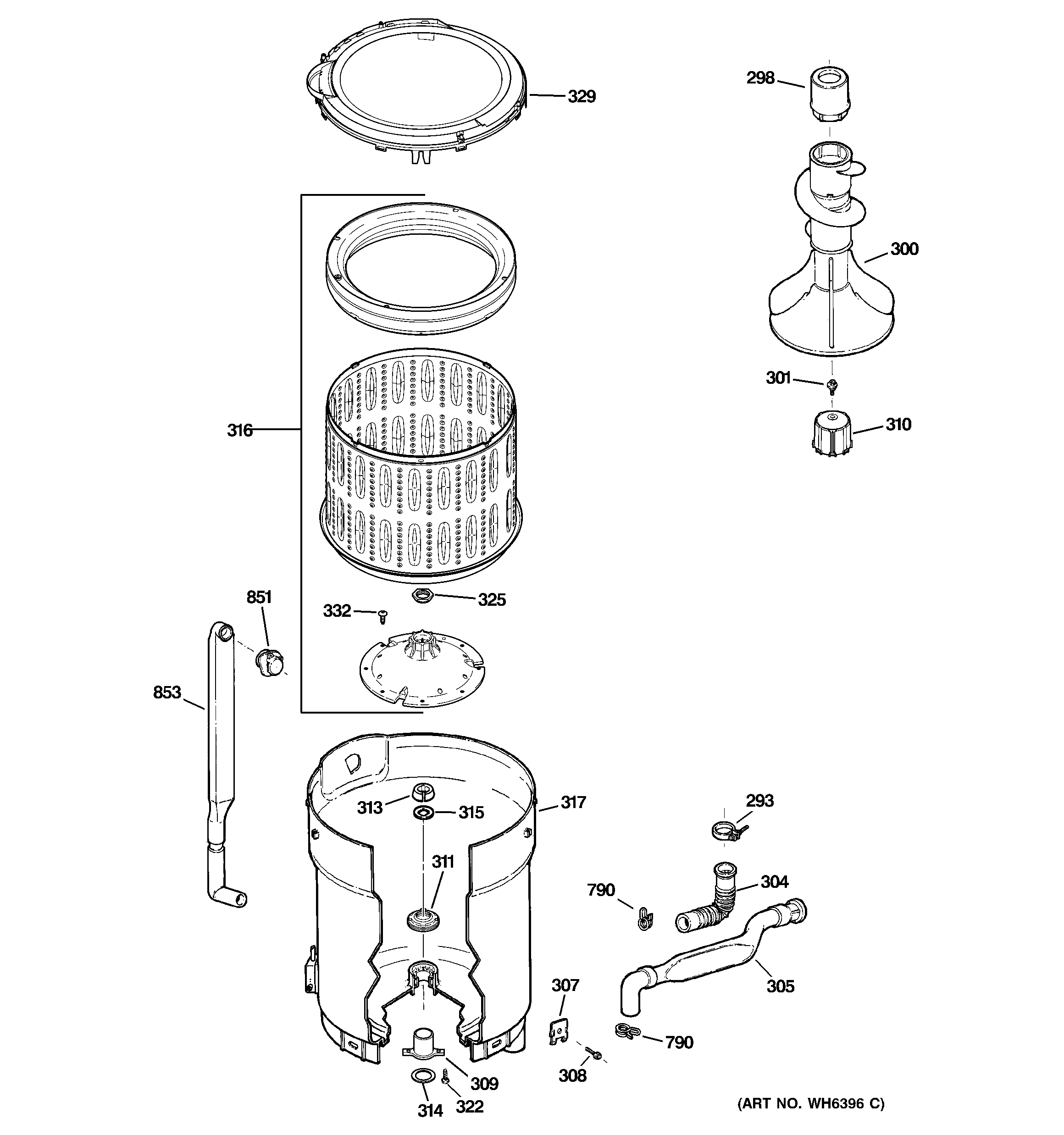

Tub, basket & agitator diagram
Washer Agitator
In Stock$60.689% OFF Phone Price : $66.68
Qty

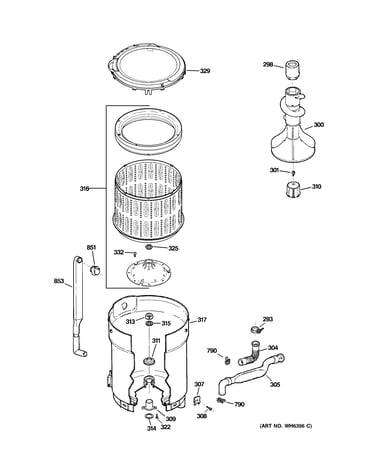

Tub, basket & agitator diagram
Tub Bearing
Part #WH02X1198Replaced by #WH2X1198
Manufacturer substitutionThis part replaces WH02X1198. Substitute parts can look different from the original.In Stock$35.7314% OFF Phone Price : $41.73QtySuspension, pump & drive components diagram
Washer Drain Pump Assembly
Part #WH23X10013Replaced by #WH23X10030
Manufacturer substitutionThis part replaces WH23X10013. Substitute parts can look different from the original.In Stock$59.409% OFF Phone Price : $65.40QtyControls & backsplash diagram

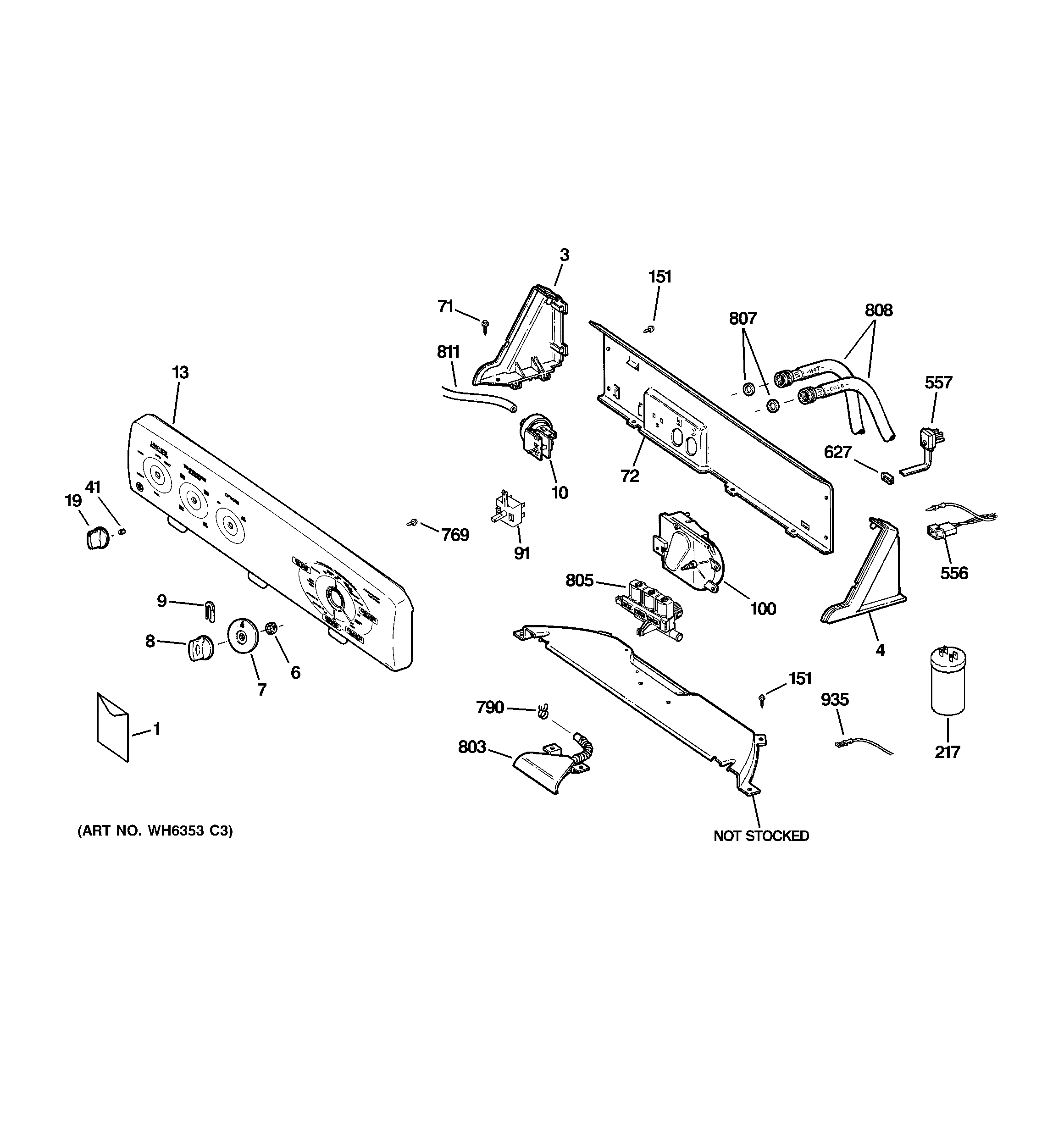

Knob And Cli
Part #WH01X10307Replaced by #WE01X20378
Manufacturer substitutionThis part replaces WH01X10307. Substitute parts can look different from the original.In Stock$27.9818% OFF Phone Price : $33.98QtyControls & backsplash diagram
Washer Timer Knob
In Stock$8.7910% OFF Phone Price : $9.79QtyTub, basket & agitator diagram
Hub Washer
Part #WH02X1199Replaced by #WH2X1199
Manufacturer substitutionThis part replaces WH02X1199. Substitute parts can look different from the original.In Stock$8.9210% OFF Phone Price : $9.92QtyTub, basket & agitator diagram
Washer Agitator Coupler
In Stock$28.5817% OFF Phone Price : $34.58QtySuspension, pump & drive components diagram
Washer Suspension Rod And Spring Assembly
In Stock$35.1215% OFF Phone Price : $41.12QtyControls & backsplash diagram
Spring Clip
Part #WH01X2117Replaced by #WH1X2117
Manufacturer substitutionThis part replaces WH01X2117. Substitute parts can look different from the original.In Stock$8.9310% OFF Phone Price : $9.93QtyControls & backsplash diagram
Hose Pressure Switch
Part #WH41X0365Replaced by #WH41X365
Manufacturer substitutionThis part replaces WH41X0365. Substitute parts can look different from the original.In Stock$14.8712% OFF Phone Price : $16.87Qty
Most common symptoms to help you fix your washers
Choose a symptom to see related washer repairs.
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…
