Model # FPGC3677RSB Official Frigidaire cooktop

Here are the diagrams and repair parts for Official Frigidaire FPGC3677RSB cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

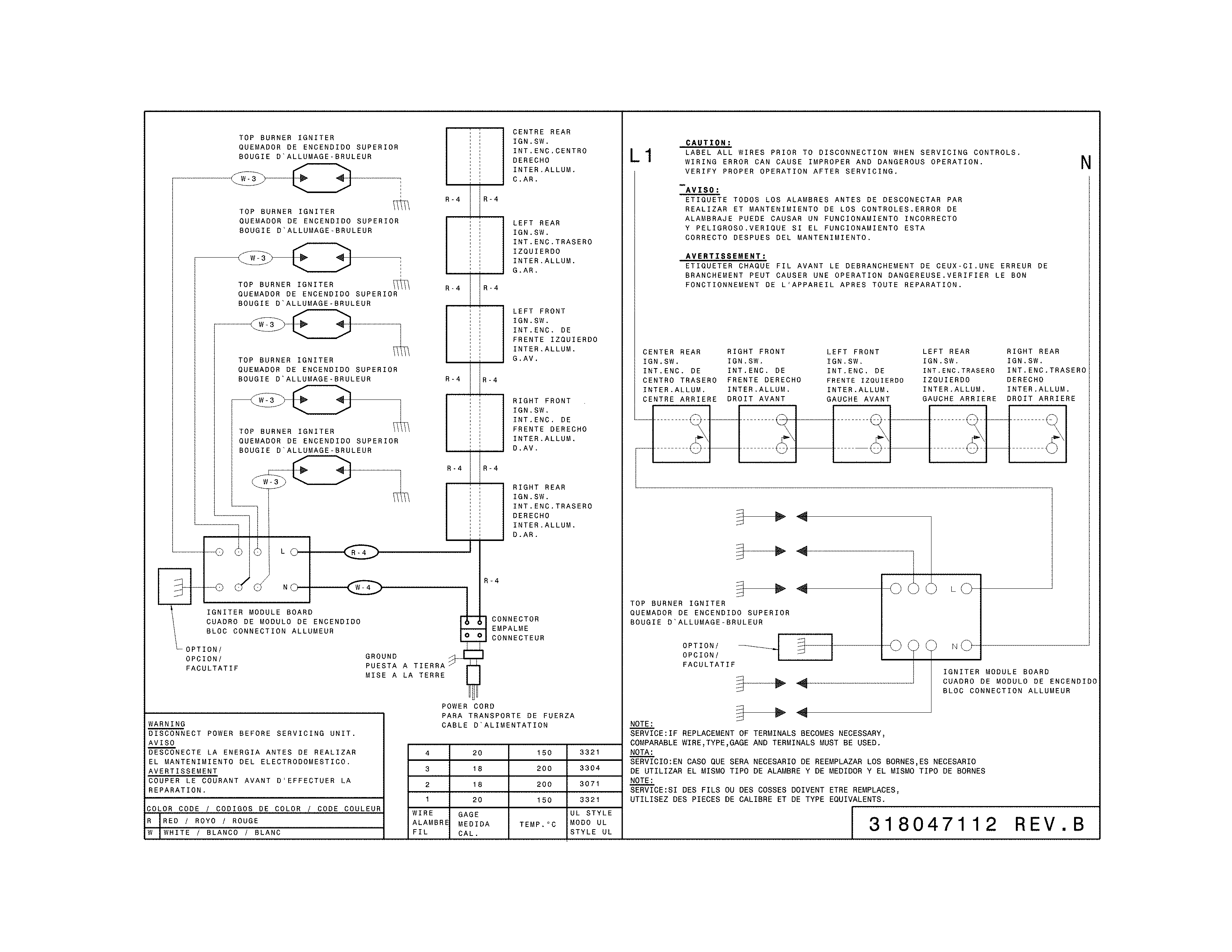

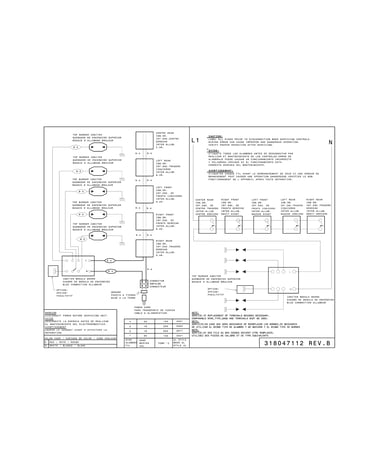

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |

Range Surface Burner Cap, 9,500-btu (black) (replaces 316261804) 5304508442
#22A

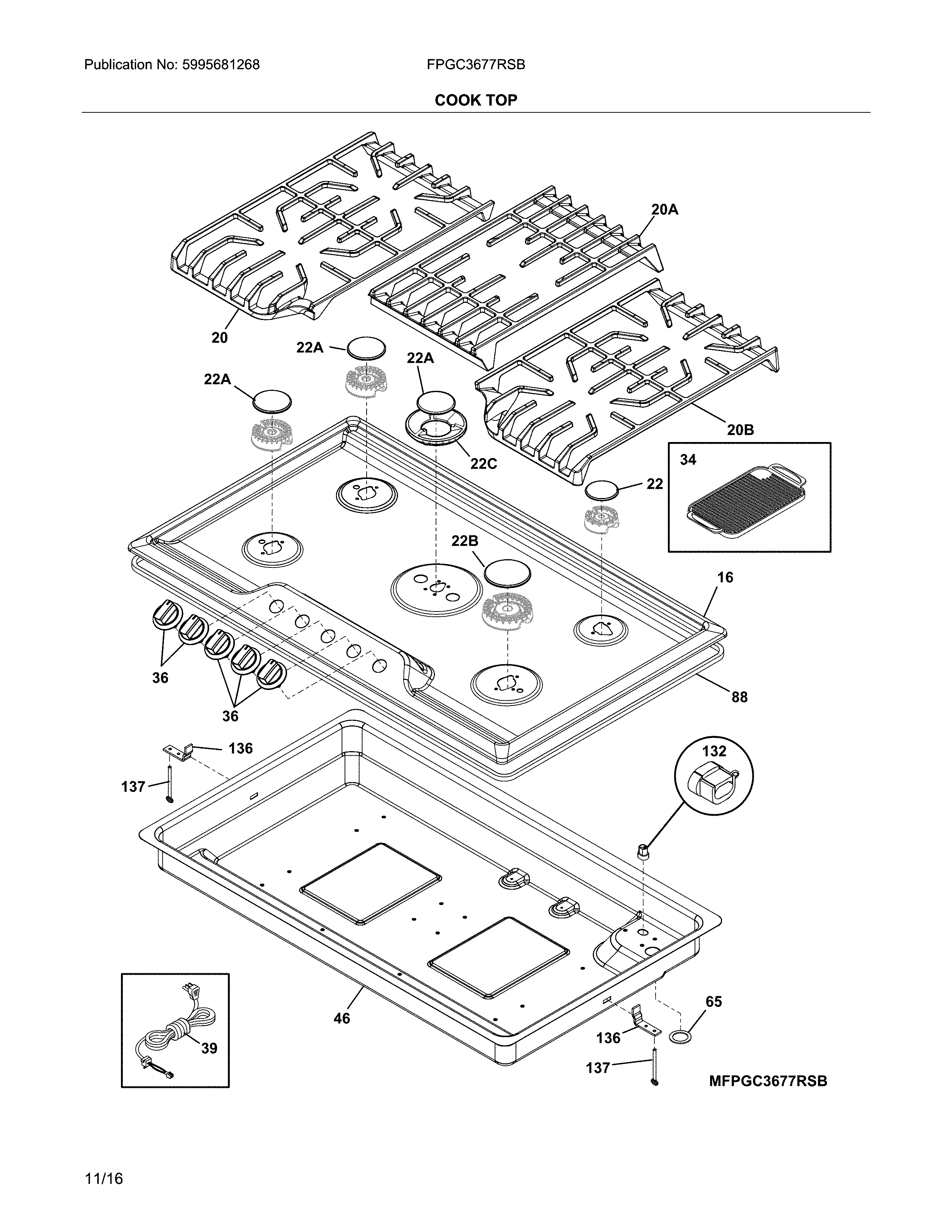

Main top diagram

Range surface burner cap, 9,500-btu (black) (replaces 316261804)

Part #5304508442

BEST SELLER
$26.31
16% OFF Phone Price : $31.31
In Stock
Range Surface Burner Head (replaces 316527400, 7316558300) 316558300
#10A

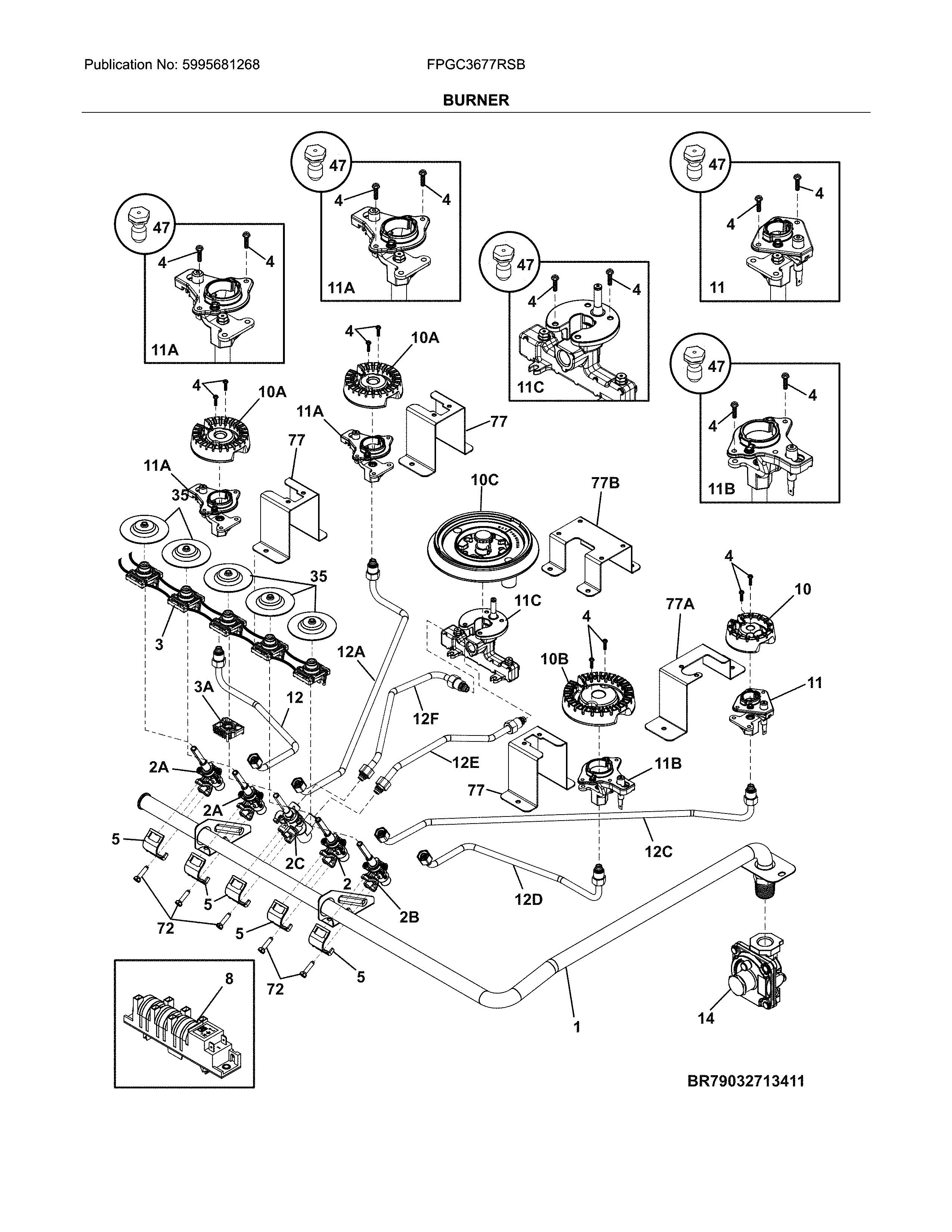

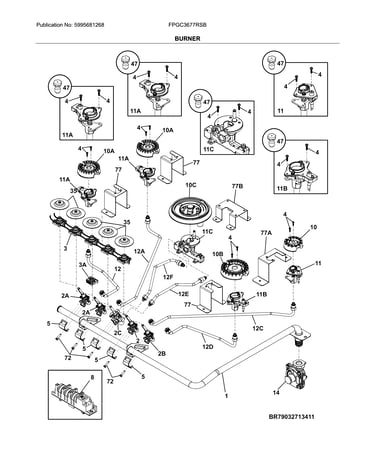

Burner diagram

Range surface burner head (replaces 316527400, 7316558300)

Part #316558300

BEST SELLER
$40.61
11% OFF Phone Price : $45.61
In Stock
Cooktop Burner Grate, Right 5304507042
#20B

Main top diagram

Cooktop burner grate, right

Part #5304507042

$200.39
5% OFF Phone Price : $210.39
In Stock
Cooktop Burner Cap 139029203
#22C

Main top diagram

Cooktop burner cap

Part #139029203

Replaced by #5304520332

?
Manufacturer substitution
This part replaces 139029203. Substitute parts can look different from the original.
$77.89
6% OFF Phone Price : $82.89
In Stock
Cooktop Pressure Regulator (replaces 5304498794) 318122727
#14

Burner diagram

Cooktop pressure regulator (replaces 5304498794)

Part #318122727

Replaced by #5304519943

?
Manufacturer substitution
This part replaces 318122727. Substitute parts can look different from the original.
Back Order
Range Griddle (replaces 316428000, 316526200, 318246100, 318251609, 7316432200) 5304495353
#34

Main top diagram

Range griddle (replaces 316428000, 316526200, 318246100, 318251609, 7316432200)

Part #5304495353

$165.47
6% OFF Phone Price : $175.47
In Stock
Cooktop Burner Knob 5304500250
#36

Main top diagram

Cooktop burner knob

Part #5304500250

In Stock
Cooktop Spark Module 5304505696
#8

Burner diagram

Cooktop spark module

Part #5304505696

$61.19
8% OFF Phone Price : $66.19
In Stock
Cooktop Screw 305452400
#137

Main top diagram

Cooktop screw

Part #305452400

This item is not returnable
In Stock
Cooktop Igniter Wire Harness (replaces 318199763, 7318199780) 318199780
#NI

Burner diagram

Cooktop igniter wire harness (replaces 318199763, 7318199780)

Part #318199780

$58.50
8% OFF Phone Price : $63.50
In Stock
