Whirlpool RF396PCYW0 electric range Parts

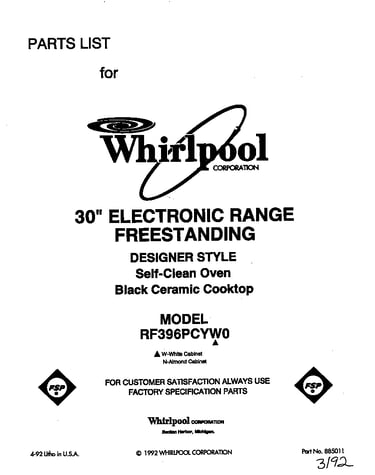

Here are the diagrams and repair parts for Whirlpool RF396PCYW0 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

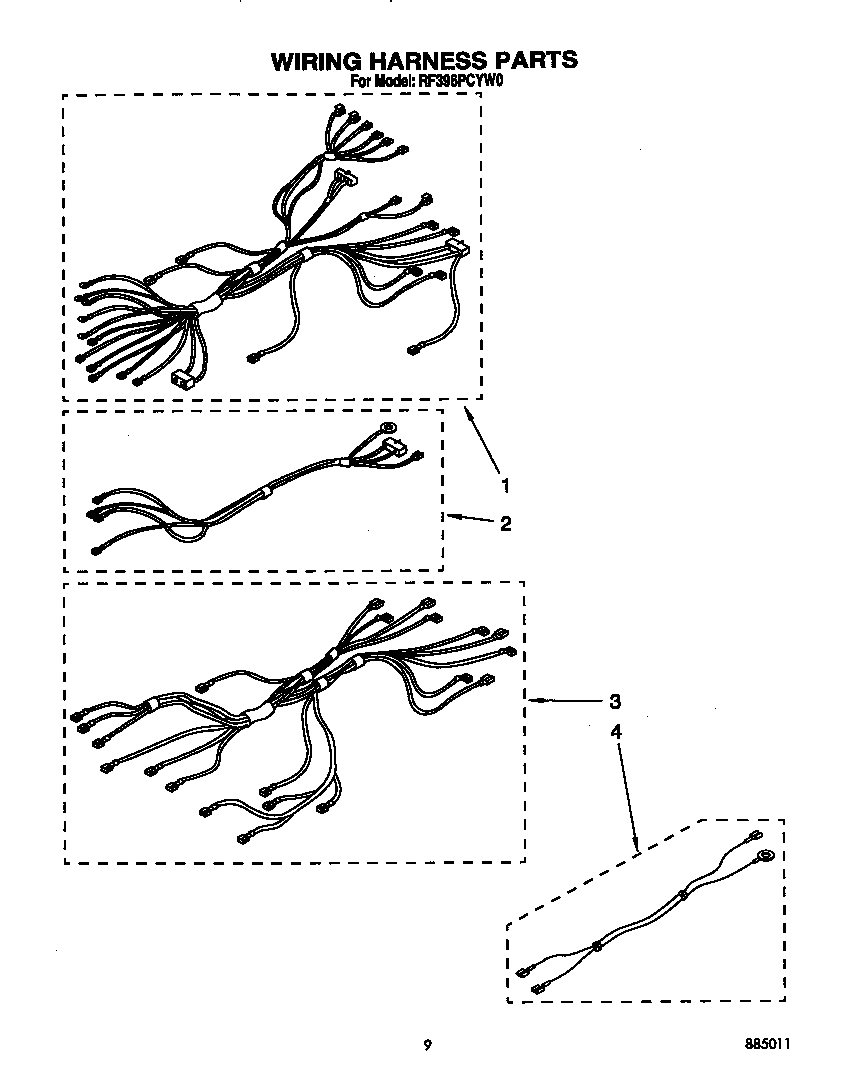

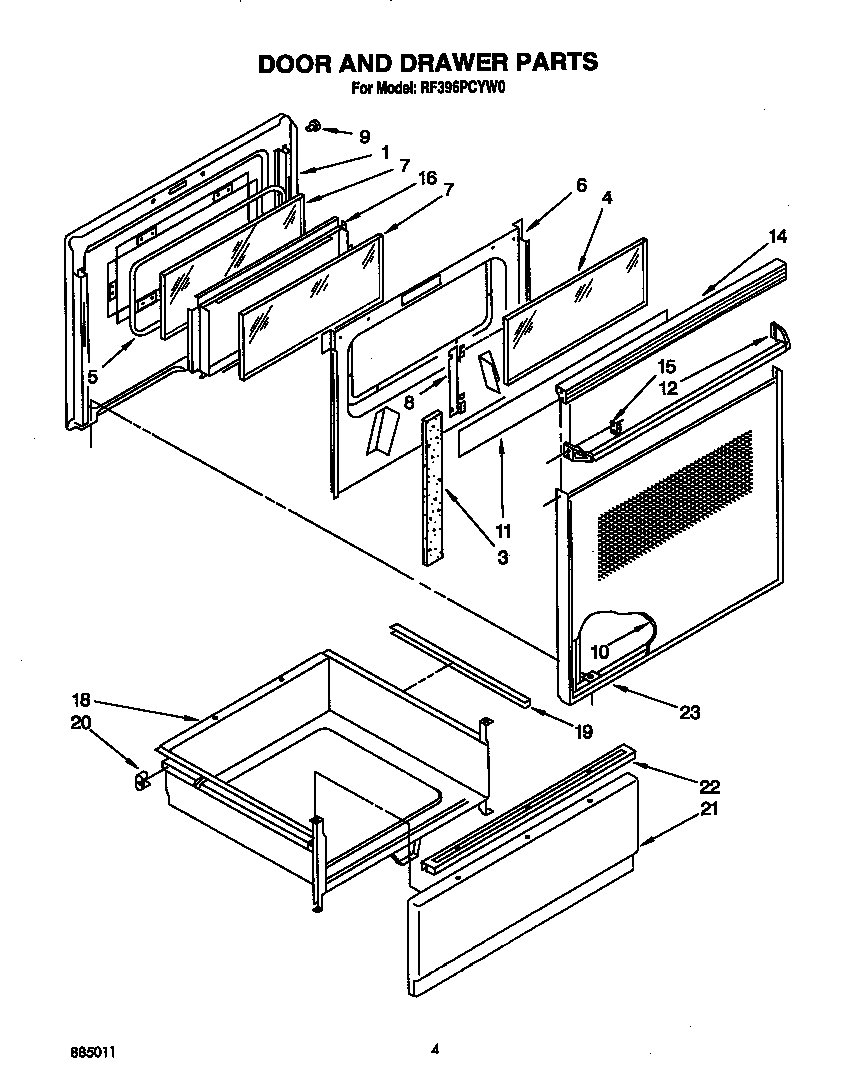

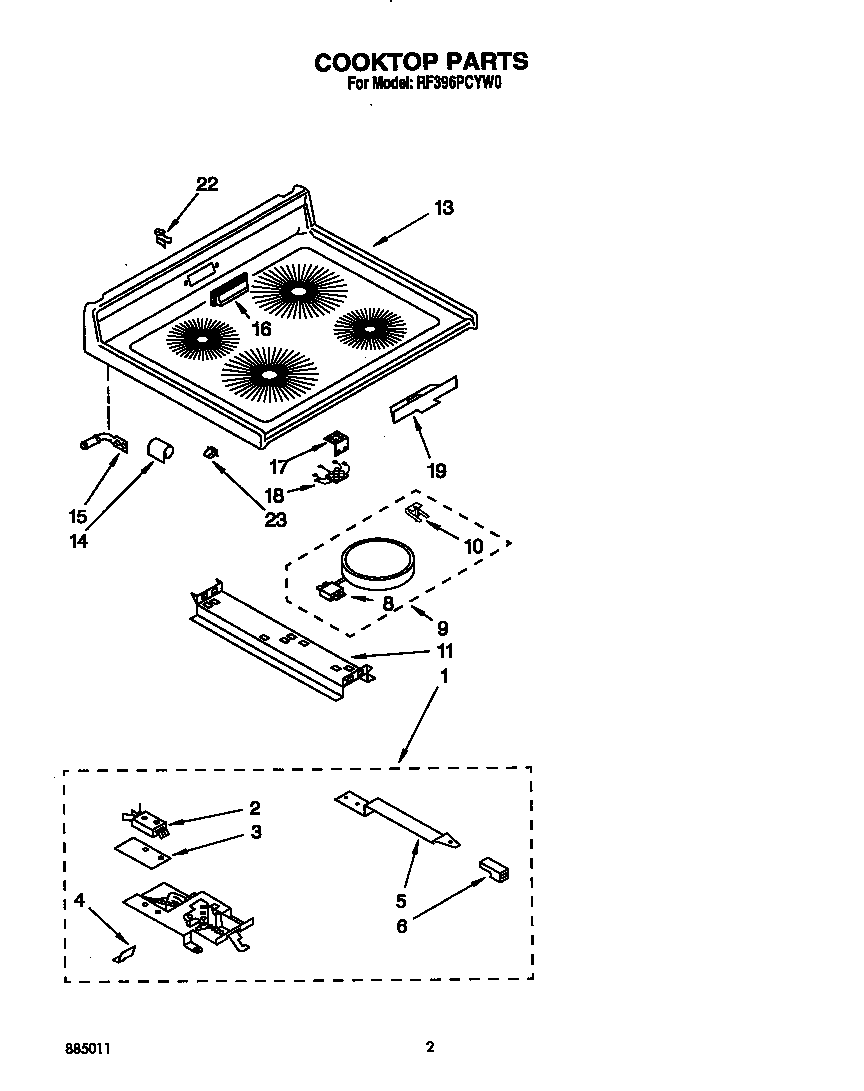

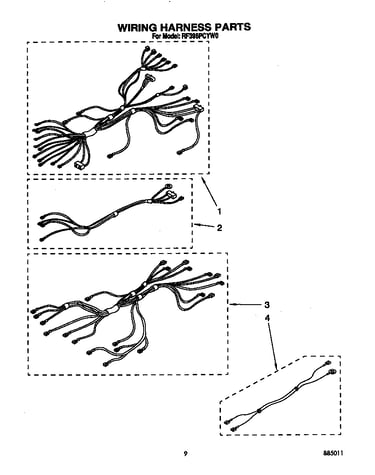

SELECT DIAGRAM
Browse Parts for RF396PCYW0 Ranges

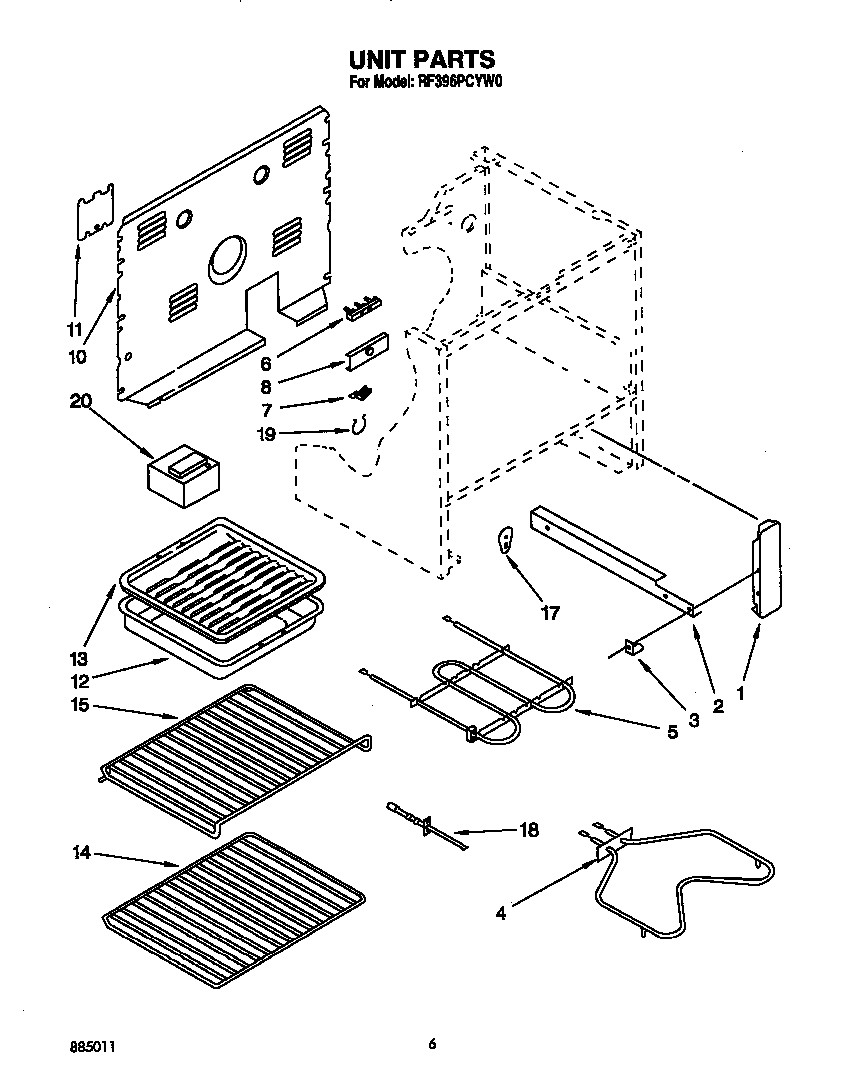

Unit diagram
Bake Element
Part #313827Replaced by #WP308180
Manufacturer substitutionThis part replaces 313827. Substitute parts can look different from the original.In Stock$75.237% OFF Phone Price : $81.23
Qty
Unit diagram
Range Bake Element
Part #308180Replaced by #WP308180
Manufacturer substitutionThis part replaces 308180. Substitute parts can look different from the original.In Stock$75.237% OFF Phone Price : $81.23QtyUnit diagram
Bake Element
Part #661170Replaced by #WP308180

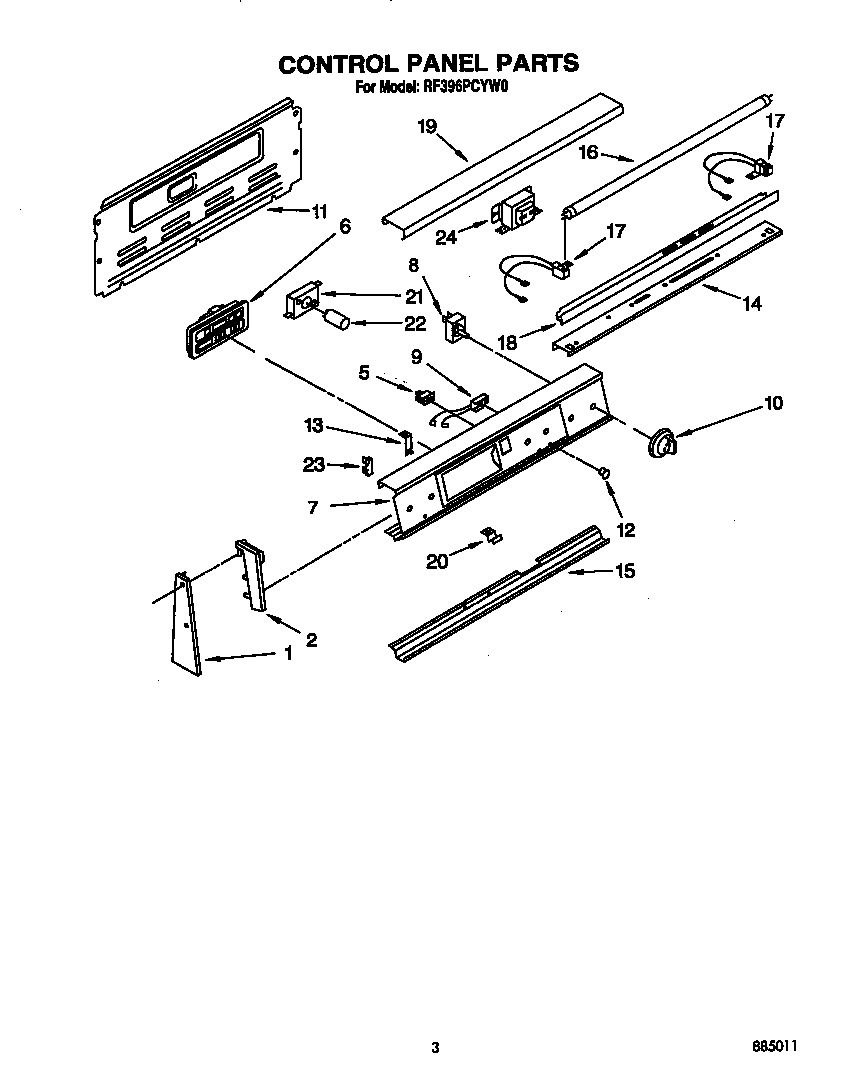

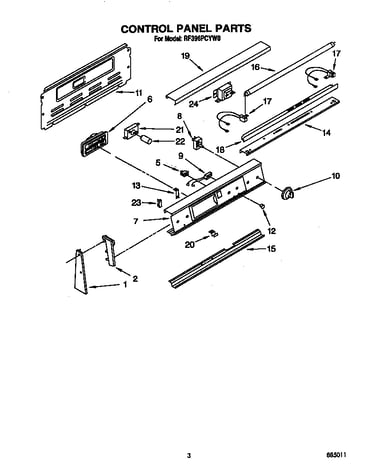

Manufacturer substitutionThis part replaces 661170. Substitute parts can look different from the original.In Stock$75.237% OFF Phone Price : $81.23QtyControl panel diagram
Range Surface Element Control Switch
Part #3148952Replaced by #WP3148952

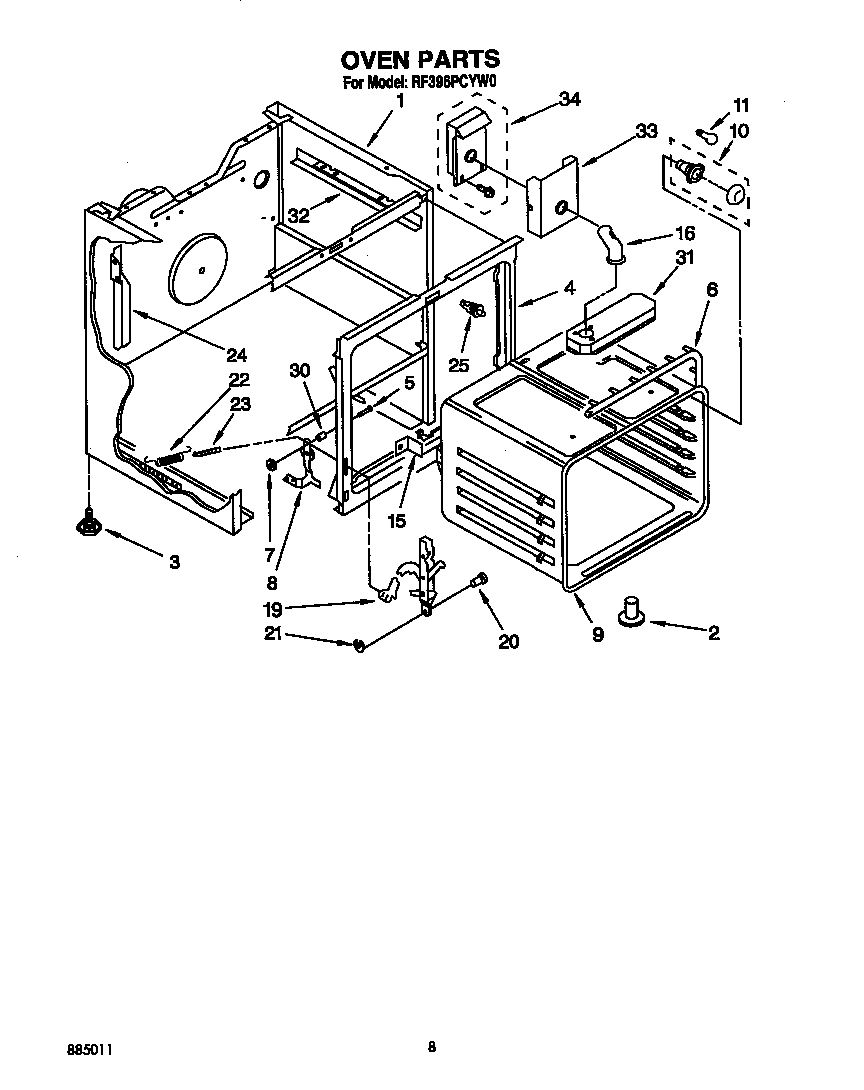

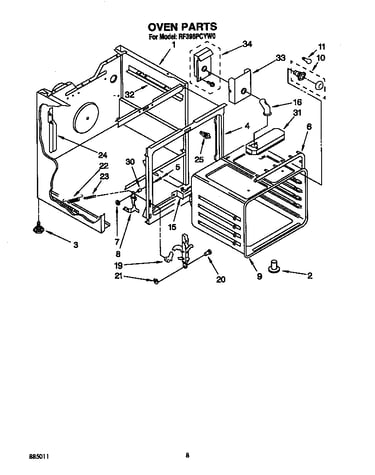

Manufacturer substitutionThis part replaces 3148952. Substitute parts can look different from the original.In Stock$64.758% OFF Phone Price : $70.75QtyOven diagram
Screw
Part #313638Replaced by #WP488729
Manufacturer substitutionThis part replaces 313638. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9317% OFF Phone Price : $5.93QtyScrew
Part #690989Replaced by #WP681414
Manufacturer substitutionThis part replaces 690989. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyScrew
Part #343641Replaced by #WP681414
Manufacturer substitutionThis part replaces 343641. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyUnit diagram
Scraper
Part #3183488Replaced by #WA906B
Manufacturer substitutionThis part replaces 3183488. Substitute parts can look different from the original.This item is not returnableGet free shipping with Automatic ReorderIn Stock$7.41QtyUnit diagram
Unit
Part #311713Replaced by #WP660579
Manufacturer substitutionThis part replaces 311713. Substitute parts can look different from the original.In Stock$78.387% OFF Phone Price : $84.38QtyUnit diagram
Range Broil Element
Part #660579Replaced by #WP660579
Manufacturer substitutionThis part replaces 660579. Substitute parts can look different from the original.In Stock$78.387% OFF Phone Price : $84.38Qty
