How many amps does a double wall oven need?
For the Kenmore 79047783402 double wall oven, plan on a 40-amp, 240V dedicated circuit. The installation instructions specify the double oven can draw up to 8000W at 240Vac and should be protected by a 40A circuit breaker with #8 AWG wiring (follow local electrical code). See the installation guide for the exact electrical requirements and connection details.
What to install (typical requirements)
- Dedicated 240V, 60 Hz AC circuit (separate from other appliances)
- Time-delay fuse or circuit breaker recommended
- Breaker sized to the oven nameplate rating (do not exceed it)
- Proper grounding required
- No extension cord use
Quick sizing reference
| Oven type | Max load (typical) | Breaker (typical) | Wire (typical) |
|---|---|---|---|
| Single wall oven | Up to 4000W @ 240V | 30A | #8 AWG |
| Double wall oven | Up to 8000W @ 240V | 40A | #8 AWG |
Before you power it up
- Confirm the oven nameplate rating matches the planned breaker size.
- Make sure the junction box location and cabinet cutout allow safe routing of the armored cable.
- If your home wiring is aluminum, use connectors rated for copper-to-aluminum connections.
Why it matters
Correct amperage and wire sizing prevents nuisance breaker trips, overheating at the terminal block, and control damage from improper power supply.
Last updated: January 2026
Are wall ovens hardwired or plug-in?
Kenmore wall ovens like model 79047783402 are designed to be hardwired (direct-wired) to a junction box, not plugged into a standard receptacle. The installation instructions also specify that an extension cord should not be used, and the oven must be properly grounded.
What “hardwired” means for this oven
A hardwired wall oven connects to your home wiring inside an approved electrical junction box, typically using the oven’s flexible conduit.
- Power is supplied on a dedicated circuit (240V, 60 Hz AC)
- Connections are made in a junction box, not a wall outlet
- Grounding is required per electrical code
- Wire sizing and breaker rating must match the oven nameplate requirements

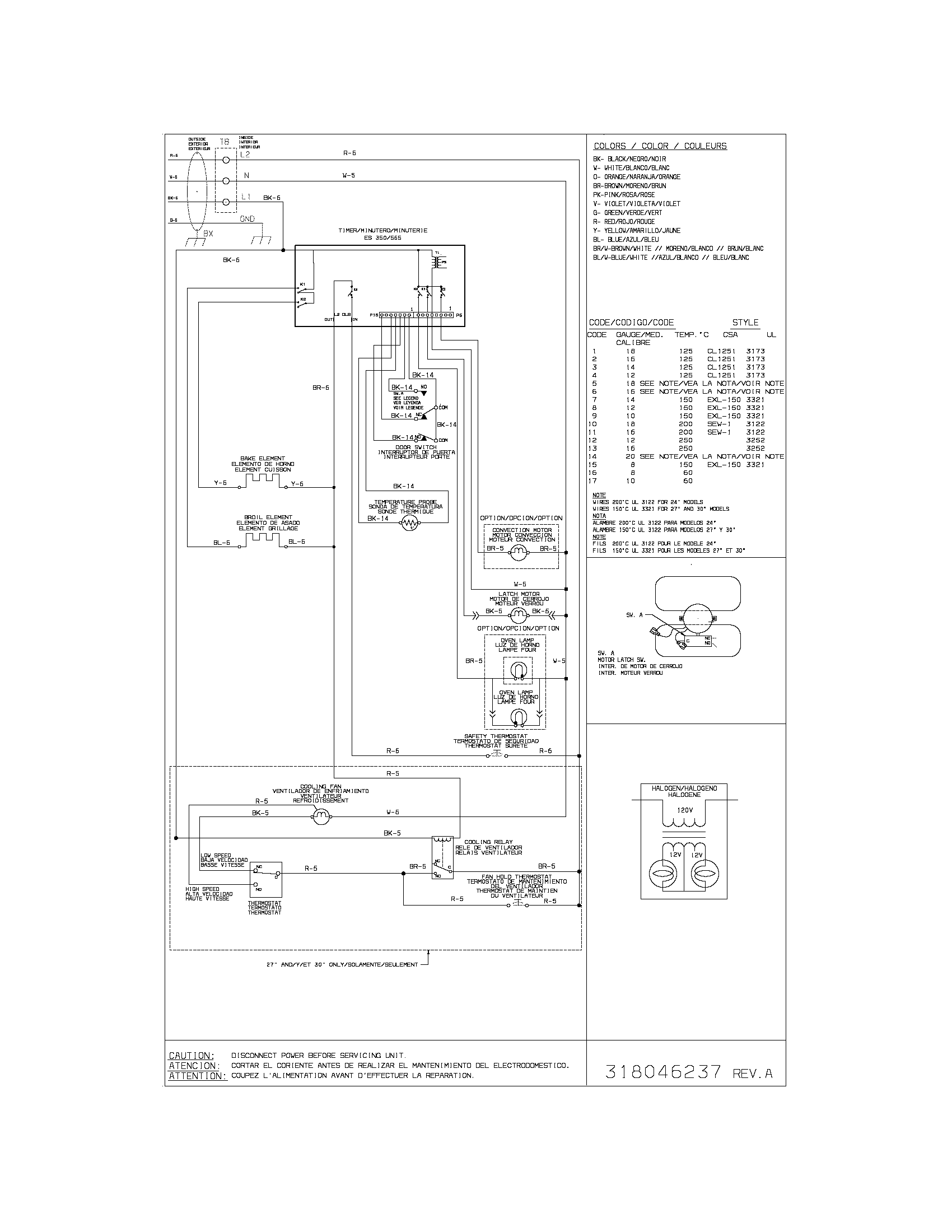

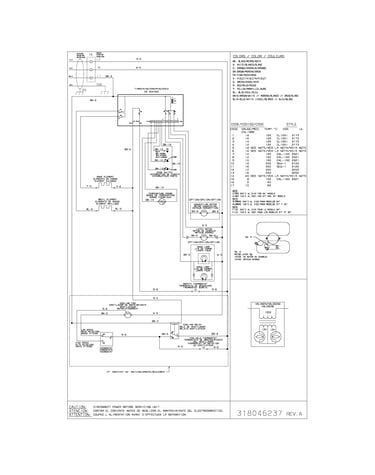

For the exact wiring method and junction box connection details, follow the installation guide.
Electrical supply basics (typical requirements)
Your Kenmore 79047783402 wall oven uses a dedicated 240V circuit. The installation instructions describe common sizing guidelines for single vs. double wall ovens.
| Oven type | Typical max load | Typical breaker | Typical wire gauge |
|---|---|---|---|
| Single wall oven | Up to 4000W | 30A | #8 AWG |
| Double wall oven | Up to 8000W | 40A | #8 AWG |
Always confirm the exact circuit rating on the oven’s nameplate and follow local electrical codes.
When a plug-in setup is not appropriate
A plug and receptacle setup is not used for built-in wall ovens because the installation is intended to be permanent and code-compliant.
- Avoid using any extension cord
- Do not alter the conduit length or routing
- Do not connect neutral and ground incorrectly (especially on 4-wire systems)
Why it matters
Correct hardwiring protects the control board, heating circuits, and wiring connections from overheating, nuisance breaker trips, and unsafe grounding. It also helps the oven operate correctly during high-heat baking and broiling.
Last updated: January 2026
Does a wall oven need a special outlet?
Yes. A Kenmore wall oven like model 79047783402 typically uses a dedicated 240-volt electrical circuit and a properly grounded connection; it is not the same as a standard 120-volt countertop outlet. We recommend following the wiring and grounding requirements in the installation guide.
What “special outlet” usually means for a wall oven
Most electric wall ovens require an electrical supply that is:
- Dedicated (the oven is on its own circuit)
- Correct voltage (commonly 240 volts for electric wall ovens)
- Properly grounded per electrical code
- Installed to local code requirements (NEC in the U.S.)
For model 79047783402, the installation instructions call out proper grounding and following governing codes and ordinances.
Quick checklist before installation
Use this list to avoid common installation problems:
- Turn off power at the breaker before any wiring work
- Confirm the oven is installed and grounded by a qualified installer or service technician
- Verify the cabinet cutout matches the required dimensions for your oven size
- Make sure the electrical connection location is accessible once the oven is in place

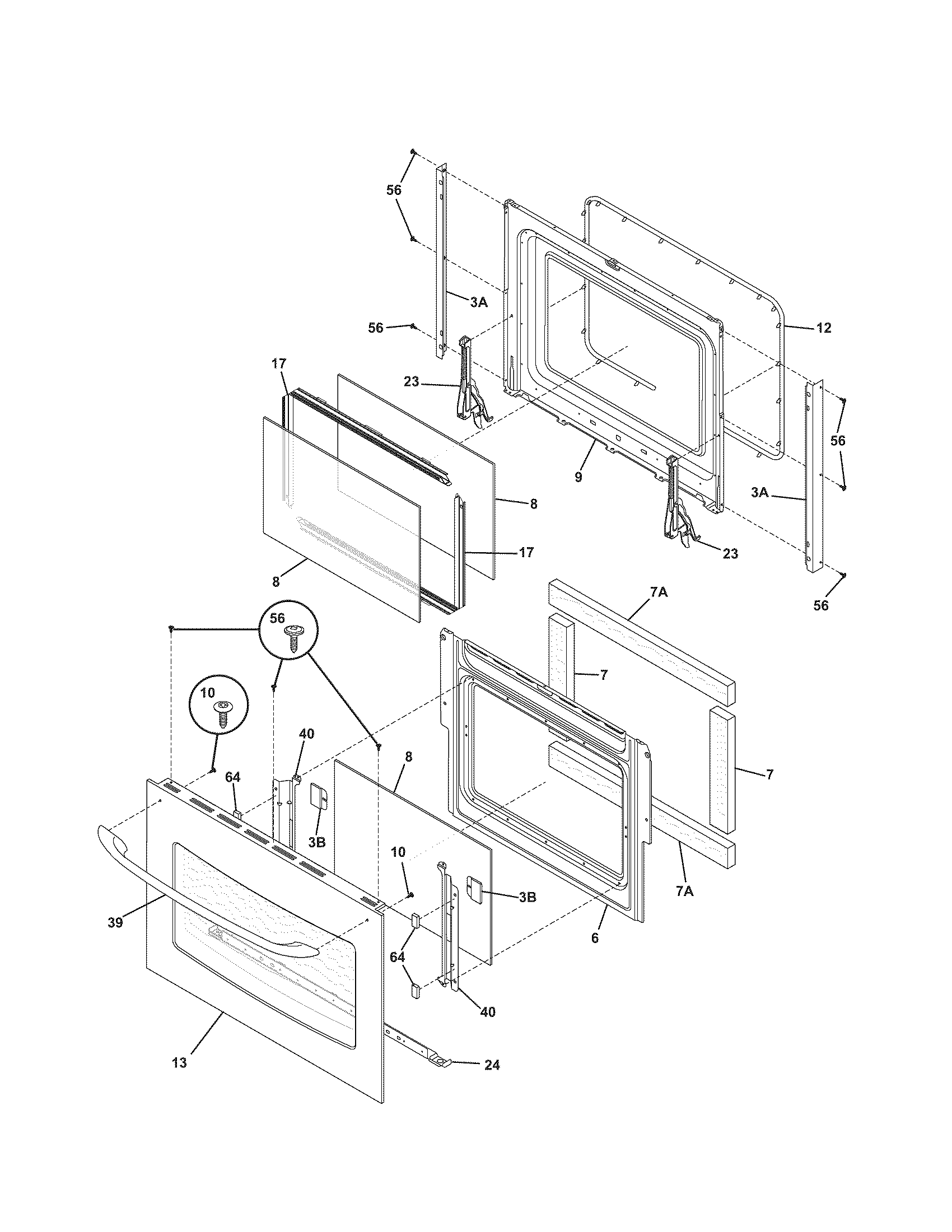

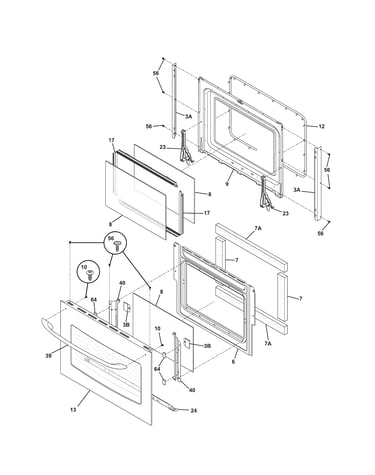

- Plan for safe handling; the oven door can be removed to make installation easier
Typical electrical requirements (what to expect)
These are common expectations for electric wall ovens; your exact requirements are listed in the 79047783402 installation guide.
| Item | Typical for electric wall ovens | What to do |
|---|---|---|
| Voltage | 240 V | Confirm your home supply matches |
| Circuit | Dedicated | Use a separate breaker/circuit |
| Grounding | Required | Follow code and the install instructions |
| Connection type | Hardwired or junction box (varies) | Match the method shown in the guide |
Why it matters
Using the correct circuit and grounding helps the oven heat properly, prevents nuisance breaker trips, and reduces the risk of electrical damage during baking or self-cleaning operation.
Last updated: January 2026
