Model # CDD420P4T1W2 Official GE dishwasher

Here are the diagrams and repair parts for Official GE CDD420P4T1W2 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 122 parts |

Upper And Lower Trim Seal Kit WD01X31486

#13

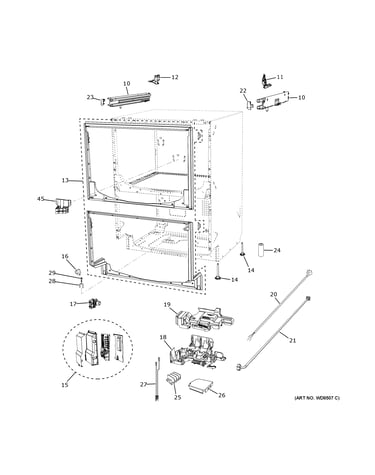

Body parts diagram

Upper and lower trim seal kit

Part #WD01X31486

$101.44

In Stock

Qty

Dish Drawer E X Tension Drain Hose Kit WD24X30798

#103

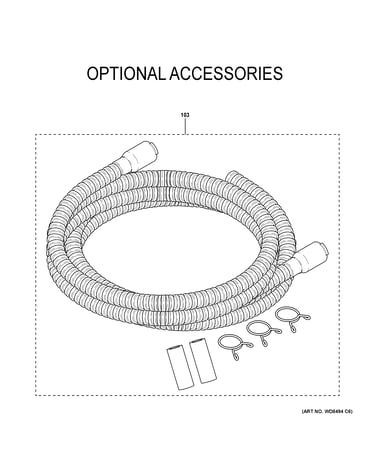

Optional accessories diagram

Dish drawer e x tension drain hose kit

Part #WD24X30798

$66.04

In Stock

Qty

#37

Lid link & components diagram

Upper drawer harness

Part #WD21X31482

$75.84

In Stock

Qty

#59

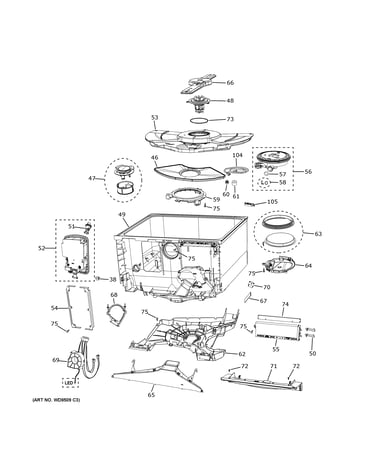

Tub & motor diagram

Motor locking ring

Part #WD02X30910

$12.31

In Stock

Qty

#91

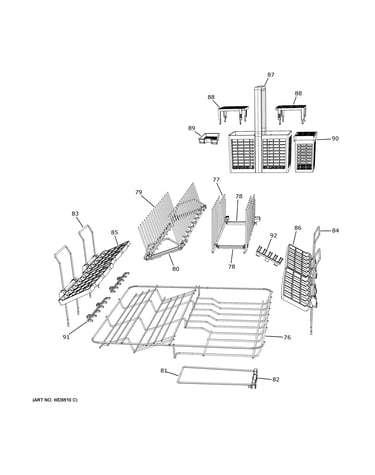

Rack assemblies diagram

Stem glass support

Part #WD12X30938

$12.31

In Stock

Qty

Front panels diagram

Door top trim

Part #WD01X30840

$17.40

In Stock

Qty

Front panels diagram

Matte white lower door

Part #WD27X30846

$176.20

In Stock

Qty

Front panels diagram

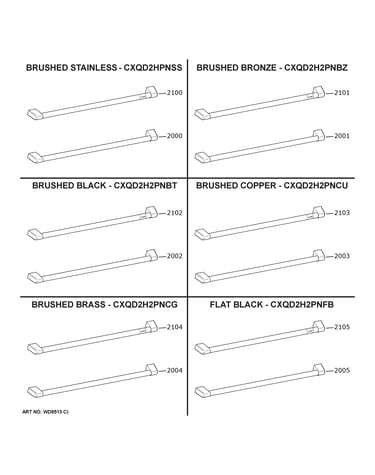

Brushed bronze upper drawer handle

Part #WD09X30980

$223.18

In Stock

Qty

#95

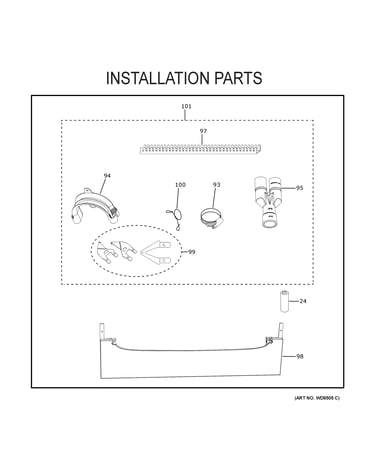

Installation parts diagram

Drain hose adapter

Part #WD01X30957

$16.20

In Stock

Qty

Front panels diagram

Knock sensor

Part #WD21X30847

$37.29

In Stock

Qty
