Bosch HMV3021U/01 microwave Parts

Here are the diagrams and repair parts for Bosch HMV3021U/01 microwave, as well as links to manuals and error code tables, if available.

Bosch HMV3021U/01 microwave
By Schematic

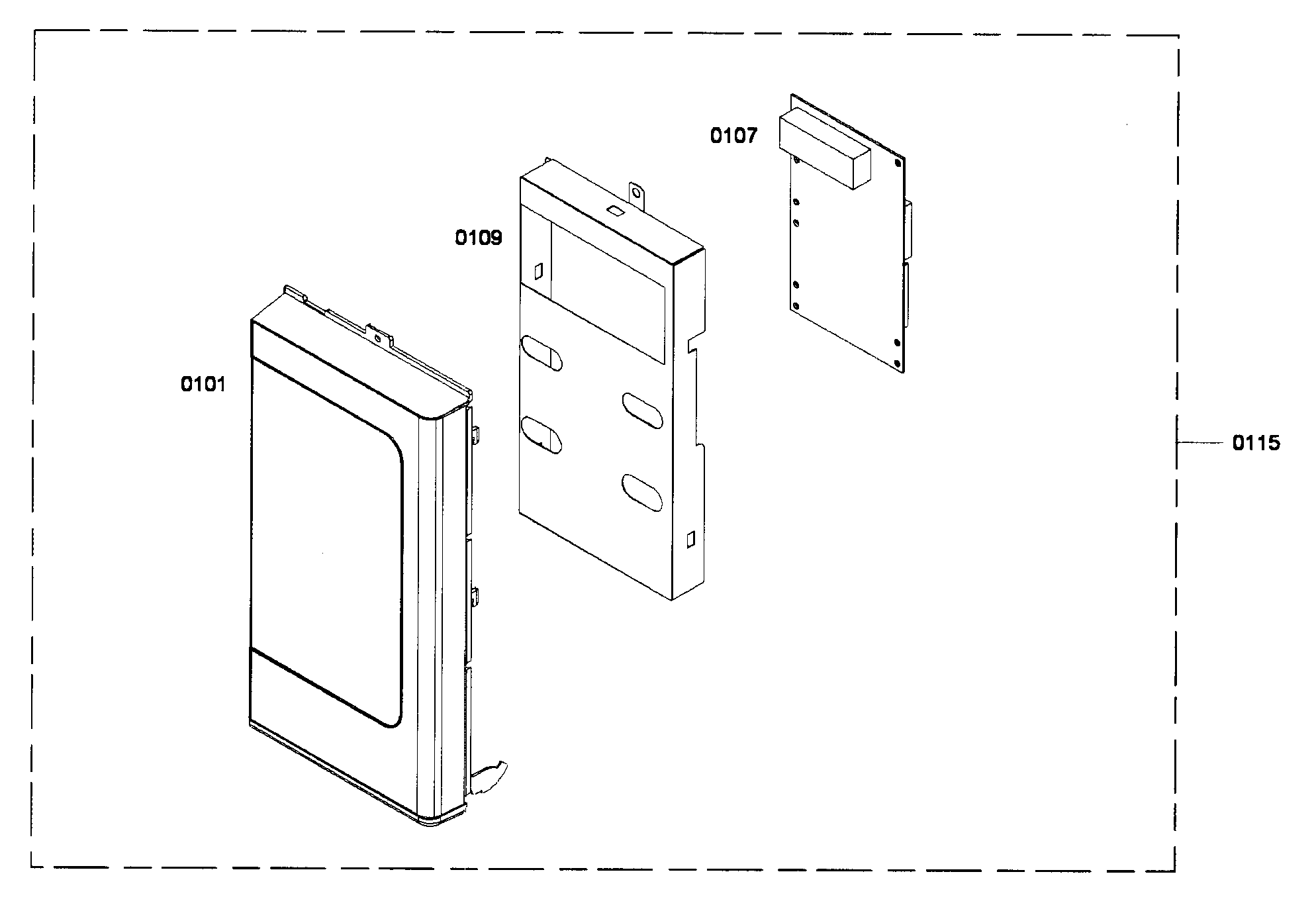

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for HMV3021U/01 Microwave

  • Microwave Door Interlock Switch for Bosch HMV3021U/01 - Part 00617229

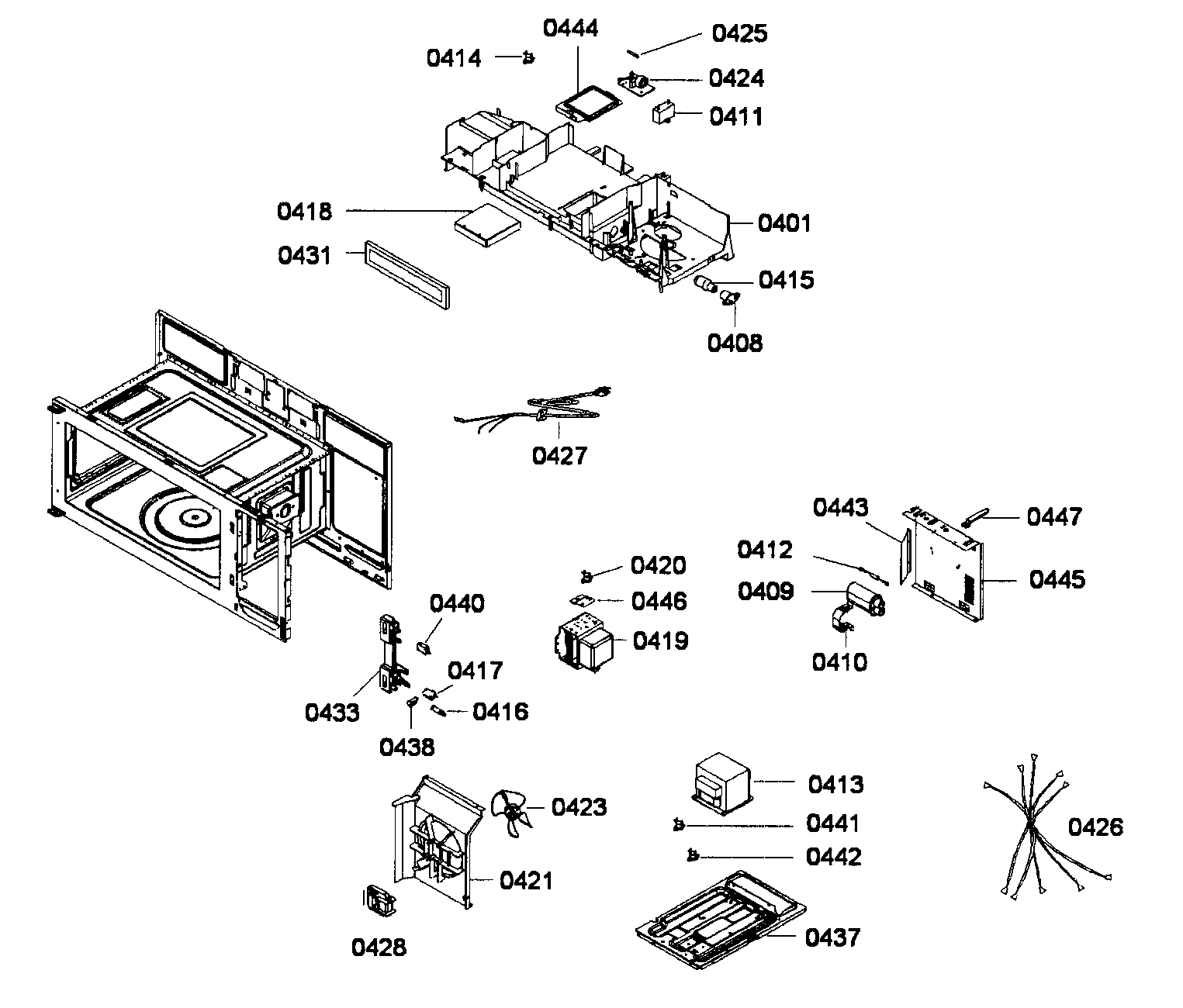

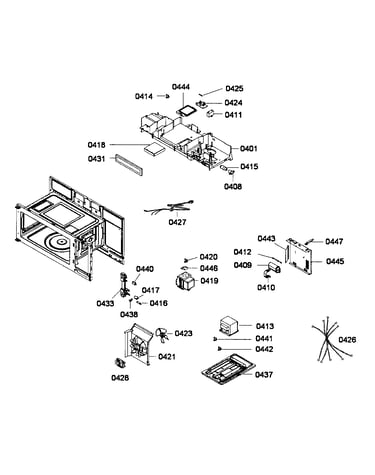

    Cabinet parts diagram

    Microwave Switch

    Part #617229

    Replaced by #00617229

    Info Icon
    Manufacturer substitution
    This part replaces 617229. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $22.58
    21% OFF Phone Price : $28.58Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Latch for Bosch HMV3021U/01 - Part 00648909

    Cabinet parts diagram

    Latch

    Part #648909

    Replaced by #00648909

    Info Icon
    Manufacturer substitution
    This part replaces 648909. Substitute parts can look different from the original.
    In Stock
    $19.69
    9% OFF Phone Price : $21.69Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Fuse for Bosch HMV3021U/01 - Part 00631389

    Cabinet parts diagram

    Fuse

    Part #617219

    Replaced by #00631389

    Info Icon
    Manufacturer substitution
    This part replaces 617219. Substitute parts can look different from the original.
    In Stock
    $38.44
    Minus Item
    Qty
    Plus Item
  • Microwave High-voltage Capacitor for Bosch HMV3021U/01 - Part 00617248

    Cabinet parts diagram

    Cap.h.v.

    Part #617248

    Replaced by #00617248

    Info Icon
    Manufacturer substitution
    This part replaces 617248. Substitute parts can look different from the original.
    In Stock
    $34.80
    15% OFF Phone Price : $40.80Info Icon
    Minus Item
    Qty
    Plus Item
  • Spring for Bosch HMV3021U/01 - Part 10013766

    Door assy diagram

    Spring

    Part #617260

    Replaced by #10013766

    Info Icon
    Manufacturer substitution
    This part replaces 617260. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.53
    Minus Item
    Qty
    Plus Item
  • Microwave Door Outer Frame for Bosch HMV3021U/01 - Part 00683851

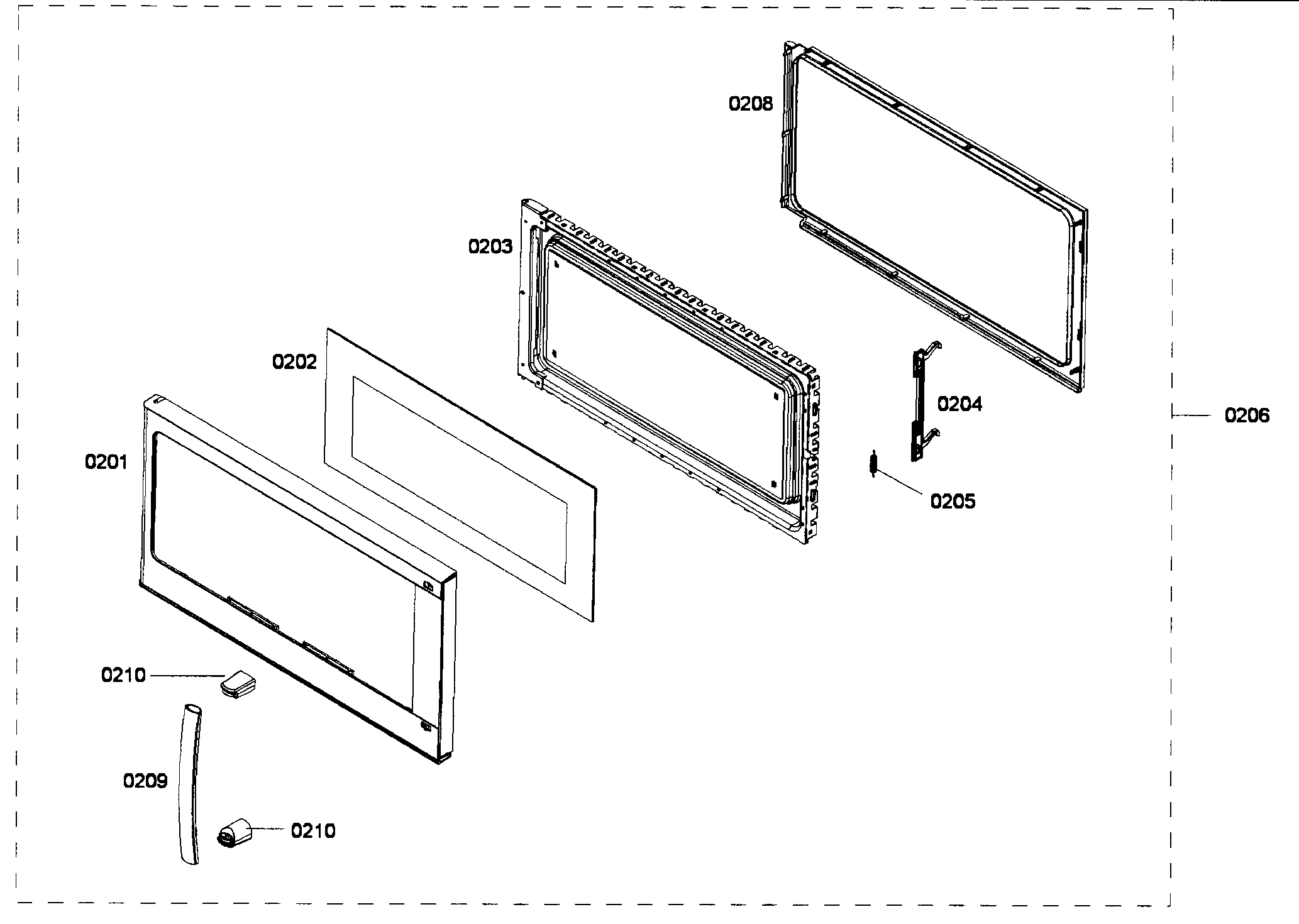

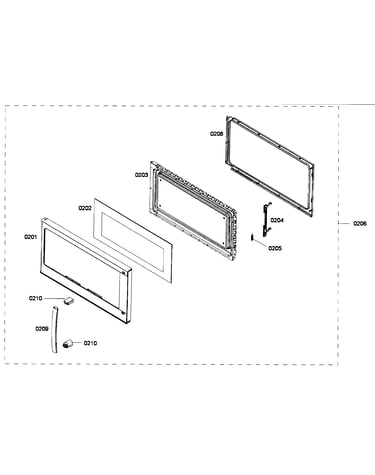

    Door assy diagram

    Door

    Part #683851

    Replaced by #00683851

    Info Icon
    Manufacturer substitution
    This part replaces 683851. Substitute parts can look different from the original.
    In Stock
    $154.86
    Minus Item
    Qty
    Plus Item
  • Microwave Vent Grille for Bosch HMV3021U/01 - Part 00683835

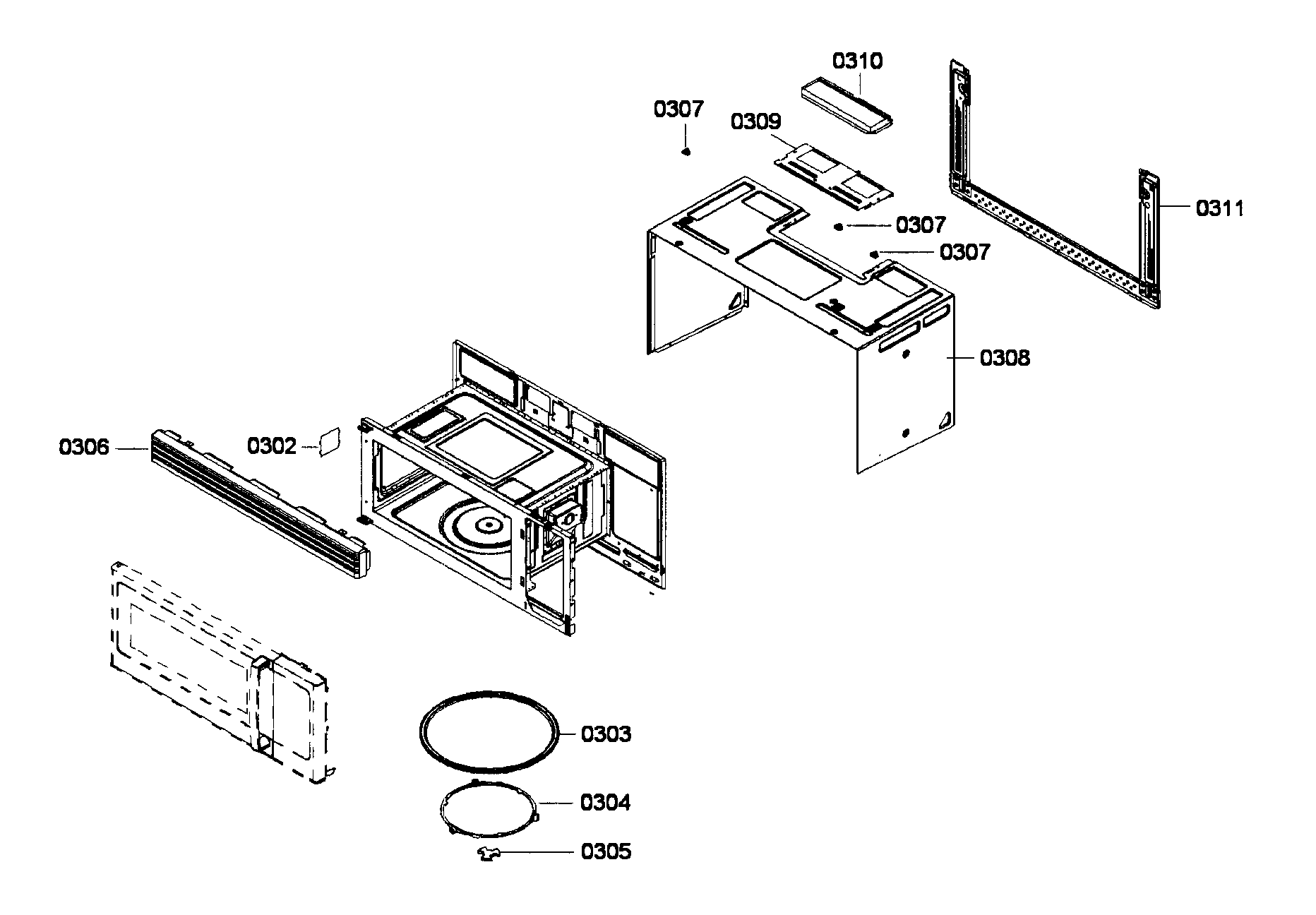

    Cabinet assy diagram

    Decorative Frame

    Part #683835

    Replaced by #00683835

    Info Icon
    Manufacturer substitution
    This part replaces 683835. Substitute parts can look different from the original.
    In Stock
    $114.92
    9% OFF Phone Price : $126.92Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Turntable Motor for Bosch HMV3021U/01 - Part 00617213

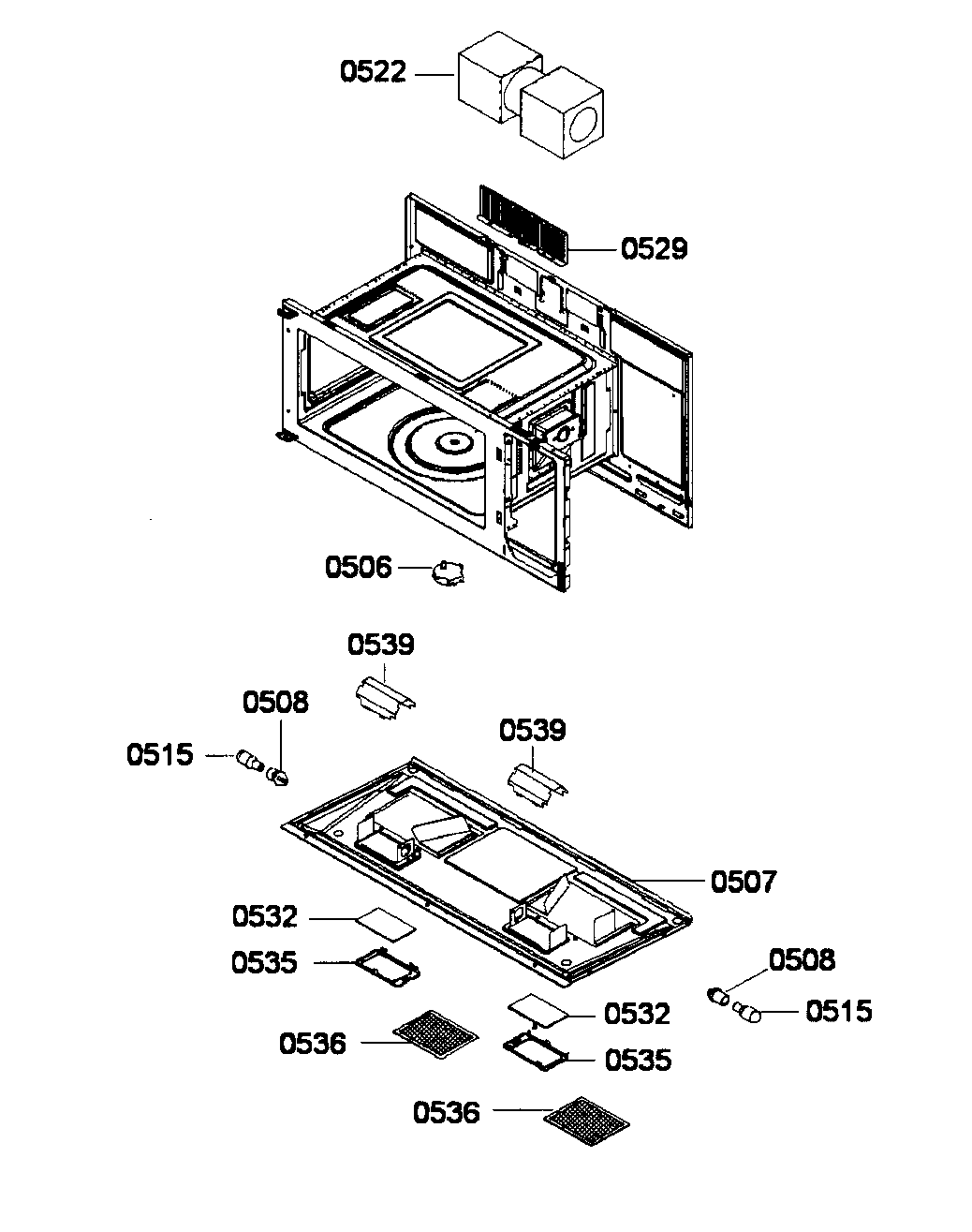

    Bottom assy diagram

    Tray Motor

    Part #617213

    Replaced by #00617213

    Info Icon
    Manufacturer substitution
    This part replaces 617213. Substitute parts can look different from the original.
    In Stock
    $120.74
    9% OFF Phone Price : $132.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Light Bulb for Bosch HMV3021U/01 - Part 00617215

    Microwave Light Bulb

    Part #617215

    Replaced by #00617215

    Info Icon
    Manufacturer substitution
    This part replaces 617215. Substitute parts can look different from the original.
    In Stock
    $27.29
    18% OFF Phone Price : $33.29Info Icon
    Minus Item
    Qty
    Plus Item
  • Hook for Bosch HMV3021U/01 - Part 10013767

    Door assy diagram

    Hook

    Part #617261

    Replaced by #10013767

    Info Icon
    Manufacturer substitution
    This part replaces 617261. Substitute parts can look different from the original.
    In Stock
    $34.13
    Minus Item
    Qty
    Plus Item
