Model # 486244121 Official Craftsman dozer blade

Here are the diagrams and repair parts for Official Craftsman 486244121 dozer blade, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Cable Assembly 746-0366
#23

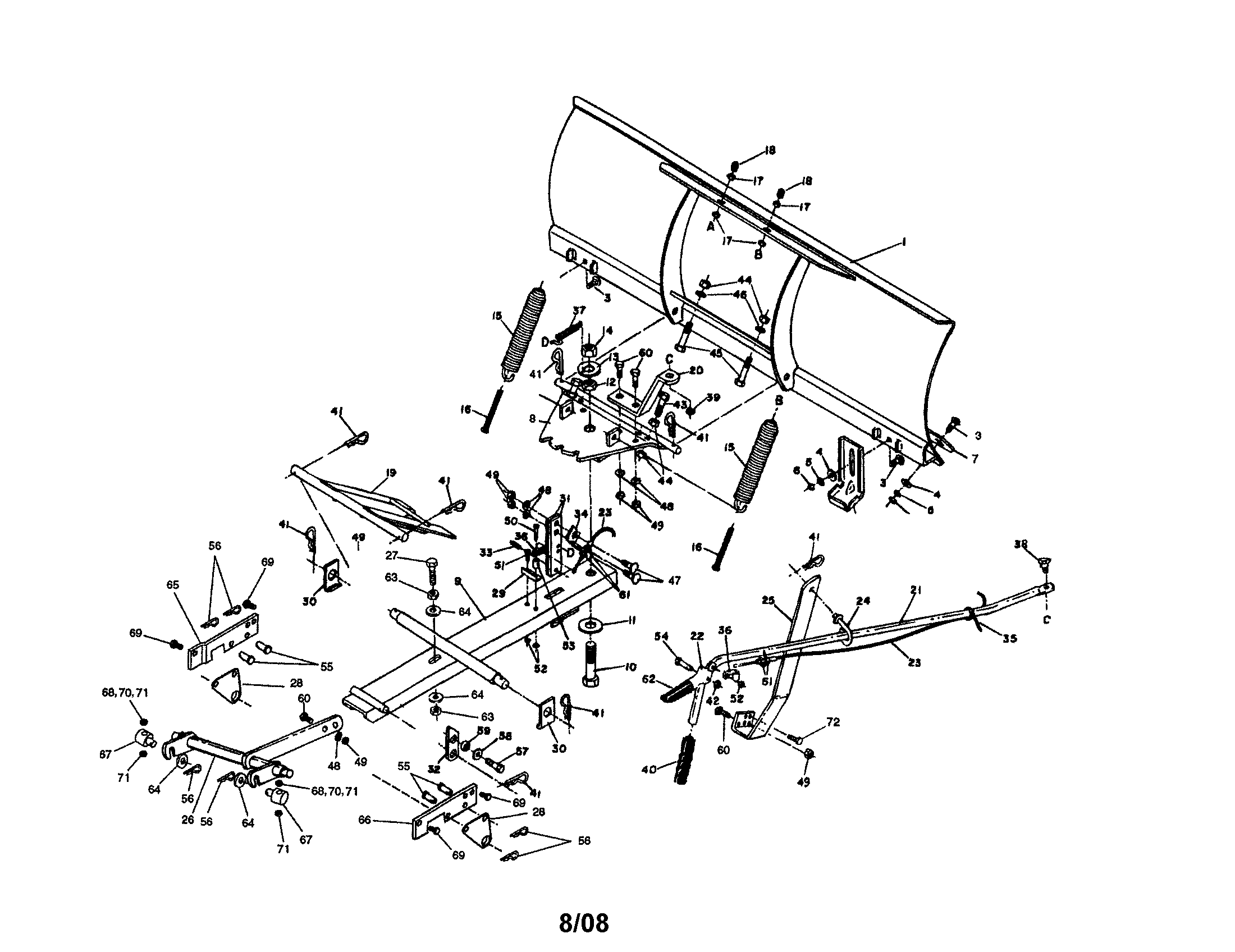

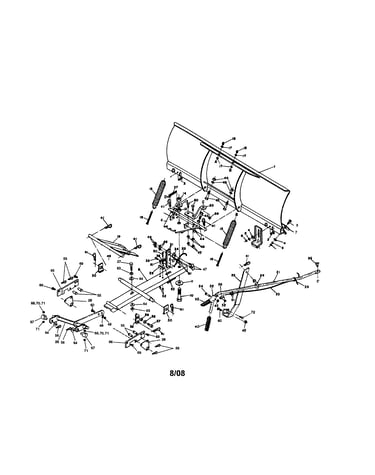

48" dozer blade diagram

Cable assembly

Part #746-0366

Replaced by #49808

?
Manufacturer substitution
This part replaces 746-0366. Substitute parts can look different from the original.
BEST SELLER
$21.07 |
22% OFF Phone Price : $27.07
In Stock
Lawn Tractor Attachment Cotter Pin, 3/32-in 43055
#56

48" dozer blade diagram

Lawn tractor attachment cotter pin, 3/32-in

Part #43055

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Bolt (replaces 738-0234) 48106
#38

48" dozer blade diagram

Lawn & garden equipment bolt (replaces 738-0234)

Part #48106

$44.28 |
12% OFF Phone Price : $50.28
In Stock
Lawn Tractor Attachment Washer, 3/8-in (replaces Af-43070) 43070
#58

48" dozer blade diagram

Lawn tractor attachment washer, 3/8-in (replaces af-43070)

Part #43070

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Snow Blade Attachment Wear Plate 23639
#7

48" dozer blade diagram

Lawn tractor snow blade attachment wear plate

Part #23639

Replaced by #23639BL3

?
Manufacturer substitution
This part replaces 23639. Substitute parts can look different from the original.
$22.04
In Stock
Lawn Tractor Dozer Blade Attachment Lift Pivot Plate 23922
#28

48" dozer blade diagram

Lawn tractor dozer blade attachment lift pivot plate

Part #23922

Replaced by #23922BL1

?
Manufacturer substitution
This part replaces 23922. Substitute parts can look different from the original.
This item is not returnable
$8.11 |
11% OFF Phone Price : $9.11
In Stock
Lawn & Garden Equipment Lock Nut 43082
#49

48" dozer blade diagram

Lawn & garden equipment lock nut

Part #43082

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Snow Blade Attachment Angle Lock Bar, Short 23151
#31

48" dozer blade diagram

Lawn tractor snow blade attachment angle lock bar, short

Part #23151

Replaced by #23151BL1

?
Manufacturer substitution
This part replaces 23151. Substitute parts can look different from the original.
This item is not returnable
$3.80
In Stock
Spring 9466R
#15

48" dozer blade diagram

Spring

Part #9466R

Replaced by #48090

?
Manufacturer substitution
This part replaces 9466R. Substitute parts can look different from the original.
This item is not returnable
$20.59 |
23% OFF Phone Price : $26.59
In Stock
Lawn Tractor Attachment Screw, 3/8-16 X 1-in 43001
#60

48" dozer blade diagram

Lawn tractor attachment screw, 3/8-16 x 1-in

Part #43001

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
