Whirlpool WFW8300SW02 washer Parts

A common problem on a Whirlpool washer like model WFW8300SW02 is a drain or suds issue that stops the cycle, triggers a drain-related code (such as F21), or leaves the door locked until the water is removed. Many “won’t start” complaints also trace back to power, door closure, or water-supply checks in the owner's manual.

Most common symptoms we see (and what they usually mean)

• Won’t run or stops mid-cycle: power supply issue, normal cycle pause, door not fully closed, or START not held long enough.
• Won’t fill or fills slowly: faucets off, kinked hoses, or clogged inlet screens.
• Won’t drain (F21): kinked/frozen/clogged drain hose, standpipe too high (over 96 inches), or a drain pump restriction.
• “SD” suds routine: too much detergent or non-HE detergent causing excess suds.
• Noisy or vibrating: washer not level, feet not firmly on the floor, or pedestal not secured.

Quick checks before replacing parts

1. Confirm the washer is plugged into a grounded 3-prong outlet (no extension cord).
2. Make sure the door is firmly shut; on this model, the door must be opened and closed again to start a new cycle after the last one.
3. Verify both hot and cold faucets are fully on.
4. Inspect inlet hoses for kinks; clean inlet valve screens if water flow is weak.
5. For drain problems, check the drain hose for kinks/clogs and confirm the drain height is 96 inches or less.

Parts that commonly relate to these problems

Symptom	Common related part	What it affects

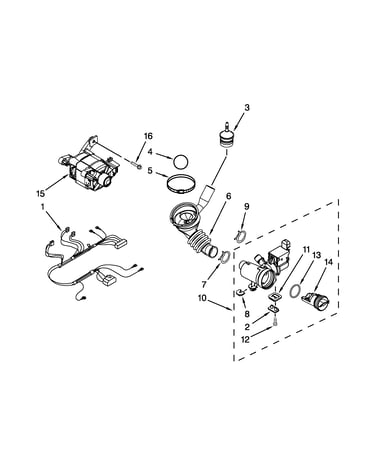

Won’t drain, F21, water left in tub	Water pump WPW10730972	Pumps water out during drain/spin

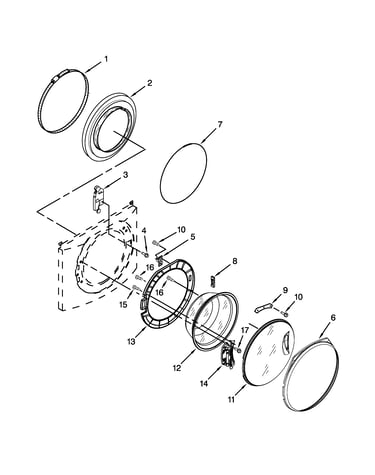

Leaks at the door, musty odor around seal	Washer door boot WPW10111435	Door seal that keeps water in the tub
Door won’t lock/unlock reliably	Latch WPW10253483	Door lock system that allows the cycle to run

Why it matters

Drain, suds, and door-lock issues can prevent the washer from completing a cycle and can keep the door locked until water is removed. Catching the root cause early helps avoid repeat stoppages, leaks, and unnecessary part replacement.

For parts lookup by model number beyond the parts list for WFW8300SW02, search on Sears PartsDirect.

Last updated: February 2026

The Whirlpool WFW8300SW02 washer has a 3.4 cu. ft. capacity, which is the usable drum volume for washing loads. For cycle-by-cycle loading guidance (bulky items, mixed loads, HE detergent use), follow the recommendations in the owner's manual.

What 3.4 cu. ft. means for everyday loads

A 3.4 cu. ft. front-load washer like the WFW8300SW02 is designed for medium-to-large loads while still using HE (high-efficiency) wash action.

• Wash mixed loads (towels, tees, jeans) without packing the drum tight
• For bulky items, load loosely so water and detergent can circulate
• Use HE detergent only; over-sudsing can reduce cleaning and cause drain issues
• Leave some space at the top of the drum; clothes should tumble, not compress

Quick load-size guide (practical, not exact)

Load type	Typical examples	How full to load
Small	a few shirts, light items	about 1/4 to 1/3 full
Medium	everyday mixed laundry	about 1/2 full
Large	towels, heavier mixed load	about 2/3 full
Bulky	comforter, blanket	loosely filled; items must tumble

Why it matters

Capacity affects cleaning and reliability. When the drum is overloaded, clothes cannot tumble properly, detergent may not rinse out, and the washer can struggle to drain and spin. If you start seeing drain or spin symptoms, common service items for this model include the water pump WPW10730972.

Ordering parts for your washer

We list model-matched replacement parts for Whirlpool WFW8300SW02 on this page; you can also search by model number on Sears PartsDirect if you are building a larger parts list.

Last updated: February 2026

Yes. On the Whirlpool WFW8300SW02, the most reliable “reset” is a control reset by canceling the current cycle and restarting a new one. If the washer is paused, locked, or acting stuck mid-cycle, using PAUSE/CANCEL and then restarting clears the cycle state and gets you running again (it may drain first).

Quick reset steps (cycle cancel and restart)

• Press PAUSE/CANCEL twice to cancel the cycle and power the washer down.
• Wait for the door to unlock (the washer may drain automatically if water level or temperature is high).
• Select your desired cycle and options.
• Press and hold START for about 1 second to begin.

If the washer is simply paused or the door is locked:

• Press PAUSE/CANCEL once; the door should unlock.

If the washer needs to drain before it will “reset”

Use a manual drain/spin to clear water so the door can unlock and the control can restart cleanly:

• Press PAUSE/CANCEL
• Select DRAIN/SPIN
• Press and hold START for about 1 second

What this “reset” fixes (and what it does not)

Symptom	What to do	What it means
Stuck on a cycle step	PAUSE/CANCEL twice, then restart	Clears the current cycle state
Door locked with “Add a garment” light on	PAUSE/CANCEL once	Normal lock condition during operation
Won’t drain or drains slowly	Run DRAIN/SPIN; check for clogs	Often a drain restriction or pump issue
Won’t start at all	Check power and breaker	Control may be fine; power issue is common

Why it matters

Front-load washers like the WFW8300SW02 lock the door and manage water levels for safety. Canceling the cycle and restarting is the correct way to reset the control logic without forcing the door or interrupting a drain.

Helpful resources and parts

• For model-specific button sequences and cycle behavior, use the owner's manual.
• If your “reset” keeps failing because the washer will not drain, a common repair is replacing the water pump WPW10730972. You can order parts from the list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Whirlpool washers typically last 10 to 14 years. For your Whirlpool WFW8300SW02 front-load washer, reaching the upper end of that range depends on using HE detergent, keeping the door boot clean, and addressing drain or leak issues quickly using the care steps in the owner's manual.

Typical lifespan: what to expect

Most Whirlpool washers fall into this range with normal household use:

Washer type	Typical life expectancy	What most often shortens life
Front-load (like WFW8300SW02)	10 to 14 years	Odor/mold buildup, overloading, drain pump clogs
Top-load	10 to 14 years	Overloading, suspension wear, poor leveling

What helps your WFW8300SW02 last longer

We see these habits make the biggest difference on front-load Whirlpool machines:

• Use HE (High Efficiency) detergent and avoid overdosing (this model is designed for HE detergent).
• Leave the door slightly open between loads so the tub and washer door boot can dry.
• Wipe the door boot folds regularly to prevent residue and mildew.
• Keep loads balanced; repeated out-of-balance spinning increases wear on the tub and drive system.
• Fix slow draining early; a struggling drain system can overwork the pump.

Parts that commonly affect longevity

When performance drops, these parts are frequent culprits on front-load washers. If symptoms match, replacing the worn part often restores normal operation:

• Drain not emptying well, water left in tub: water pump WPW10730972
• Leaks at the door, musty smell, visible tears: washer door boot WPW10111435
• Boot not sealing or popping loose: washer door boot spring clamp WP8540108 or washer door bellow clamp W11032829

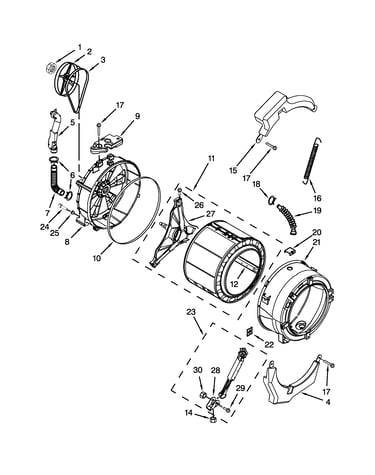

• Noisy operation or poor tumbling/spin: washer drive belt WP8540101

Why it matters

A washer that is kept clean, properly leveled, and draining correctly runs with less strain on the motor control, tub bearings, and pump. That reduces repeat failures and helps you get the full 10 to 14 years (or more) from your Whirlpool WFW8300SW02.

You can order replacement parts for WFW8300SW02 from the parts list for this model, or search by model number on Sears PartsDirect.
