Jenn-Air SVE47100W electric slide-in range Parts
Here are the diagrams and repair parts for Jenn-Air SVE47100W electric slide-in range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error Codes

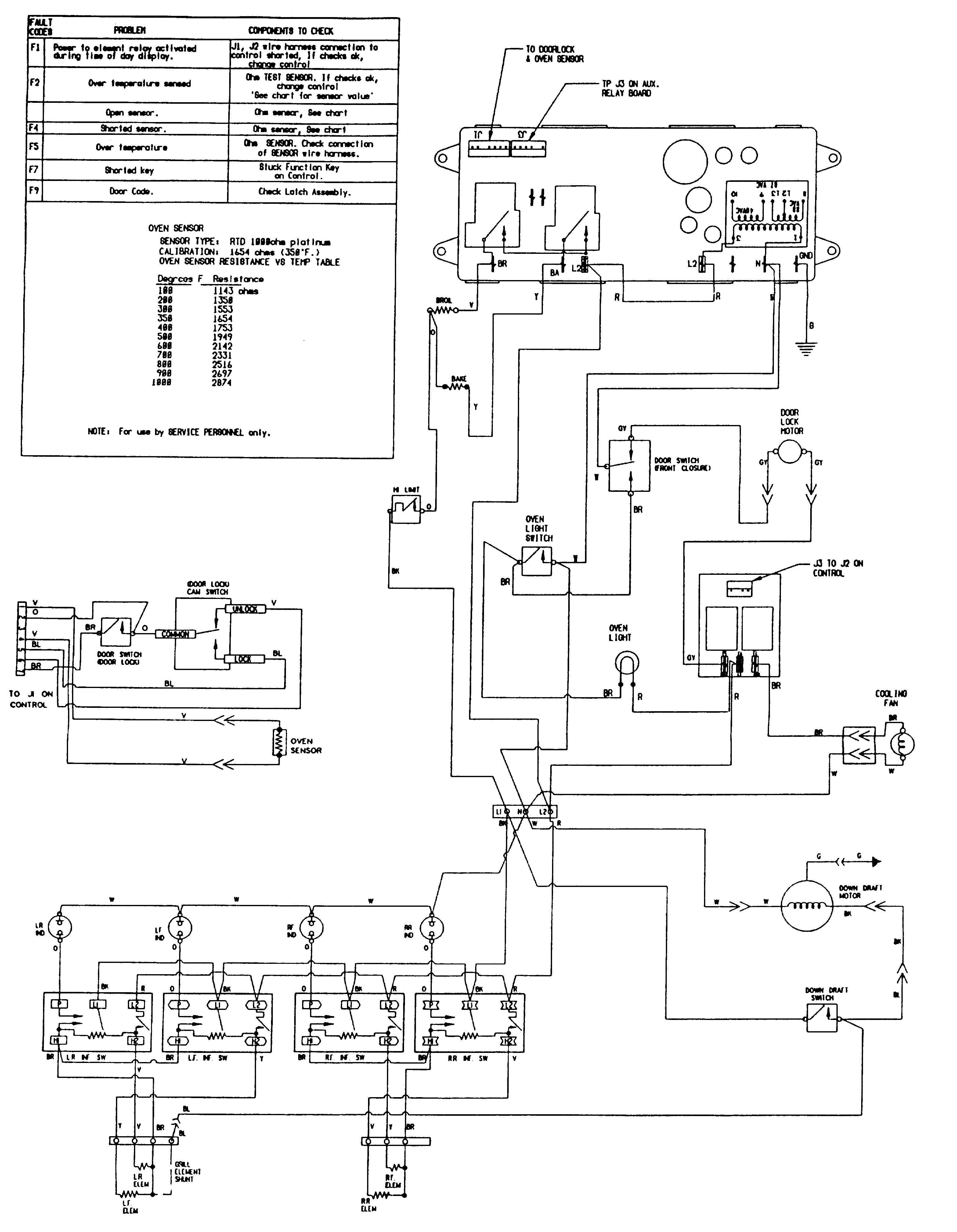

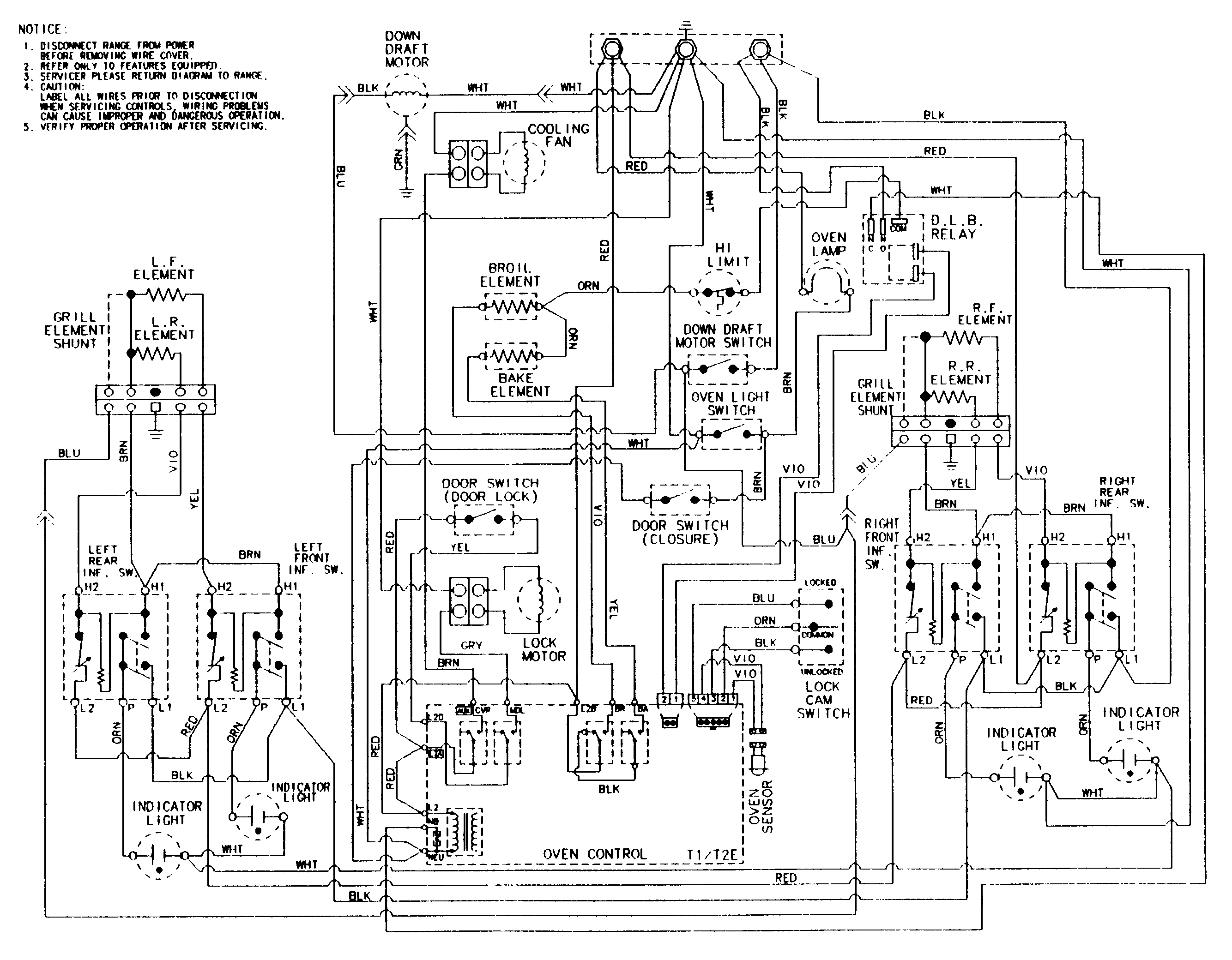

By Schematic
By Part

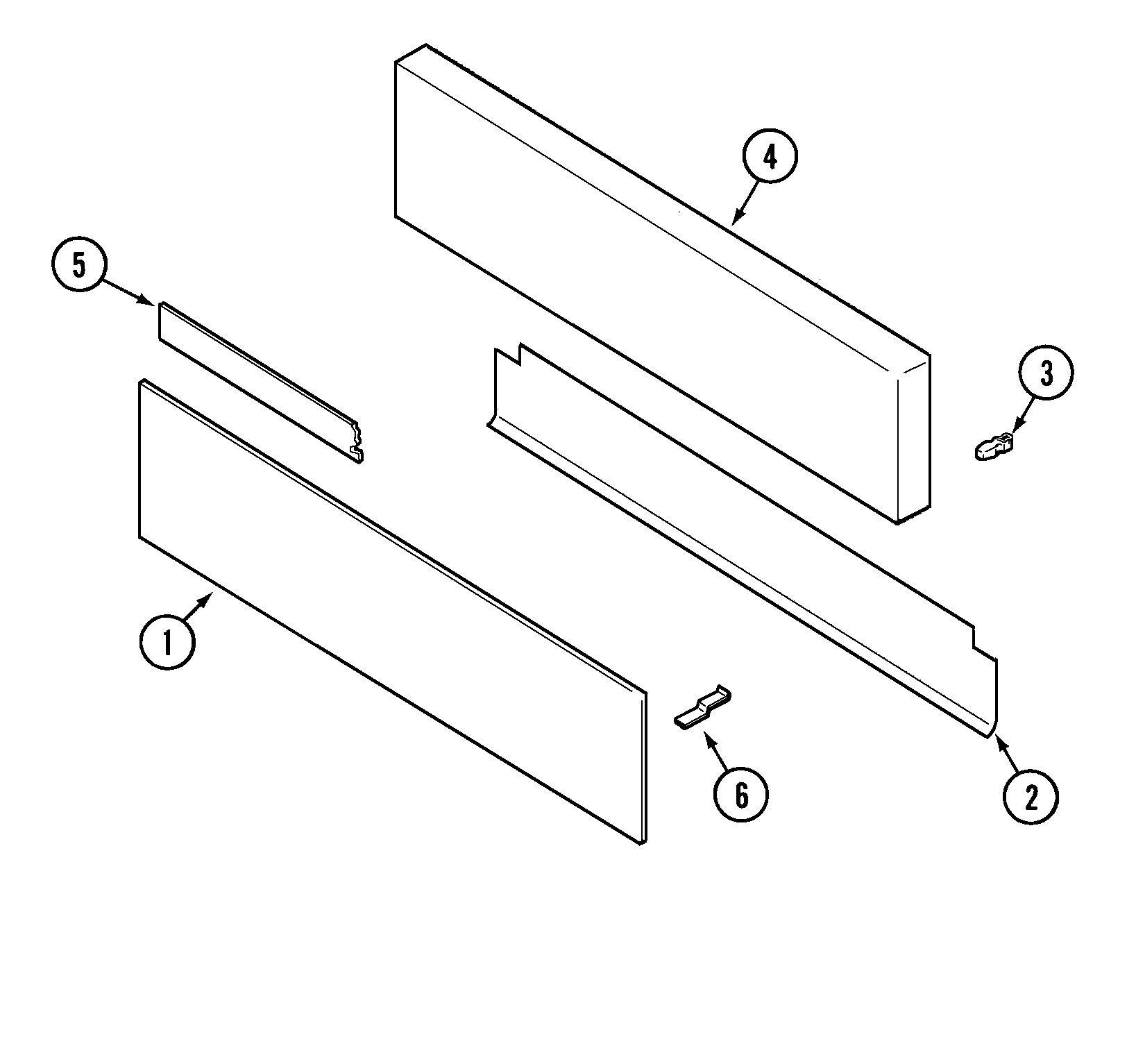

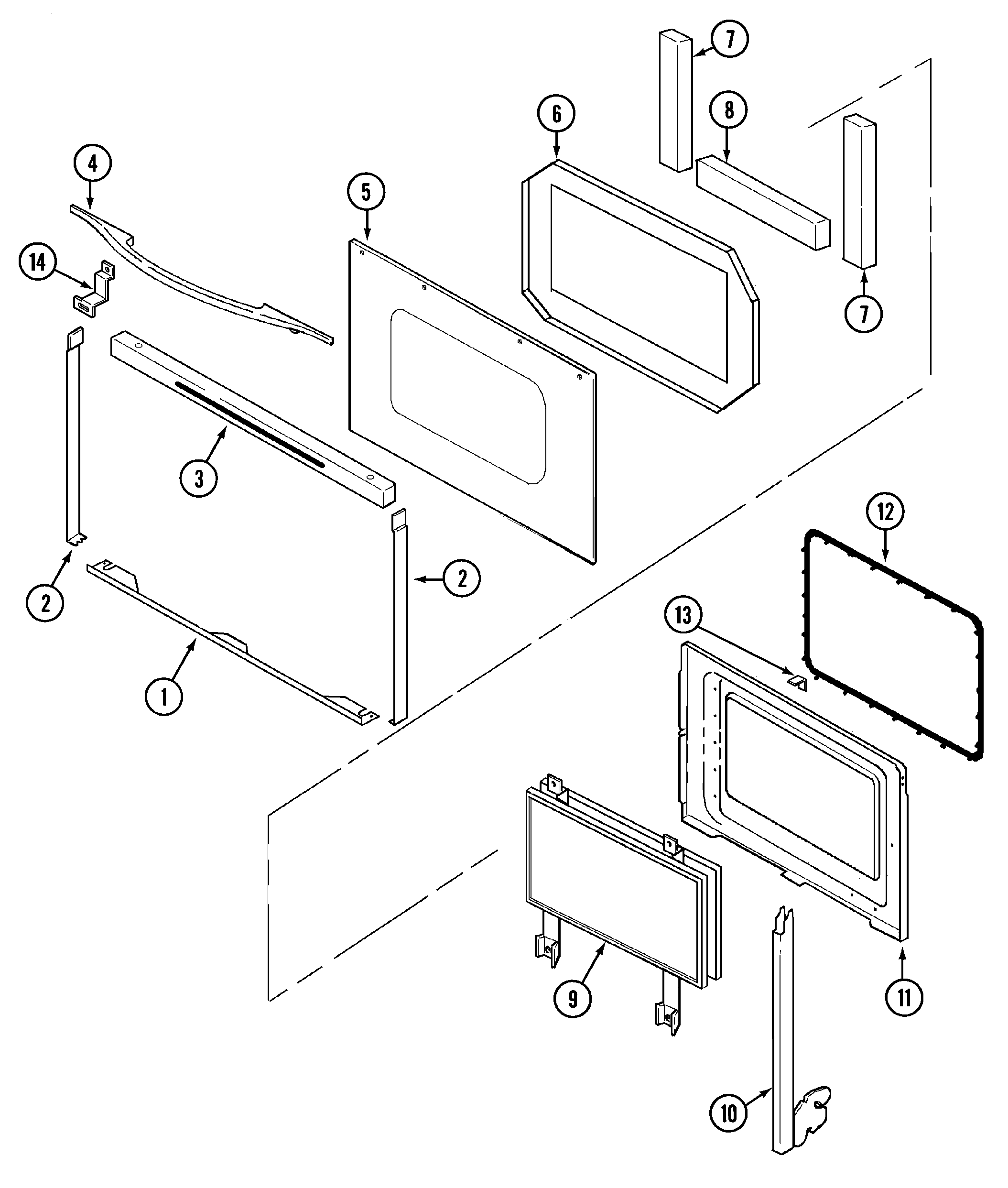

SELECT DIAGRAM

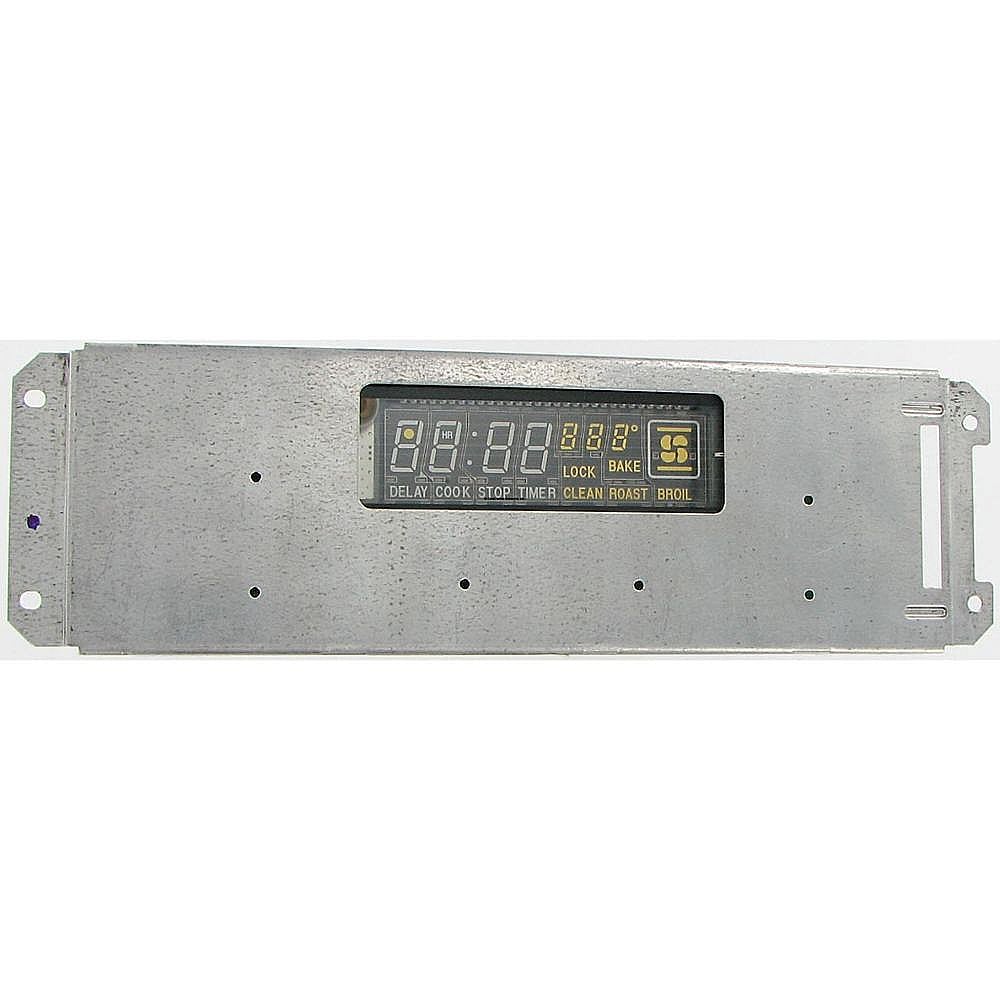

Browse Parts for SVE47100W Ranges
Top assembly diagram
Spade, Conta
Part #708572Replaced by #Y708572
Manufacturer substitutionThis part replaces 708572. Substitute parts can look different from the original.This item is not returnableIn Stock$10.0917% OFF Phone Price : $12.09
Qty

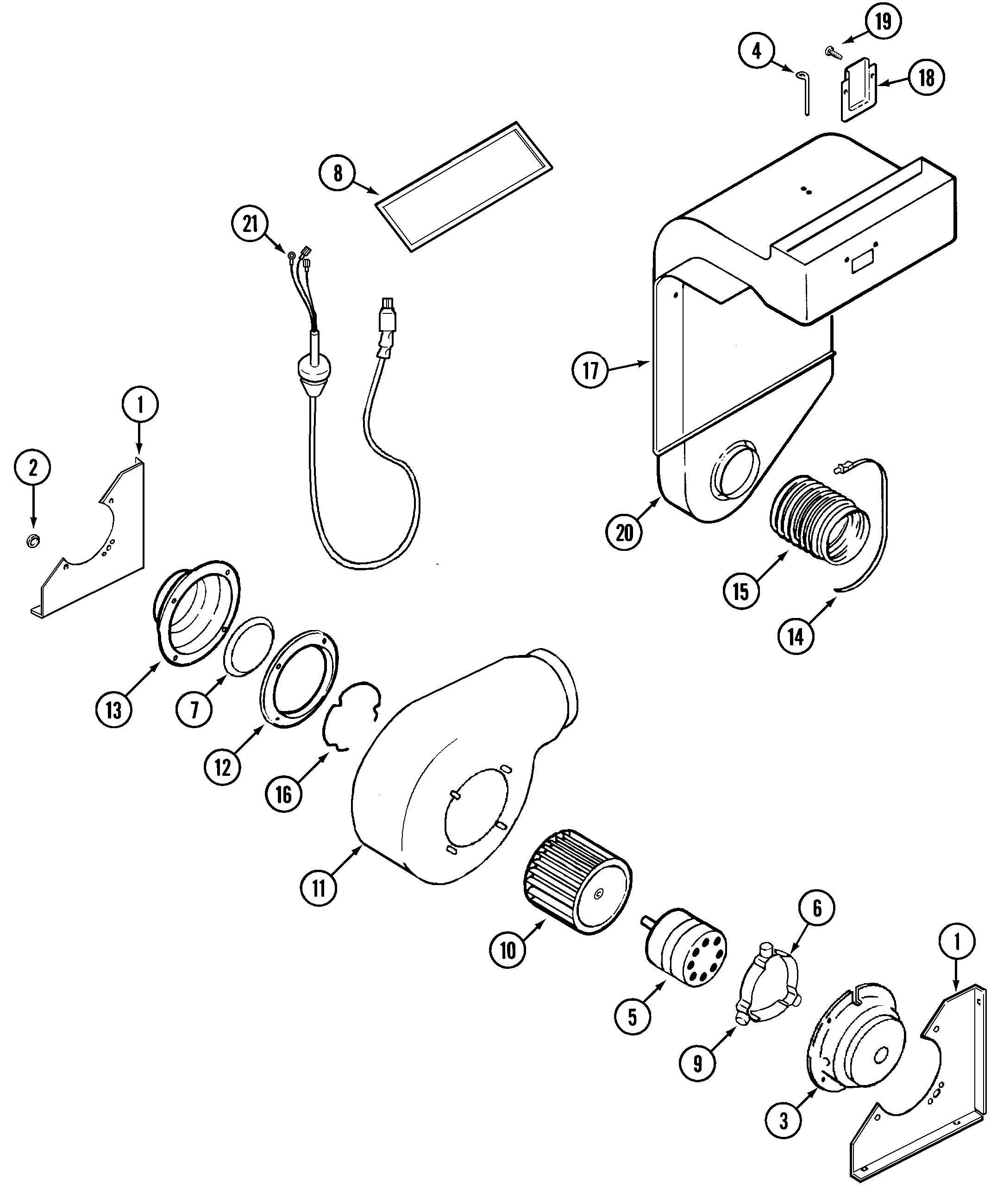

Blower assembly (plenum) diagram
Mounting Bracket
Part #702294Replaced by #WP3801F631-51

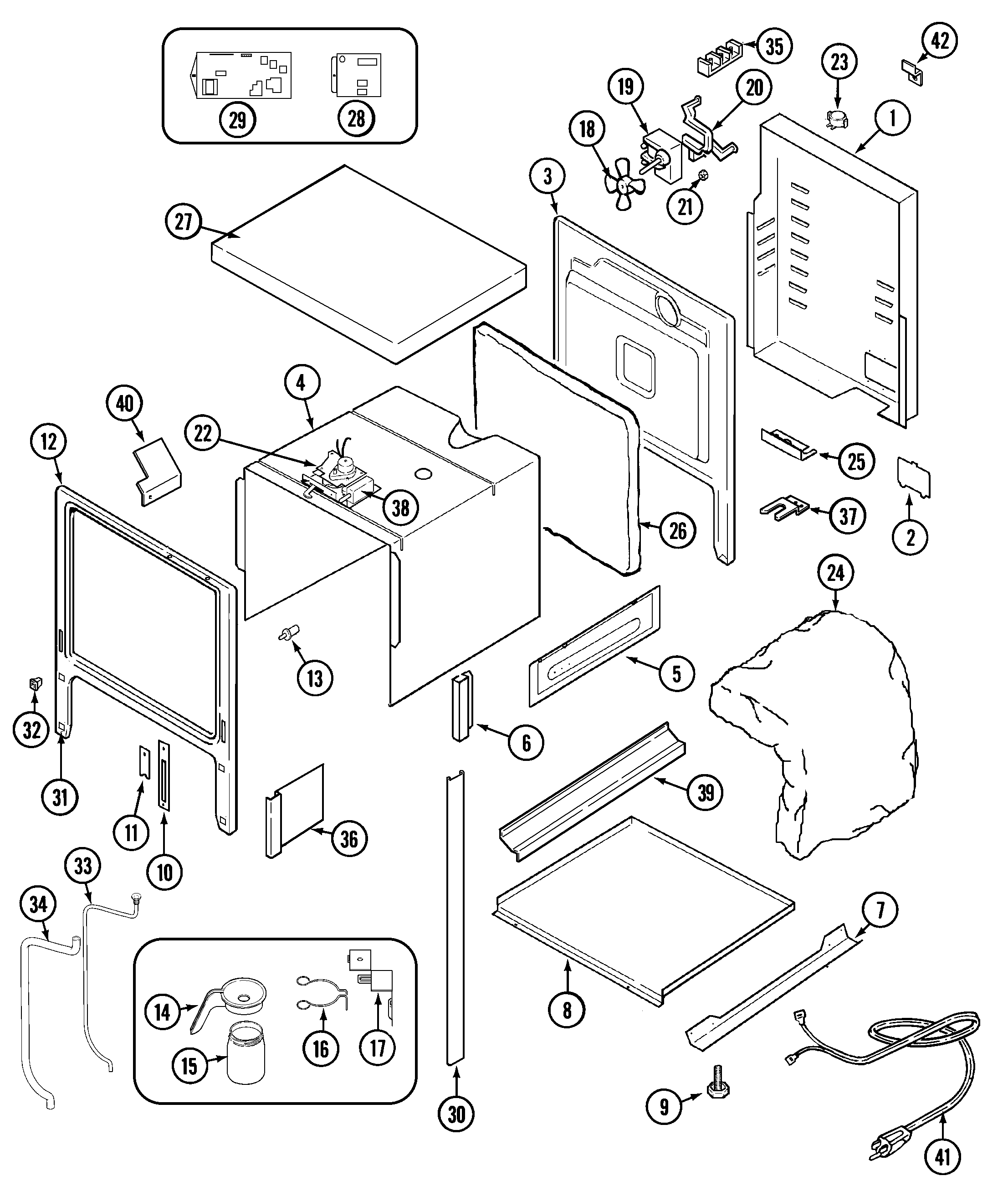

Manufacturer substitutionThis part replaces 702294. Substitute parts can look different from the original.In Stock$94.04QtyBody diagram
"switch, Hi-l"
Part #702548Replaced by #WP7403P899-60

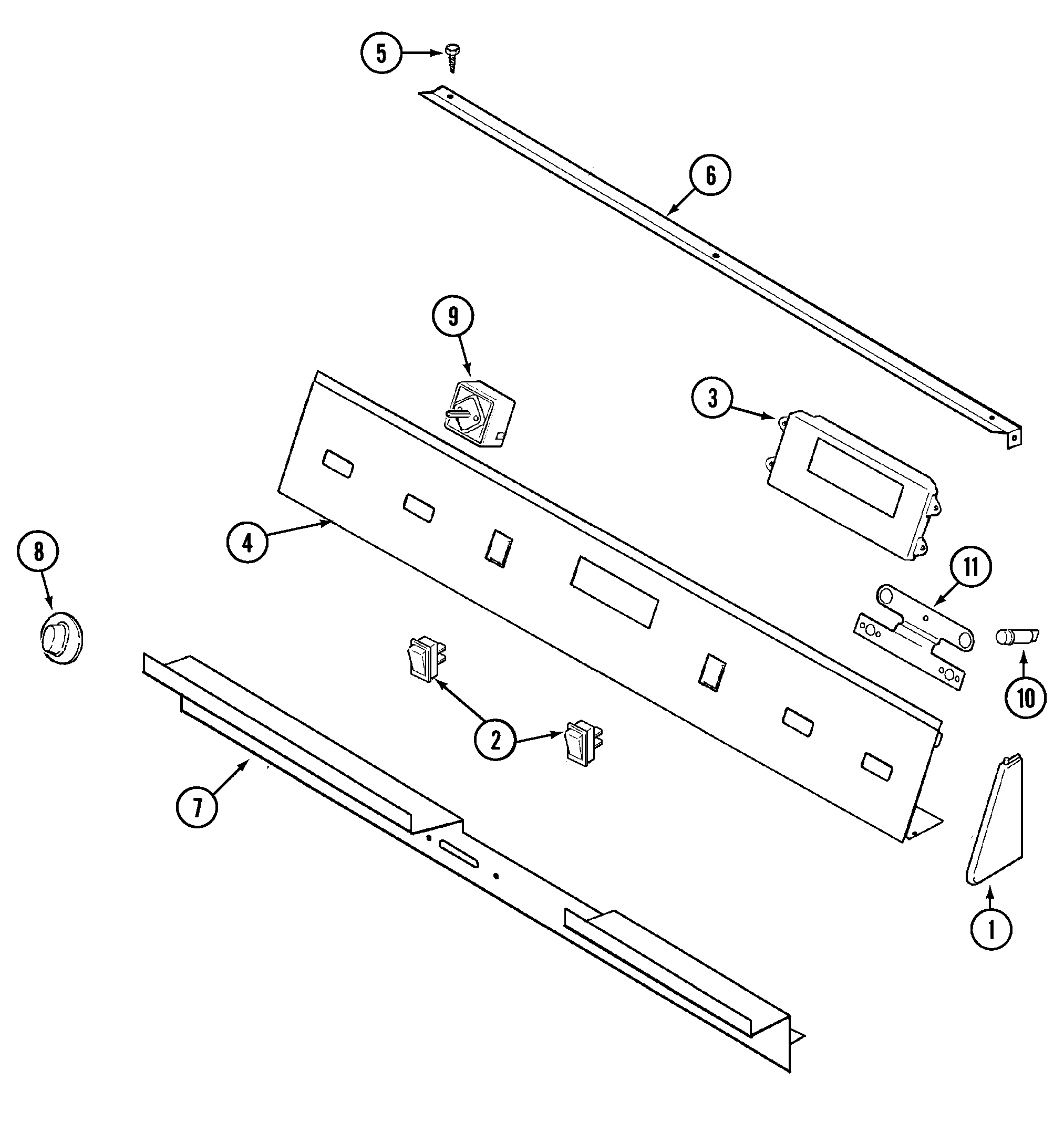

Manufacturer substitutionThis part replaces 702548. Substitute parts can look different from the original.In Stock$111.9510% OFF Phone Price : $123.95QtyControl panel diagram
Range Surface Element Control Switch
Part #703650Replaced by #W11120791
Manufacturer substitutionThis part replaces 703650. Substitute parts can look different from the original.In Stock$75.647% OFF Phone Price : $81.64QtyTop assembly diagram
Contact Wire
Part #71002606Replaced by #WP5708M007-60

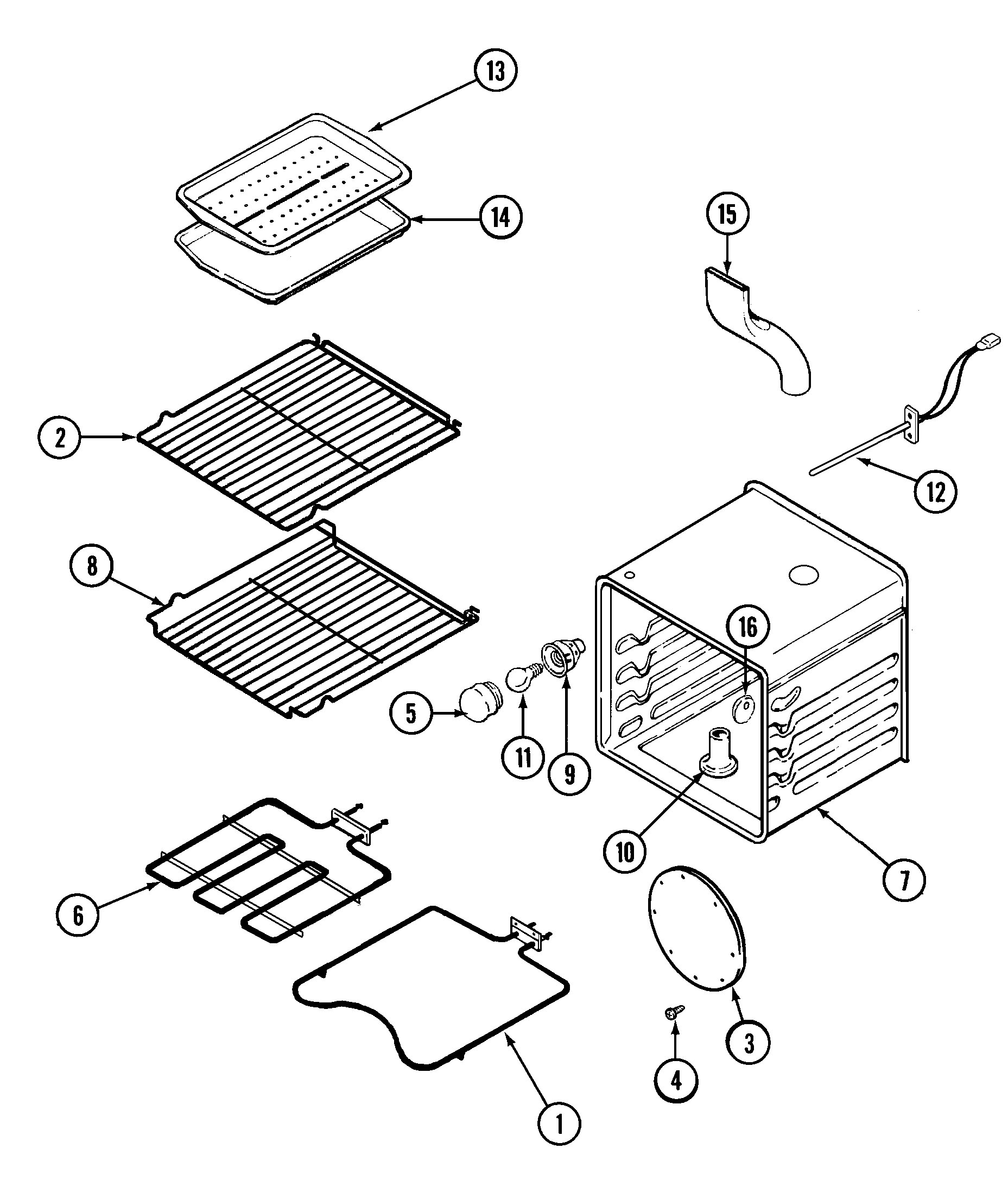

Manufacturer substitutionThis part replaces 71002606. Substitute parts can look different from the original.In Stock$86.007% OFF Phone Price : $92.00QtyBroiler Pan
Part #3401F020-19Replaced by #4396923
Manufacturer substitutionThis part replaces 3401F020-19. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56QtyControl panel diagram
Screw
Part #706189Replaced by #WPY706189
Manufacturer substitutionThis part replaces 706189. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21QtyBlower assembly (plenum) diagram
Range Downdraft Vent Grease Filter
Part #71002111Replaced by #WP71002111
Manufacturer substitutionThis part replaces 71002111. Substitute parts can look different from the original.This item is not returnableIn Stock$22.4821% OFF Phone Price : $28.48QtyBlower assembly (plenum) diagram
Lock Nut
Part #707702Replaced by #WPY707702
Manufacturer substitutionThis part replaces 707702. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21QtyTop assembly diagram
Receptacle
Part #702434Replaced by #WPY702434
Manufacturer substitutionThis part replaces 702434. Substitute parts can look different from the original.In Stock$54.9210% OFF Phone Price : $60.92Qty
