Kenmore 9114012990 electric built-in oven Parts

Here are the diagrams and repair parts for Kenmore 9114012990 electric built-in oven, as well as links to manuals and error code tables, if available.

Kenmore 9114012990 electric built-in oven
By Schematic
By Part

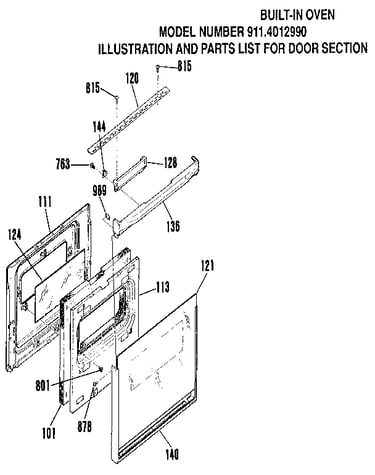

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 9114012990 Wall Ovens

  • G.e. Appliance Light Bulb, 40-watt for Kenmore 9114012990 - Part 40A15

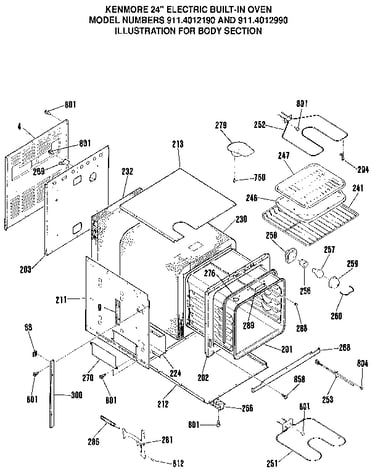

    Body section diagram

    Light Bulb

    Part #339665

    Replaced by #40A15

    Info Icon
    Manufacturer substitution
    This part replaces 339665. Substitute parts can look different from the original.
    In Stock
    $15.40
    11% OFF Phone Price : $17.40Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Range Oven Temperature Sensor for Kenmore 9114012990 - Part WB21X5301

    Body section diagram

    Sensor

    Part #334300

    Replaced by #WB21X5301

    Info Icon
    Manufacturer substitution
    This part replaces 334300. Substitute parts can look different from the original.
    In Stock
    $128.50
    9% OFF Phone Price : $140.50Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Range Bake Element for Kenmore 9114012990 - Part WB44K5013

    Body section diagram

    Bake Element

    Part #344894

    Replaced by #WB44K5013

    Info Icon
    Manufacturer substitution
    This part replaces 344894. Substitute parts can look different from the original.
    In Stock
    $70.43
    8% OFF Phone Price : $76.43Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Element Support for Kenmore 9114012990 - Part WB2X9719

    Body section diagram

    Support

    Part #334565

    Replaced by #WB2X9719

    Info Icon
    Manufacturer substitution
    This part replaces 334565. Substitute parts can look different from the original.
    In Stock
    $10.84
    16% OFF Phone Price : $12.84Info Icon
    Minus Item
    Qty
    Plus Item
  • Ov Lamp H for Kenmore 9114012990 - Part WB8X303

    Body section diagram

    Ov Lamp Hldr

    Part #347074

    Replaced by #WB8X303

    Info Icon
    Manufacturer substitution
    This part replaces 347074. Substitute parts can look different from the original.
    In Stock
    $41.28
    13% OFF Phone Price : $47.28Info Icon
    Minus Item
    Qty
    Plus Item
  • Main Wiring Harness for Kenmore 9114012990 - Part 347084

    Wire harnesses and components diagram

    Main Wiring Harness

    Part #347084
    In Stock
    $52.13
    Minus Item
    Qty
    Plus Item
  • Ge Screw for Kenmore 9114012990 - Part 120855

    Body section diagram

    Ge Screw

    Part #120855
    In Stock
    $31.10
    Minus Item
    Qty
    Plus Item
  • Oven Clip for Kenmore 9114012990 - Part WB1K5209

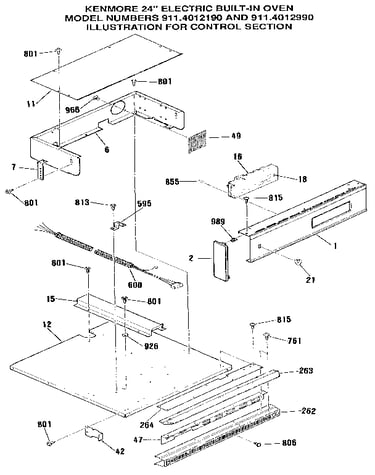

    Control section diagram

    J Nut

    Part #347970

    Replaced by #WB1K5209

    Info Icon
    Manufacturer substitution
    This part replaces 347970. Substitute parts can look different from the original.
    In Stock
    $13.64
    13% OFF Phone Price : $15.64Info Icon
    Minus Item
    Qty
    Plus Item
  • Screw for Kenmore 9114012990 - Part WB1K5029

    Control section diagram

    Screw

    Part #347190

    Replaced by #WB1K5029

    Info Icon
    Manufacturer substitution
    This part replaces 347190. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $36.54
    Minus Item
    Qty
    Plus Item
  • Cabinet for Kenmore 9114012990 - Part WB63K5120

    Control section diagram

    Cabinet

    Part #347356

    Replaced by #WB63K5120

    Info Icon
    Manufacturer substitution
    This part replaces 347356. Substitute parts can look different from the original.
    In Stock
    $72.61
    8% OFF Phone Price : $78.61Info Icon
    Minus Item
    Qty
    Plus Item
