Model #666DORT Reliance water heater

Here are the diagrams and repair parts for Reliance 666DORT water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

    Showing 10 of 24 parts

    Cover

    #8

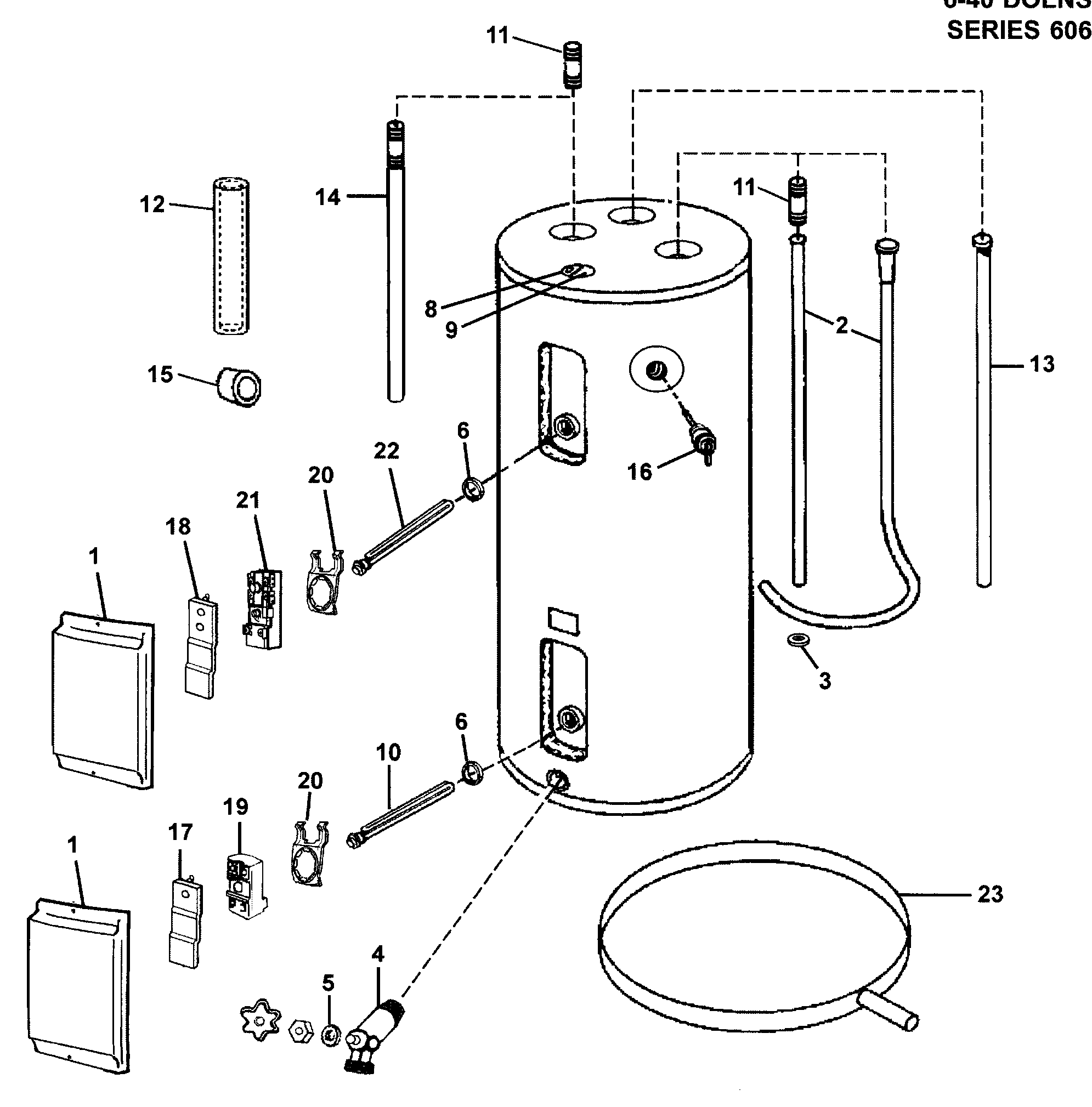

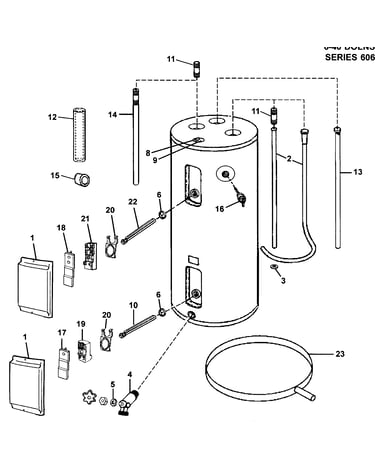

    Cabinet assy Diagram

    Cover

    Part #184659-000
    $17.99

    In Stock

    Box Cover

    #9

    Cabinet assy Diagram

    Box cover

    Part #184660-000
    $17.99

    In Stock

    Water Heater Thermostat

    #19

    Cabinet assy Diagram

    Water heater thermostat

    Part #9000507015
    ?
    Manufacturer substitution
    This part replaces 183532-000. Substitute parts can look different from the original.
    This part replaces 183532-000
    $30.99

    In Stock

    Water Heater Thermostat

    #21

    Cabinet assy Diagram

    Water heater thermostat

    Part #9001954015
    ?
    Manufacturer substitution
    This part replaces 183534-000. Substitute parts can look different from the original.
    This part replaces 183534-000
    $29.99

    In Stock

    Water Heater Heating Element

    #10

    Cabinet assy Diagram

    Water heater heating element

    Part #9000095015
    ?
    Manufacturer substitution
    This part replaces 042286-022. Substitute parts can look different from the original.
    This part replaces 042286-022
    $28.99

    In Stock

    Water Heater Heating Element

    #22

    Cabinet assy Diagram

    Water heater heating element

    Part #9000092015
    ?
    Manufacturer substitution
    This part replaces 042286-021. Substitute parts can look different from the original.
    This part replaces 042286-021
    $19.99

    In Stock

    Water Heater Access Panel

    #1

    Cabinet assy Diagram

    Water heater access panel

    Part #9003900005
    ?
    Manufacturer substitution
    This part replaces 181260-000. Substitute parts can look different from the original.
    This part replaces 181260-000
    $20.99

    In Stock

    2ND ANODE OUTLE

    #11

    Cabinet assy Diagram

    2nd anode outle

    Part #N/A

    The manufacturer no longer makes this part, and there's no substitute part

    Plastic Stnd

    #23B

    Cabinet assy Diagram

    Plastic stnd

    Part #9002844

    The manufacturer no longer makes this part, and there's no substitute part

    Spacer

    #3

    Cabinet assy Diagram

    Spacer

    Part #184011-000

    The manufacturer no longer makes this part, and there's no substitute part
