Caloric
Gas Cooktop

Model # RTP304 Official Caloric gas cooktop

Here are the diagrams and repair parts for Official Caloric RTP304 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Burner Valve 68689
#1

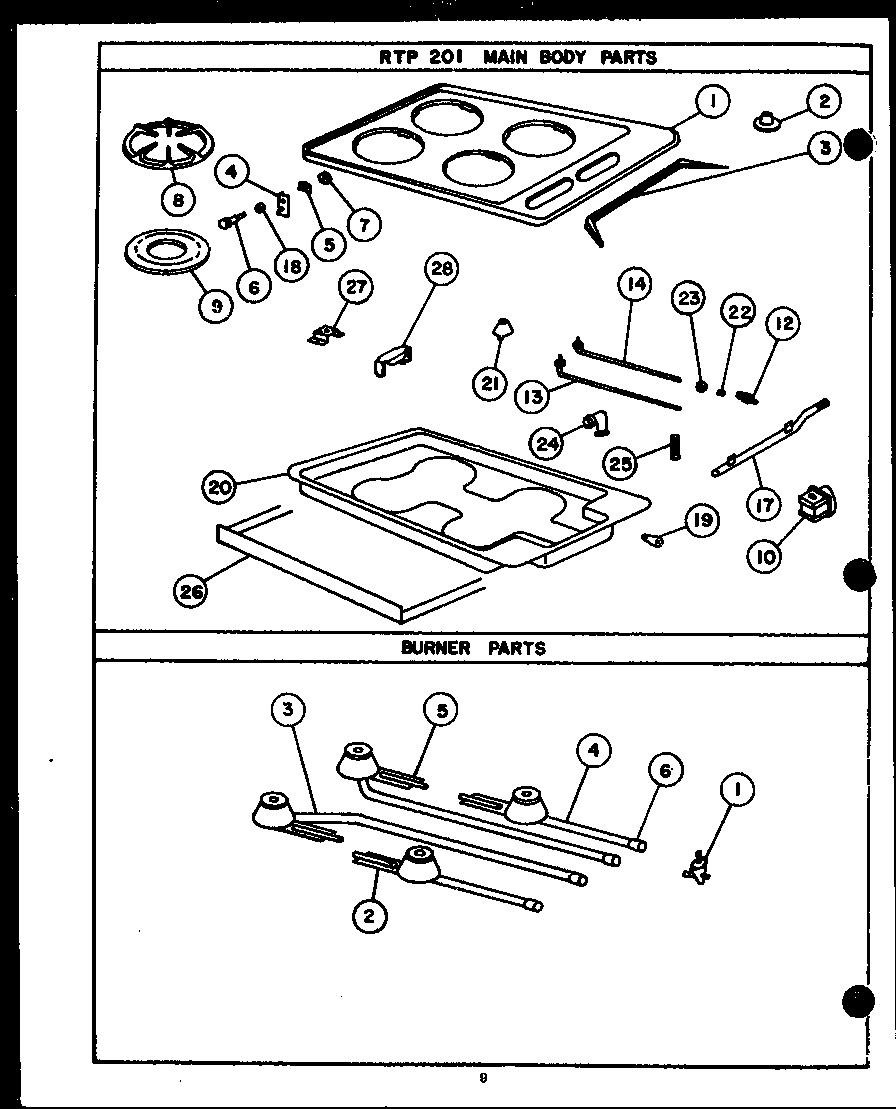

(rtp201) diagram

Burner valve

Part #68689

The manufacturer no longer makes this part, and there's no substitute part

Above Serial Number 4433334 Main Top Only Type C Almond 64564N
#1AD

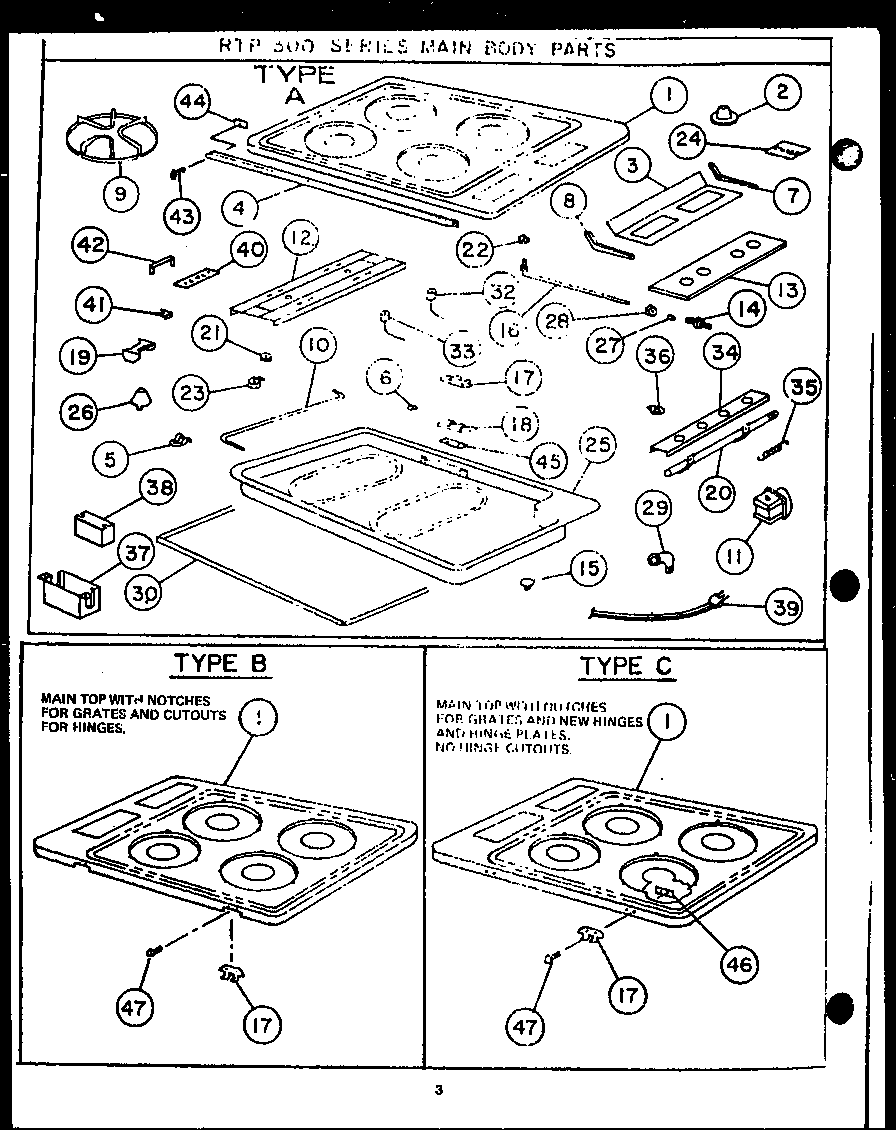

(rtp302) (rtp304) (rtp305) (rtp306) (rtp307) diagram

Above serial number 4433334 main top only type c almond

Part #64564N

The manufacturer no longer makes this part, and there's no substitute part

Above Serial Number 4066082 Kit Without Grates Type B Al 87782N
#1S

(rtp302) (rtp304) (rtp305) (rtp306) (rtp307) diagram

Above serial number 4066082 kit without grates type b al

Part #87782N

The manufacturer no longer makes this part, and there's no substitute part

Burner Assembly Right Front/right Rear 73127
#5

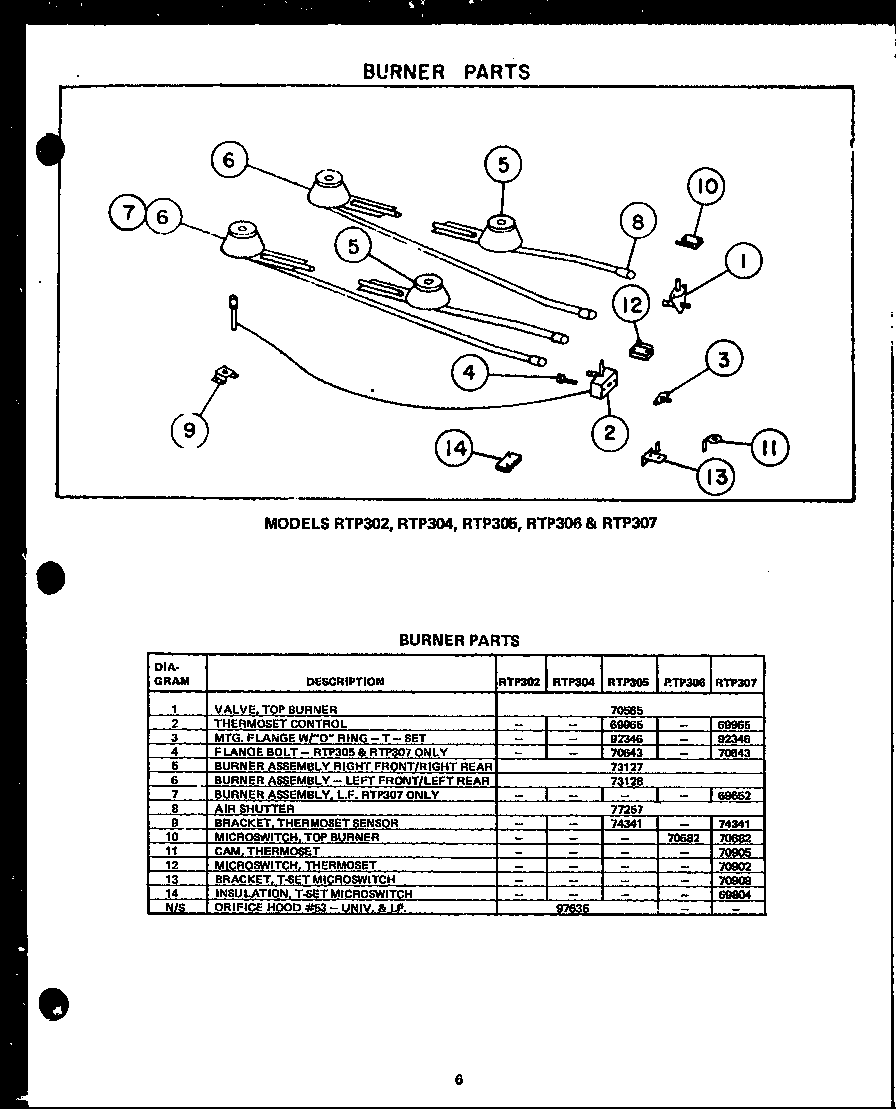

Burner parts (rtp302) (rtp304) (rtp305) (rtp306) (rtp307) diagram

Burner assembly right front/right rear

Part #73127

The manufacturer no longer makes this part, and there's no substitute part

Electrode Assembly, Front Burner 69661
#33

(rtp302) (rtp304) (rtp305) (rtp306) (rtp307) diagram

Electrode assembly, front burner

Part #69661

The manufacturer no longer makes this part, and there's no substitute part

Cone, Lighter Cup 20069
Cone, lighter cup

Part #20069

The manufacturer no longer makes this part, and there's no substitute part

Above Serial Number 4066082 Kit Without Grates Type B Al 87780N
#1R

(rtp302) (rtp304) (rtp305) (rtp306) (rtp307) diagram

Above serial number 4066082 kit without grates type b al

Part #87780N

The manufacturer no longer makes this part, and there's no substitute part

Top Burner Valve 70564
#1

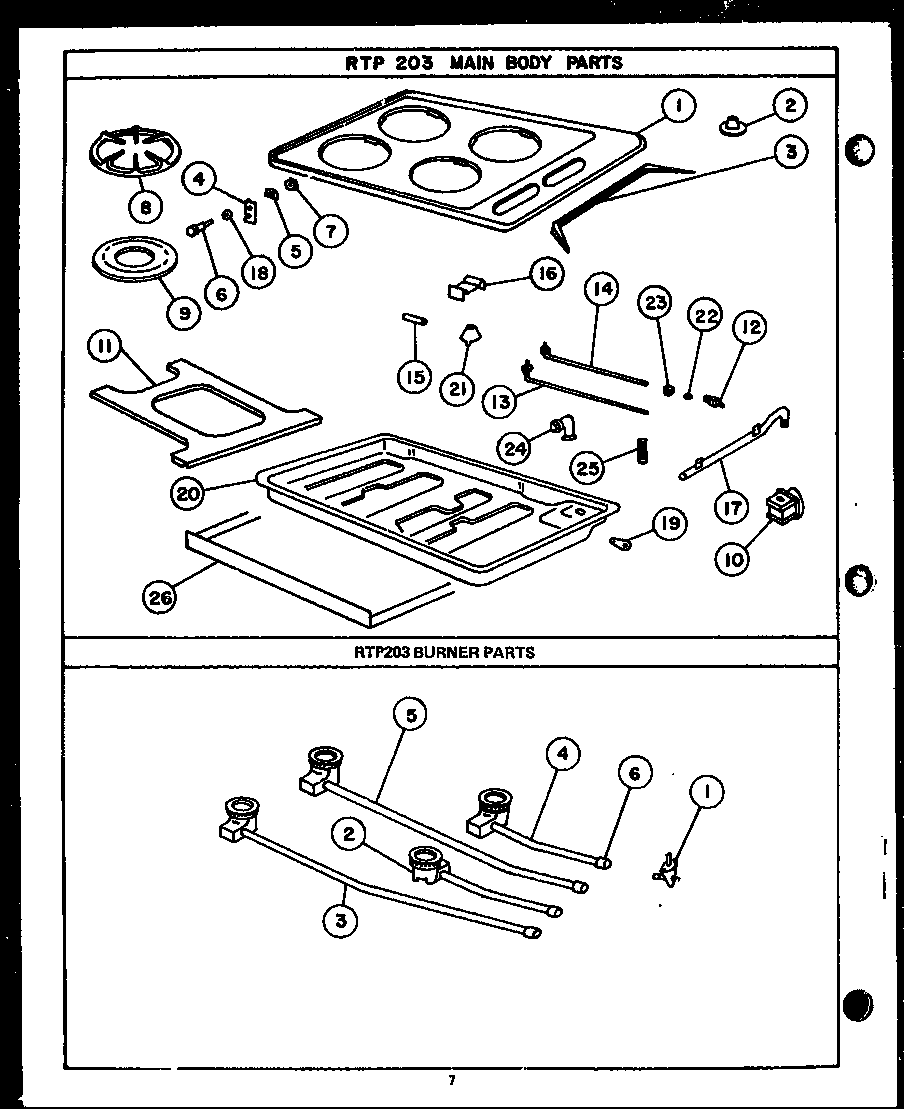

(rtp203) diagram

Top burner valve

Part #70564

The manufacturer no longer makes this part, and there's no substitute part

Adapter 77078
#23

(rtp302) (rtp304) (rtp305) (rtp306) (rtp307) diagram

Adapter

Part #77078

The manufacturer no longer makes this part, and there's no substitute part

Cam Thermoset Valve 70905
#11

Burner parts (rtp302) (rtp304) (rtp305) (rtp306) (rtp307) diagram

Cam thermoset valve

Part #70905

The manufacturer no longer makes this part, and there's no substitute part
