KitchenAid
Gas Cooktop

Model # KECG020YAL1 Official KitchenAid create-a-cooktop

Here are the diagrams and repair parts for Official KitchenAid KECG020YAL1 create-a-cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Screw 3148107
#14C

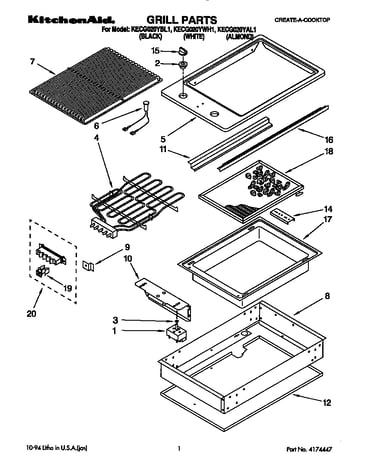

Grill diagram

Screw

Part #3148107

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 3148107. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Cooktop Bracket 3183401
#14

Grill diagram

Cooktop bracket

Part #3183401

Replaced by #8186533

?
Manufacturer substitution
This part replaces 3183401. Substitute parts can look different from the original.
$32.89 |
13% OFF Phone Price : $37.89
In Stock
Screw 313811
#19A

Grill diagram

Screw

Part #313811

Replaced by #303776

?
Manufacturer substitution
This part replaces 313811. Substitute parts can look different from the original.
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Surface Knob (almond) 3182572
#15C

Grill diagram

Surface knob (almond)

Part #3182572

The manufacturer no longer makes this part, and there's no substitute part

Grill Element 814266
#4B

Grill diagram

Grill element

Part #814266

The manufacturer no longer makes this part, and there's no substitute part

Grate-gril 3183168
#7A

Grill diagram

Grate-gril

Part #3183168

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Trim (almond) 3182438
#16B

Grill diagram

Cooktop trim (almond)

Part #3182438

The manufacturer no longer makes this part, and there's no substitute part

Infinite Switch 3148964
#1

Grill diagram

Infinite switch

Part #3148964

The manufacturer no longer makes this part, and there's no substitute part

Surface Knob (white) 3182571
#15B

Grill diagram

Surface knob (white)

Part #3182571

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness 3183514
#2

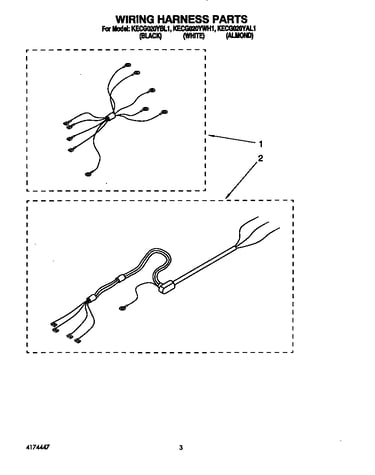

Wiring harness diagram

Wire harness

Part #3183514

The manufacturer no longer makes this part, and there's no substitute part
