GE
Room Air Conditioner

Model # AJCS10DCM1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJCS10DCM1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Stud Bolt WJ01X10031
#1010

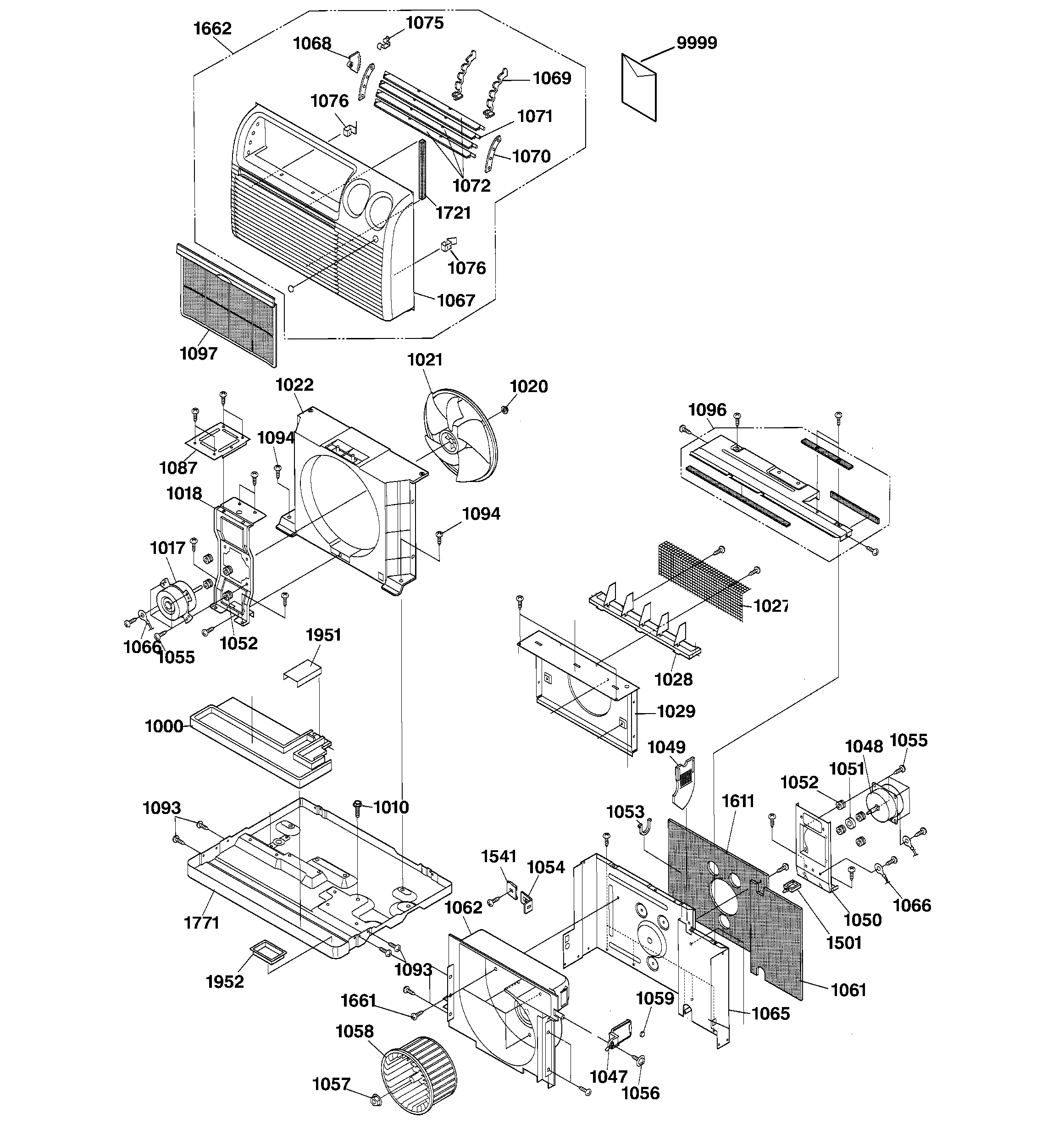

Cabinet & components diagram

Stud bolt

Part #WJ01X10031

$12.77
In Stock
Complete Cushion WJ01X10002
#1084

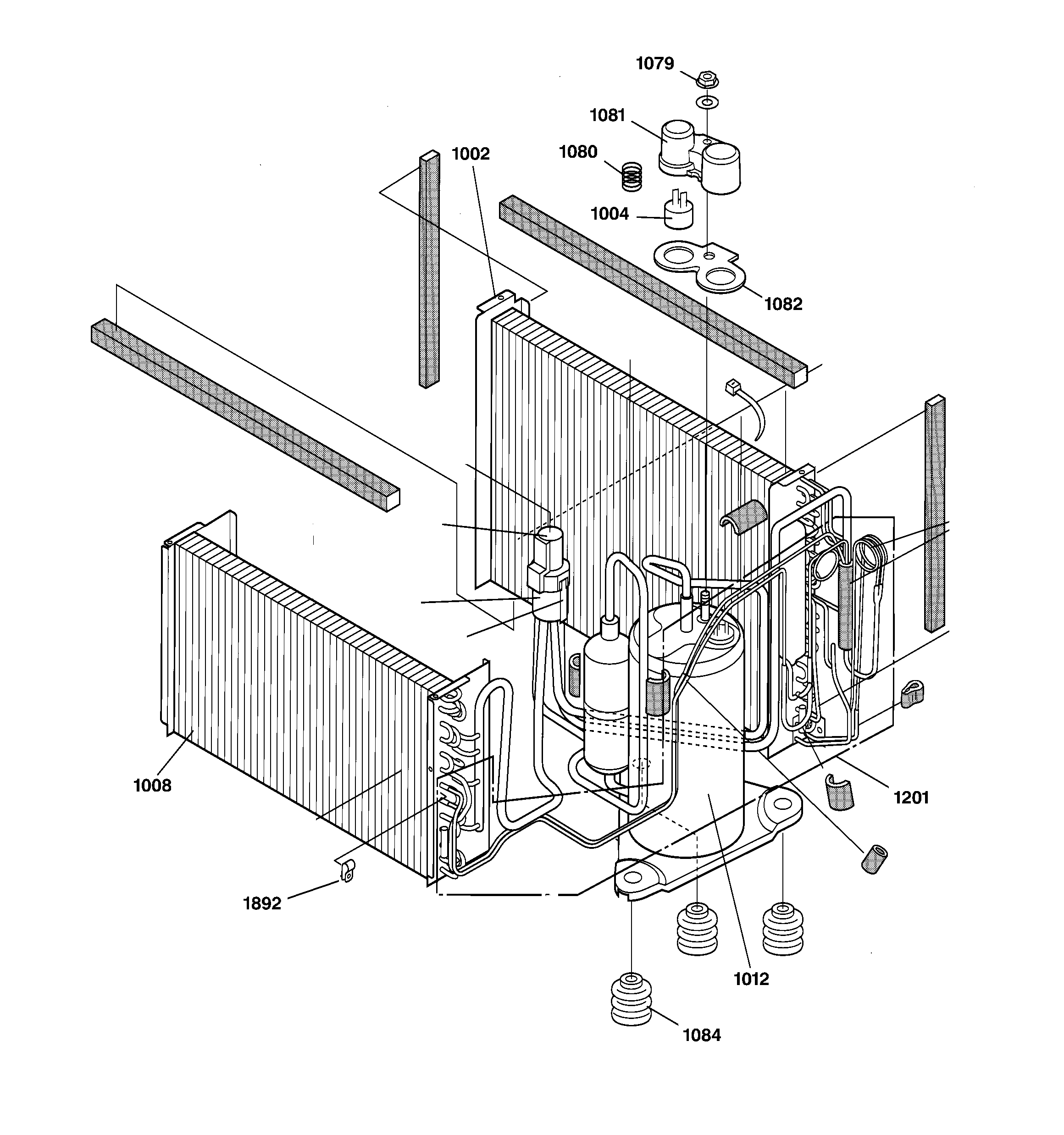

Sealed system components diagram

Complete cushion

Part #WJ01X10002

This item is not returnable
$11.37 |
15% OFF Phone Price : $13.37
In Stock
Lead Wire WJ37X10001
#1066

Cabinet & components diagram

Lead wire

Part #WJ37X10001

This item is not returnable
$4.35
In Stock
Spring Protector WJ02X10001
#1080

Sealed system components diagram

Spring protector

Part #WJ02X10001

$8.71
In Stock
Fan Motor WJ94X10023
#1017

Cabinet & components diagram

Fan motor

Part #WJ94X10023

$189.99
In Stock
Room Air Conditioner Fan Blade Nut WJ01X10041
#1020

Cabinet & components diagram

Room air conditioner fan blade nut

Part #WJ01X10041

This item is not returnable
$8.50 |
11% OFF Phone Price : $9.50
In Stock
Fan Motor WJ94X10025
#1017

Cabinet & components diagram

Fan motor

Part #WJ94X10025

$211.49
In Stock
Special Screw WJ01X10037
#1093

Cabinet & components diagram

Special screw

Part #WJ01X10037

$8.70
In Stock
Room Air Conditioner Compressor Grommet WJ01X10046
#1084

Sealed system components diagram

Room air conditioner compressor grommet

Part #WJ01X10046

$23.46 |
18% OFF Phone Price : $28.46
In Stock
Room Air Conditioner Outdoor Fan Motor Capacitor WP20X10005
#1451

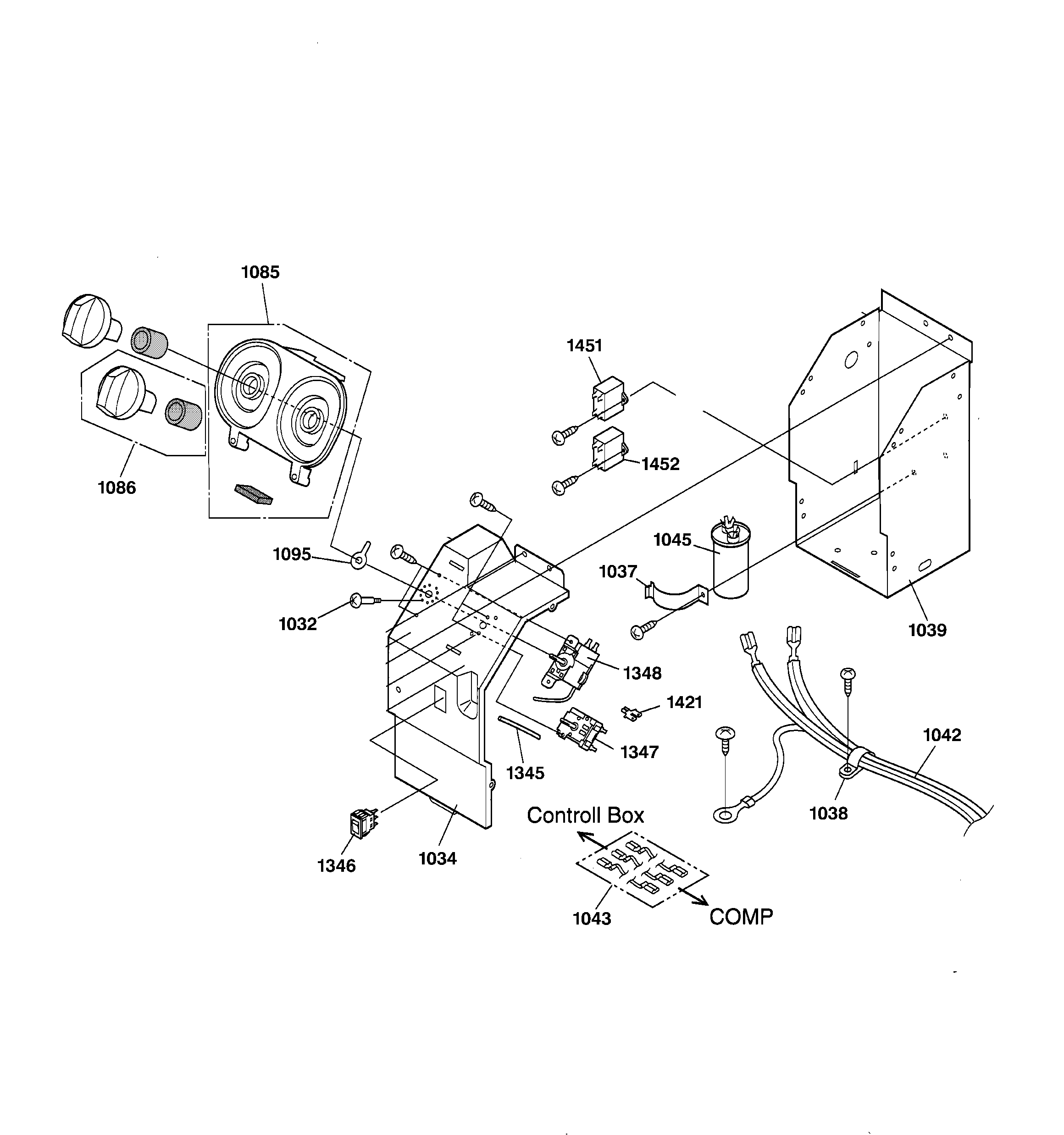

Control parts diagram

Room air conditioner outdoor fan motor capacitor

Part #WP20X10005

$81.29
In Stock
