Craftsman
Wet/Dry Vacuum

Model #113179930 Craftsman 16-gallon double insulated wet/dry vacuum

Here are the diagrams and repair parts for Craftsman 113179930 16-gallon double insulated wet/dry vacuum, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 62 parts

|

Shop Vacuum Ferrule

#23

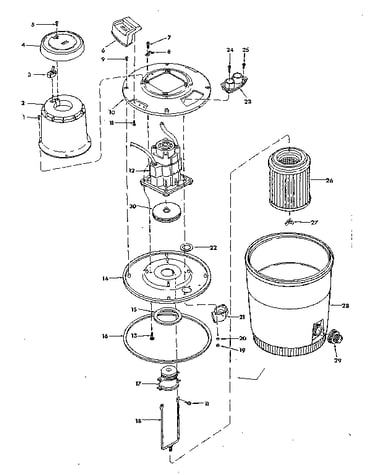

Unit Diagram

Shop vacuum ferrule

Part #73242

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum On/Off Switch

#3

Unit Diagram

Shop vacuum on/off switch

Part #73180

The manufacturer no longer makes this part, and there's no substitute part

Nozzle (Black)

#21

Unit Diagram

Nozzle (black)

Part #28229-01

The manufacturer no longer makes this part, and there's no substitute part

Gasket (Black)

#22

Unit Diagram

Gasket (black)

Part #20866

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Drain Cap

#29

Unit Diagram

Shop vacuum drain cap

Part #73185

The manufacturer no longer makes this part, and there's no substitute part

Hdlr Assry

#1

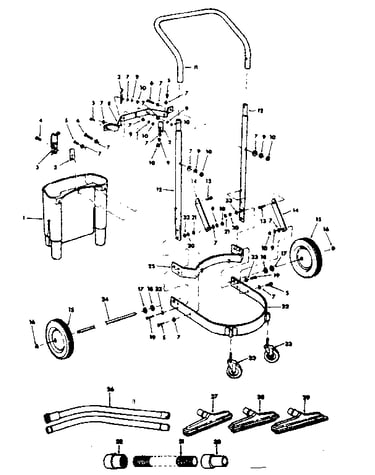

Cart assembly and accessories Diagram

Hdlr assry

Part #73248

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut

#21

Cart assembly and accessories Diagram

Hex nut

Part #STD541110

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut, 1/4-20

#27

Unit Diagram

Wing nut, 1/4-20

Part #STD541625

The manufacturer no longer makes this part, and there's no substitute part

Screw

#5

Unit Diagram

Screw

Part #STD611007

The manufacturer no longer makes this part, and there's no substitute part

Screw

#24

Unit Diagram

Screw

Part #STD510810

The manufacturer no longer makes this part, and there's no substitute part
