Jenn-Air
Gas Cooktop

Model # CCG456W Official Jenn-Air gas cooktop

Here are the diagrams and repair parts for Official Jenn-Air CCG456W gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Valve Switch 705861
#13

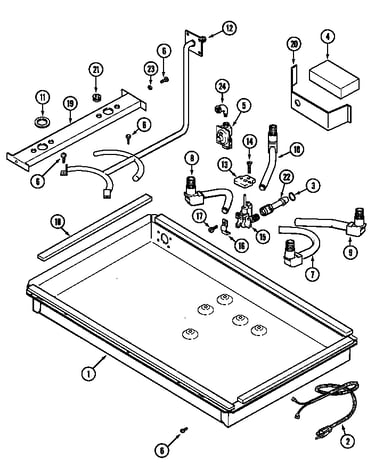

Body diagram

Valve switch

Part #705861

Replaced by #WPY705861

?
Manufacturer substitution
This part replaces 705861. Substitute parts can look different from the original.
$49.96
In Stock
Manifold 705856
#12

Body diagram

Manifold

Part #705856

The manufacturer no longer makes this part, and there's no substitute part

Burner Head 712624
#8

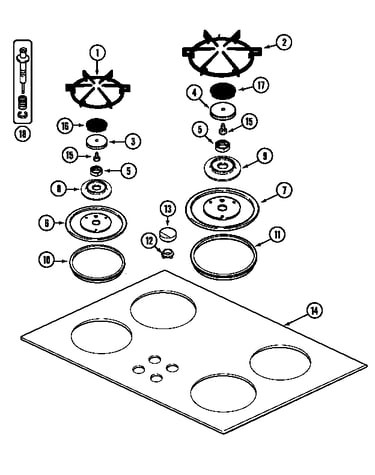

Top assembly diagram

Burner head

Part #712624

The manufacturer no longer makes this part, and there's no substitute part

Glass Cooktop 705846
#14A

Top assembly diagram

Glass cooktop

Part #705846

The manufacturer no longer makes this part, and there's no substitute part

Burner Head 705855
#4A

Top assembly diagram

Burner head

Part #705855

The manufacturer no longer makes this part, and there's no substitute part

Burner Head 712626
#8A

Top assembly diagram

Burner head

Part #712626

The manufacturer no longer makes this part, and there's no substitute part

Valve Screw 705860
#17

Body diagram

Valve screw

Part #705860

The manufacturer no longer makes this part, and there's no substitute part

0-ring (mixe 705879
#26

Body diagram

0-ring (mixe

Part #705879

The manufacturer no longer makes this part, and there's no substitute part

Burner Tube 705816
#9

Body diagram

Burner tube

Part #705816

The manufacturer no longer makes this part, and there's no substitute part

Burner Box 705802
#1

Body diagram

Burner box

Part #705802

The manufacturer no longer makes this part, and there's no substitute part
