Caloric
Side-By-Side Refrigerator

Model # GFD240/MN04 Official Caloric refrigerator

Here are the diagrams and repair parts for Official Caloric GFD240-MN04 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

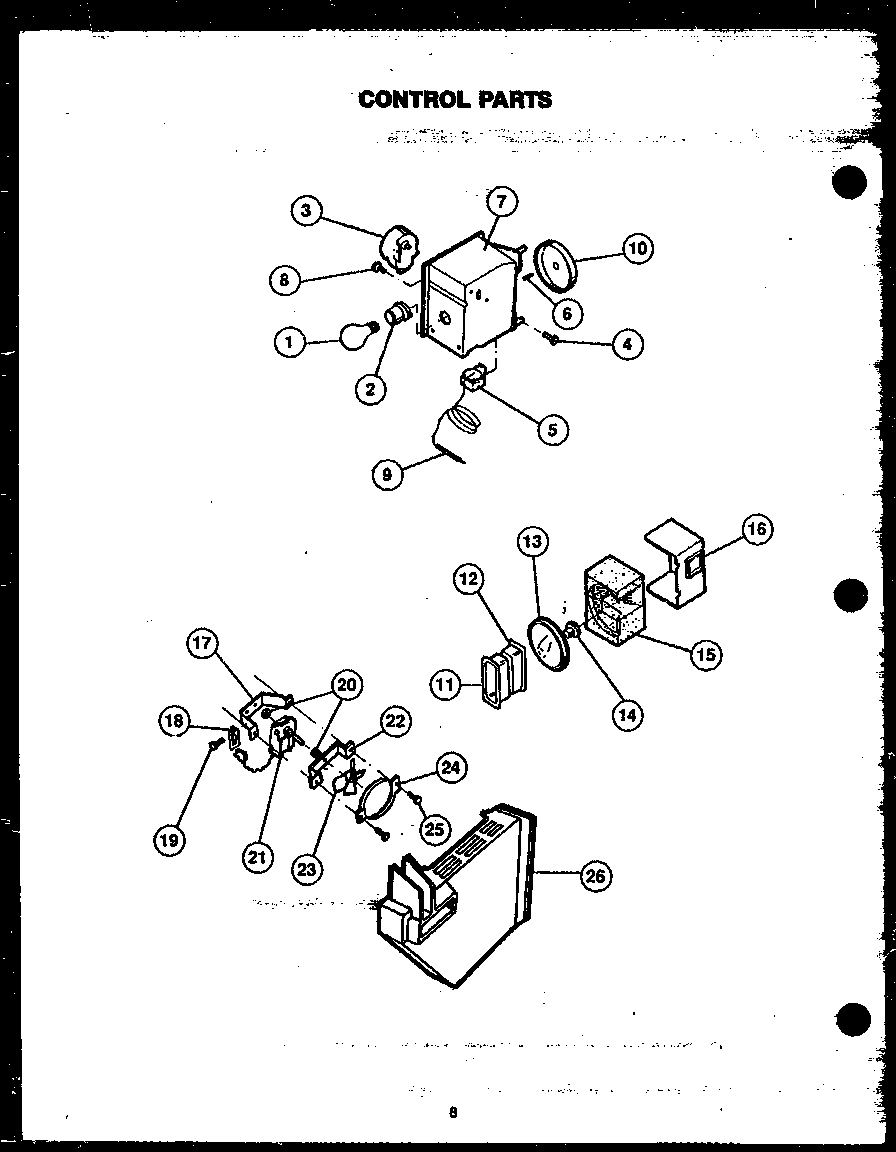

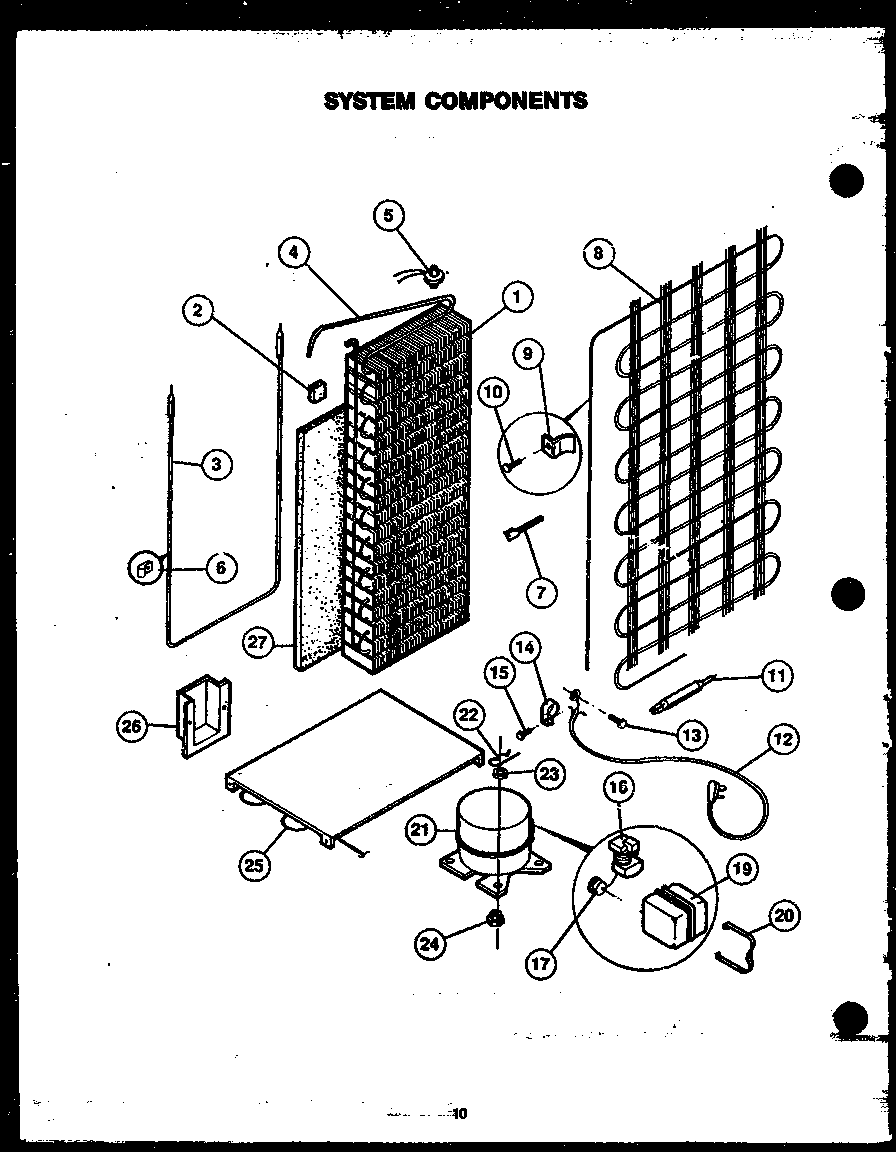

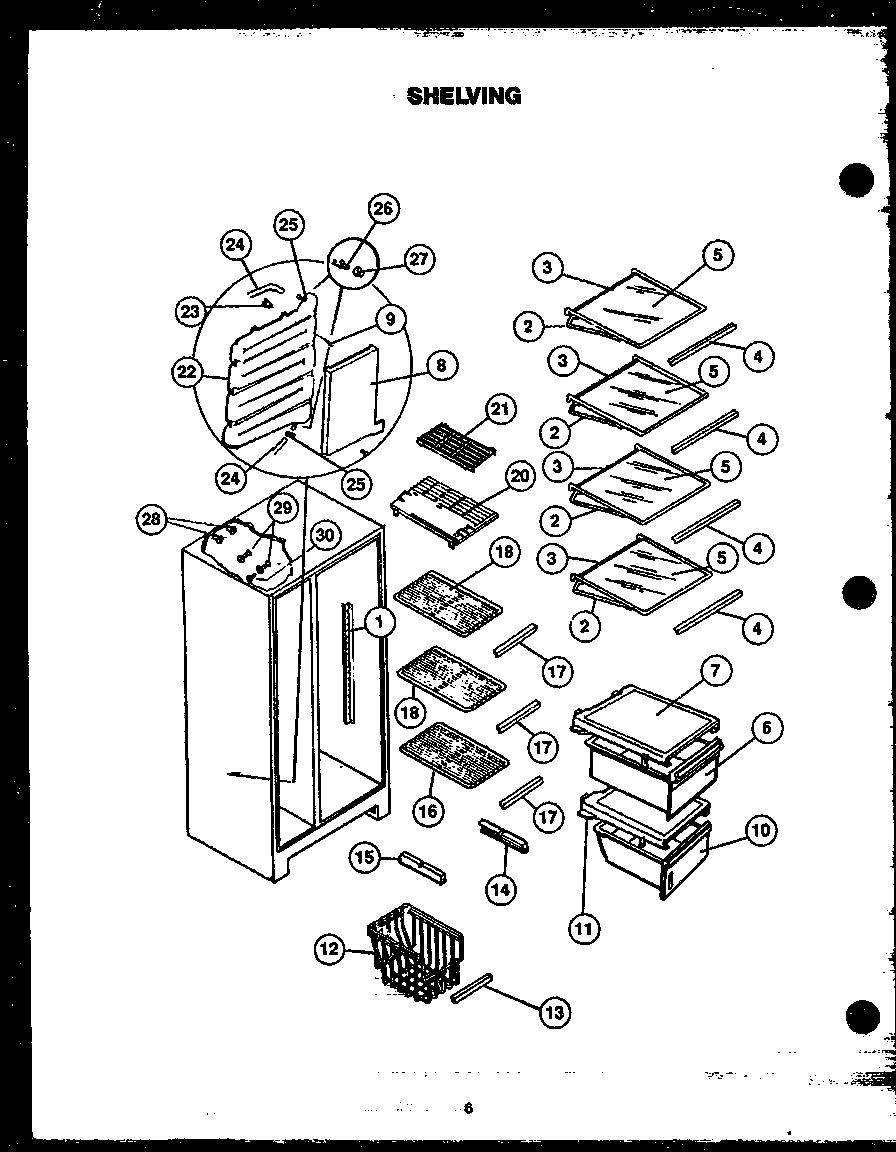

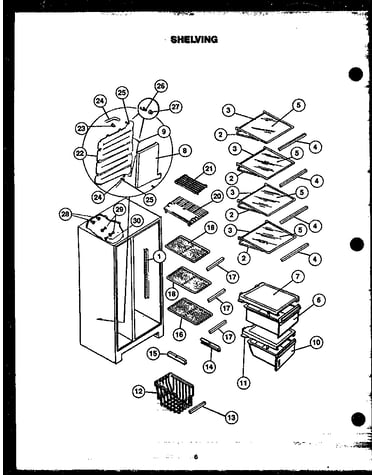

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 287 parts  |
Coupling, Ice Dispenser 50-053837-11-0
#10

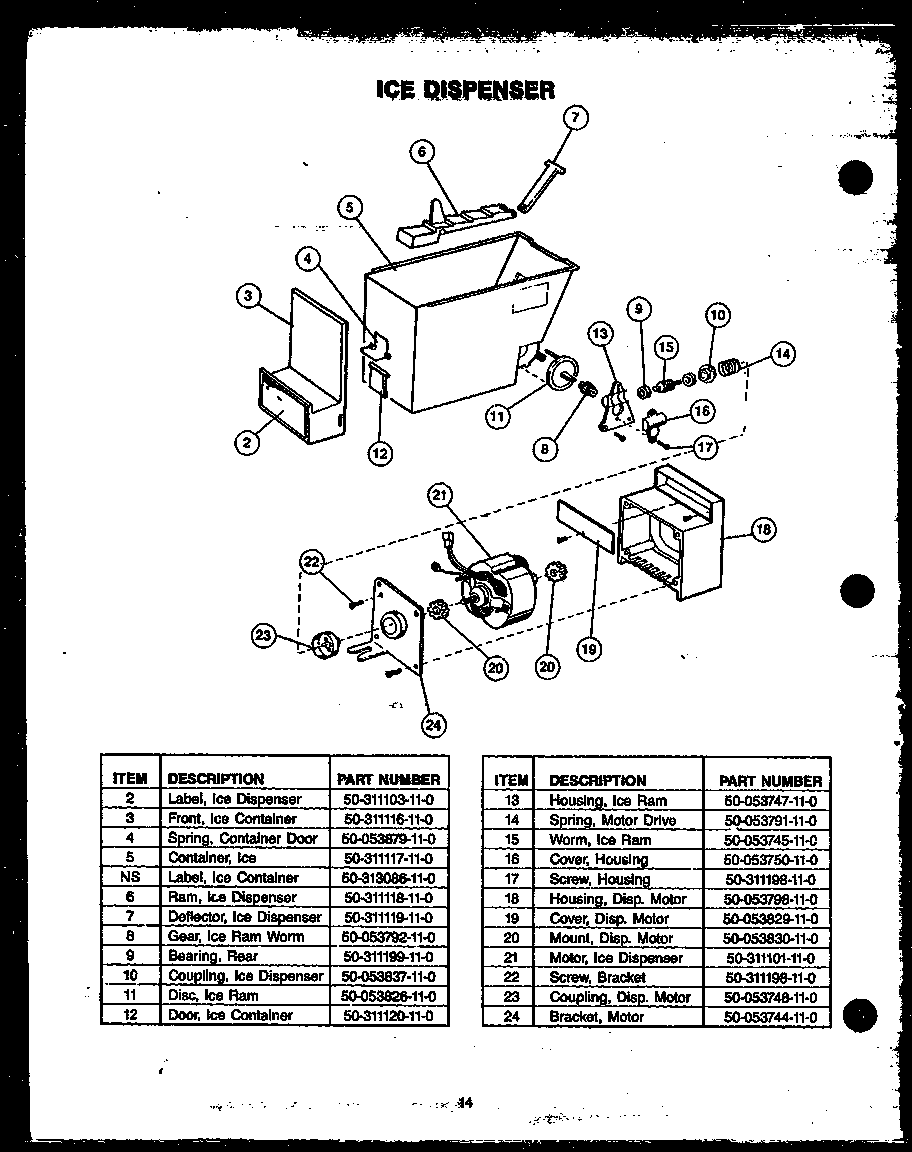

Ice dispenser diagram

Coupling, ice dispenser

Part #50-053837-11-0

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Self-threading Nut 50-311211-11-0
Refrigerator self-threading nut

Part #50-311211-11-0

The manufacturer no longer makes this part, and there's no substitute part

Label, Ice Dispenser 50-311103-11-0
#2

Ice dispenser diagram

Label, ice dispenser

Part #50-311103-11-0

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 50-053824-11-0
#6

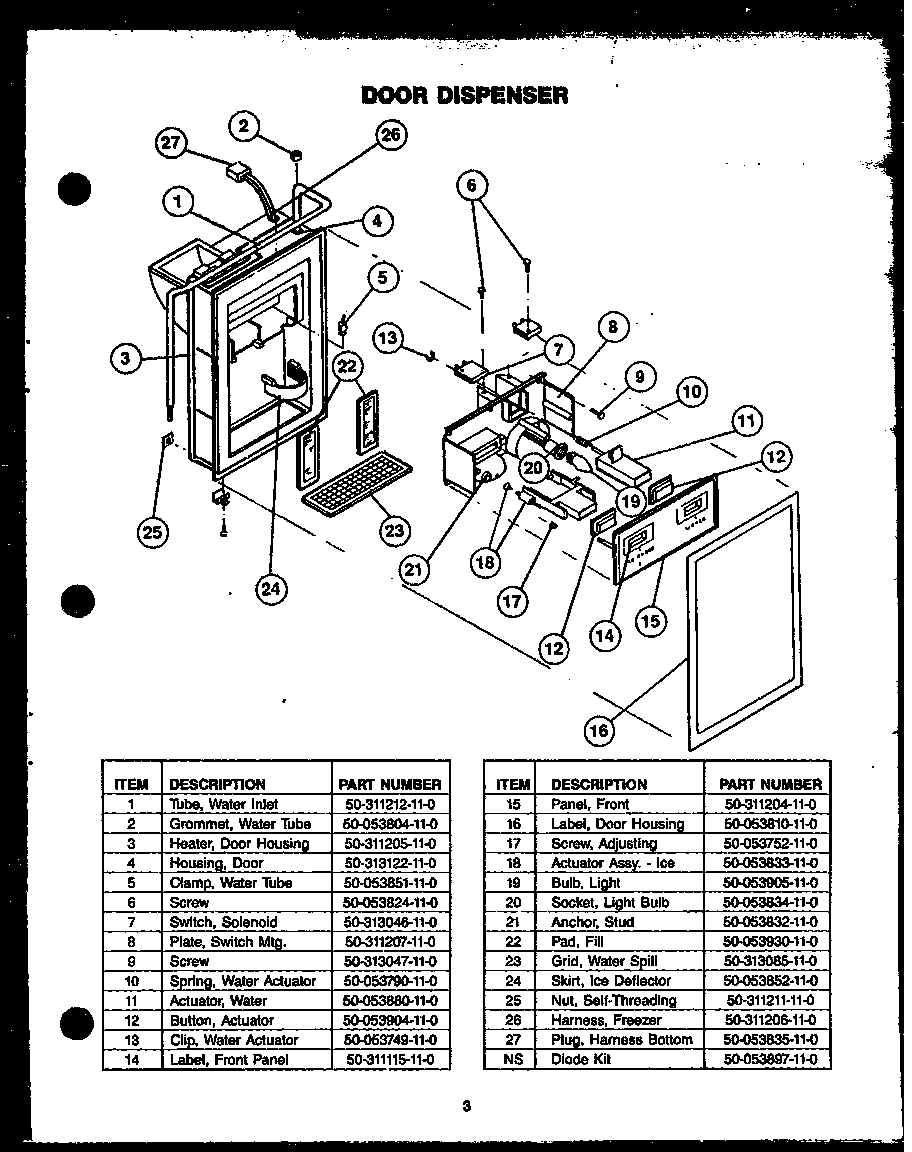

Door dispenser diagram

Refrigerator screw

Part #50-053824-11-0

The manufacturer no longer makes this part, and there's no substitute part

Cover, Hinge - White 50-053870-11-0
#8A

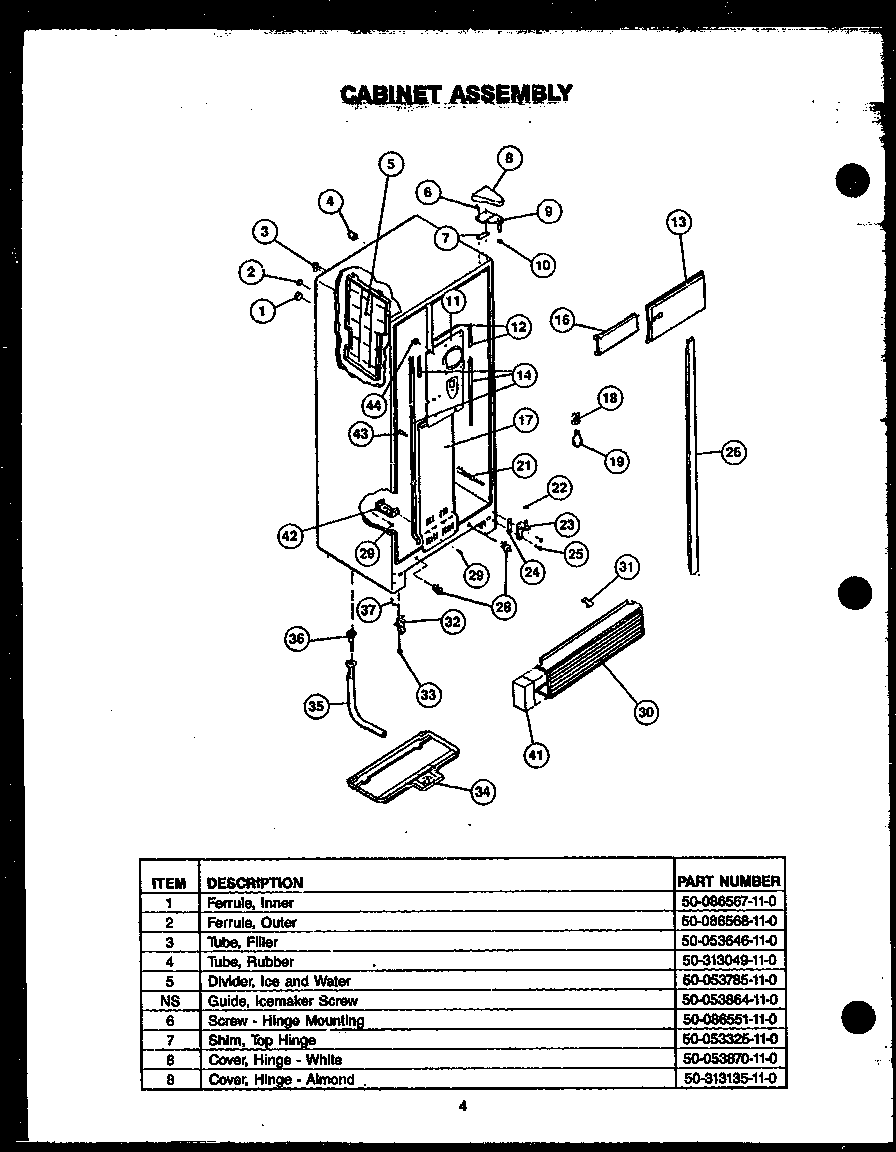

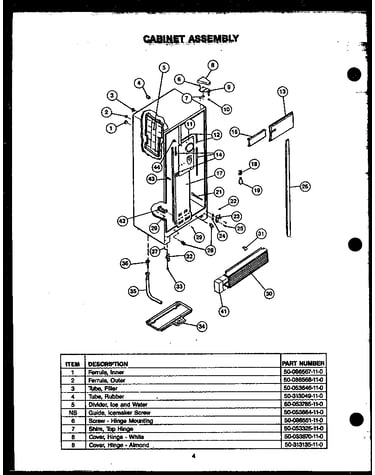

Cabinet assembly diagram

Cover, hinge - white

Part #50-053870-11-0

The manufacturer no longer makes this part, and there's no substitute part

Harness, Wiring - Compressor And Lights 50-311184-11-0

#NI

All parts diagram

Harness, wiring - compressor and lights

Part #50-311184-11-0

The manufacturer no longer makes this part, and there's no substitute part

Support, Shelf - Rh 50-313076-11-0
#13

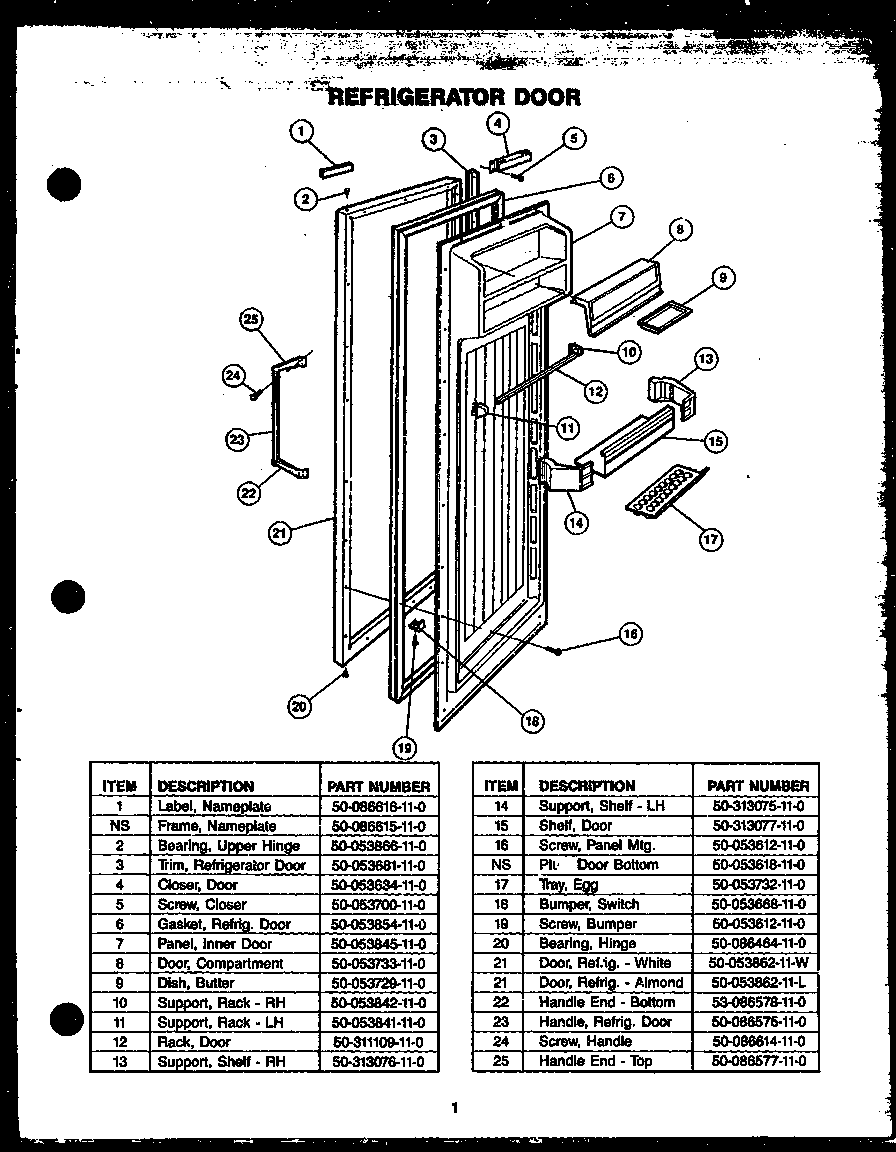

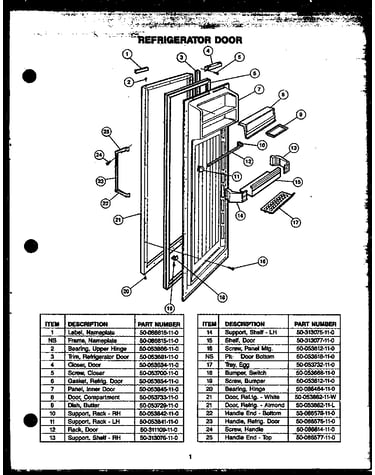

Refrigerator door diagram

Support, shelf - rh

Part #50-313076-11-0

The manufacturer no longer makes this part, and there's no substitute part

Sleeve, Tube Insert 50-311571-11-0
#5

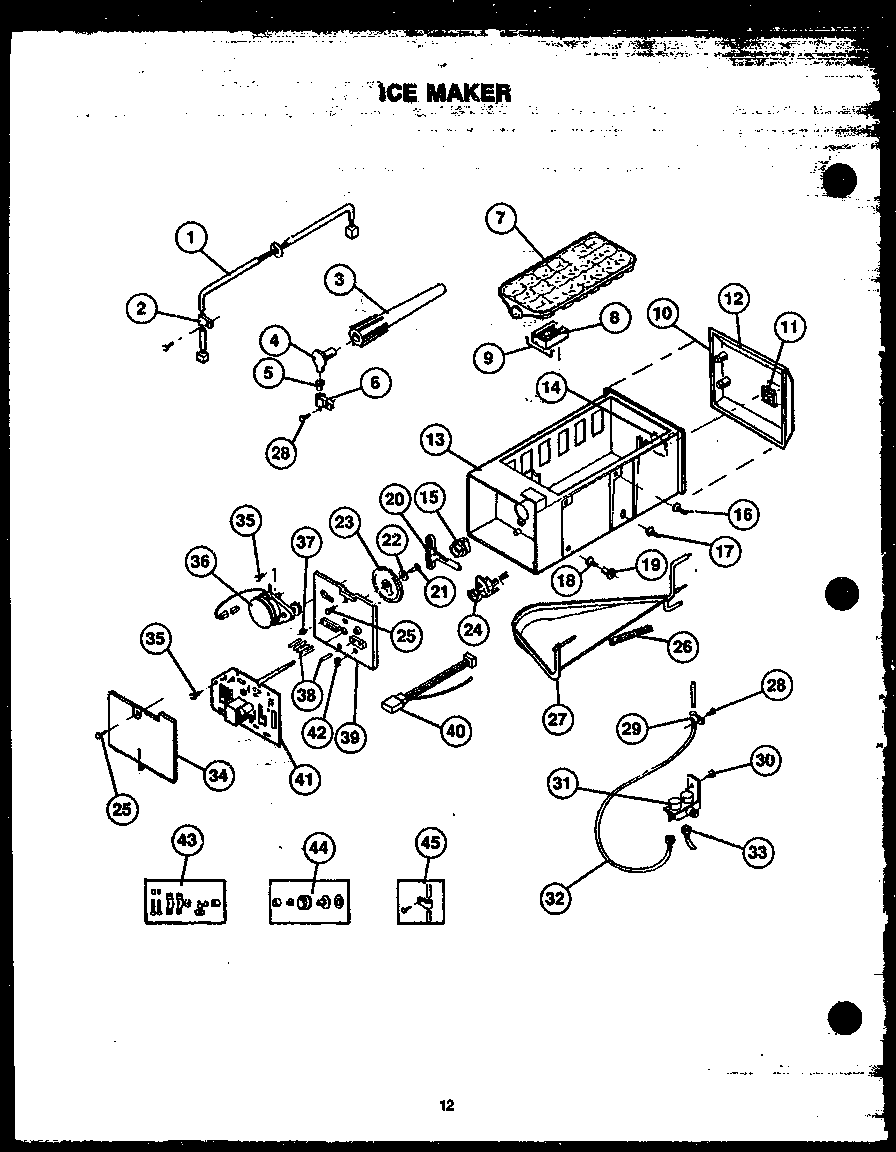

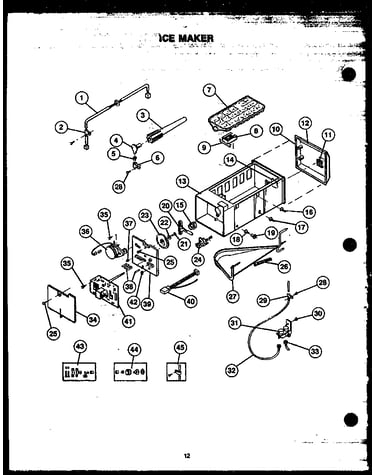

Ice maker diagram

Sleeve, tube insert

Part #50-311571-11-0

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Shield 50-313127-11-0
#13

Cabinet assembly diagram

Refrigerator light shield

Part #50-313127-11-0

The manufacturer no longer makes this part, and there's no substitute part

Freezer Door - Almond 50-311213-11-L
#1B

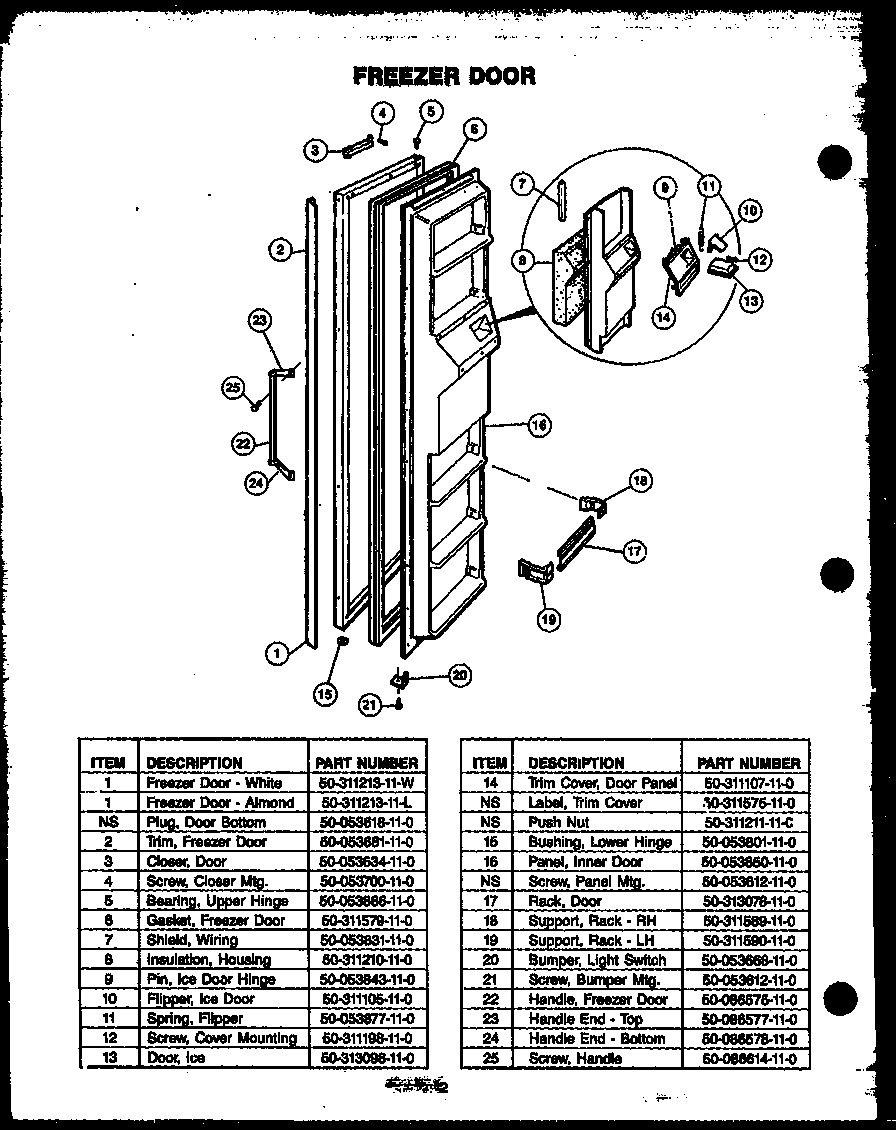

Freezer door diagram

Freezer door - almond

Part #50-311213-11-L

The manufacturer no longer makes this part, and there's no substitute part
