Model #JGBP28DEM4BB Official GE gas range

Here are the diagrams and repair parts for GE JGBP28DEM4BB gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

Showing 10 of 210 parts

Appliance Light Bulb, 40-watt (replaces 40A15-2PK, 60A, 60A15RVL, STD398091, WR02X12328, WX12X1510)#235

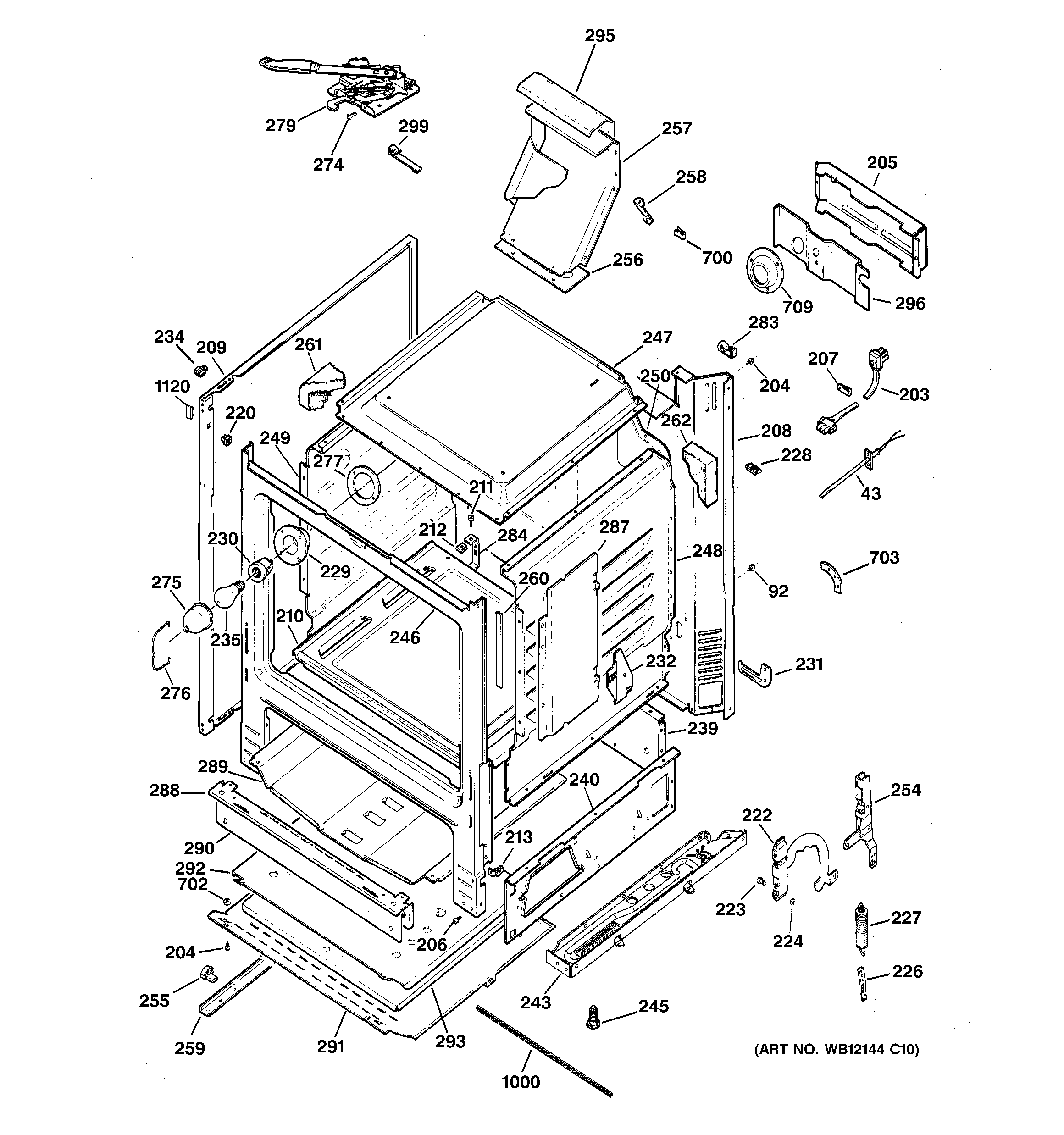

Body parts Diagram

40a15bulb

Part #STD372401
Replaced by #40A15
?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
In Stock
$7.52 |
12% OFF
Phone Price: $8.52
Range Oven Burner Igniter (replaces WB13K0021, WB13K10009, WB13K10026, WB13K12, WB13K13, WB13K14)#218

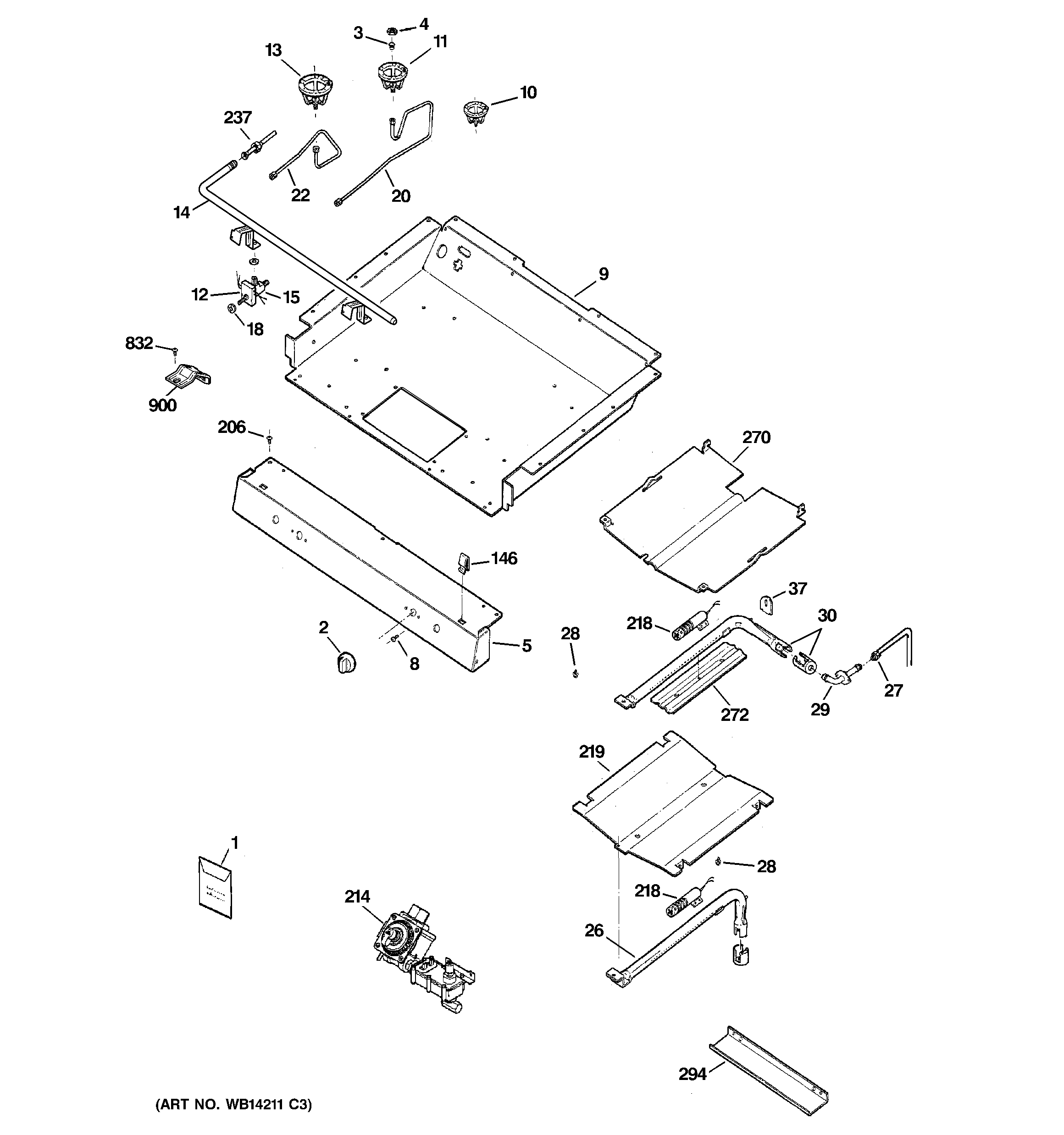

Gas & burner parts Diagram

Oven igniter

Part #WB13K10026
Replaced by #WB13K21
?
Manufacturer substitution
This part replaces WB13K10026. Substitute parts can look different from the original.
BEST SELLER
In Stock
$56.22 |
8% OFF
Phone Price: $61.22
Range Oven Burner Igniter (replaces WB13K0021, WB13K10009, WB13K10026, WB13K12, WB13K13, WB13K14)#218

Gas & burner parts Diagram

Bake burner ignition

Part #WB13K0021
Replaced by #WB13K21
?
Manufacturer substitution
This part replaces WB13K0021. Substitute parts can look different from the original.
BEST SELLER
In Stock
$56.22 |
8% OFF
Phone Price: $61.22
Range Bake Burner (replaces WB16K0035, WB16K29)#26

Gas & burner parts Diagram

In Stock
$116.42 |
8% OFF
Phone Price: $126.42
Range Oven Light Lens (replaces WB2X6211, WB36X0192, WB36X279, WB36X299, WB36X389, WB8K5)#275

Body parts Diagram

Wb36x389

Part #WB08K0005
Replaced by #WB36X192
?
Manufacturer substitution
This part replaces WB08K0005. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$7.69 |
12% OFF
Phone Price: $8.69
Range Surface Burner Head (replaces WB16K10024)#155

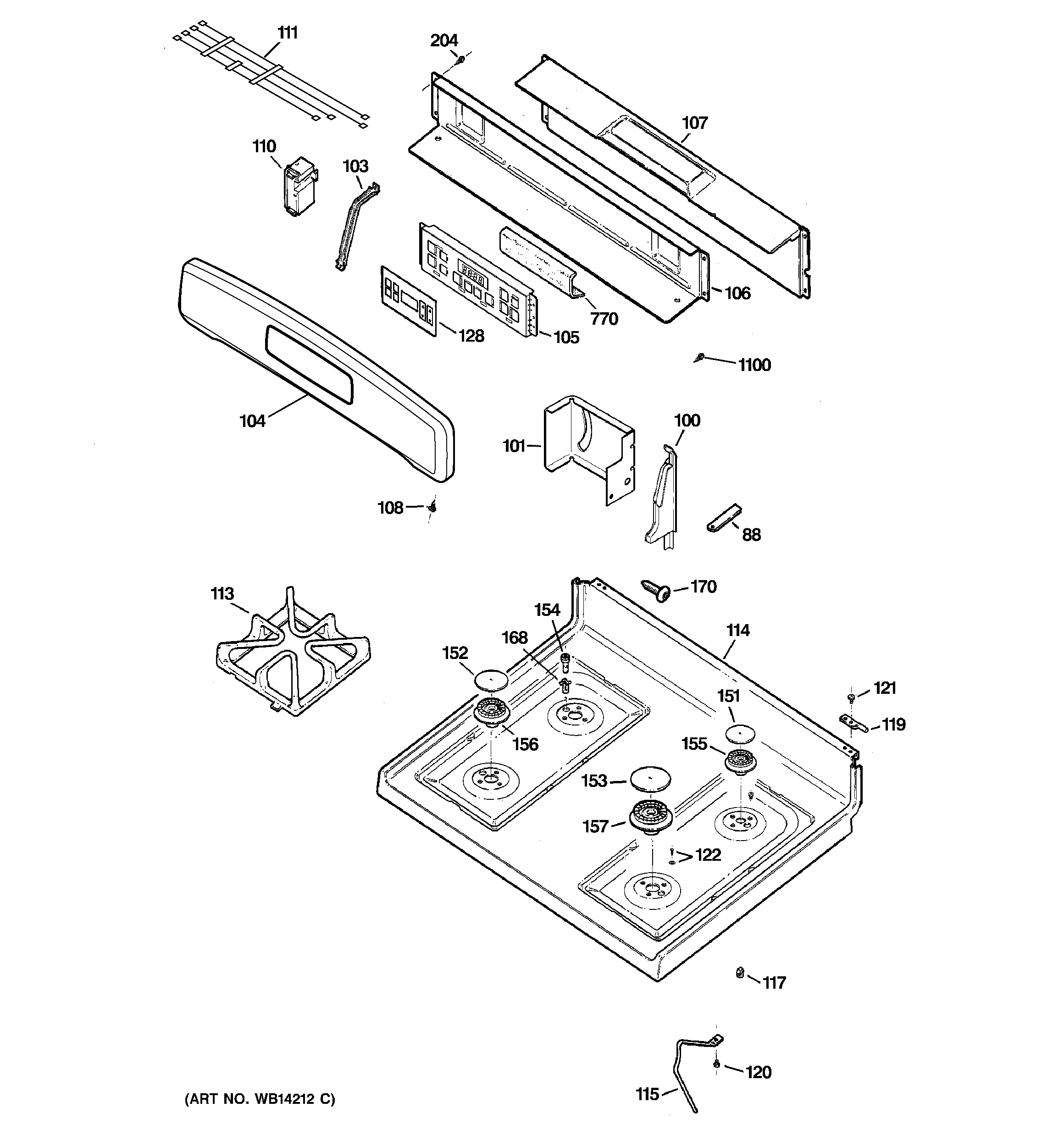

Control panel & cooktop Diagram

Burner

Part #WB16K10024
Replaced by #WB16K10070
?
Manufacturer substitution
This part replaces WB16K10024. Substitute parts can look different from the original.
BEST SELLER
In Stock
$22.39 |
18% OFF
Phone Price: $27.39
Range Light Socket (replaces WB08T10004)#230

Body parts Diagram

Range light socket (replaces wb08t10004)

Part #WB08T10026
BEST SELLER
This item is not returnable
In Stock
$7.69 |
12% OFF
Phone Price: $8.69
Range Storage Drawer Support#255

Body parts Diagram

Range storage drawer support

Part #WB02K10158
This item is not returnable
Back Order
$7.69 |
12% OFF
Phone Price: $8.69
Range Surface Burner Valve (replaces WB28K10396)#15

Gas & burner parts Diagram

Range surface burner valve (replaces wb28k10396)

Part #WB21K10100
This item is not returnable
In Stock
$32.19 |
13% OFF
Phone Price: $37.19
Range Oven Door Trim, Lower (replaces WB7K384)#359

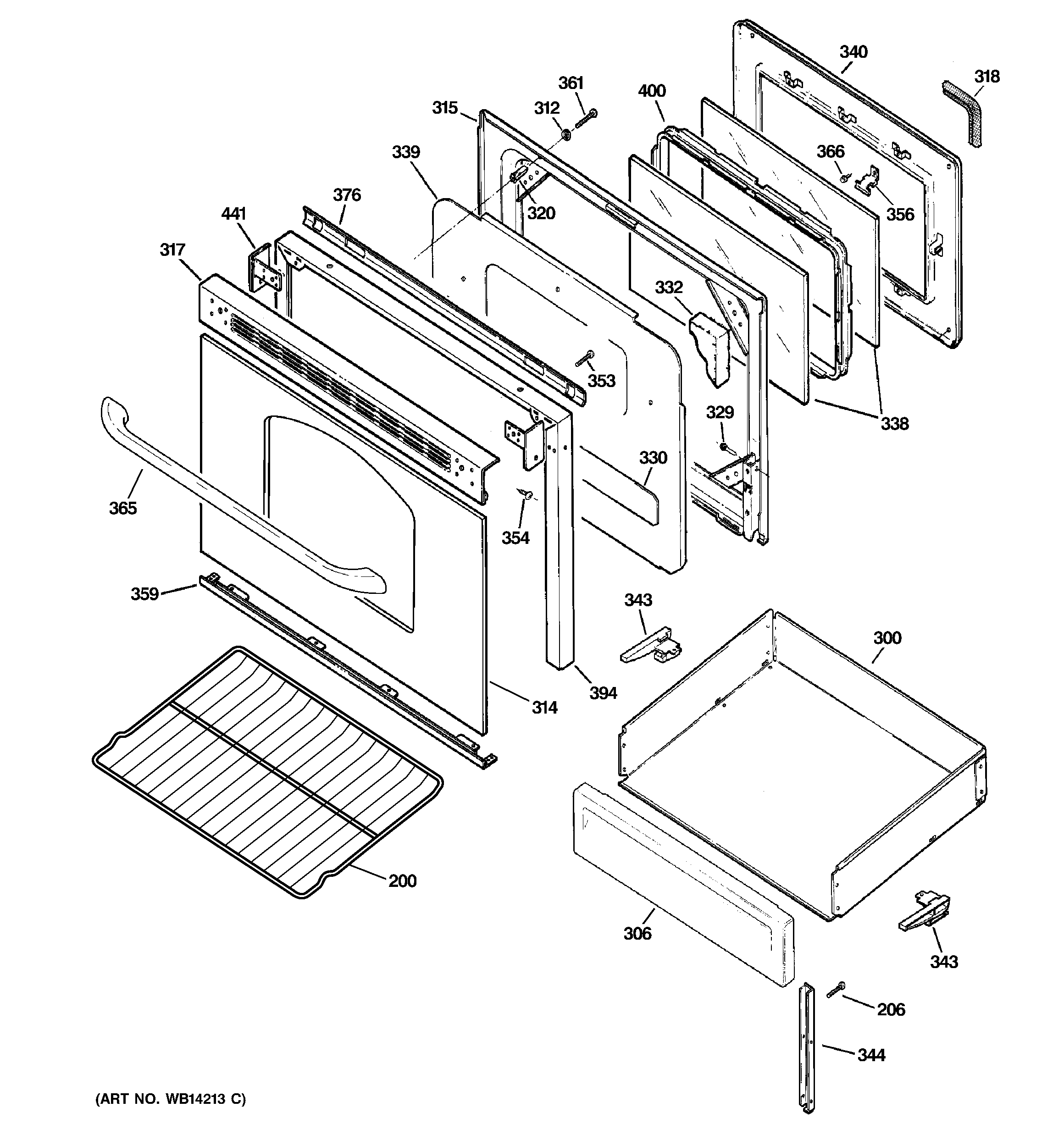

Door & drawer parts Diagram

Range oven door trim, lower (replaces wb7k384)

Part #WB07K10250
This item is not returnable
In Stock
$21.69 |
19% OFF
Phone Price: $26.69
