Kenmore 56561780 window-type evaporative air cooler Parts
Here are the diagrams and repair parts for Kenmore 56561780 window-type evaporative air cooler, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
SELECT DIAGRAM
Browse Parts for 56561780 Room Air Conditioners

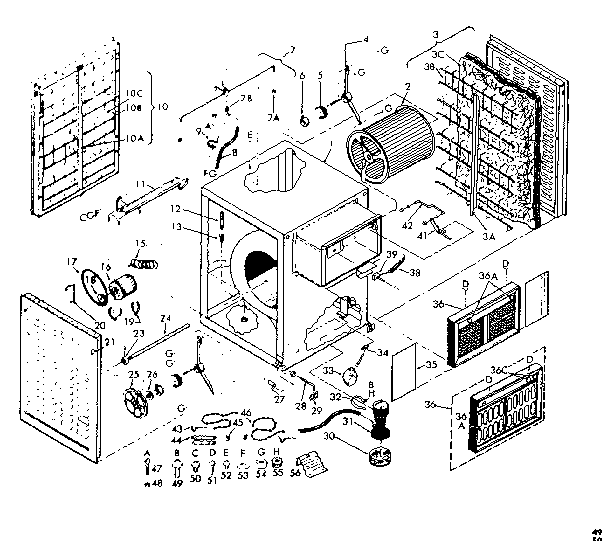

Functional replacement parts diagram
Pump
Part #A4-248
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Bearing
Part #P5-330-1
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Threaded Rod W/nut (2 Req.)
Part #P8-265
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Pad Assembly
Part #A5-264-1-114
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Grille Assembly (when Ordering Complete Grille Assembly, Order Grille Assembly And Two Louvered Arilles.)
Part #A6-859-1-S4-418
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Air Conditioner Blower Wheel
Part #A3-619
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Connector
Part #P9-227
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Spacer
Part #M14-467-1
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Cord Plug
Part #A7-293-43
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Bracket Strap
Part #M11-314-85
The manufacturer no longer makes this part, and there's no substitute part
