Bottom-Mount Refrigerator

Model #GDE21ESKJRSS GE bottom-mount refrigerator

Here are the diagrams and repair parts for GE GDE21ESKJRSS bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 25 parts

    GE Refrigerator Water Filter

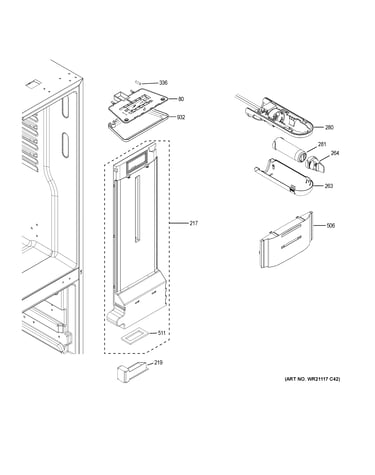

    Fresh food section Diagram

    Ge refrigerator water filter

    Part #XWF

    Get free shipping with Automatic Reorder


    In Stock

    Refrigerator Defrost Bi-Metal Thermostat

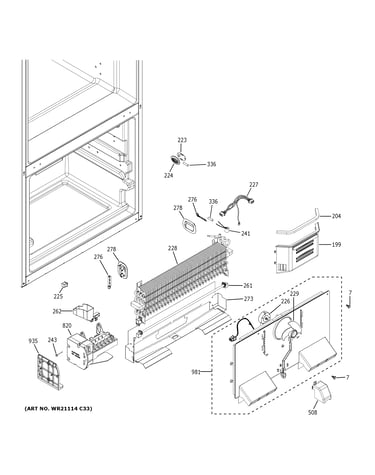

    Freezer section Diagram


    In Stock

    SCR 12-24 HXT20 .90 S

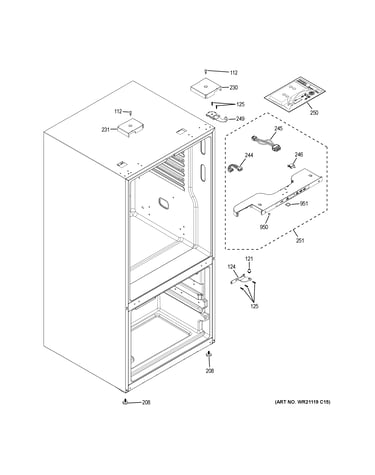

    Case parts Diagram

    Scr 12-24 hxt20 .90 s

    Part #WR01X27994
    This item is not returnable

    In Stock



    Fresh food door Diagram

    Gea badge flat chrome

    Part #WR04X29375
    This item is not returnable

    In Stock

    Refrigerator Cover


    Freezer section Diagram

    Refrigerator cover

    Part #WR02X24787

    In Stock

    Refrigerator Light Shield


    Freezer section Diagram

    Refrigerator light shield

    Part #WR17X24873

    In Stock

    Refrigerator Support

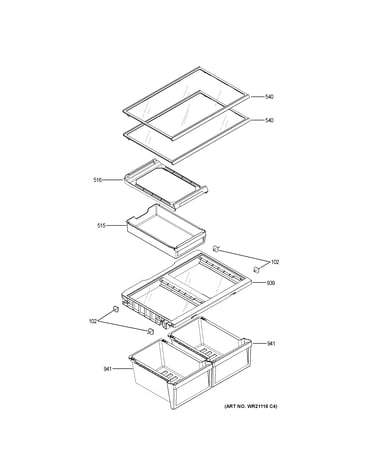

    Fresh food shelves Diagram

    Refrigerator support

    Part #WR71X25403

    In Stock

    Refrigerator Condenser Fan

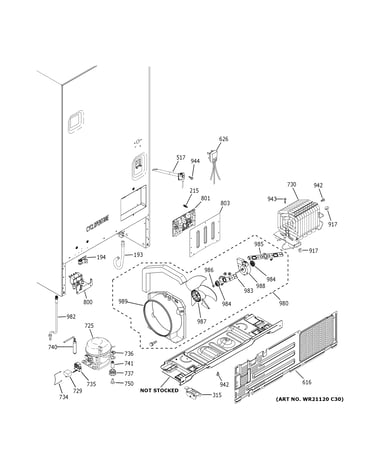

    Machine compartment Diagram


    In Stock

    Refrigerator Freezer Door Gasket


    Freezer door Diagram


    In Stock

    Refrigerator Holder

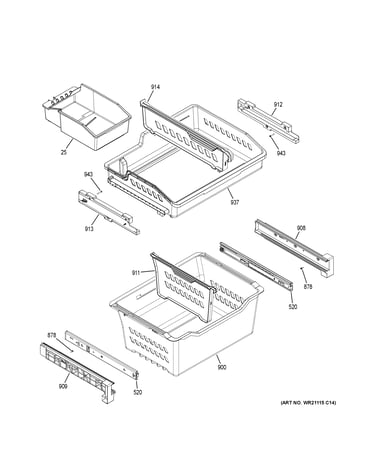

    Freezer shelves Diagram

    Refrigerator holder

    Part #WR72X24767

    In Stock

    Symptoms common to all refrigerators

    Choose a symptom to see related refrigerator repairs.

    Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubing, leaking door seal
    Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer or control board
    Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condenser fan not working
    Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freezer not cold enough
    Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan not running
    Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, clean the drain pan
    Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost timer problems
    Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, sensor problems
