Hoover
Upright Vacuum

Model # U4535-930 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover U4535-930 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |

Jacket Support 36425062
#6B

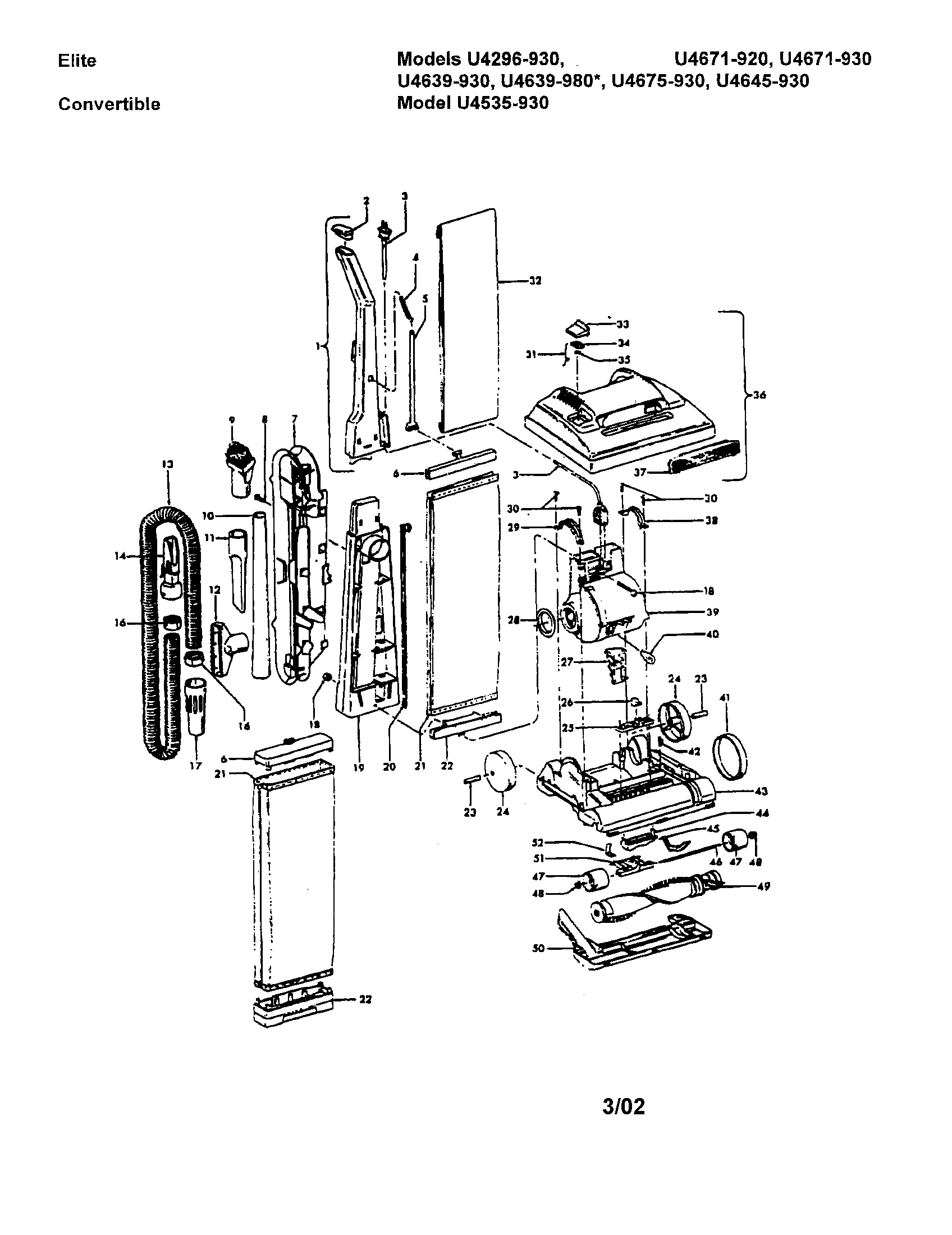

Vacuum assembly diagram

Jacket support

Part #36425062

The manufacturer no longer makes this part, and there's no substitute part

Spring 38335020
#4

Vacuum assembly diagram

Spring

Part #38335020

The manufacturer no longer makes this part, and there's no substitute part

Hght Adj Cam 38563011
#44

Vacuum assembly diagram

Hght adj cam

Part #38563011

The manufacturer no longer makes this part, and there's no substitute part

Bag Strap 36425072
#5A

Vacuum assembly diagram

Bag strap

Part #36425072

The manufacturer no longer makes this part, and there's no substitute part

Release Lever Handle 38458022
#27

Vacuum assembly diagram

Release lever handle

Part #38458022

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Outer Bag, 1-pack 43686177
#21E

Vacuum assembly diagram

Vacuum outer bag, 1-pack

Part #43686177

The manufacturer no longer makes this part, and there's no substitute part

Speed Nut 21362006
#35

Vacuum assembly diagram

Speed nut

Part #21362006

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 38522011
#24

Vacuum assembly diagram

Vacuum wheel

Part #38522011

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Spring 34572002
#52

Vacuum assembly diagram

Vacuum spring

Part #34572002

The manufacturer no longer makes this part, and there's no substitute part

Drawer 35111002

#NI03

All parts diagram

Drawer

Part #35111002

The manufacturer no longer makes this part, and there's no substitute part
