Craftsman
Walk-Behind Mower

Model # 52633900 Official Craftsman 20" rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 52633900 20" rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

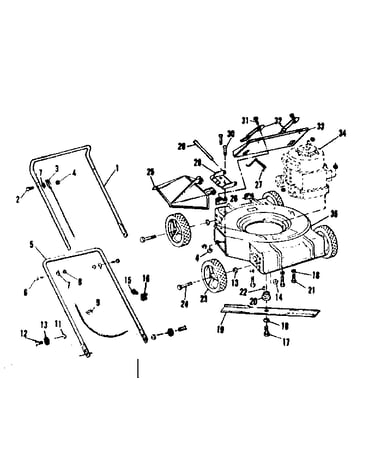

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Lock Nut 9413447
#8

Unit parts diagram

Lock nut

Part #9413447

The manufacturer no longer makes this part, and there's no substitute part

Washer 8728
#7

Unit parts diagram

Washer

Part #8728

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 997314
#4

Unit parts diagram

Lock nut

Part #997314

The manufacturer no longer makes this part, and there's no substitute part

Washer 996416
#13

Unit parts diagram

Washer

Part #996416

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 120382
#18

Unit parts diagram

Lock washer

Part #120382

The manufacturer no longer makes this part, and there's no substitute part

Walk-behind Lawn Mower Engine 14295
#34

Unit parts diagram

Walk-behind lawn mower engine

Part #14295

The manufacturer no longer makes this part, and there's no substitute part

Screw 46693
#12

Unit parts diagram

Screw

Part #46693

The manufacturer no longer makes this part, and there's no substitute part

Foot Pad 36664
#10

Unit parts diagram

Foot pad

Part #36664

The manufacturer no longer makes this part, and there's no substitute part

Key 2125
#22

Unit parts diagram

Key

Part #2125

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 45171
#14

Unit parts diagram

Lock nut

Part #45171

The manufacturer no longer makes this part, and there's no substitute part
