Kenmore
Garbage Disposal

Model # 17560501 Official Kenmore in-sink-erator garbage disposal

Here are the diagrams and repair parts for Official Kenmore 17560501 in-sink-erator garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

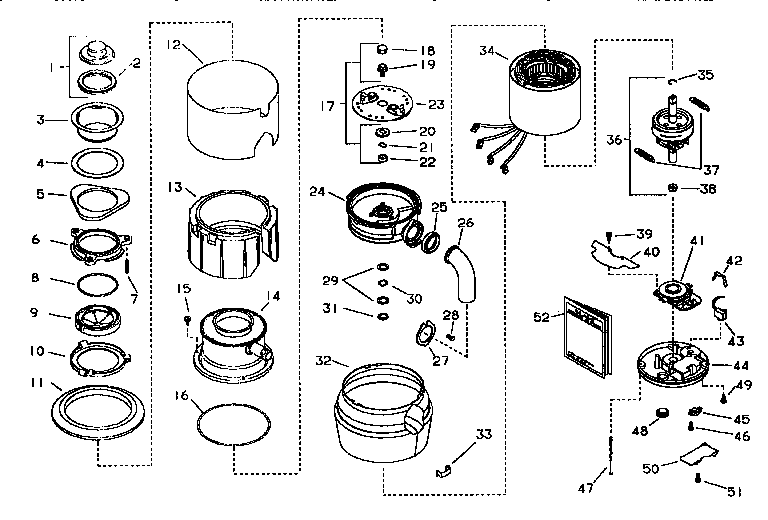

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |

Garbage Disposal Sink Flange Gasket 1160
#4

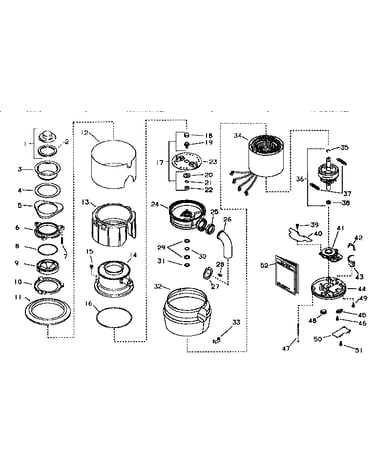

Replacement parts diagram

Garbage disposal sink flange gasket

Part #1160

The manufacturer no longer makes this part, and there's no substitute part

Bx Clamp 5060
#45

Replacement parts diagram

Bx clamp

Part #5060

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Support Ring 5166
#8

Replacement parts diagram

Garbage disposal support ring

Part #5166

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Screw 1491
#28

Replacement parts diagram

Garbage disposal screw

Part #1491

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Container O-ring 2539
#16

Replacement parts diagram

Garbage disposal container o-ring

Part #2539

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Sink Flange 5141
#6

Replacement parts diagram

Garbage disposal sink flange

Part #5141

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Drain Tube Flange 5490
#27

Replacement parts diagram

Garbage disposal drain tube flange

Part #5490

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Drain Stopper Gasket 5029
#2

Replacement parts diagram

Garbage disposal drain stopper gasket

Part #5029

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Drain Tube 2891
#26

Replacement parts diagram

Garbage disposal drain tube

Part #2891

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Tailpipe Gasket 1470
#25

Replacement parts diagram

Garbage disposal tailpipe gasket

Part #1470

The manufacturer no longer makes this part, and there's no substitute part
