Frigidaire RES34BNW1 electric range - lf32090560

Frigidaire RES34BNW1 electric range - lf32090560 Parts

Here are the diagrams and repair parts for Frigidaire RES34BNW1 electric range - lf32090560, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for RES34BNW1 Ranges

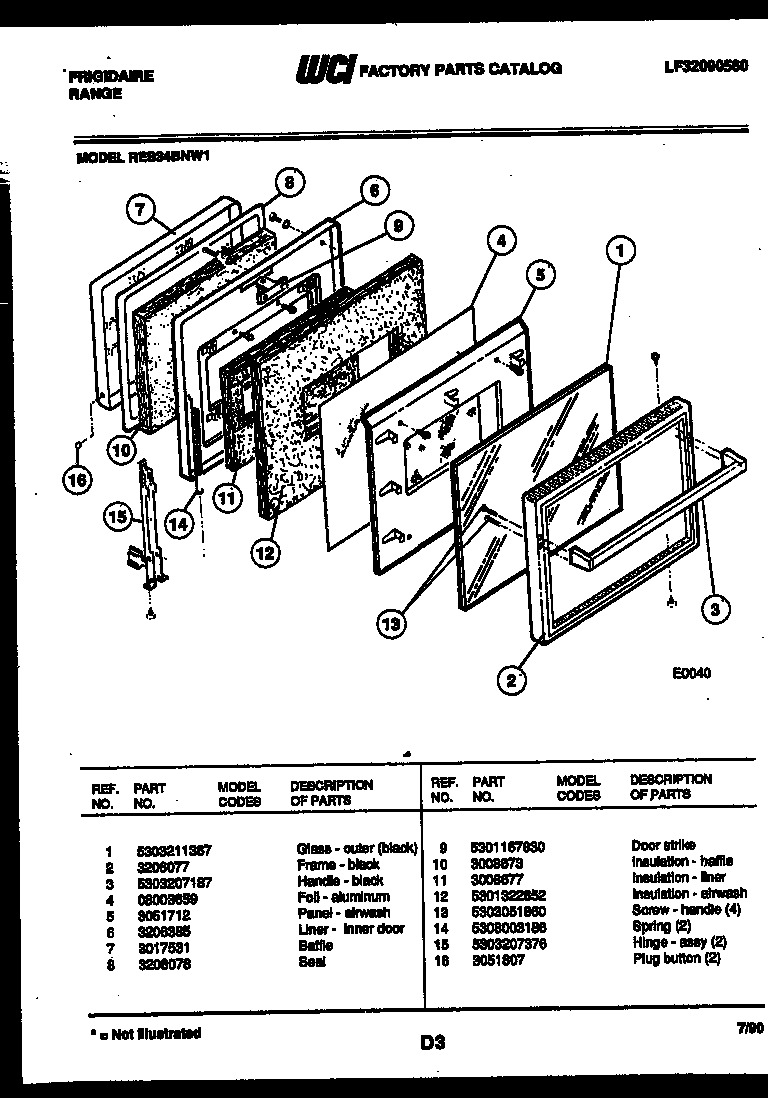

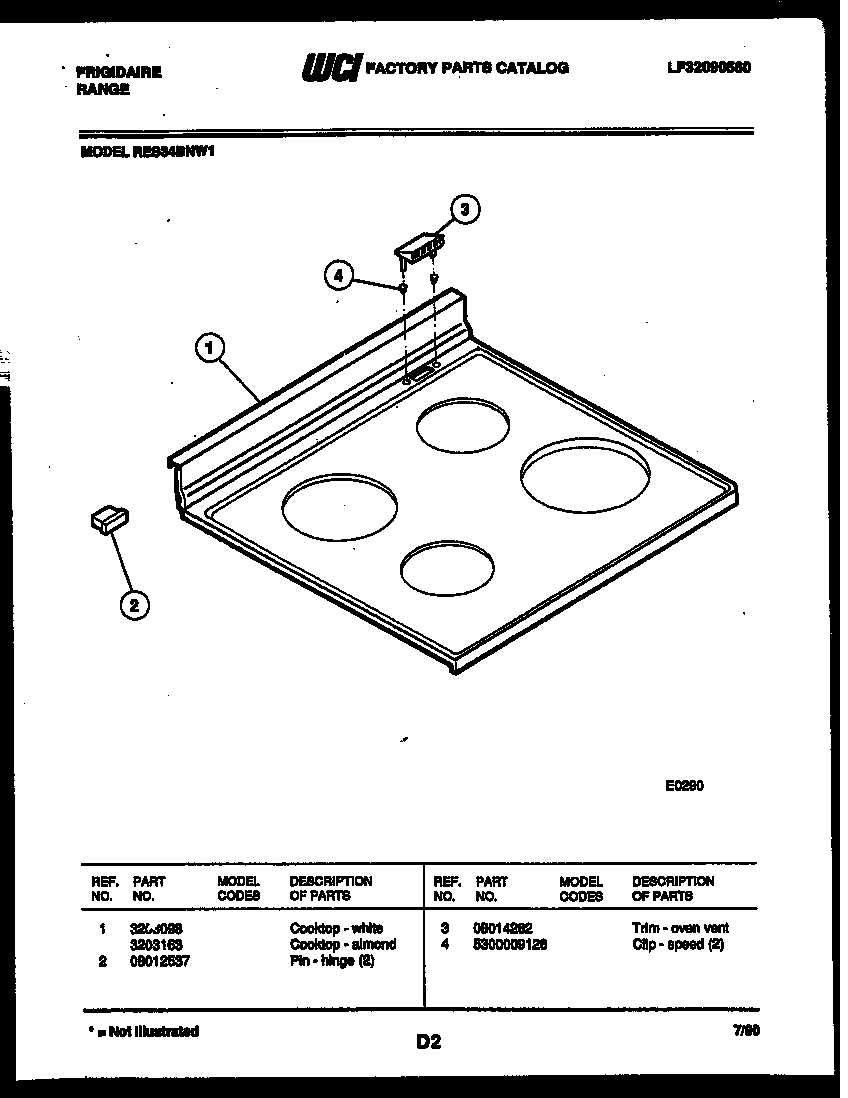

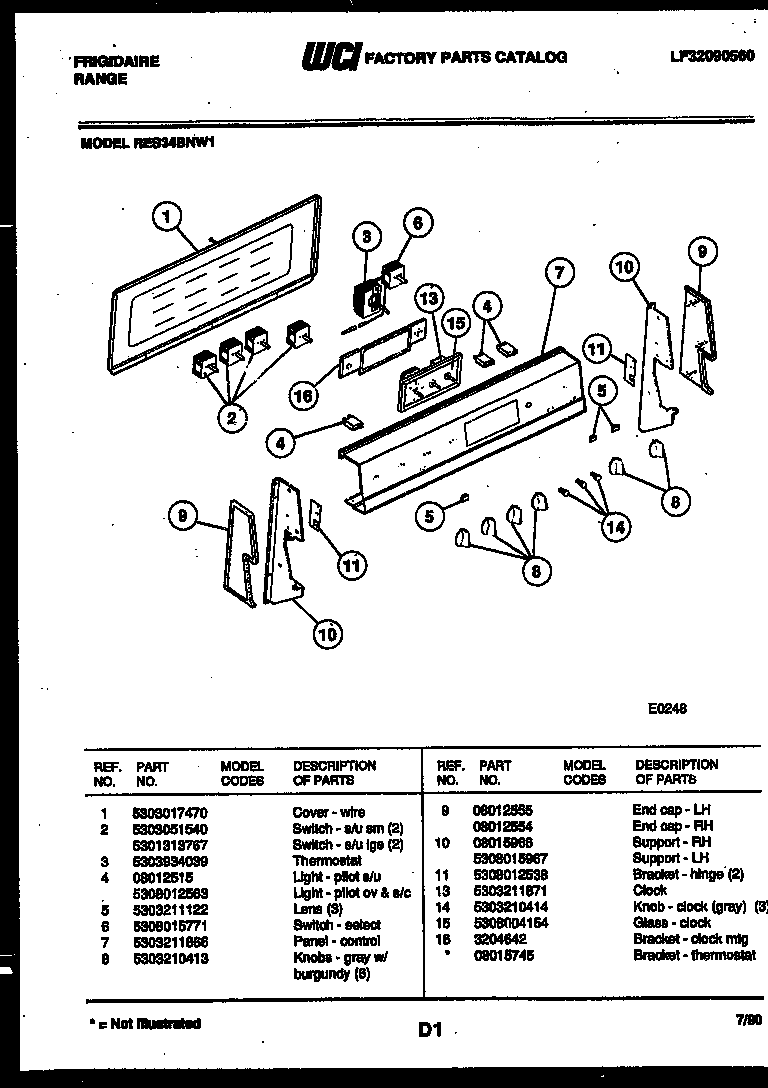

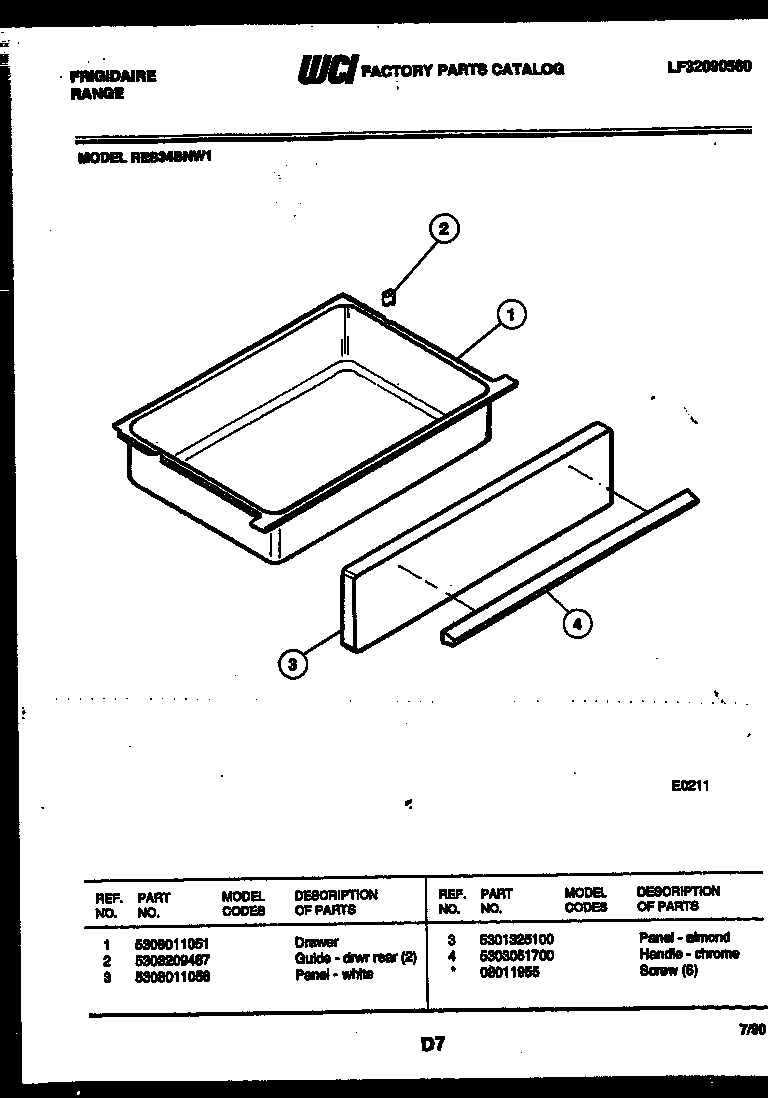

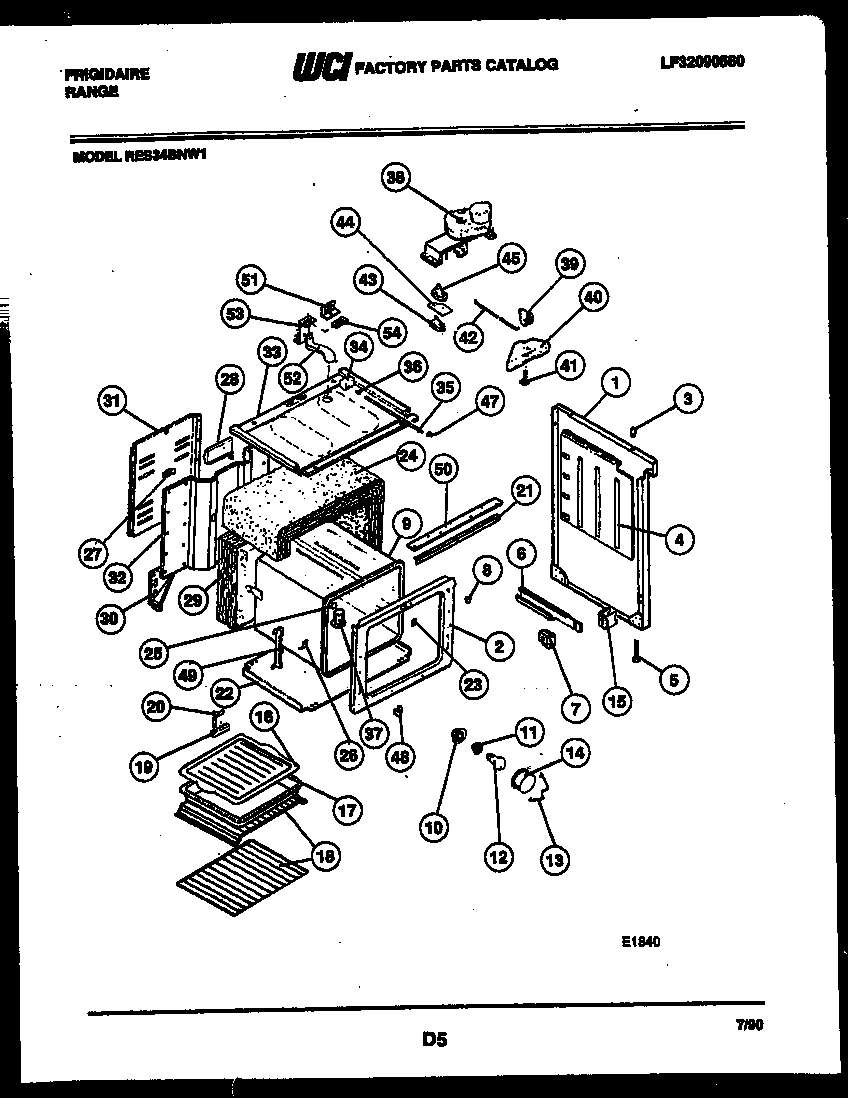

Body parts diagram
Panel
Part #3206275
In Stock
$34.83
Qty
Body parts diagram
Main
Part #3205757
In Stock
$63.11
Qty
Body parts diagram
Push Rod
Part #3051645
In Stock
$36.76
Qty
Body parts diagram
Rail Drawr L
Part #3051652
In Stock
$35.59
Qty
Body parts diagram
Bracket
Part #3051643
In Stock
$27.17
Qty

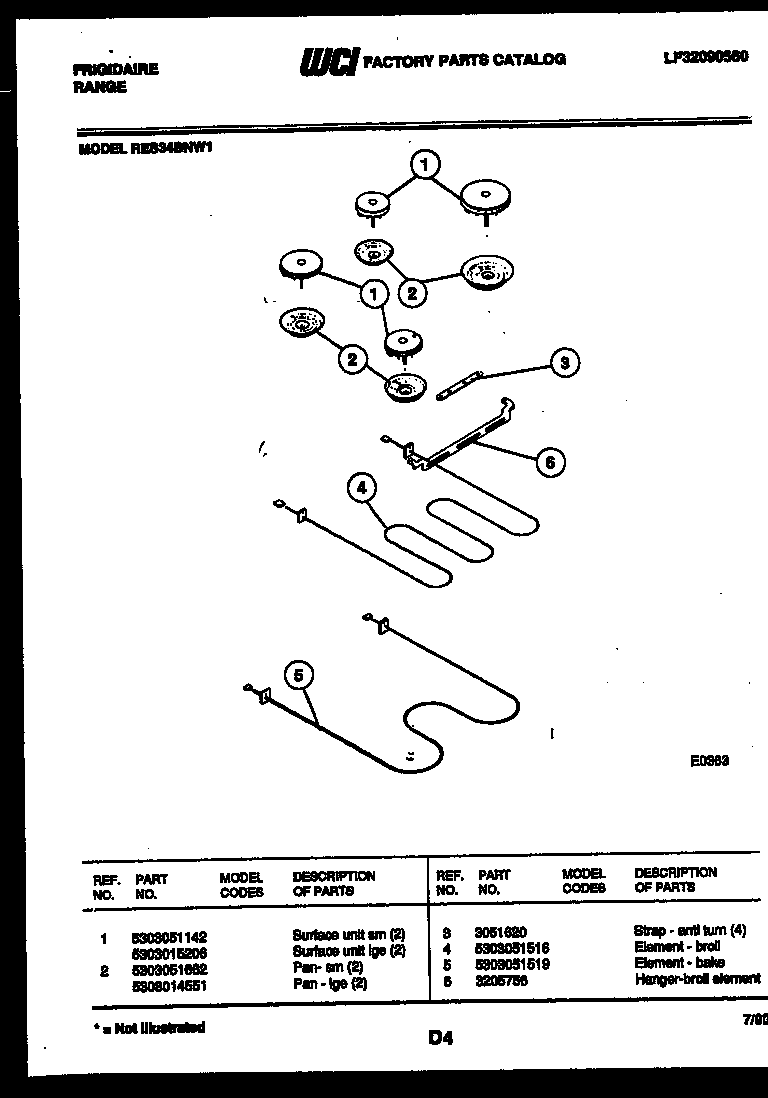

Broiler parts diagram
Range Broil Element
Part #5303051516
In Stock
$155.90
7% OFF Phone Price : $167.90
Qty
Body parts diagram
Guide
Part #3051654
Replaced by #318161600
Manufacturer substitution
This part replaces 3051654. Substitute parts can look different from the original.
In Stock
$112.09
Qty
Body parts diagram
Block
Part #5306563359
Replaced by #5304409888
Manufacturer substitution
This part replaces 5306563359. Substitute parts can look different from the original.
In Stock
$24.56
20% OFF Phone Price : $30.56
Qty
Body parts diagram
Cover
Part #3051251
Replaced by #08067758
Manufacturer substitution
This part replaces 3051251. Substitute parts can look different from the original.
In Stock
$26.71
Qty
#NI
All parts diagram
Range Screw, #10-24 X 0.375-in
Part #08011955
Replaced by #5303311174
Manufacturer substitution
This part replaces 08011955. Substitute parts can look different from the original.
This item is not returnable
In Stock
$18.03
10% OFF Phone Price : $20.03
Qty

Most common symptoms to help you fix your ranges

Choose a symptom to see related range repairs.

Why isn't my range working?

Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…

Why doesn't my range's oven broiler work?

Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…

Why won't my range's oven heat?

Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…

Why can't I unlock my range's oven door?

Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…

Why is my range's oven temperature wrong?

Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…

Why won't my range's oven bake?

Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…

How do I get rid of streaks on my range's oven window?

Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
