Maytag
Microwave/Hood Combo

Model # MMV1174DE0 Official Maytag microwave/hood combo

Here are the diagrams and repair parts for Official Maytag MMV1174DE0 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |

Lamp Assembly 4393681
#3

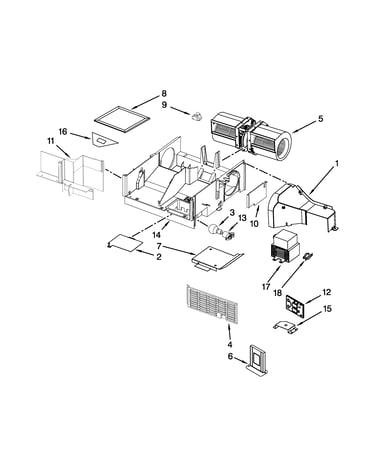

Air flow parts diagram

Lamp assembly

Part #4393681

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
BEST SELLER
$9.30
42% OFF MSRP : $16.00
Back Order
Microwave/hood Light Bulb 8206232
#2

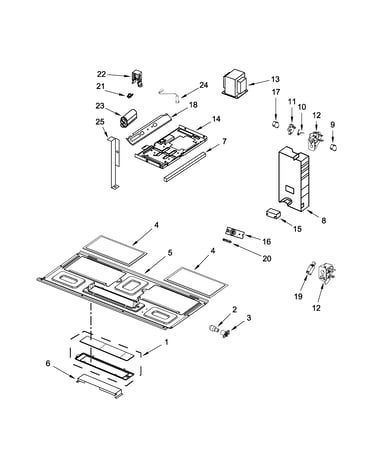

Interior and ventilation parts diagram

Microwave/hood light bulb

Part #8206232

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
BEST SELLER
$9.30
42% OFF MSRP : $16.00
Back Order
Filter W10208631
#4

Interior and ventilation parts diagram

Filter

Part #W10208631

Replaced by #W10208631A

?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
BEST SELLER
$35.32
12% OFF Phone Price : $40.32
In Stock
Microwave Mounting Plate W10440498
#1

Cabinet and installation parts diagram

Microwave mounting plate

Part #W10440498

Replaced by #W11025649

?
Manufacturer substitution
This part replaces W10440498. Substitute parts can look different from the original.
BEST SELLER
$12.77
14% OFF Phone Price : $14.77
In Stock
Microwave Installation Template W10190018
#NI

Cabinet and installation parts diagram

Microwave installation template

Part #W10190018

BEST SELLER
This item is not returnable
$6.39
14% OFF Phone Price : $7.39
In Stock
Microwave Light Socket W10210871
#3

Interior and ventilation parts diagram

Microwave light socket

Part #W10210871

BEST SELLER
This item is not returnable
$6.49
62% OFF MSRP : $17.00
In Stock
Microwave Turntable Support Ring W10435114
#5

Turntable parts diagram

Microwave turntable support ring

Part #W10435114

Replaced by #W11252182

?
Manufacturer substitution
This part replaces W10435114. Substitute parts can look different from the original.
BEST SELLER
$38.92
11% OFF Phone Price : $43.92
In Stock
Microwave High-voltage Diode W10492278
#24

Interior and ventilation parts diagram

Microwave high-voltage diode

Part #W10492278

Replaced by #W11256462

?
Manufacturer substitution
This part replaces W10492278. Substitute parts can look different from the original.
BEST SELLER
$24.65
18% OFF MSRP : $30.00
In Stock
Interlock W10156813
#12A

Interior and ventilation parts diagram

Interlock

Part #W10156813

Replaced by #WPW10156813

?
Manufacturer substitution
This part replaces W10156813. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.99
53% OFF MSRP : $15.00
In Stock
Microwave Screw 8169704
#NI

Cabinet and installation parts diagram

Microwave screw

Part #8169704

Replaced by #WP8169704

?
Manufacturer substitution
This part replaces 8169704. Substitute parts can look different from the original.
This item is not returnable
$4.99
17% OFF Phone Price : $5.99
In Stock
