Frigidaire
Top-Mount Refrigerator

Model # FPD14TIFF0 Official Frigidaire top-mount refrigerator - lf30588180

Here are the diagrams and repair parts for Official Frigidaire FPD14TIFF0 top-mount refrigerator - lf30588180, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

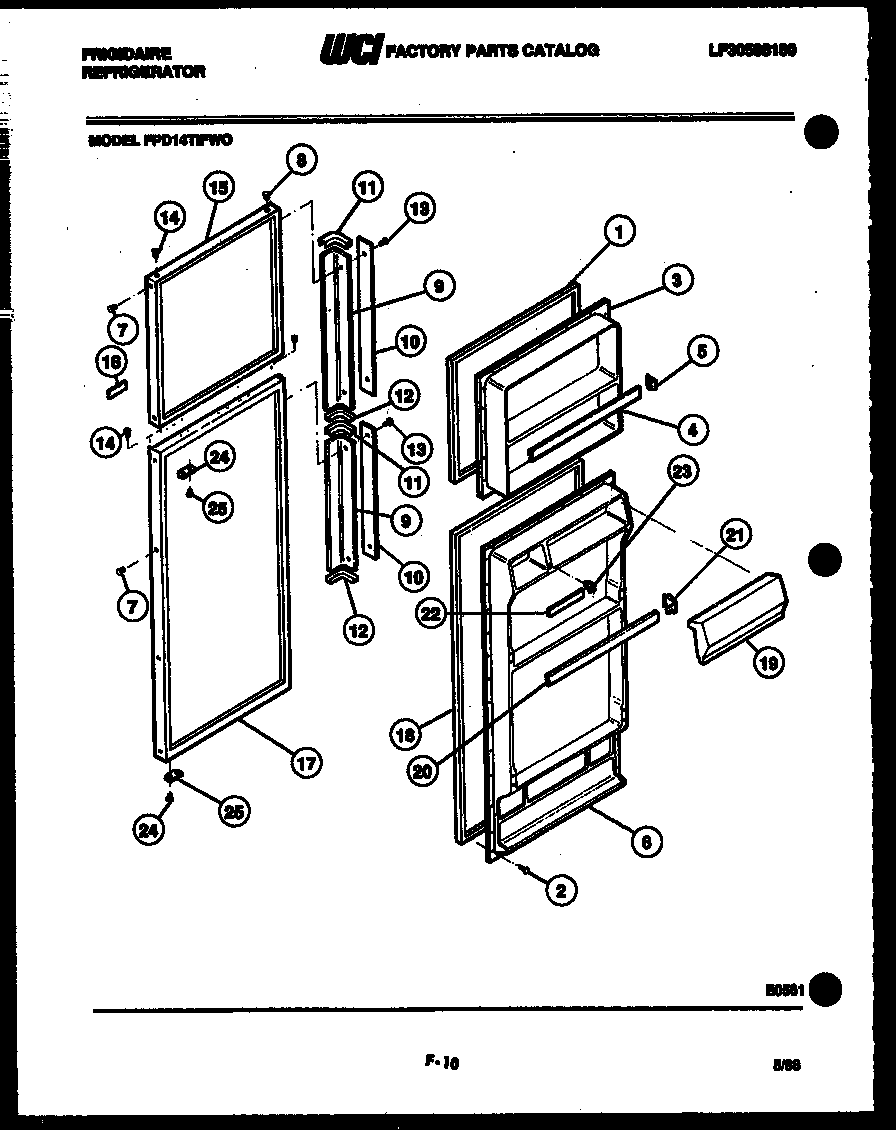

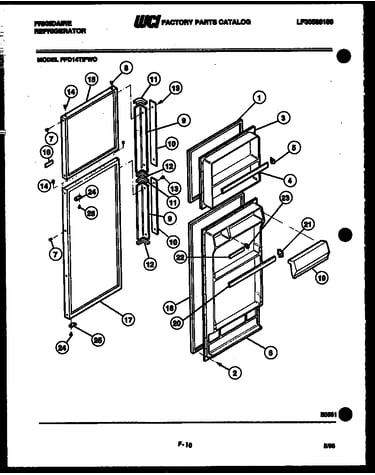

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 214 parts  |

Refrigerator Filter Dryer
#1

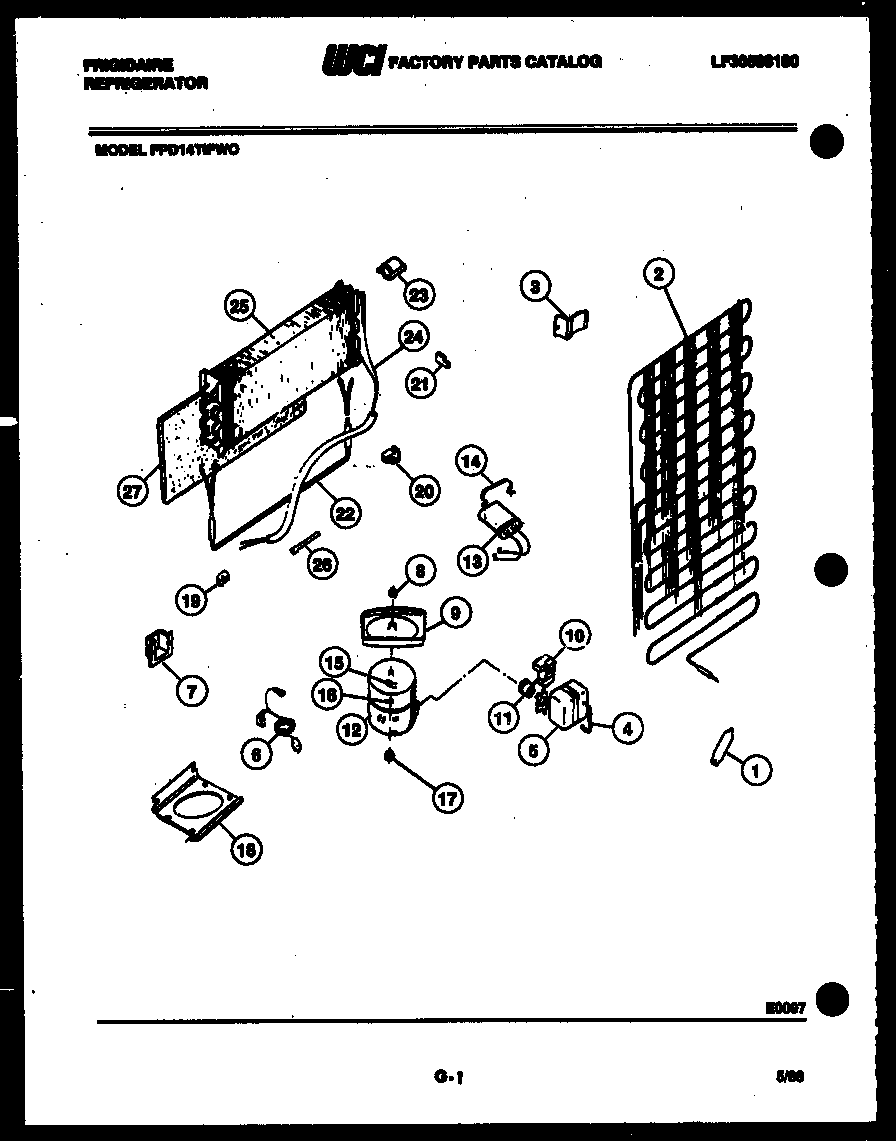

System and automatic defrost parts diagram

Drier

Part #3007351

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 3007351. Substitute parts can look different from the original.
BEST SELLER
$10.30
37% OFF MSRP : $16.34
In Stock
Refrigerator Screw, #8-15 x 0.625-in (replaces 215005000, 240409001, 5304453926, 5308016566, 636T091P15, 75304455650)
#22A

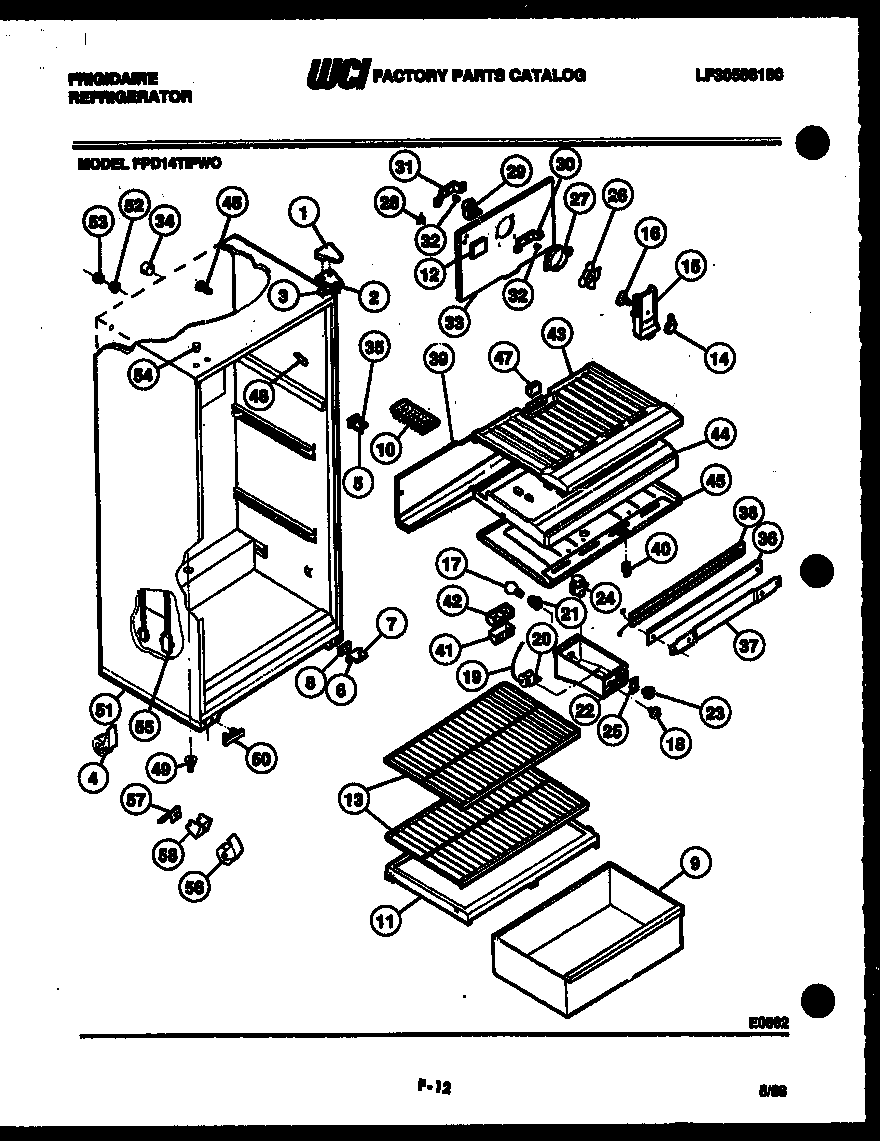

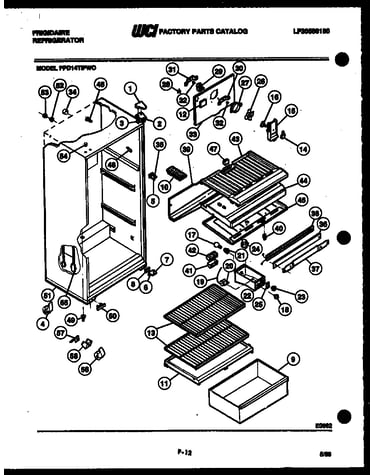

Cabinet parts diagram

Refrigerator screw

Part #8012354

Replaced by #5304455650

?
Manufacturer substitution
This part replaces 8012354. Substitute parts can look different from the original.
This item is not returnable
$14.79
12% OFF Phone Price : $16.79
In Stock
Refrigerator Screw (replaces 216850900, 241951701, 5303001479, 7241710601)
#2B

Cabinet parts diagram

Refrigerator hinge screw

Part #8000123

Replaced by #241710601

?
Manufacturer substitution
This part replaces 8000123. Substitute parts can look different from the original.
This item is not returnable
$14.19
12% OFF Phone Price : $16.19
In Stock
Refrigerator Ice Maker Mounting Screw
#43

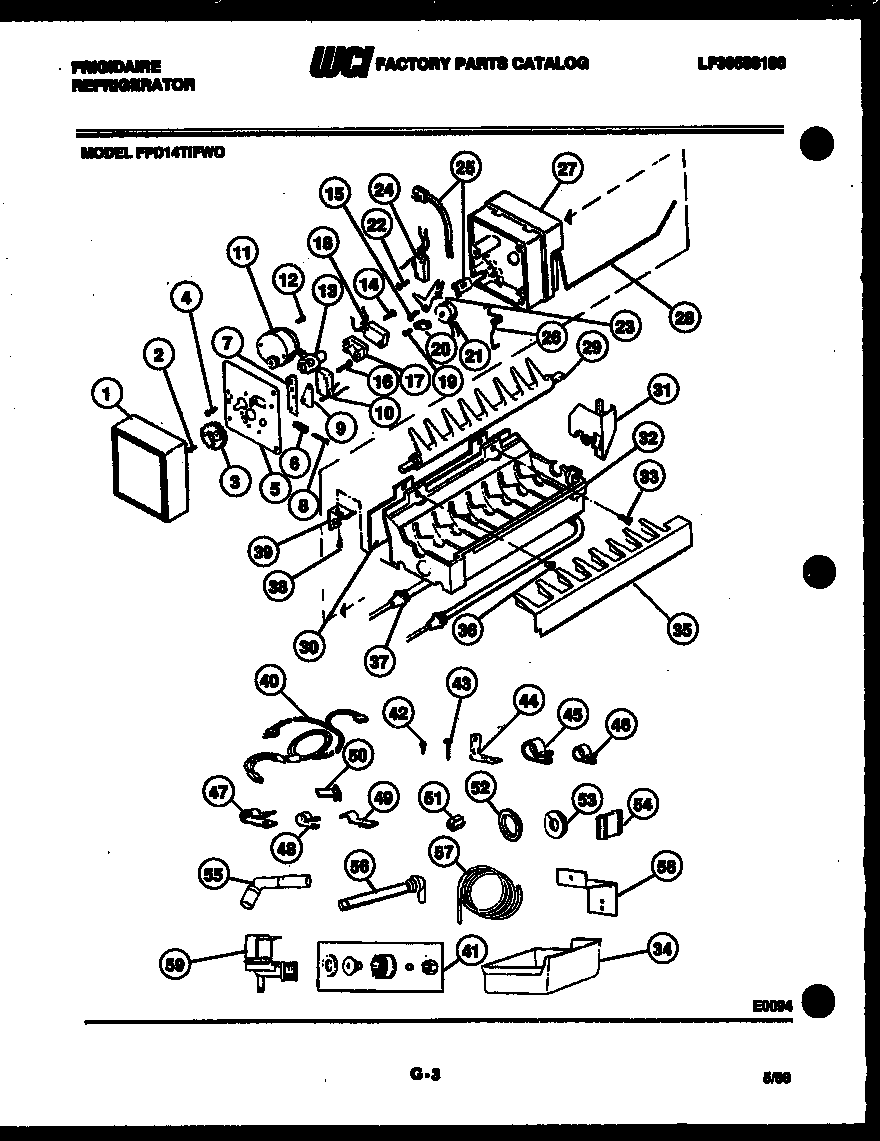

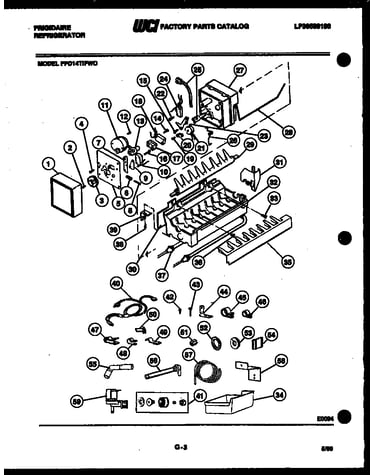

Ice maker and installation parts diagram

Refrigerator screw

Part #8002728

Replaced by #5304455852

?
Manufacturer substitution
This part replaces 8002728. Substitute parts can look different from the original.
In Stock
Refrigerator Door Shelf Rail End Cap, Left
Refrigerator door support

Part #3017381

Replaced by #5303323481

?
Manufacturer substitution
This part replaces 3017381. Substitute parts can look different from the original.
This item is not returnable
$14.79
12% OFF Phone Price : $16.79
In Stock
Refrigerator Ice Container
#34

Ice maker and installation parts diagram

Refrigerator ice container

Part #3018438

Replaced by #5303212895

?
Manufacturer substitution
This part replaces 3018438. Substitute parts can look different from the original.
In Stock
Refrigerator Bracket
#3

System and automatic defrost parts diagram

Refrigerator condenser bracket

Part #8003600

Replaced by #5308000296

?
Manufacturer substitution
This part replaces 8003600. Substitute parts can look different from the original.
$17.26
10% OFF Phone Price : $19.26
In Stock
Refrigerator Strap
#26

System and automatic defrost parts diagram

Refrigerator strap

Part #8000110

Replaced by #5308000110

?
Manufacturer substitution
This part replaces 8000110. Substitute parts can look different from the original.
$50.79
9% OFF Phone Price : $55.79
In Stock
Refrigerator Screw
#28A

Cabinet parts diagram

Refrigerator screw

Part #8002748

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 8002748. Substitute parts can look different from the original.
In Stock
Refrigerator Shelf Support End Cap, Right
Refrigerator door support

Part #3017378

Replaced by #5303323480

?
Manufacturer substitution
This part replaces 3017378. Substitute parts can look different from the original.
This item is not returnable
In Stock
