Model # 11630212000 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 11630212000 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |

Vacuum Drive Belt 4369591
#5

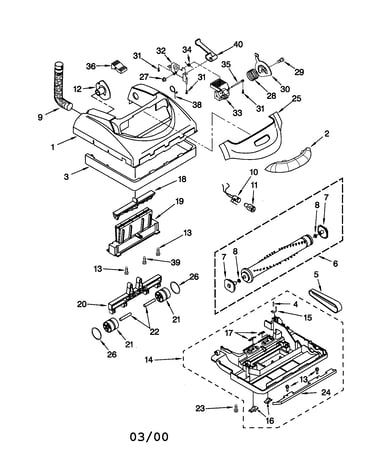

Nozzle diagram

Vacuum drive belt

Part #4369591

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Assembly (replaces 4370786) 4370760
Vacuum hose assembly (replaces 4370786)

Part #4370760

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 4368684
#3

Hose and attachment diagram

Vacuum crevice tool

Part #4368684

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368563
Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Extension Wand 4369625
#1

Hose and attachment diagram

Extension wand

Part #4369625

The manufacturer no longer makes this part, and there's no substitute part

Spring 4370845
#13

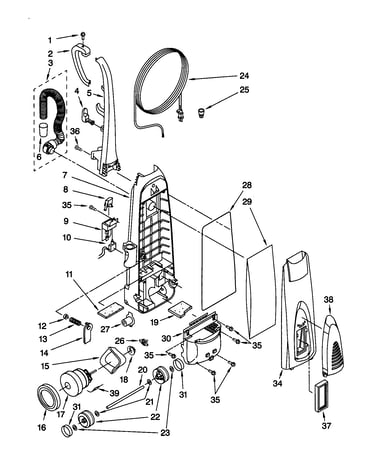

Dust compartment and motor diagram

Spring

Part #4370845

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Axle 4369561
#20

Dust compartment and motor diagram

Vacuum wheel axle

Part #4369561

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Knob 4369542
#18

Nozzle diagram

Vacuum knob

Part #4369542

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Switch Cover 4370762
#9

Dust compartment and motor diagram

Vacuum switch cover

Part #4370762

The manufacturer no longer makes this part, and there's no substitute part

Frame Pedal 4370256
#32

Nozzle diagram

Frame pedal

Part #4370256

The manufacturer no longer makes this part, and there's no substitute part
