Amana ALW540RMC-PALW540RMC1 washer Parts
Here are the diagrams and repair parts for Amana ALW540RMC-PALW540RMC1 washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

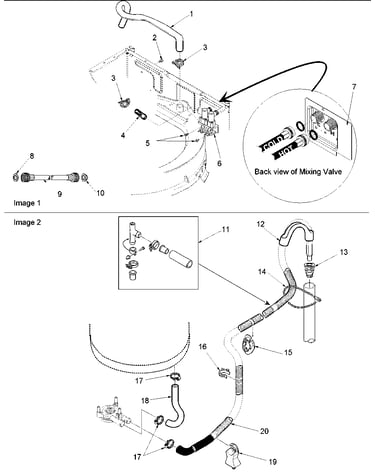

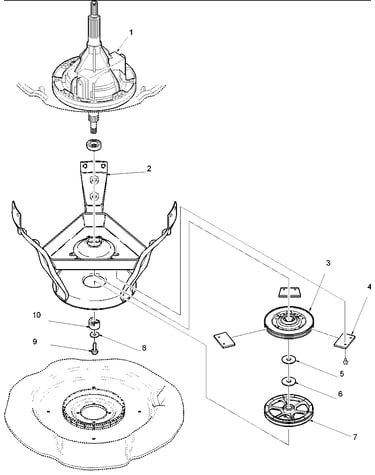

SELECT DIAGRAM
Browse Parts for ALW540RMC-PALW540RMC1 Washer

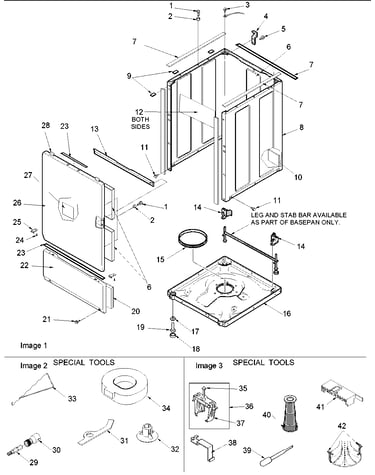

Base, cabinet, front and special tools diagram
Bumper Pad
Part #56128
The manufacturer no longer makes this part, and there's no substitute part
Base, cabinet, front and special tools diagram
Bolt
Part #294P4B
The manufacturer no longer makes this part, and there's no substitute part

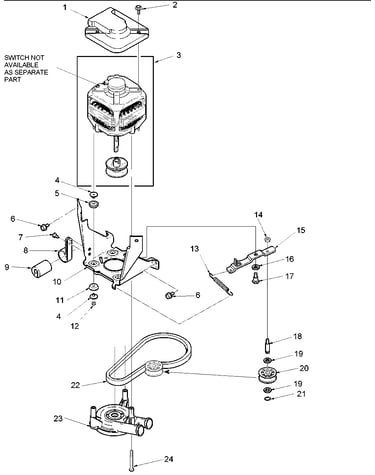

Motor, belt, pump, and idler assy diagram
Motor Mount
Part #40054301
The manufacturer no longer makes this part, and there's no substitute part
Base, cabinet, front and special tools diagram
Ring
Part #40037401
The manufacturer no longer makes this part, and there's no substitute part
Motor, belt, pump, and idler assy diagram
Post
Part #40053701
The manufacturer no longer makes this part, and there's no substitute part
Base, cabinet, front and special tools diagram
Term Extr Tl
Part #283P4
The manufacturer no longer makes this part, and there's no substitute part

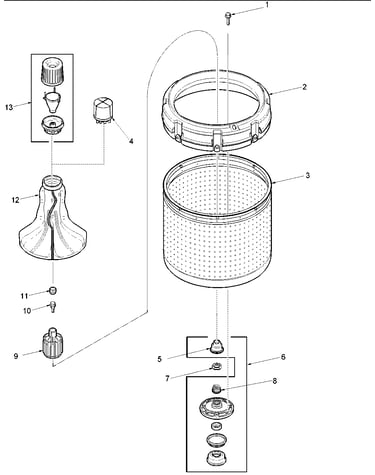

Agitator, drive bell, washtub and hub diagram
Assembly Wash Tub
Part #40000801
The manufacturer no longer makes this part, and there's no substitute part

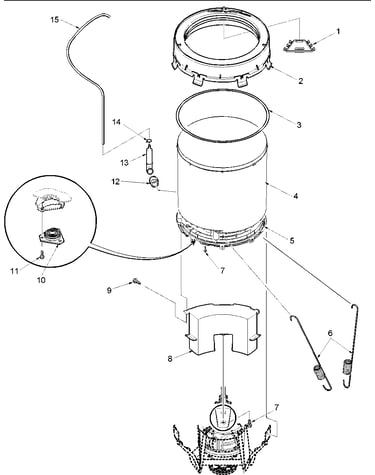

Outer tub and pressure tube diagram
Screw
Part #40064301
The manufacturer no longer makes this part, and there's no substitute part

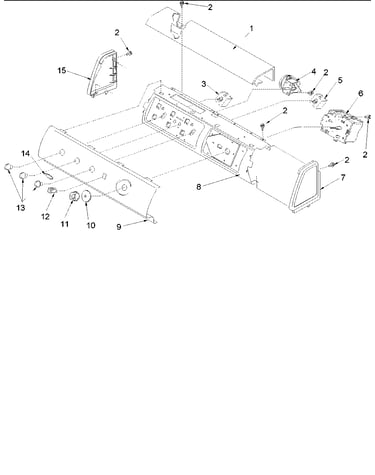

Control panels diagram
Panel, Supp Control
Part #40039601
The manufacturer no longer makes this part, and there's no substitute part

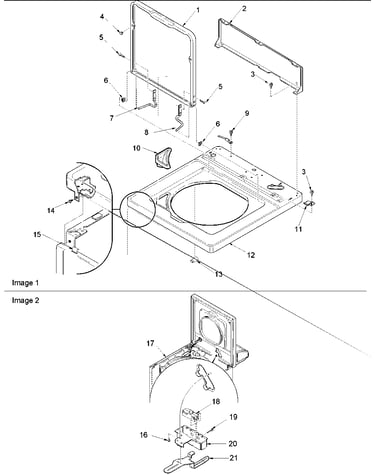

Cabinet top, door, and door switch diagram
Arm
Part #40009701
The manufacturer no longer makes this part, and there's no substitute part
