Bosch HBN5450UC/03 electric built-in oven Parts
Here are the diagrams and repair parts for Bosch HBN5450UC/03 electric built-in oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for HBN5450UC/03 Wall Ovens

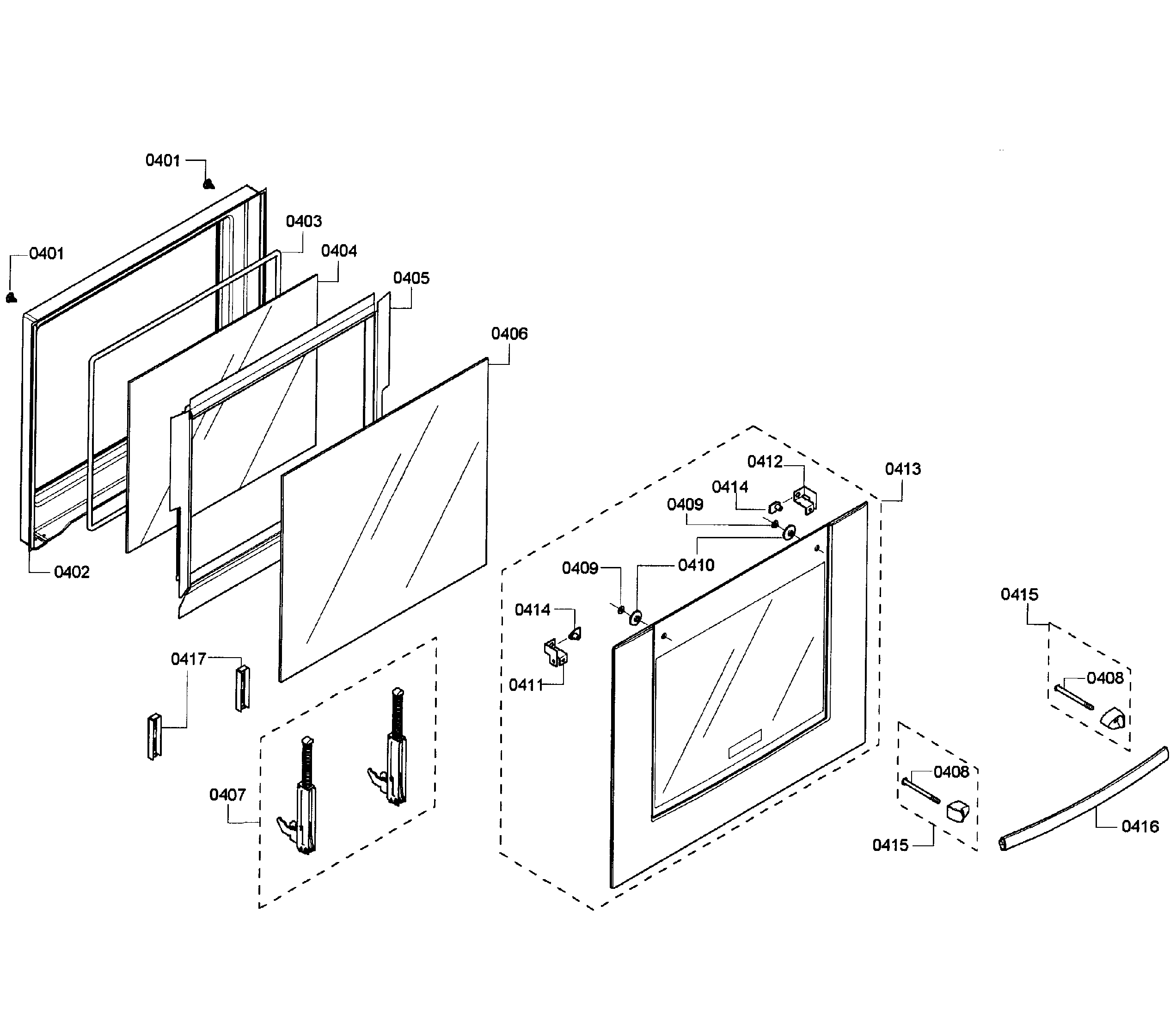

Door assy diagram
Glass Panel
Part #665058Replaced by #00665058
Manufacturer substitutionThis part replaces 665058. Substitute parts can look different from the original.In Stock$145.318% OFF Phone Price : $157.31
Qty
Door assy diagram
Washer
Part #611387Replaced by #00611387
Manufacturer substitutionThis part replaces 611387. Substitute parts can look different from the original.In Stock$61.52QtyDoor assy diagram
Screw
Part #611386Replaced by #00611386
Manufacturer substitutionThis part replaces 611386. Substitute parts can look different from the original.In Stock$63.44QtyHarness
Part #663794Replaced by #11033493

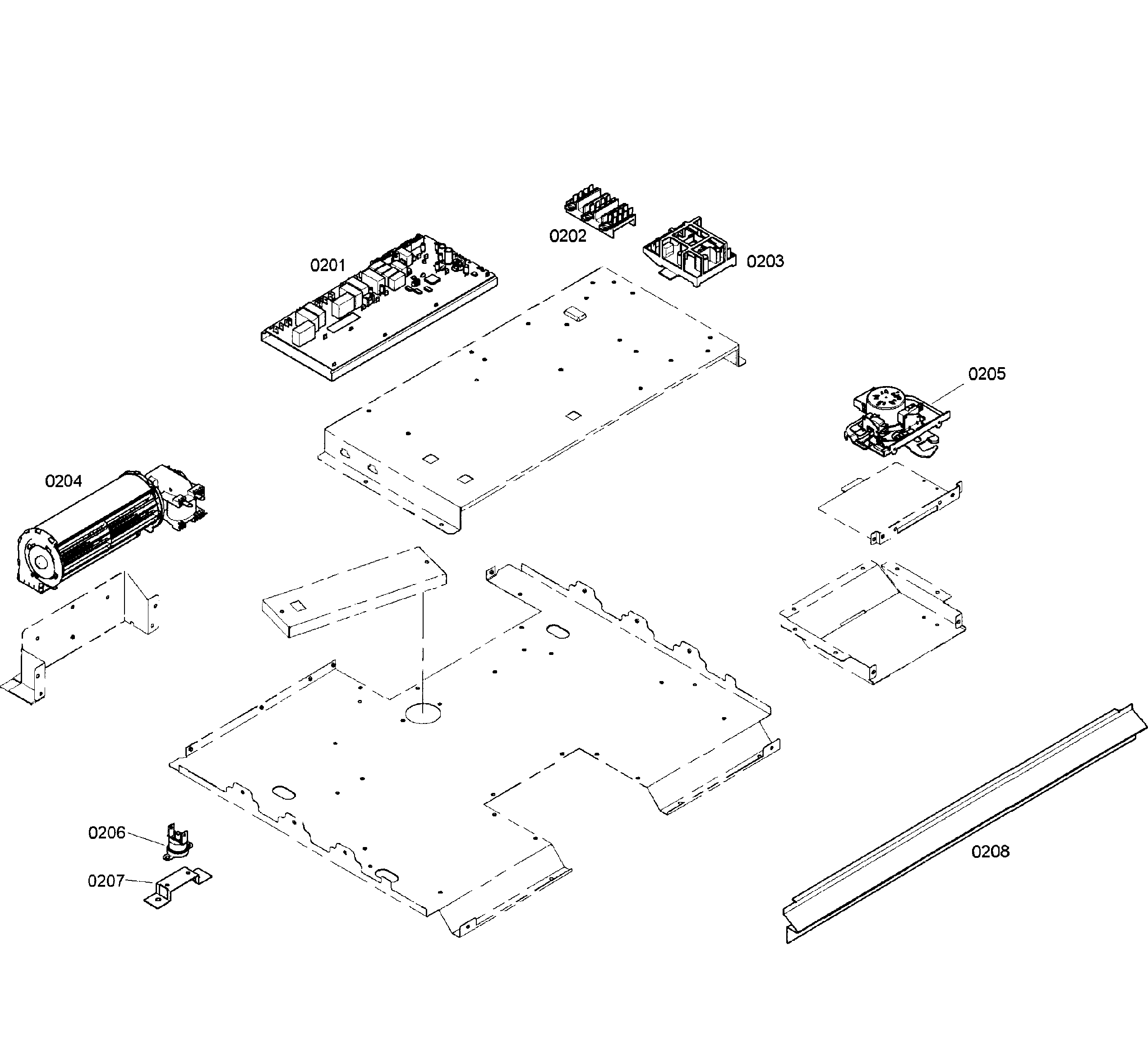

Manufacturer substitutionThis part replaces 663794. Substitute parts can look different from the original.In Stock$59.23QtyPcb's assy diagram
Fan
Part #665045Replaced by #00665045

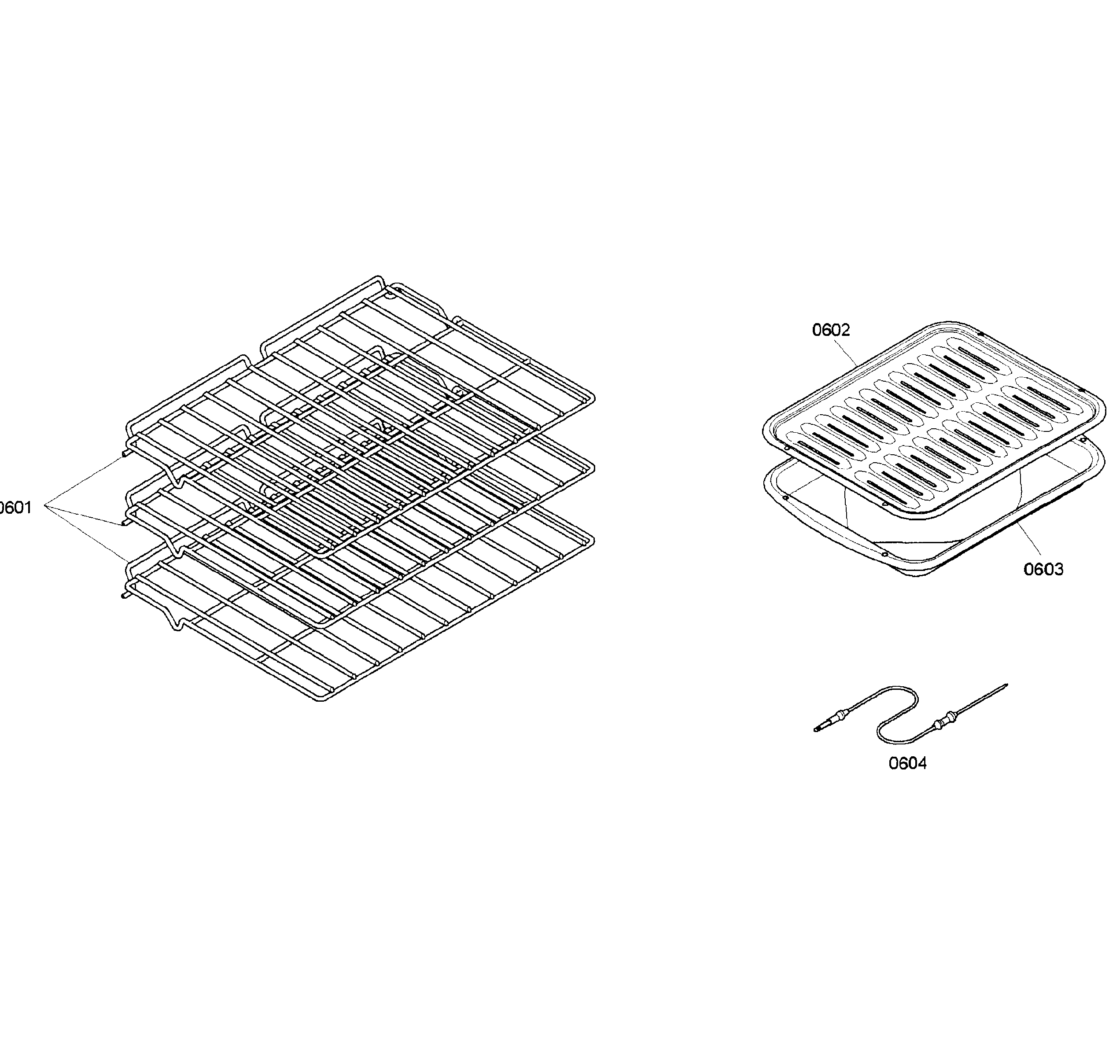

Manufacturer substitutionThis part replaces 665045. Substitute parts can look different from the original.In Stock$316.62QtyShelfs diagram
Pan
Part #449757
The manufacturer no longer makes this part, and there's no substitute part

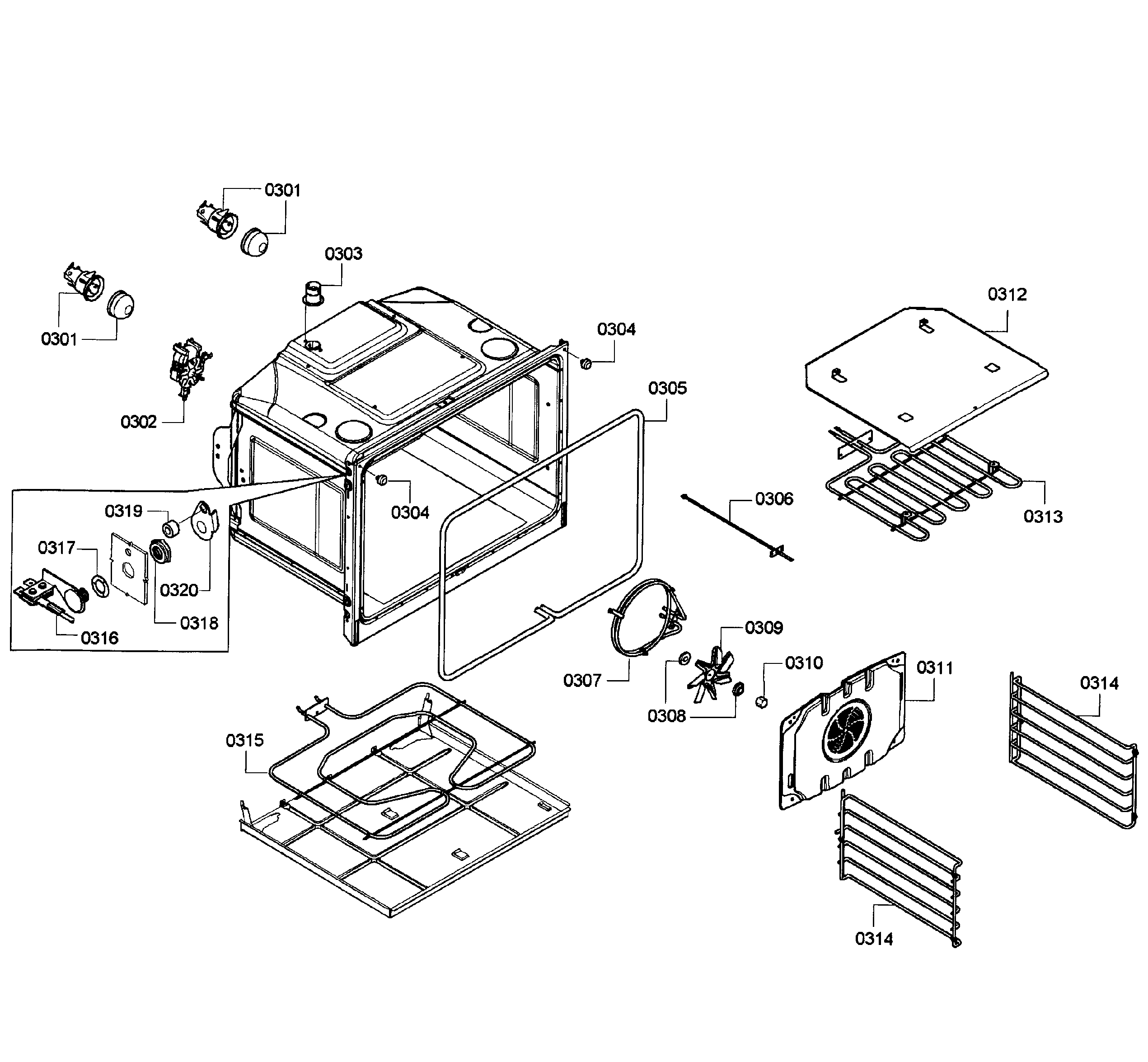

Oven assy diagram
Oven
Part #245839
The manufacturer no longer makes this part, and there's no substitute part
Cabinet assy diagram
Cover
Part #681711
The manufacturer no longer makes this part, and there's no substitute part
Door assy diagram
Adhesive T
Part #423241
The manufacturer no longer makes this part, and there's no substitute part

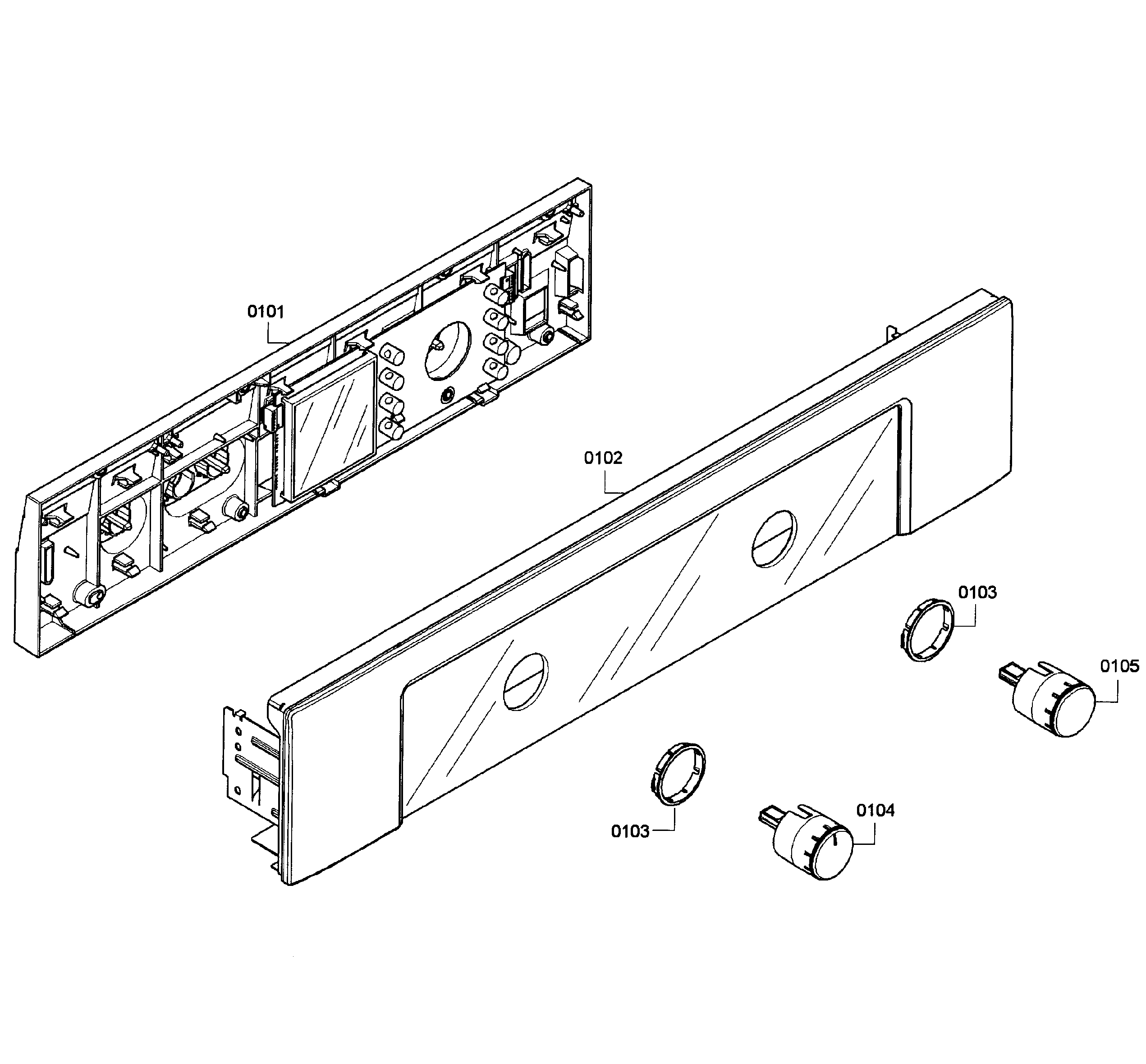

Control panel diagram
Ring
Part #423808
The manufacturer no longer makes this part, and there's no substitute part
