How to tell cubic feet of Kenmore refrigerator by model number?
For Kenmore model 25360412616, the most reliable way to get cubic feet is to look up the capacity in the 25360412616 owner's manual. If you cannot find a listed capacity there, you can still estimate it by measuring the usable interior space and converting cubic inches to cubic feet.
Fast ways to find capacity (best to least exact)
- Check the specifications/features section in the 25360412616 owner's manual.
- Look for a rating plate/serial plate inside the fresh food compartment; it lists the model and serial number and sometimes includes additional product data.
- Use the model number to compare within the Kenmore 253.60xx top-mount family; capacity is often similar within a series, but exact cubic feet can vary by configuration.
- Estimate capacity by measuring interior dimensions (most accurate DIY method).
How to estimate cubic feet by measuring
- Empty the refrigerator enough to measure the main usable box (ignore door bins and small contours).
- Measure width x depth x height in inches for:
- Fresh food compartment
- Freezer compartment
- Convert each compartment to cubic feet:
- Cubic feet = (L x W x H) ÷ 1728
- Add the two results for an estimated total.
Quick conversion table
| What you have | Convert to | Formula |
|---|---|---|
| Inches (L x W x H) | Cubic inches | Multiply L x W x H |
| Cubic inches | Cubic feet | Divide by 1728 |
Why the model number alone is not a sure capacity indicator
Kenmore model numbers can hint at series and platform (for example, many Kenmore 253-prefix units share design traits), but cubic feet changes with shelf layout, insulation thickness, and liner design. The manual and measured interior volume give the dependable answer.
Last updated: January 2026
Is there a way to reset a Kenmore Elite refrigerator?
Yes. For the Kenmore 25360412616 top-mount refrigerator, the most reliable reset is a power reset: unplug the refrigerator (or switch the breaker off) for 5 minutes, then restore power and allow up to 15 minutes for the compressor to restart. Confirm the exact control steps in the 25360412616 owner's manual.
Quick reset options (start here)
- Power reset: Unplug for 5 minutes, then plug back in.
- Breaker reset: Turn the refrigerator circuit breaker off for 5 minutes, then back on.
- After power is restored: Wait 15 minutes for the compressor to start (normal delay).
- After changing temperature settings: Wait 24 hours before making more adjustments.
- If it is not cooling after reset: Check that doors fully close and vents are not blocked.
What a reset can and cannot fix
A reset helps most with control glitches after a power interruption. It will not correct airflow or sealed-system problems.
| Symptom after reset | Most common cause | What to check next |
|---|---|---|
| Lights on, no cooling yet | Normal restart delay | Wait 15 minutes, listen for compressor/fans |
| Runs a lot | Warm room, frequent door openings | Reduce door openings, verify door seal |
| Not cooling, fans quiet | Power issue or defrost cycle | Outlet/breaker, allow time for defrost cycle |
| Frost buildup, warm fresh food | Defrost or airflow issue | Evaporator area, consider refrigerator defrost heater 242044008 if diagnosed faulty |
Why it matters
Resetting correctly prevents unnecessary part replacements and helps you separate a temporary control-board glitch from issues like a door gasket leak, blocked airflow, or a defrost problem.
Safety and handling notes
- If you need to move the refrigerator to access the outlet, use a hand truck and never pull on the handles.
- Push the refrigerator straight back into place so you do not stress the power cord or water line.
Last updated: January 2026
What is the upper part of a fridge called?
On the Kenmore 25360412616 top-mount refrigerator, the upper compartment is the freezer compartment. It’s the section designed to keep foods frozen, store ice, and supply cold air that helps maintain proper temperatures throughout the refrigerator.

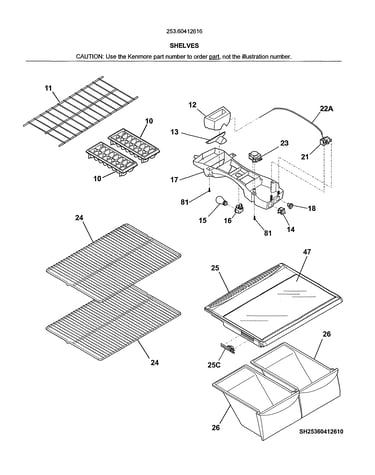

What you’ll typically find in the upper (freezer) section
In this model’s freezer area, common components include:
- Ice maker (if equipped)
- Ice bucket and/or ice tray

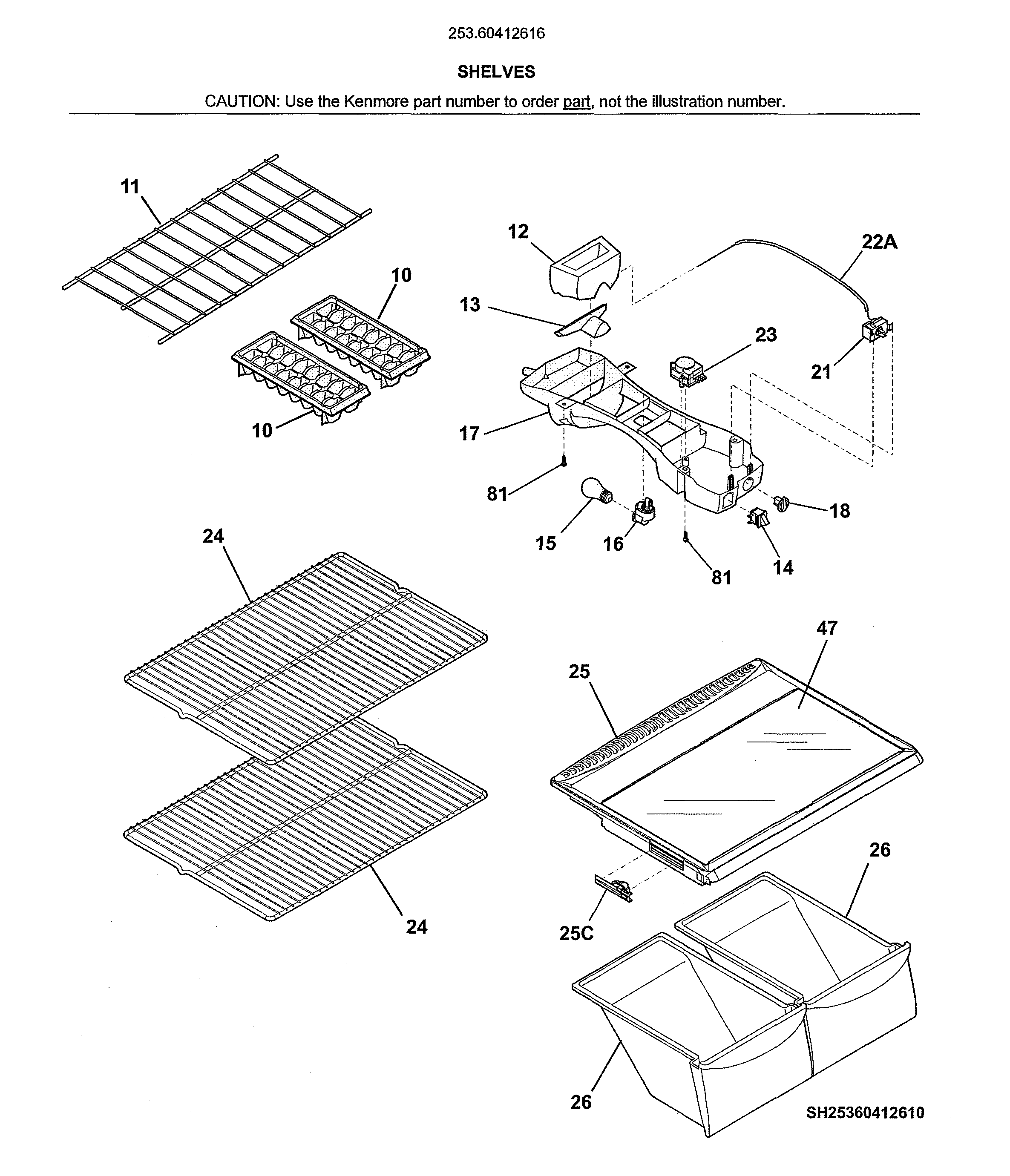

- Freezer shelf
- Auxiliary freezer control (a separate freezer temperature adjustment)
- Cold air vents that circulate air into the fresh food section
For the exact layout and names used for your unit, use the 25360412616 owner's manual.
Freezer vs. refrigerator compartment: quick comparison
| Area | Common name | Main job | Typical setpoint |
|---|---|---|---|
| Upper section (top-mount) | Freezer compartment | Freezes food, stores ice | 0°F |
| Lower section | Fresh food (refrigerator) compartment | Keeps food cold (not frozen) | 37°F |
Why it matters
Knowing the correct compartment name helps when you’re ordering parts, reading diagrams, or troubleshooting issues like warm freezer temps, frost buildup, or poor airflow. For example, if airflow is blocked, temperatures in both compartments can drift.
Tips to keep the upper freezer working efficiently
- Don’t block freezer air vents with boxes or bags
- Keep the freezer shelf seated correctly so air can circulate
- Use the auxiliary freezer control in small adjustments and wait about 24 hours to judge results
- Level the refrigerator so doors close and seal tightly
- Keep door openings brief to reduce temperature swings
Last updated: January 2026
